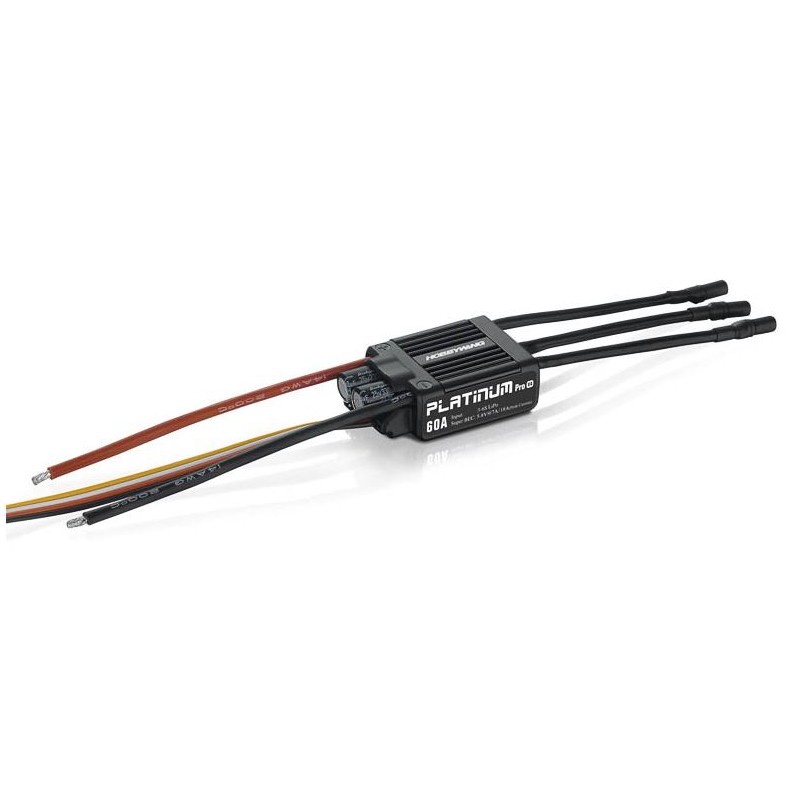

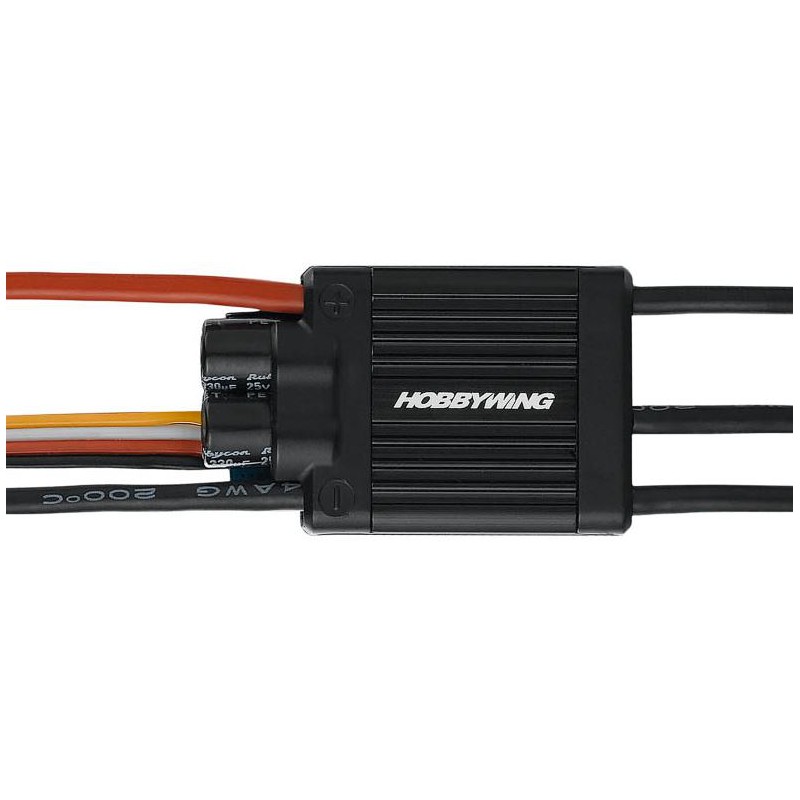

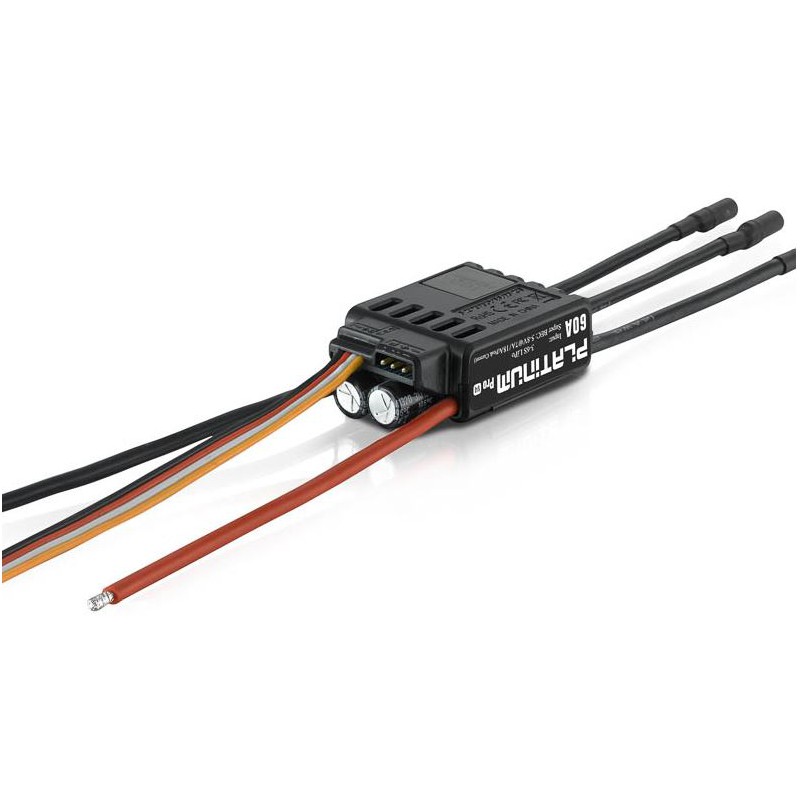

Hobbywing Platinum 60A V4 - 7A BEC (2-6S)

HW30215100

New product

The Hobbywing Platinum Series are professional ESCs for helicopter and airplane use, with high performances and advanced functions like governor mode for helicopter.

Hobbywing Platinum 60A V4 ESC 7A BEC (2-6s Lipo) Brushless ESC

Can supply your servos with a 7 amps built in Battery Eliminator Circuit.
For 450/480 Class rc helicopters.

More details

83,60 € tax incl.

More info

Hobbywing Platinum 60A V4 ESC, with 7A BEC brushless ESC for radio controlled helicopter and airplane (2-6s Lipo).
What is the particularity of Hobbywing ESCs ? They simply have the best "governor mode", which is of great interest to rc helicopter pilots !
Excellent Motor Governing Speed
High-performance 72 MHz 32-bit processor combined with advanced algorithm optimizes the speed governing. Together with the adjustable governor parameters guarantees every pilot an accurate RPM control experience.

High Voltage Built-in BEC
The built-in switch mode BEC with an adjustable voltage range from 5V to 8V, a continuous current of over 7A and peak current of 18A can supply enough power for your servos to operate efficiently and safely.

DEO Technology
The DEO (Driving Efficiency Optimization, or so called "Active Freewheeling") technology implemented in the ESC has multiple advantages.

  • Quicker response to the throttle change.
  • Higher driving efficiency, longer flight time.
  • Lower ESC temperature and a more reliable operation (This 60A ESC is 14°c colder than the previous 50A after 8 minutes running).

Four Brake Modes
This Platinum 60A V4 ESC has four brake modes: "Brake Disabled, Normal Brake, Proportional Brake and Reverse Brake". The brake amount is adjustable in normal brake mode; in proportional brake mode, the brake force will be automatically allocated based on the position of the radio throttle stick; in reverse brake mode, the motor rotation can be changed via a spare transmitter channel.

Multiple Protections
Multiple protection features include, ESC thermal, capacitor thermal (HOBBYWING-patented technology), ESC overload, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC.

Other Features
A separate programming port for connecting the Hobbywing Program Box on this ESC allows user to:

  • Program ESC,
  • check flight data include minimum voltage, maximum temperature, standardized RPM and speed curve (in Heli Governing Store mode) of the flight data recorded by the ESC,
  • Upgrade ESC firmware with a multifunction LCD program box or a Wifi Express Module (with Apple/Android phone downloadable App).

Specifications:

  • Product Name: Platinum 60A V4
  • Product ref: 30215100
  • Type: Brushless ESC
  • Specifications:
    • Cont./Peak Current: 60A/80A
    • Input: 3-6S LiPo (max 25.2 Volts)
    • BEC Output: Switch Mode:5-8V, 7A
  • Wires & Connectors
    • Input Wires: Red-14AWG-100mm*1/Black-14AWG-100mm*1
    • Output Wires: Black-14AWG-75mm*3
    • Input Connectors: No
    • Output Connecotors: 3.5mm Gold Connectors (Female)
      Note: All the wire length above is the original length not the length you see from the outside.)
  • ESC Programing via
    • Transmitter: Not Supported
    • LED Program Card: Not Supported
    • LED Program Box: Not Supported
    • LCD Program Box: Supported
    • WiFi or OTA Module: Supported
    • Program Port: Program/Throttle Wire
  • Firmware
    • Firmware Upgrade: Supported
  • Size & Weight
    • Size: 48.0x30.0x15.5mm
    • Weight: 49g
  • Applications
    • 450-480 Class Heli (Main Blade: 325-360mm)
