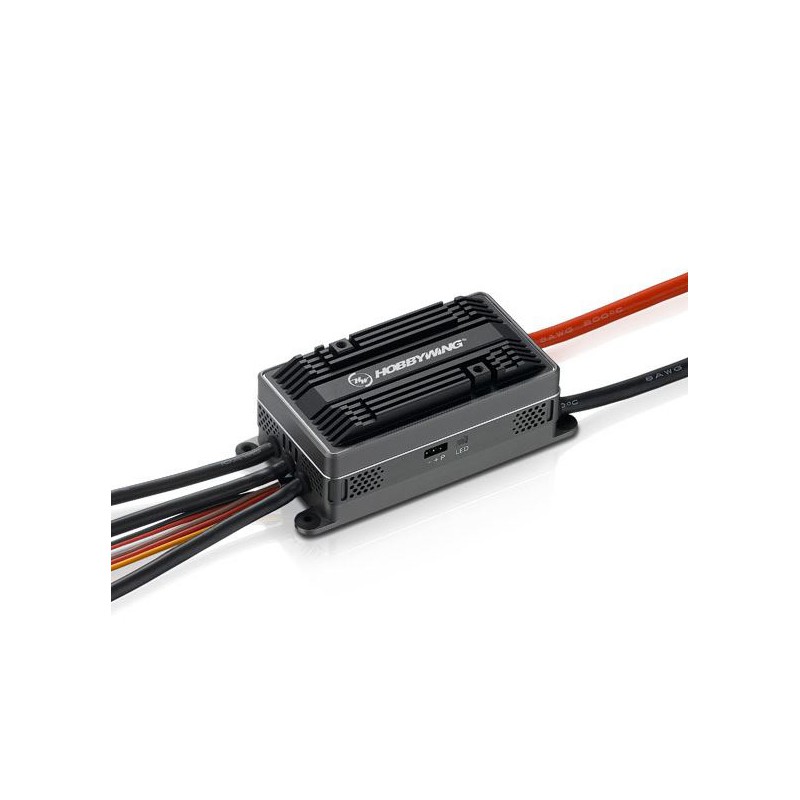

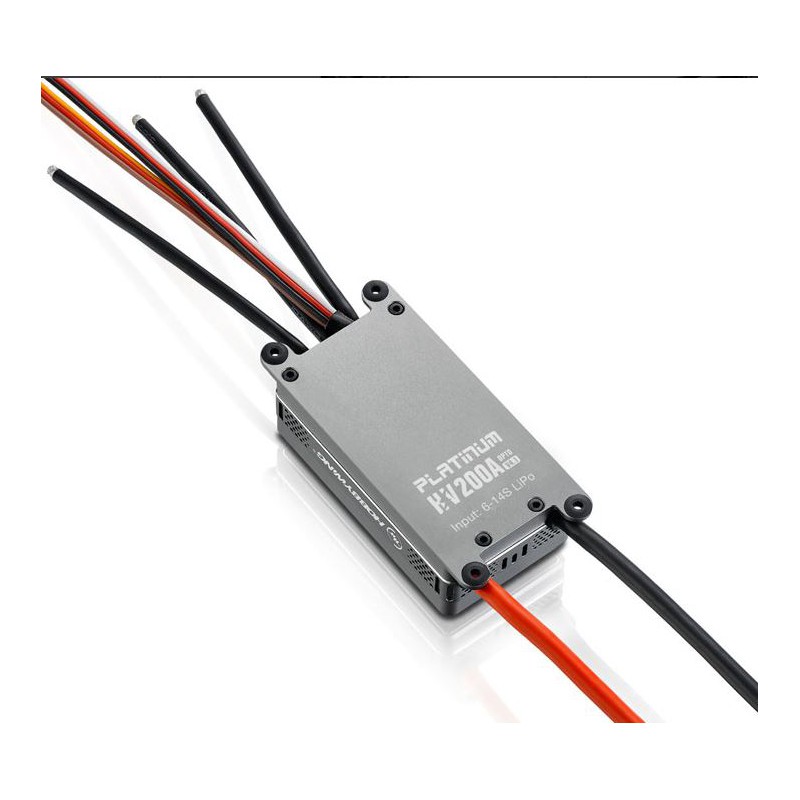

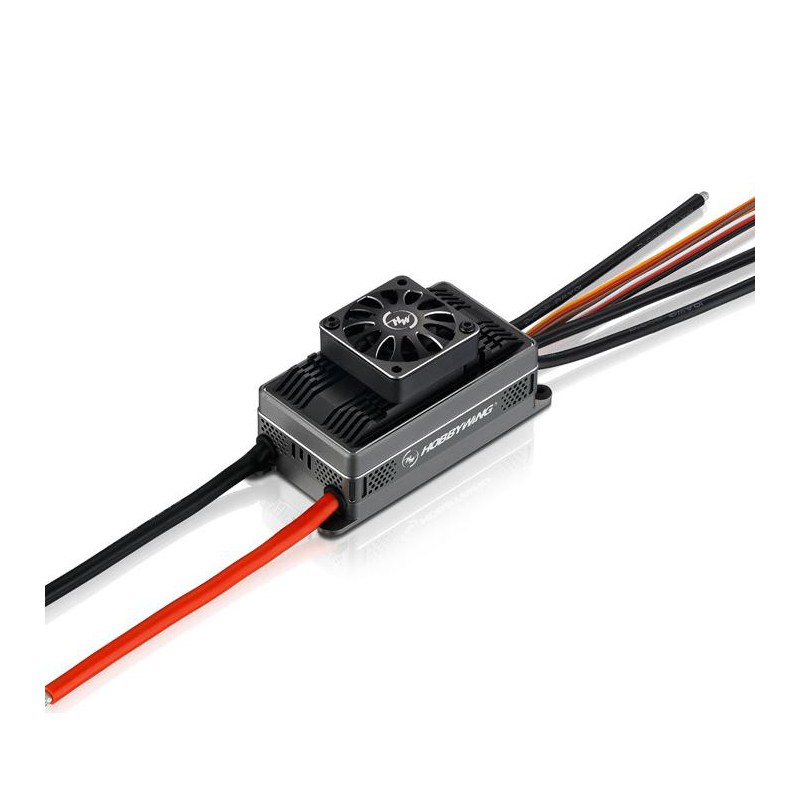

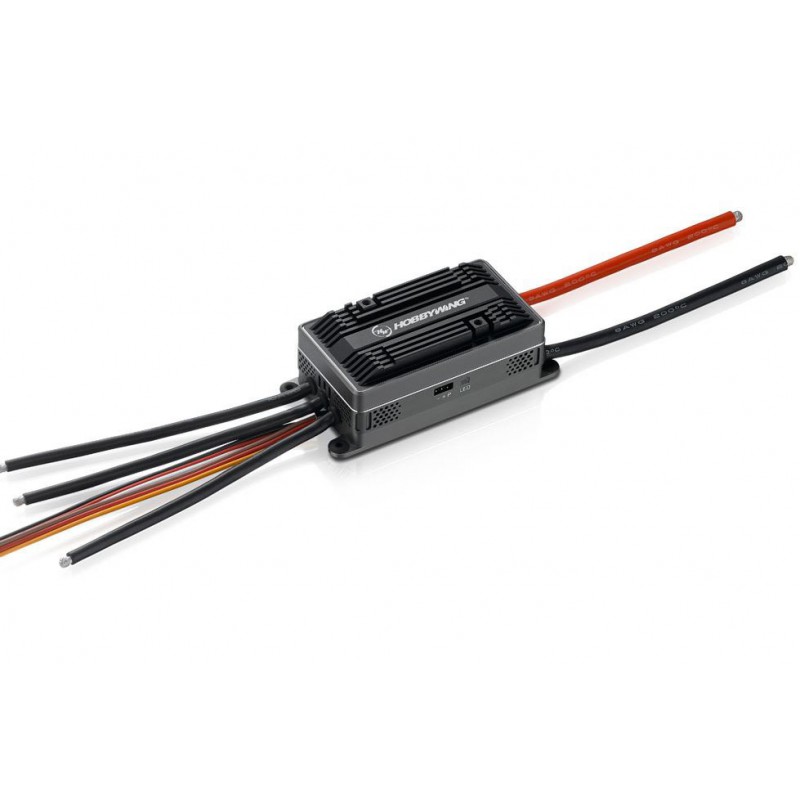

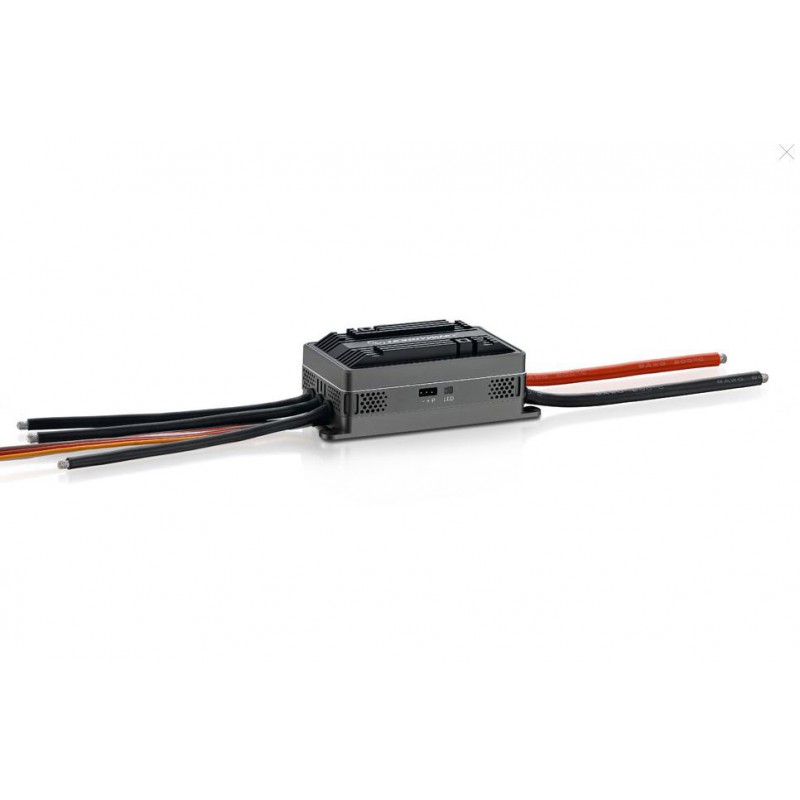

Hobbywing Platinum HV 200A 4.1 OPTO (6-14S)

Hobbywing Platinum HV 200A Opto V4.1 Brushless ESC for radio controlled helicopter or airplane.

What is the particularity of Hobbywing ESCs ? They simply have the best "governor mode", which is of great interest to rc helicopter pilots !

Excellent Motor Governing Speed:
High-performance 72 MHz processor combined with advanced algorithm optimizes the speed governing. Together with the adjustable governor parameters guarantees every pilot a precise control experience and high driving efficiency.

Two Brake Modes:
"Normal Brake" and "Proportionnal Brake".

Multiple flight modes:
Airplane Fixed Wing / Heli Governor Off / Heli Governor (Elf) / Heli Governor Store.

Super Soft Start-up:
The ESC makes the motor start extremely soft and avoids tail-drift issues of helicopter. The start-up time is adjustable within 8 to 25 seconds, this will definitely create a perfect starting point for every flight.

Multiple Protections:
Multiple protection features include, ESC thermal, capacitor thermal (HOBBYWING-patented technology), ESC overload, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC.

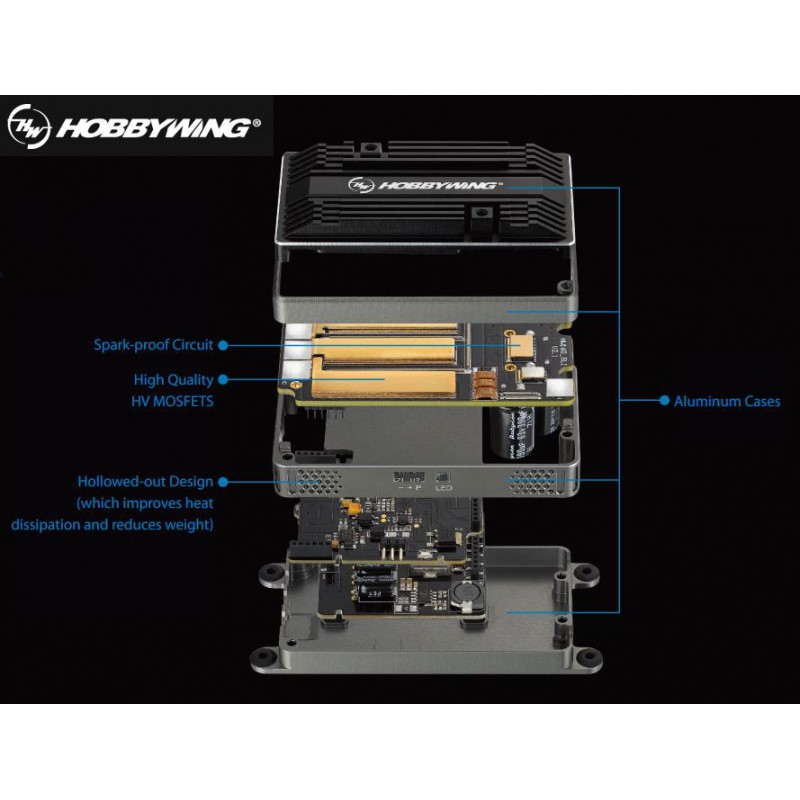

Built-in Sparkproof Circuit:
The built-in sparkproof circuit effectively eliminates sparks produced at the "powering-on" moment and prolongs the connectors' lifespan.

Other Features:
A separate programming port for connecting the programmer on this ESC allows user to

• Program ESC,
• check flight data include minimum voltage, maximum temperature, standardized RPM and speed curve (in Heli Governing Store mode) of the flight data recorded by the ESC,
• Upgrade ESC firmware with a multifunction LCD program box or a Wi-Fi Module & our Apple/Android phone App

Specifications:

• Product: Platinum HV 200A V4.1
• Product Number: 30209102
• Type: High Voltage Brushless ESC (14S max 58.8 Volts)
• Cont./Peak Current: 200A/300A
• Input: 6-14S LiPo
• BEC Output: No Battery Eliminator Circuit
• Wires & Connectors
  • Input Wires: 8AWG
  • Output Wires: 10AWG
  • Input Connectors: No
  • Output Connectors: No
    Note: All the wire length above is the original length not the length you see from the outside.
• ESC Programing via
  • Transmitter: Not Supported
  • LED Program Card: Not Supported
  • LED Program Box: Not Supported
  • LCD Program Box: Supported
  • WiFi or OTA Module: Supported
  • Program Port: Program/Throttle Wire
• Firmware
  • Firmware Upgrade: Supported
• Size and weight

  • Size: 105 x 50 x 36mm
  • Weight: 325g
• Applications
  • 700/800 Class RC Heli
