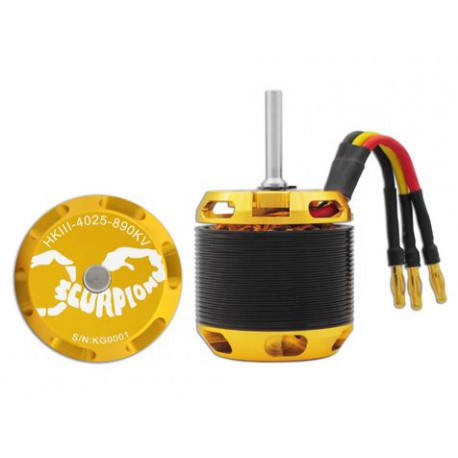

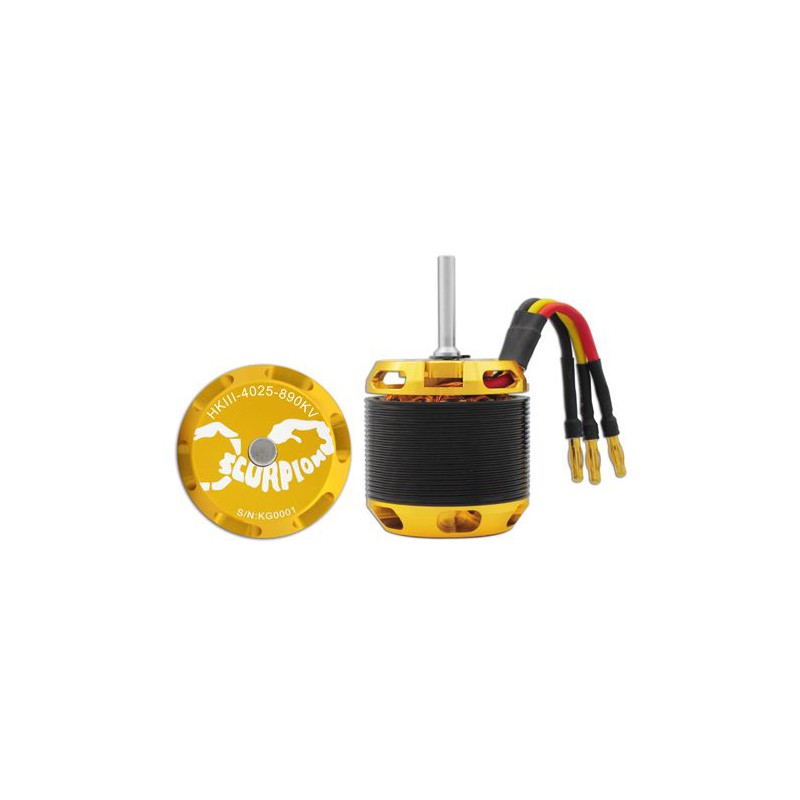

Moteur Scorpion HKIII-4025-890KV - Axe 6mm

HKIII-4025-890

Nouveau produit

Scorpion HKIII 4025 890KV: un moteur de 2700W alimenté en 6S et conçu pour les hélicoptères classe 550/600 (diamètre d'axe 6mm).

Plus de détails

Ce produit n'est plus en stock

169,00 € TTC

En savoir plus

The Scorpion HKIII-4025 Series Motor is designed for using on 600 class helicopters running on 6 to 12-cell Li-Po power. This motor represents the most technologically advanced power source ever offered for a 600 class electric helicopter.

Scorpion Competition Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Coated to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to withstand high temperatures, making a motor that is virtually impossible to burn up in normal use.

Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.

For the best overall combination of quality, performance, and value, use Scorpion Motors in your helicopter!

Specifications:

Stator Diameter40 mm(1.57 in)
Stator Thickness25 mm(0.98 in)
No. of Stator Arms12
Magnet Poles10
Motor Wind4T/4T Delta
Motor Wire24-Strand 0.29mm
Motor Kv890KV RPM/Volt
No-Load Current (IO/10v)2.30 Amps
Motor Resistance (RM)0.010 Ohms
Max Continuous Current95 Amps
Max Continuous Power2700 Watts
Weight354 Grams (10.79 oz)

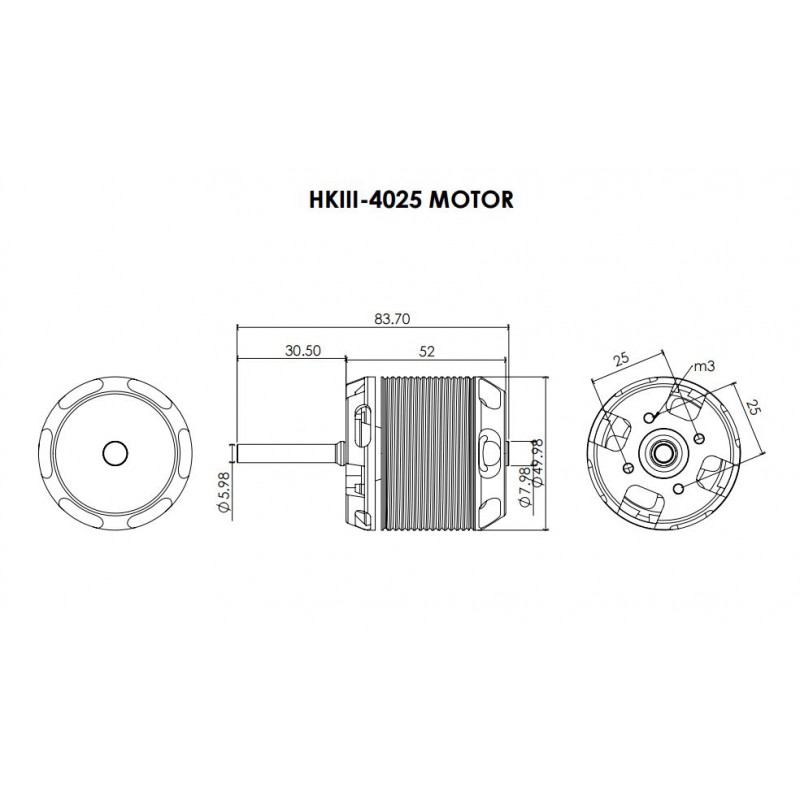

Outside Diameter49.98 mm (1.97 in)
Shaft Diameter5.98 mm (0.24 in)
Body Length51.8 mm (2.04 in)
Overall Shaft Length83.7 mm (3.30 in)
Max Lipo Cell8s
Peak Current110 Amps (5 seconds)
Peak Continuous Power3750 Watts (5 seconds)
Motor Timing5deg
Drive Frequency8kHz

Included in the Box

1x Scorpion HKIII-4025-890KV Motor
3x Female Connectors
3x Heat Shrink
4x M3 Screws
