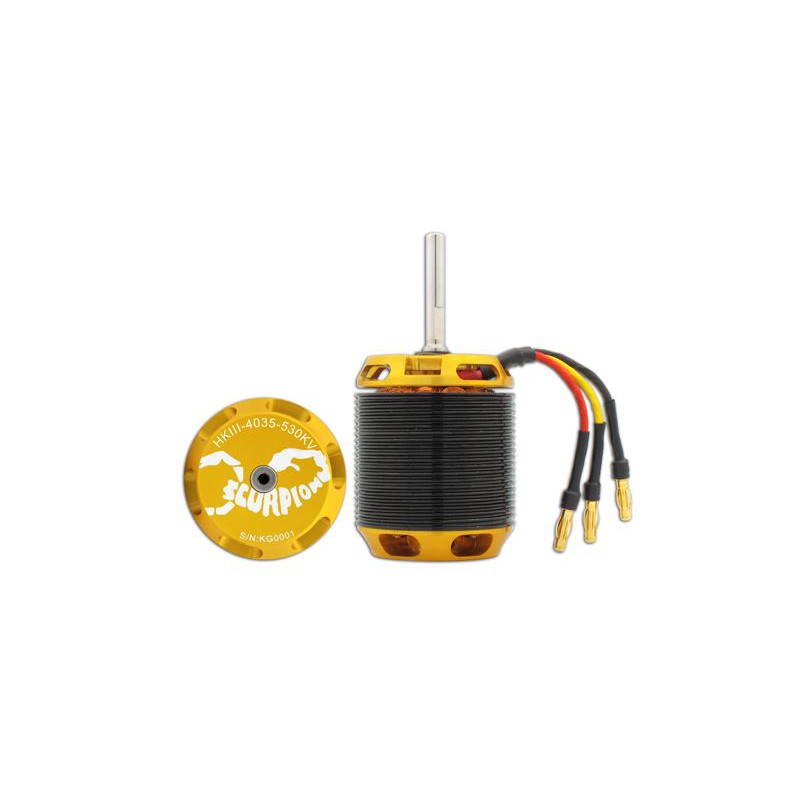

Moteur Scorpion HKIII-4035-530KV - axe 6mm

HKIII-4035-530

Nouveau produit

Scorpion HKIII4035-530KV: un moteur de 3400W alimenté en 12S et conçu pour les hélicoptères classe 600/700 (diamètre d'axe 6mm).

Plus de détails

Ce produit n'est plus en stock

199,99 € TTC

En savoir plus

The Scorpion HKIII-4035 Series Motor* is designed for using on 700 class helicopters running on 12-cell Li-Po power. This motor represents the most technologically advanced power source ever offered for a 700 class electric helicopter.

Scorpion Competition Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Coated to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to withstand high temperatures, making a motor that is virtually impossible to burn up in normal use.

Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.

For the best overall combination of quality, performance, and value, use Scorpion Motors in your helicopter !

Specifications:

Stator Diameter40 mm (1.57 in)
Stator Thickness35 mm (1.024 in)
No. of Stator Arms12
Magnet Poles10
Motor Wind9 Turn Delta
Motor Wire22 - Strand 0.29mm
Motor Kv530KV RPM / Volt
No-Load Current (IO)2.15 Amps @ 10v
Motor Resistance (RM)0.015 Ohms
Max Continuous Current80 Amps
Max Continuous Power3400 Watts
Weight460 Grams (16.22 oz)
Outside Diameter49.98 mm (1.97 in)
Shaft Diameter5.98 mm (0.235 in)
Body Length61.8 mm (2.43 in)
Overall Shaft Length100.0 mm (3.93 in)
Max Lipo Cell12s
Peak Current100A (5 seconds)
Peak Power4400 Watts (5 seconds)
Motor Timing5deg
Drive Frequency8kHz
