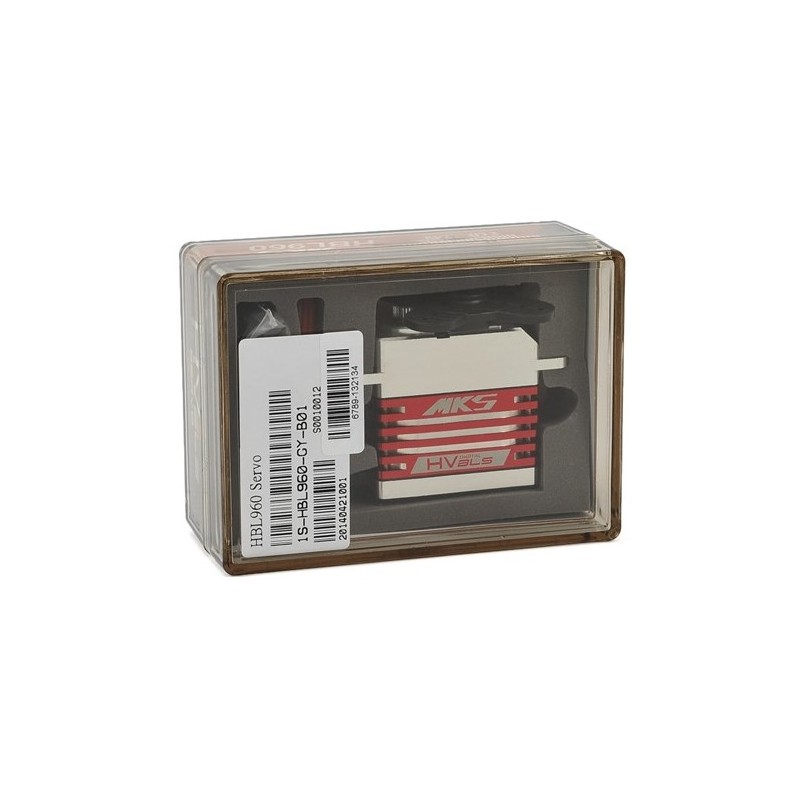

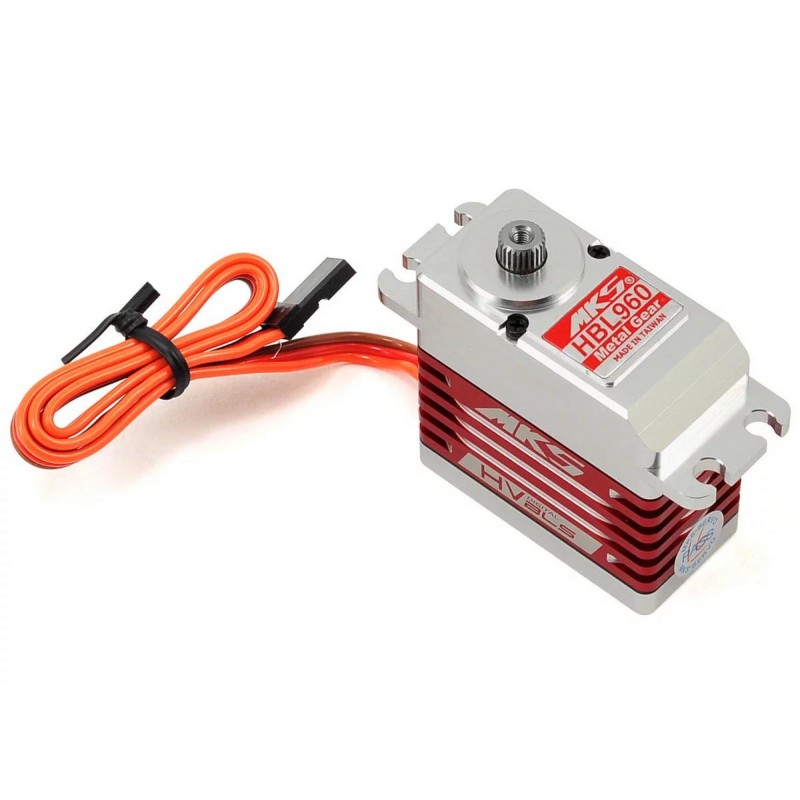

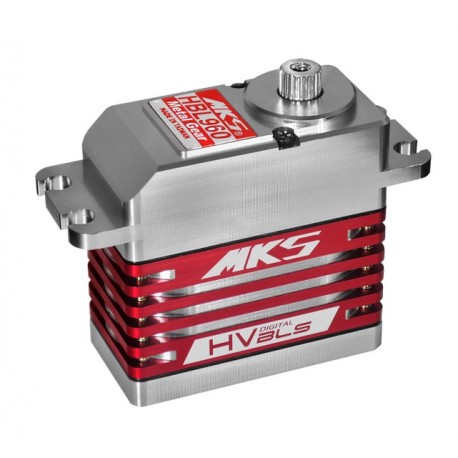

MKS HBL960 - HV digital brushless servo
HBL960
New product
MKS HBL960 - High Voltage digital servo
standard size (40x20mm. Designed for rc helicopter swashplate use.
This product is no longer in stock
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
The HBL960 is an high voltage digital brushless servo (8.4V max), standard sized (40x20mm) and specifically designed by the legendary MKS manufacturer for RC heli cyclic use.
Specifications:
| Torque (kg-cm) | 13.6 (6.0V) / 17 (7.4V) / 18.6 (8.2V) |
| Torque (oz-in) | 188.9 (6.0V) / 236 (7.4V) / 258.3 (8.2V) |
| Speed | 0.12 s (6.0V) / 0.10 s (7.4V) / 0.09 s (8.2V) |
| Stall Current (at locked load) | 2.3A (6.0V) / 2.8A (7.4V) / 3.1A (8.2V) |
| Working Voltage | 6.0V ~ 8.4V DC Volts |
| Working Frequency | 1520μs / 333Hz |
| Dead Band | 0.0008ms (Default) |
| Bearing | 2* Ball Bearing |
| Gear | Metal Alloy Gear |
| Motor | Japanese-made Brushless Motor |
| Case | Full Aluminium |
| Weight | 2.47 oz |

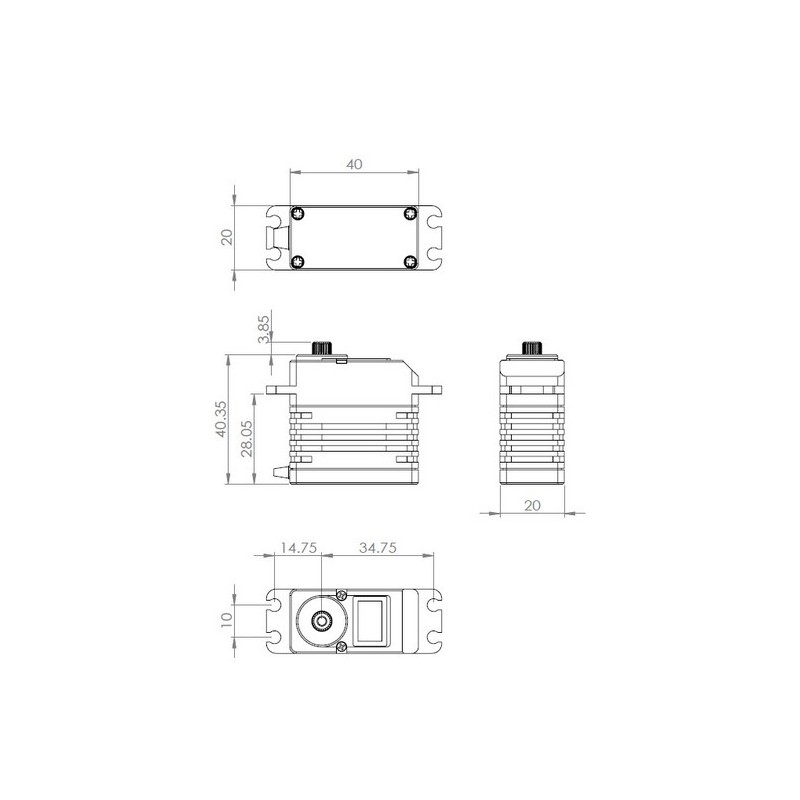

| Dimensions | 40x20x40mm |
