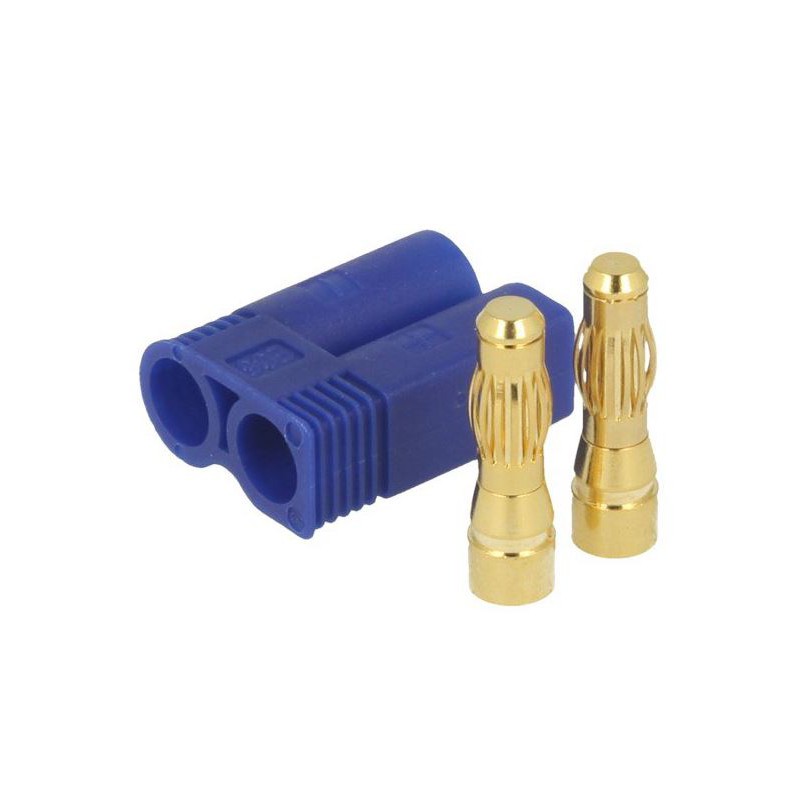

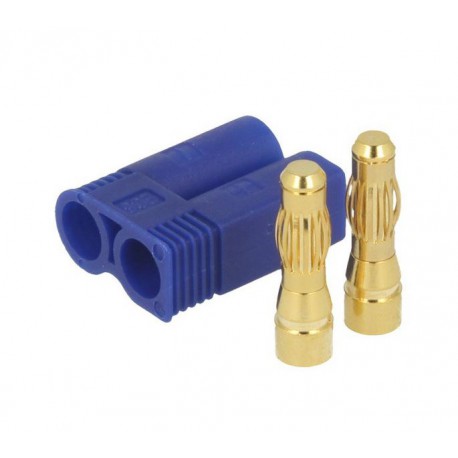

EC5 Connector (male)
HS1810-01
New product
EC5 Connector (male)
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
high-quality gold-plated 5 mm high-current EC5 connector (male). Reverse polarity protected.
Specifications:
Continuous load: 65A - (100A during 2 min).
Short Impulse load: 180A
Dimensions: 25x20x10mm
For cable cross sections up to 16 mm²
Transition resistance: 0.3 mOhm
