Futaba T6K V3S- Radio Air System

You're above the RTF (ready-to-fly) level and you're looking for the best in affordable radio systems to get into the rc helicopter hobby ? check out the new Futaba 6K V3S !

An easy-to-program flight system with versatile functions that include telemetry, S.Bus/S.Bus2 compatibility and 30 model memory. Several functions for flying rc airplane, rc heli, quadcopter, multirotor, drone.
With Version 3 updates, it's now a better value than ever. The NEW 6K is an 8-channel system with additional telemetry functions, expanded multicopter flight modes and much more.Updates from T6K (V2) -> T6K V3S:
– 8 channel receiver (R3008SB) is included
– Switch D is changed from 2 positons to 3 positons
– Glider functions strengthened (Added wing type 2AIL-B, Trim-mix for rudder, conditions increased from 3 to 4)
– Timer (Added 1 more time and having 2 timers)
– Helicopter function (Governor gain added)

Featuring:

Six languages: English / German / French / Spanish / Italian / Dutch.

T-FHSS AIR/S-FHSS 2.4 GHZ MULTI FUNCTION 8-CHANNEL TRANSMITTER: the Futaba 2.4 GHz T-FHSS Air system/S-FHSS system is employed.

TELEMETRY SYSTEM (CAN’T BE USED IN CASE OF S-FHSS): a T-FHSS Air bidirectional communication system is used. The voltage of the battery mounted in the fuselage can be displayed at the transmitter during flight. Altitude, temperature, RPM, current, and voltage data can be displayed at the transmitter by installing various optional telemetry sensors in the fuselage.

SPEECH FUNCTION (T-FHSS ONLY): telemetry data can be listened to by plugging commercial earphones into the transmitter.

BUILT-IN ANTENNA: antenna built into the transmitter provides a simple appearance and improves handling ease.

S.BUS/S.BUS2 SERVO SETTING FUNCTION: S.Bus/S.Bus2 servo channel and various functions can be set by connecting the servo to the transmitter.

POWER-SAVING TYPE TRANSMITTER: four AA’s alkaline batteries can be used. Alternate options: HT5F1800B (NiMH 6.0 V, 1800 mA) / FT2F1700BV2 (lithium-ferrite 6.6 V,  1700 mA) / FT2F2100BV2 (lithium-ferrite 6.6 V, 2100 mA).

VIBRATION: a function that alerts the operator of various alarms by vibrating the transmitter can be selected.

UNIQUE MODEL MEMORY SYSTEM: the transmitter body contains a 30 model memory.

MIXING TYPE SELECTION: fixed wing, helicopter, and glider mixing type can be selected to match the fuselage. In addition, 6 swash plate types can also be selected for helicopters. Multi-copter selection is also possible.

DIGITAL TRIM: rapid trimming during flight is possible. The sound changes at the center of trim. The step size can be arbitrarily changed. The trim position is displayed on the LCD.

LEVER HEAD ADJUSTMENT: the lever head length can be adjusted. Lever head shape that reduces slip during operation has been adopted.

SWITCH/VR POSITION CHANGE AND AUX CHANNEL FUNCTION CHANGE: mixing and other switches and VR can be selected. Since the function of the AUX channels (CH5-CH8) can also be changed, original mixing, in addition to existing mixing, can be created by using the programmable mixing function.

MODEL DATA TRANSFER FUNCTION: model data can be wirelessly transferred between 6K.

Specifications:

System feature

• Pro Airplane, copter, Glider and Multicopter programming
• S-FHSS/T-FHSS selectable
• Telemetry system (T-FHSS) with data speech (via earphones) function for monitoring receiver battery voltage, external lipo battery voltage, temperature, prop RPM, altitude and variometer, current, capacity and voltage, brushless motor or nitro engine RPM..
• Built-in antenna (Full Range) and quality gimbal
• S.Bus/S.Bus2 servo setting functions programmable through the transmitter
• Preset vibration alarms
• 30 model memory
• 8-character model/user naming
• Programmable mixes (3-normal, 1-curve) for airplanes, helicopters, gliders and multi-rotors
• Digital trims with variable step settings
• Adjustable stick length and tension
• Changeable switch/VR position and AUX channel function
• Throttle position warning
• Backlit 128x64 DOT LCD screen with adjustable display contrast
• Software updateable through the CIU-2 or CIU-3 interface units
• Screen Lock

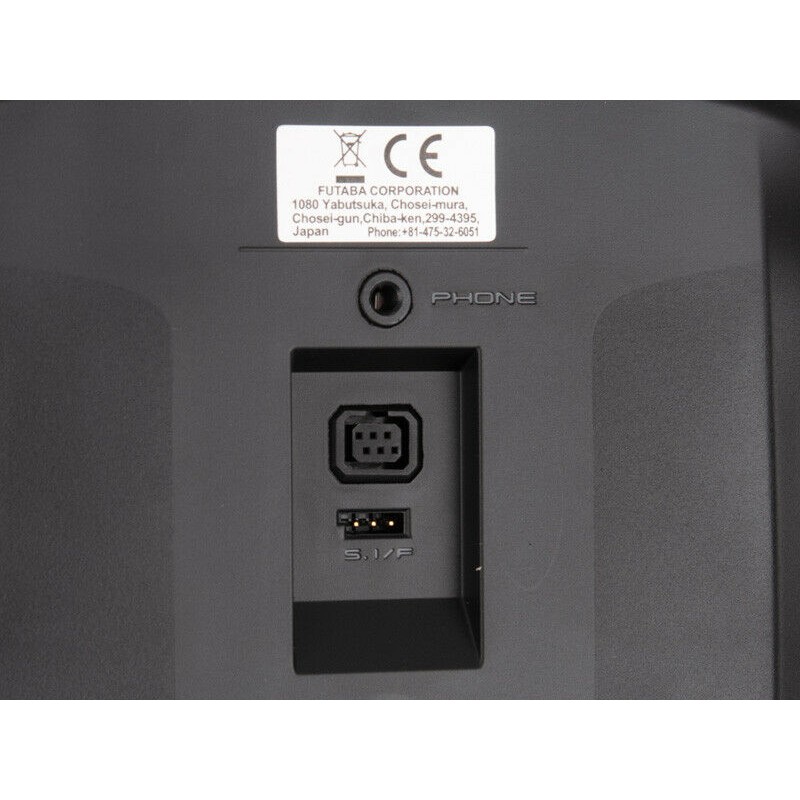

• Earphone/S.Bus/Trainer jacks
• Assignable switches (three 3-position, one 2-position)
• Range Check
• Program navigation bay with jog dial, +/- pads and end pad
• Data reset
• Model copy
• Selectable model type
• Fail Safe
• End Points
• Trim/Trim Resets/Trim Steps
• Sub Trim
• Servo Reversing
• Parameter functions
• Servo monitor/Test
• Wireless model data transfer (to other T6K transmitters)
• Timer-System and Model (Up/Down/Down-Stop/THR Integrate) w/Vibration Alert
• Trainer system
• Power Saver

Helicopter functions

Swash type (6) / Condition Select / Throttle Cut / Dual Rate/Expo / Trim Offset / Delay / Gyro mixing / Swash AFR / Swash mixing / Throttle Curve (5-point) / Rotor Pitch Curve (5-point) / Pitch-to-Rudder mixing / Throttle Hold / Hovering throttle / Hovering pitch / Governor gain setting.

Airplane functions

Wing Type (5-wing, 2-tail) / Throttle Cut / Dual Rate/Expo / Throttle Curve (propeller RPM) / Idle down / Gyro / Aileron differential / V-Tail / Camber / Air Brake / Elevator-to-Flap mixing / Flap-to-Elevator mixing / Elevon mixing.

Glider functions

Wing Type (6-Wing, 2-Tail) / Condition select / Dual Rate/Expo / Motor switch / Gyro / Aileron Differential / V-tail / Butterfly mixing / Trim mixing / Elevator-to-Camber mixing / Camber mixing / Aileron-to-Camber mixing.

Multicopter functions

Flight Mode / Center alarm /Dual Rate/Expo / Throttle Curve / Throttle Delay / Gyro.

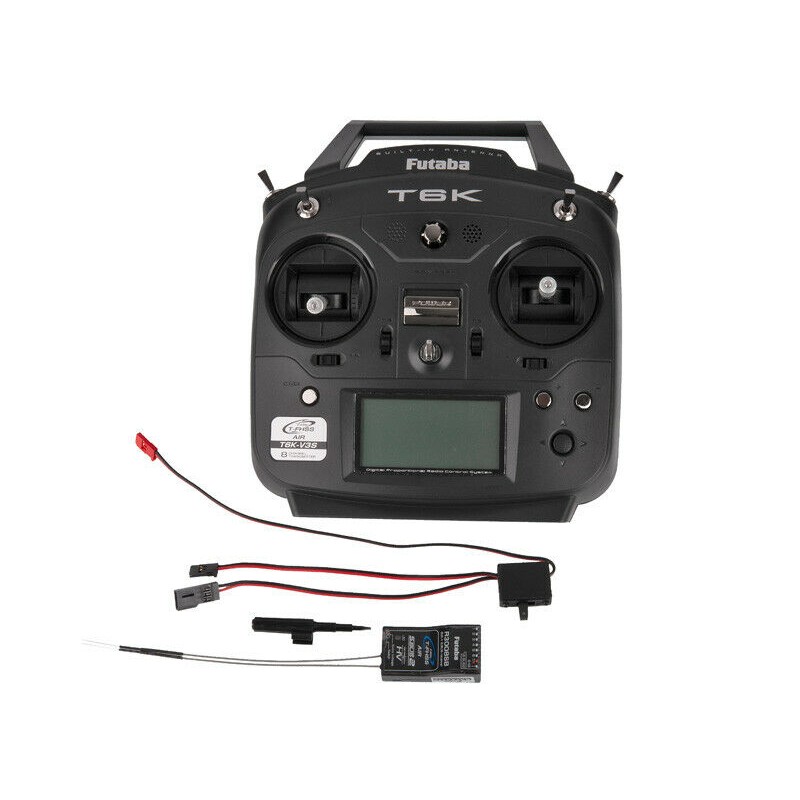

In the T6K V3S box:
- 6K V3S 2.4GHz T-FHSS MODE 1 or 2 transmitter
- R3008SB 2.4GHz T-FHSS receiver

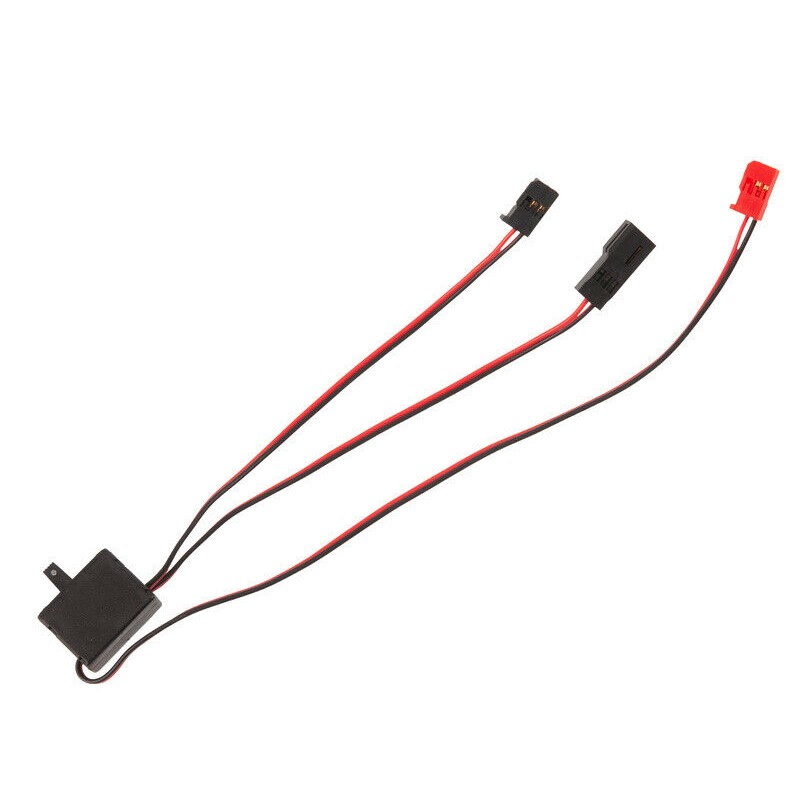

- Switch harness
- Avio&Tiger 2 years warranty

No charger, no battery included.
