Digital Multimeter - Cat III 300 V - 10 A - 1999 Counts

VLLDVM832

New product

Digital Multimeter

Cat II 500 V /Cat III 300 V - 10 A - 1999 Counts.

More details

12,99 € tax incl.

More info

Digital Multimeter - Cat II 500 V /Cat III 300 V - 10 A - 1999 Counts.

  • CAT II 500V / CAT III 300V
  • 19 ranges
  • automatic polarity indication
  • automatic zero adjustment
  • voltage measurements: 500 VAC and 500 VDC max.
  • current measurements: DC 0.5 A max.
  • resistance measurements: 2 MOhm

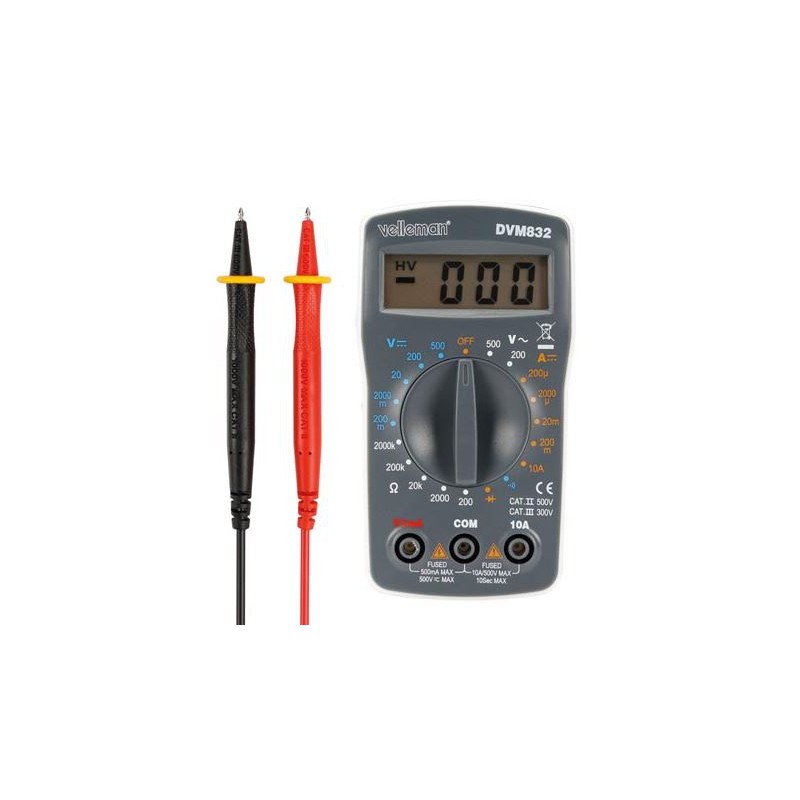

  • with separate test leads (included)

Specifications:

  • DC voltage: 0-200 mV / 2000 mV / 20 V / 200 V / 500 V
    • basic accuracy: ± (1.0% rdg + 2 digits) , ±(1.2% rdg + 2 digits) for 500 V range
    • input impedance: 1 MOhm
    • maximum input: 500 V
    • overload protection: 500 V DC or AC rms
  • AC voltage: 0-200 V / 500 V
    • basic accuracy: ± (1.5% rdg + 3 digits)
    • input impedance: 450 kOhm
    • frequency range: 40-500 Hz
    • maximum input: 500V RMS
  • DC current: 200 µA / 2000 µA / 20 mA / 200 mA / 10 A
    • basic accuracy: ± (1.5% rdg + 2 digits), ± (2.0% rdg + 2 digits) for 200mA range; ± (2.0% rdg + 3 digits) for 10 A range
    • overload protection: 0.5 A / 600 V fuse in mA range; 10 A / 600 V fuse in 10 A range
  • resistance: 0-200 Ohm / 2000 Ohm / 20k Ohm / 200 kOhm /2000 kOhm
    • basic accuracy: ± ( 1.0% rdg +3 digits); ± (1.0% rdg + 5 digits) for 200Ohm range, ± (1.5% rdg + 3 digits) for 2kOhm range
    • overload protection: 0.5 A / 600 V fuse
  • audible continuity measurement: built-in buzzer sounds if resistance is less than 50 Ohm
    • test voltage: approx. 1.8 V
  • diode measurement: test forward voltage of diode
    • test voltage: approx. 1.8 V
  • overrange: yes
  • continuity buzzer: yes
  • diode test: yes
  • low-battery indication: yes
  • maximum display: 3 ½
  • LCD display:
    • size: 47 x 15 mm
    • digits: max. 1999
  • ranging mode: manual
  • data hold: no
  • backlight: no
  • dimensions: 118 x 65 x 30 mm
  • weight (with battery): 100 g
  • power supply: 2 x 1.5 V AAA R03P (incl.)
  • auto power-off: no
  • operating environment:
    • temperature: 0 °C to 40 °C (32 to 104 °F)
    • humidity: < 80% RH.
  • storage environment:
    • temperature: -20 °C to 60 °C (-4 to 140 °F)
    • humidity: < 90% RH
  • fuse:
    • F0.5 A / 600 V 5 x 20 mm (not replaceable)
    • F10A / 600 V 5 x 20 mm (not replaceable)

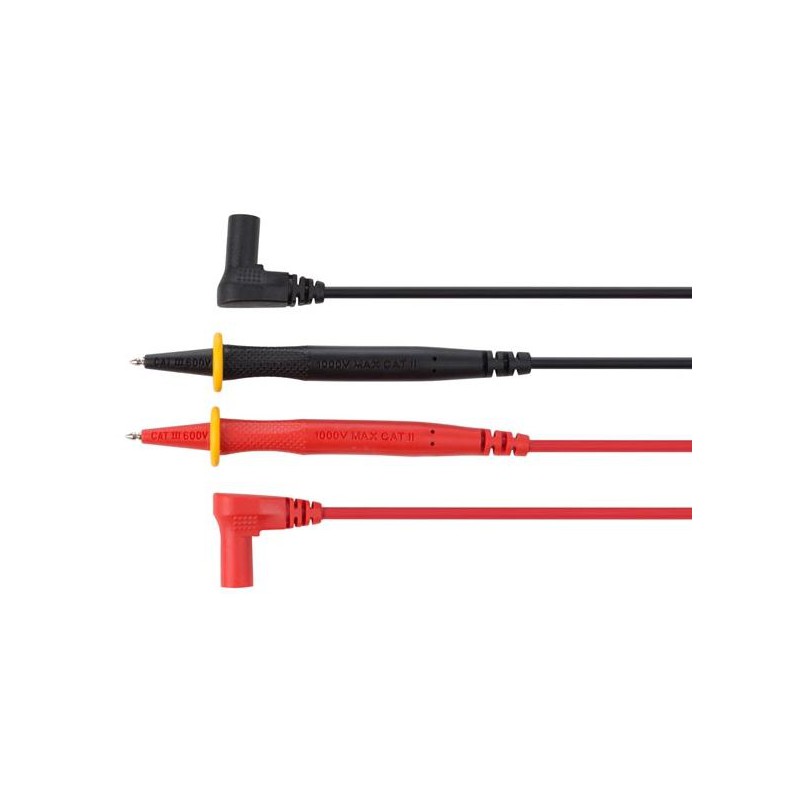

  • test lead probe : CAT II 1000V / CAT III 600 V, 10A, L = 75 cm

Reviews

Grade
06/17/2020

bon contrôleur

Un très bon petit contrôleur. Et bien étalonné de surcroit. Ce n'est pas toujours le cas.
