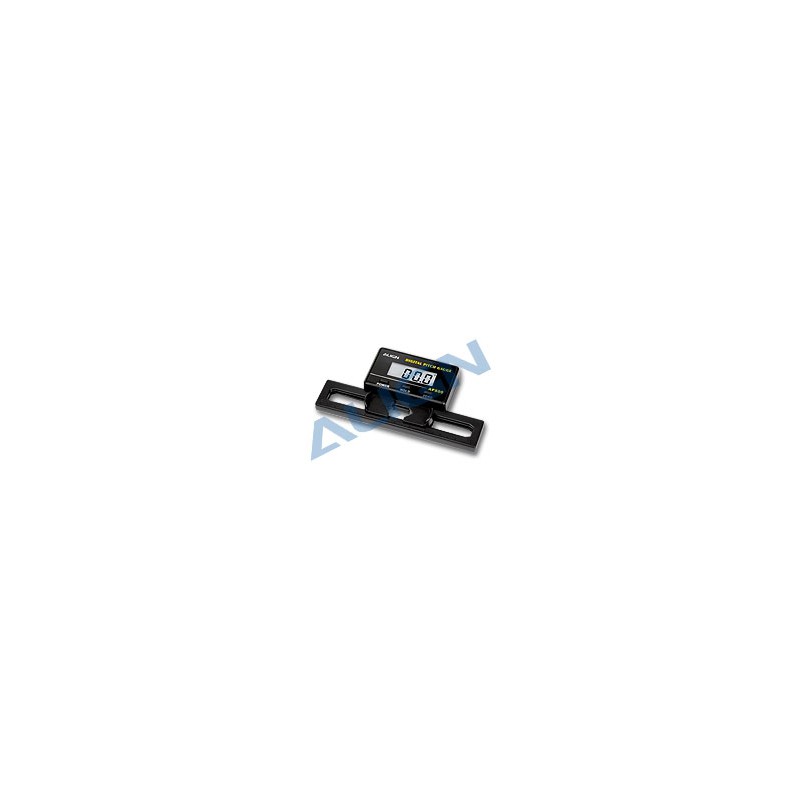

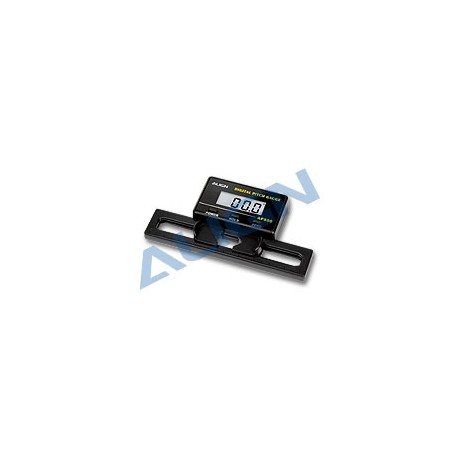

AP800 Digital Pitch Gauge (HET80001)

Reference: HET80001

Condition: New product

AP800: Align Digital Pitch Gauge for 200 to 800mm main blades pitch setting

(Blade width: 20mm to 74mm).

More details

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

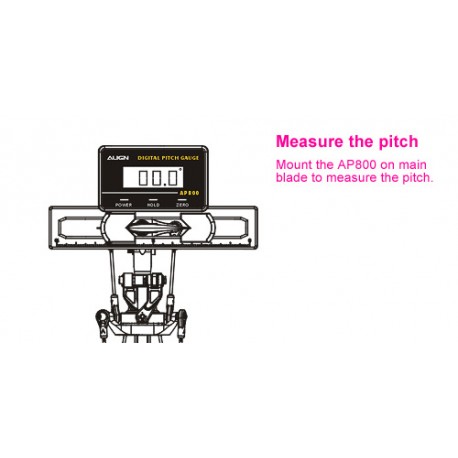

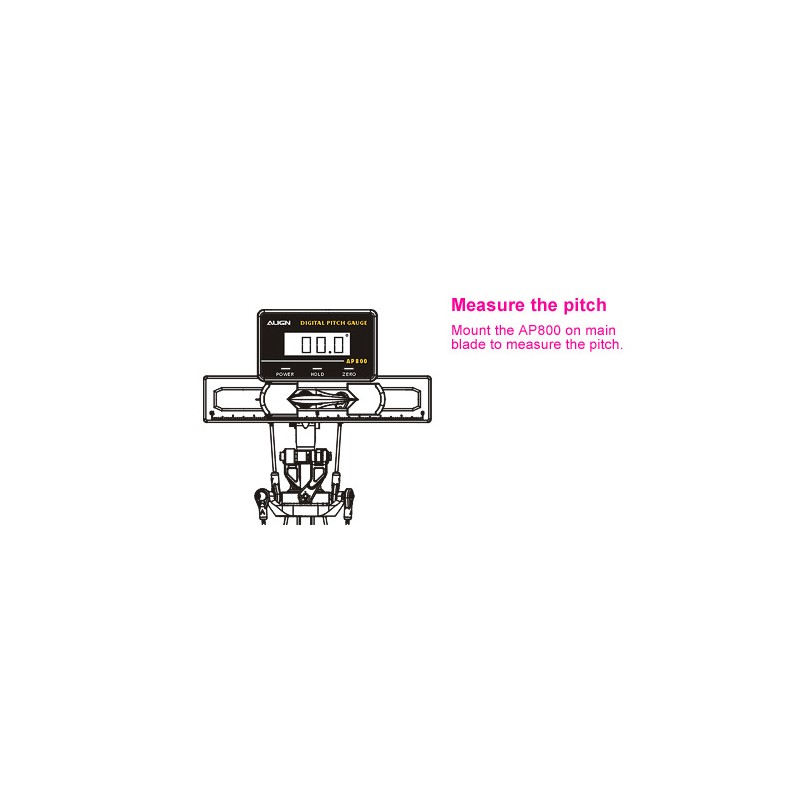

Developed by the R&D team in Align, the new AP800 digital pitch gauge is suitable for flybar and flybarless helicopters. Auto-detecting Horizontal level , with result displayed through high contrast LCD screen, providing a simple and precise way of measuring pitch angle.

Featuring:

● Auto-detecting Horizontal level.
● Uses backlighting LCD monitor.

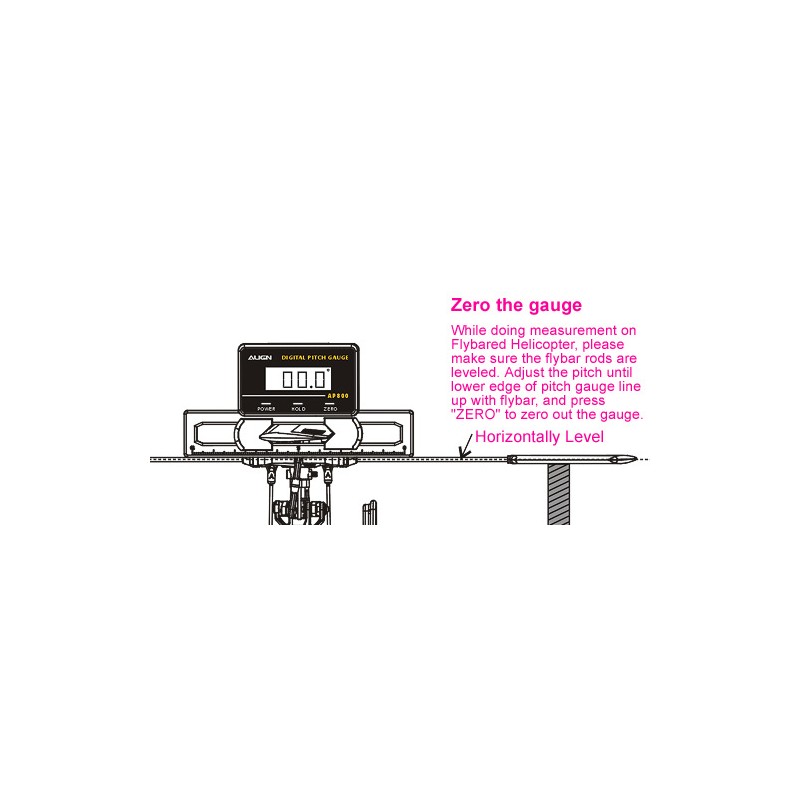

● Zero and Lock function.
● Detectable pitch range: -90° ~ 90°.
● Automatic screen rotation.
● Suitable for 200~800mm main blades.
● Build-in energy saving function. Power shuts down after 3 mins without any movement.

Specifications:

● Body Dimension：108x53.9x16mm
● Suitable blade width：20mm~74mm
● Detectable pitch range: ±90°
● Resolution: 0.1°
● Battery: 2X CR 2032 Lithium
● Weight:38g (including battery)
