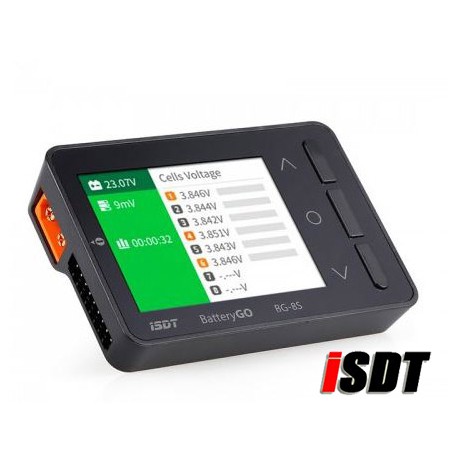

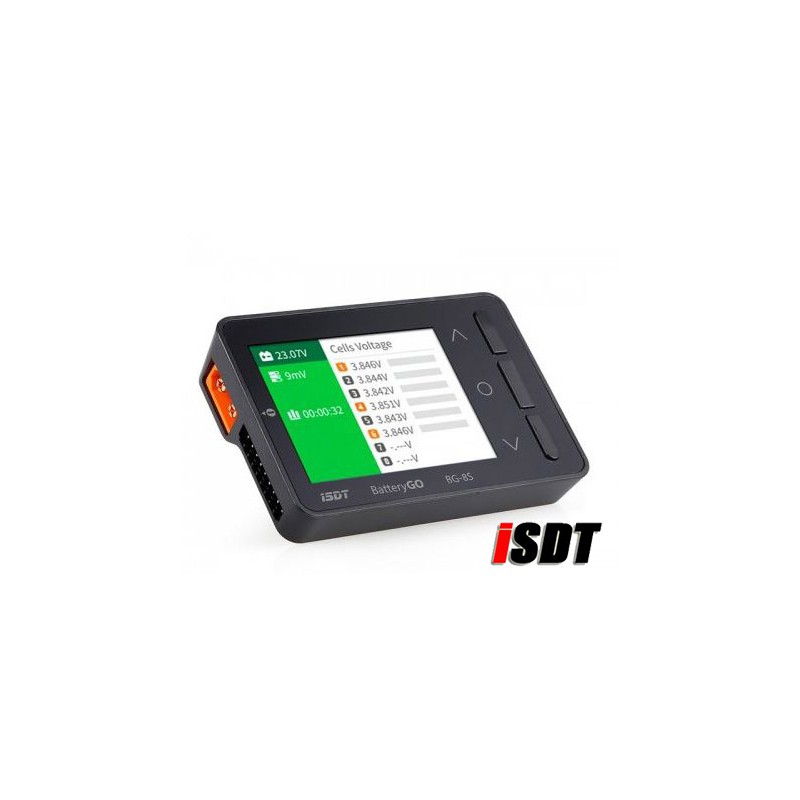

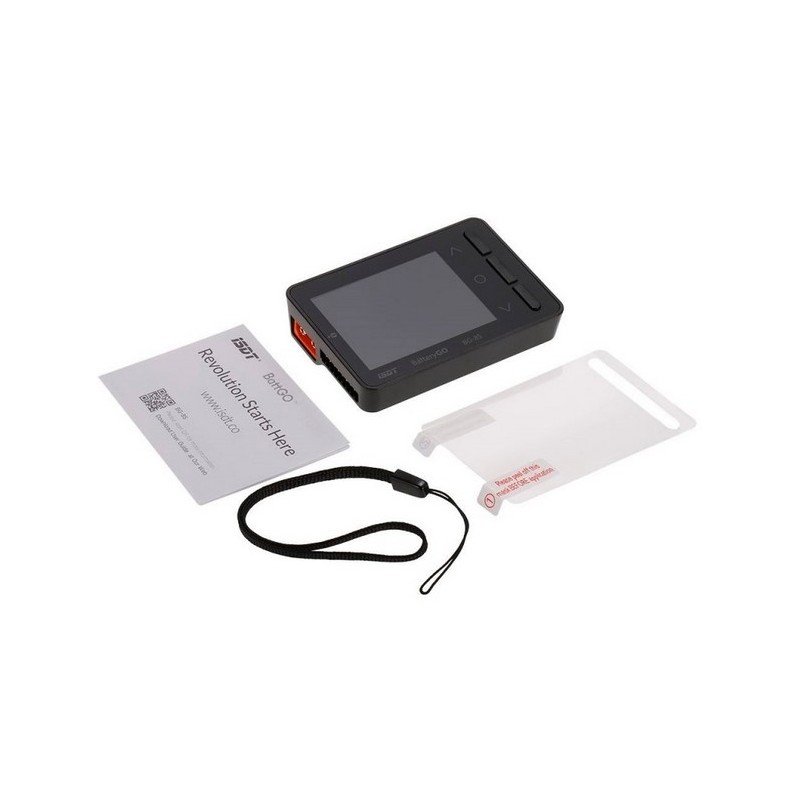

iSDT BG-8S Smart Battery Checker

Reference: ISDTBG8S

Condition: New product

Designed with powerful features and the latest technology, and a lot of connection compatibility for measurement.

iSDT BG-8S Smart Battery Checker is the best battery checker, using 260,000 color LCD display with excellent visibility under any light condition

BattGO technology, automated cell balancing, USB charging, receiver signal testing, protocol analysis.

More details

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

iSDT BG-8S smart battery checker

260,000 color display visible under strong sunlight.
Exquisite and powerful BG-8S smart battery checker
Fully support BattGO technology.

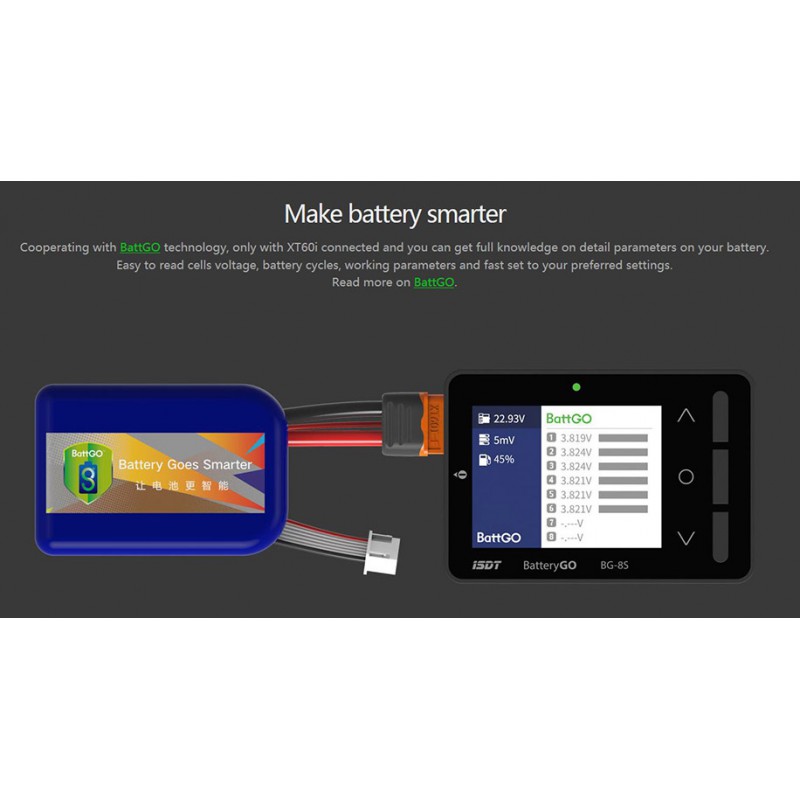

Make battery smarter

Cooperating with BattGO technology, only with XT60i connected and you can get full knowledge on detail parameters on your battery. Easy to read cells voltage, battery cycles, working parameters and fast set to your preferred settings.

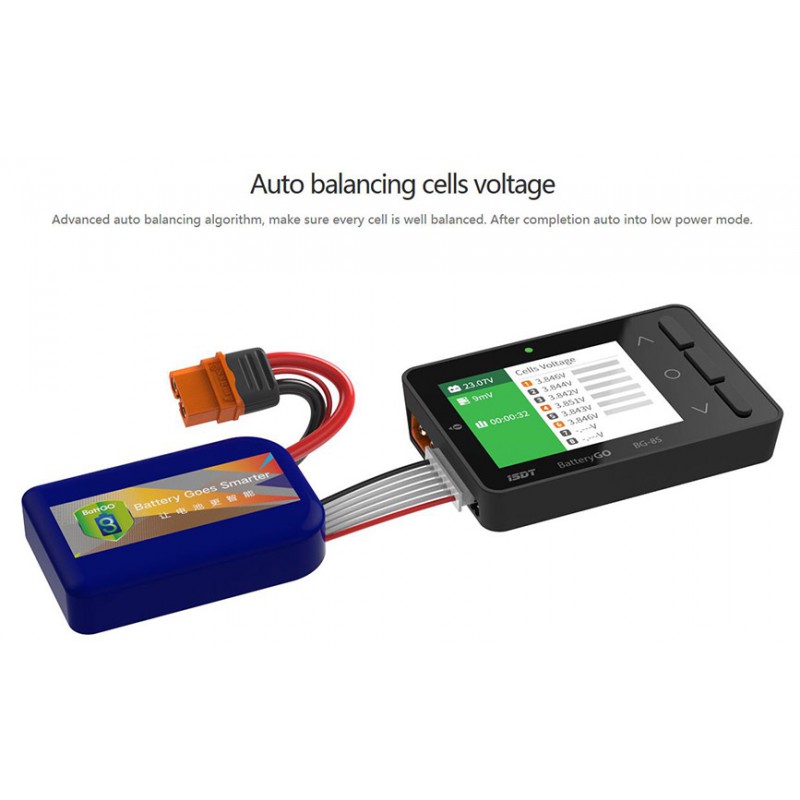

Auto balancing cells voltage

Advanced auto balancing algorithm, make sure every cell is well balanced. After completion auto into low power mode.

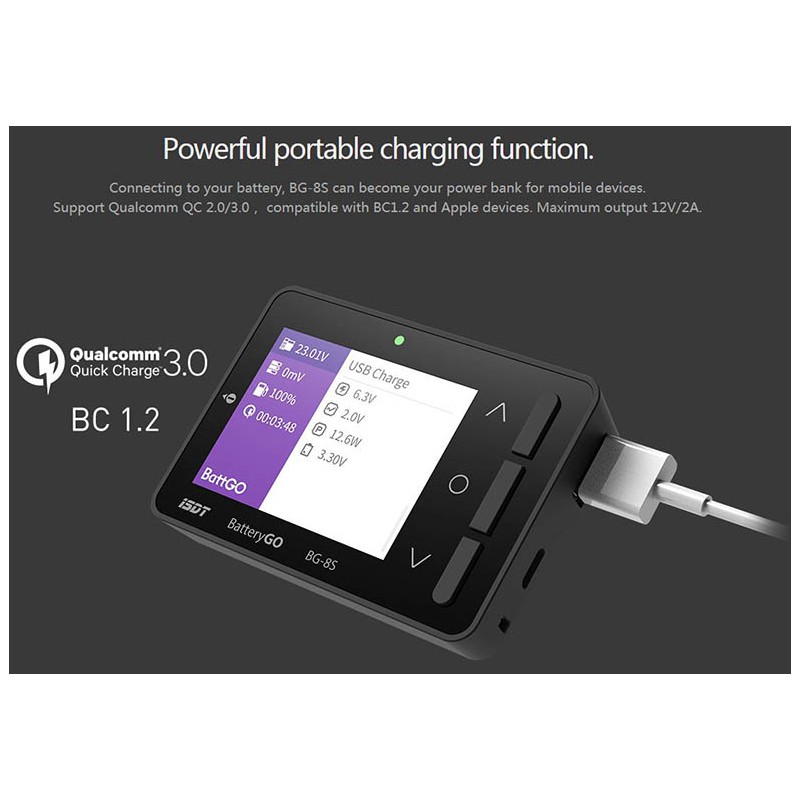

Powerful portable charging function.

Connecting to your battery, BG-8S can become your power bank for mobile devices.
Support Qualcomm QC 2.0/3.0， compatible with BC1.2 and Apple devices. Maximum output 12V/2A.

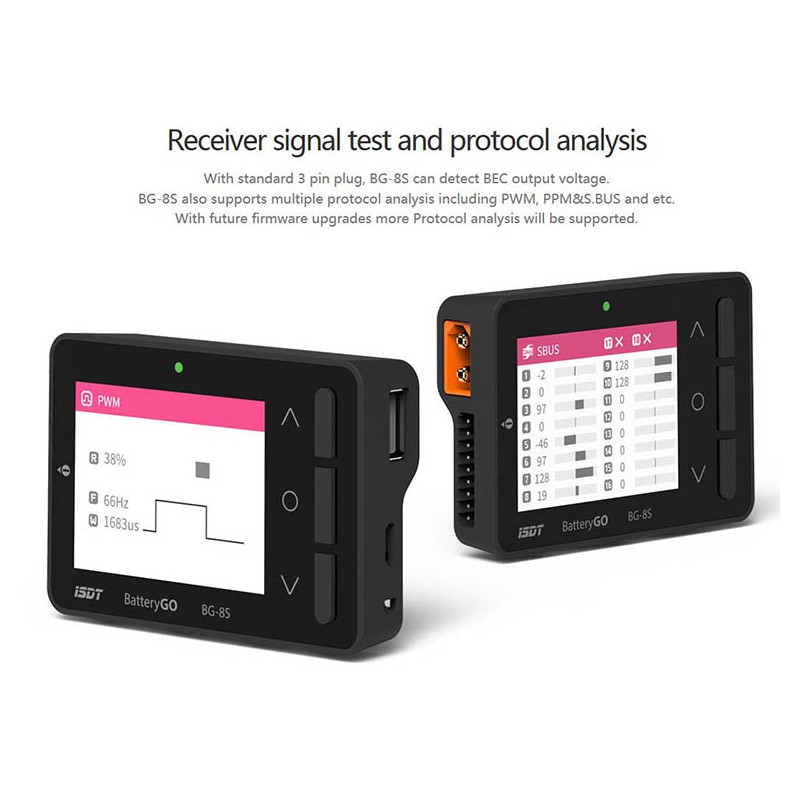

Receiver signal test and protocol analysis

With standard 3 pin plug, BG-8S can detect BEC output voltage.
BG-8S also supports multiple protocol analysis including PWM, PPM&S.BUS and etc.
With future firmware upgrades more Protocol analysis will be supported.

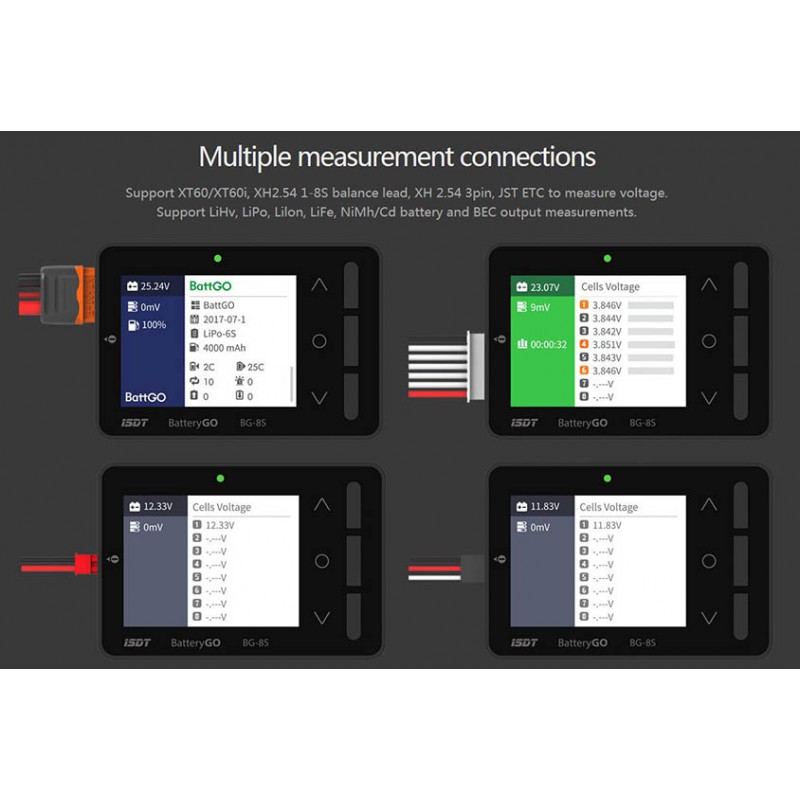

Multiple measurement connections

Support XT60/XT60i, XH2.54 1-8S balance lead, XH 2.54 3pin, JST ETC to measure voltage.
Support LiHv, LiPo, Lilon, LiFe, NiMh/Cd battery and BEC output measurements.

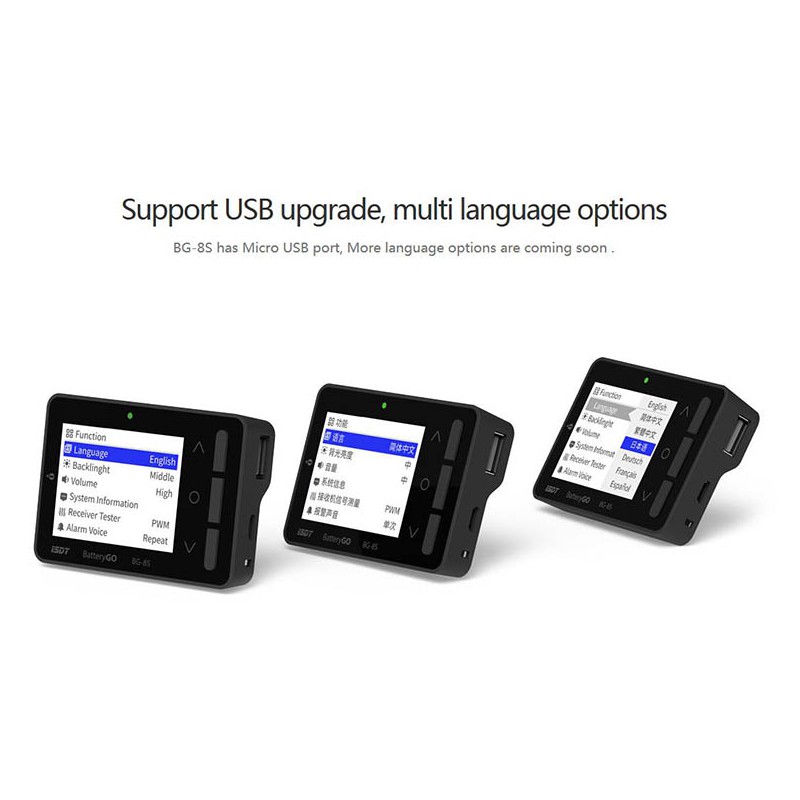

Support USB upgrade, multi language options.

iSDT BG-8S Smart Battery Checker User Manual downloading link.

Specifications:

Working voltage :	5.0V-36V
Input voltage 1s :	0.8V-15V
Input voltage 2-8S :	0.8V-4.8V
Battery cells :	1-8S
Voltage measurement accuracy :	±0.005V @ 4.2V
Balancing cells accuracy :	< 0.005V
Support USB charging :	QC 2.0 / 3.0, BC1.2, Maximum output 12V/2A
Support smart battery :	Charging and discharging setting, read battery info and usage history.
Supported Batt. Type :	LiHv (1-8S) / LiPo (1-8S) / LiFe(1-8S) Lilon (1-8S) / NiMH/Cd(1-10S)
Display :	2.4〃320×240 260,000 color IPS LCD
Dimension :	80 X 55 X 19 mm
Weight :	59g
Operating Temperature :	0-40℃
Working Humidity :	10%-90%RH (noncondensing)
Storage Temperature :	-20-60℃
Storage Humidity :	5%-90%RH (noncondensing)
