Align T-REX 760X DOMINATOR Top Super Combo RC Helicopter (RH76E01A)

Align T-REX 760X Dominator Top Super Combo radio controlled helicopter kit.

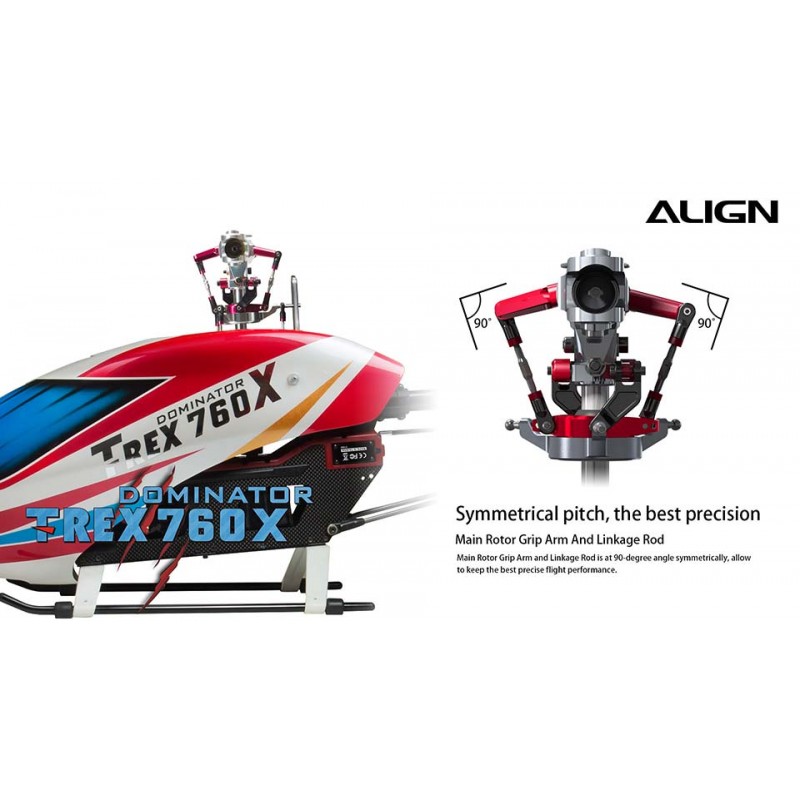

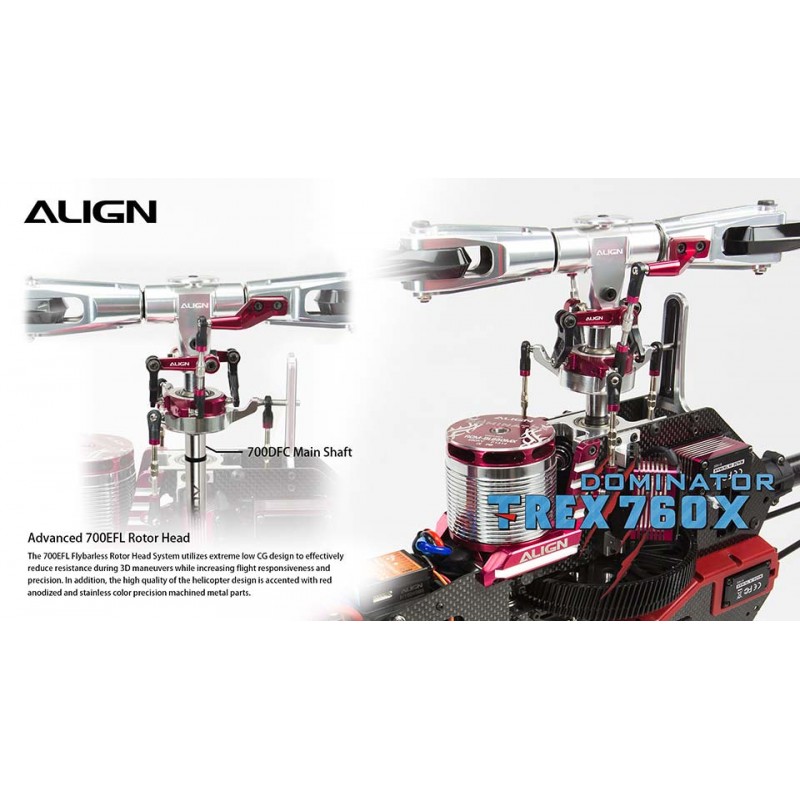

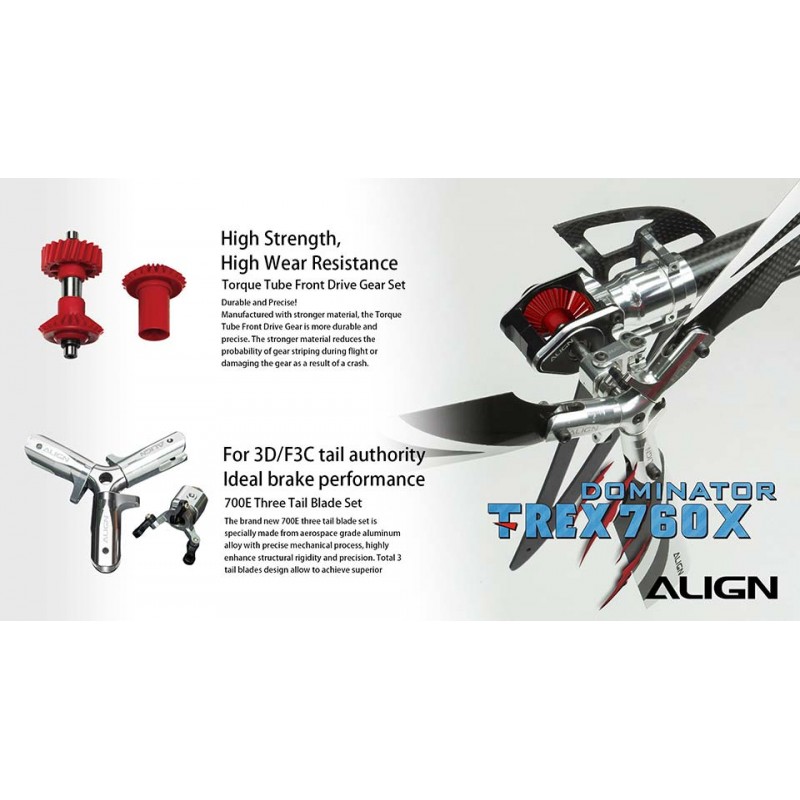

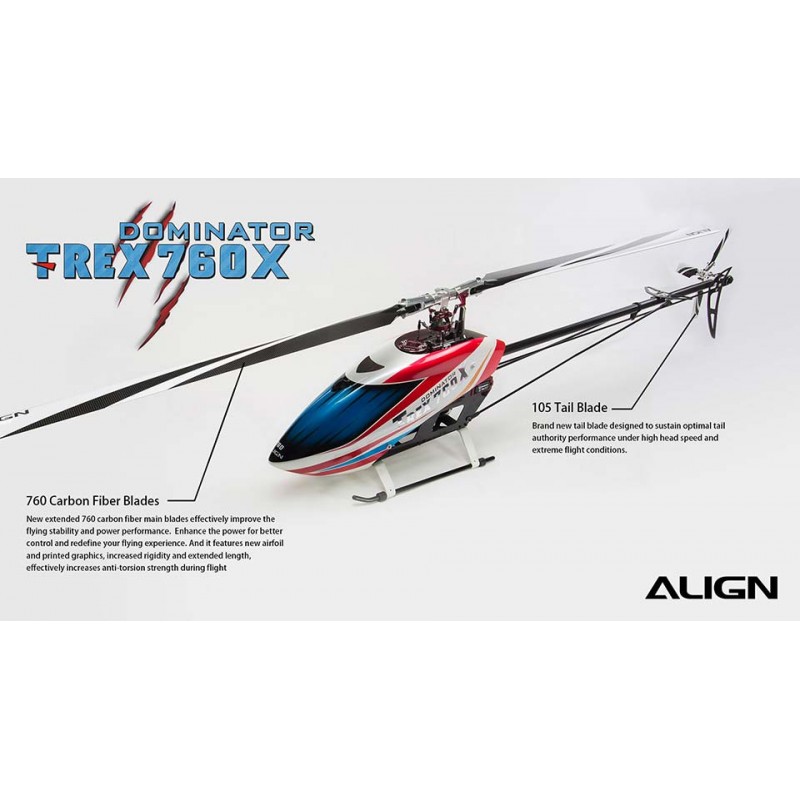

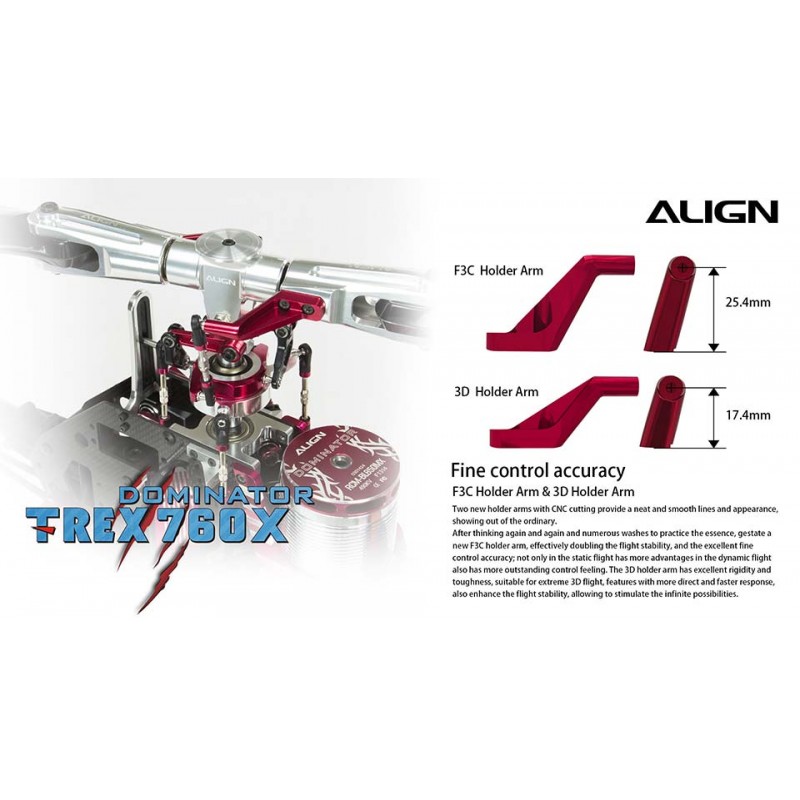

The new 700FL rotor head system can use new F3C rotor holder arm and 3D rotor holder arm. F3C rotor holder arm effectively doubles the flight stability with excellent and precise control accuracy not only has more advantages in the static flight also provide the perfect controlling feel in 3D flight. 3D rotor holder arm suitable for extreme 3D flight provides the more direct and faster control response. Main rotor grip arm and linkage rod is at 90-degree angle symmetrically, allow to keep the best precise flight performance. Also the new 760 main blade features with better flight stability and superior lift making the T-REX 760X in the control feel and stability better than other models. Utilized the three tail blade set as standard accessory feature with excellent controlling feel and superior tail authority allowing you to enjoy the flying no matter F3C or 3D flight.

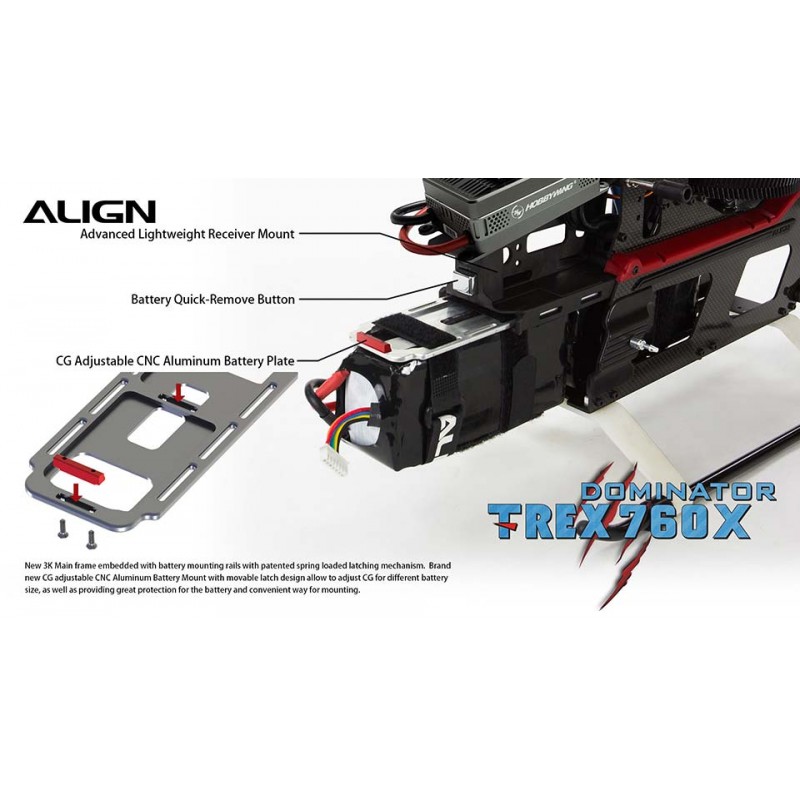

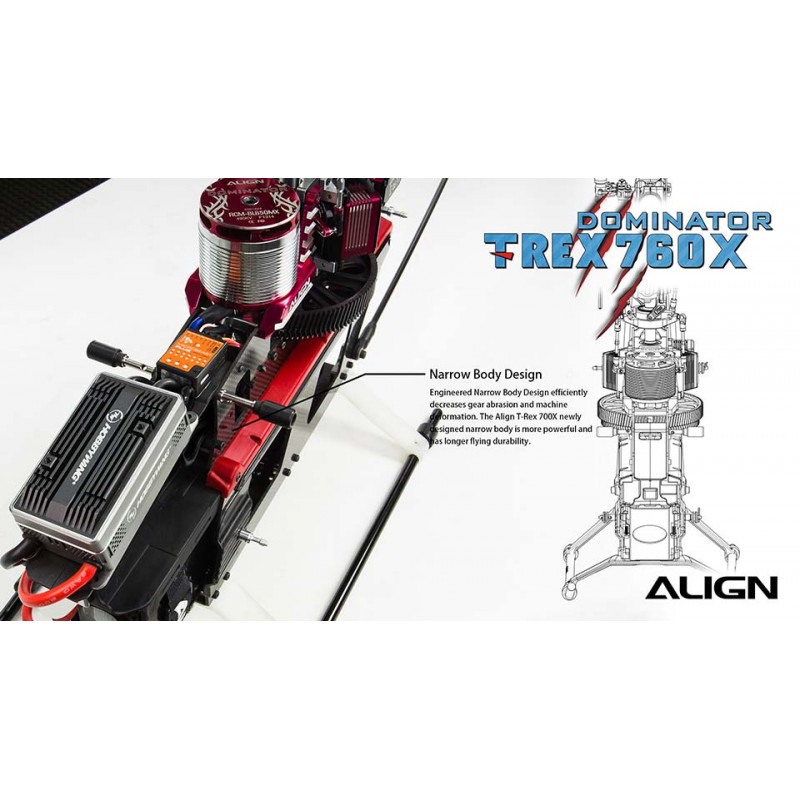

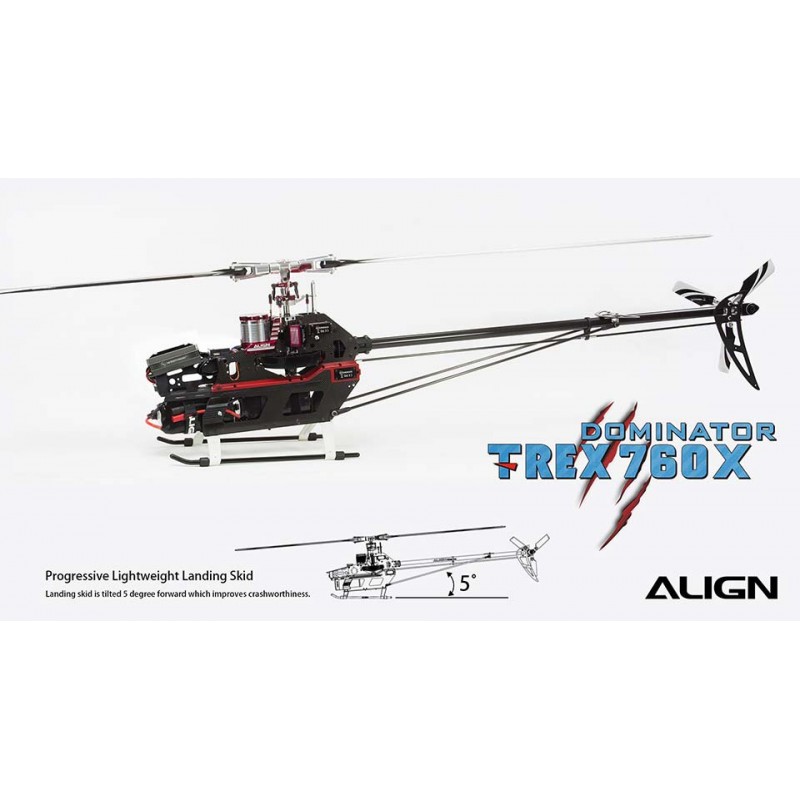

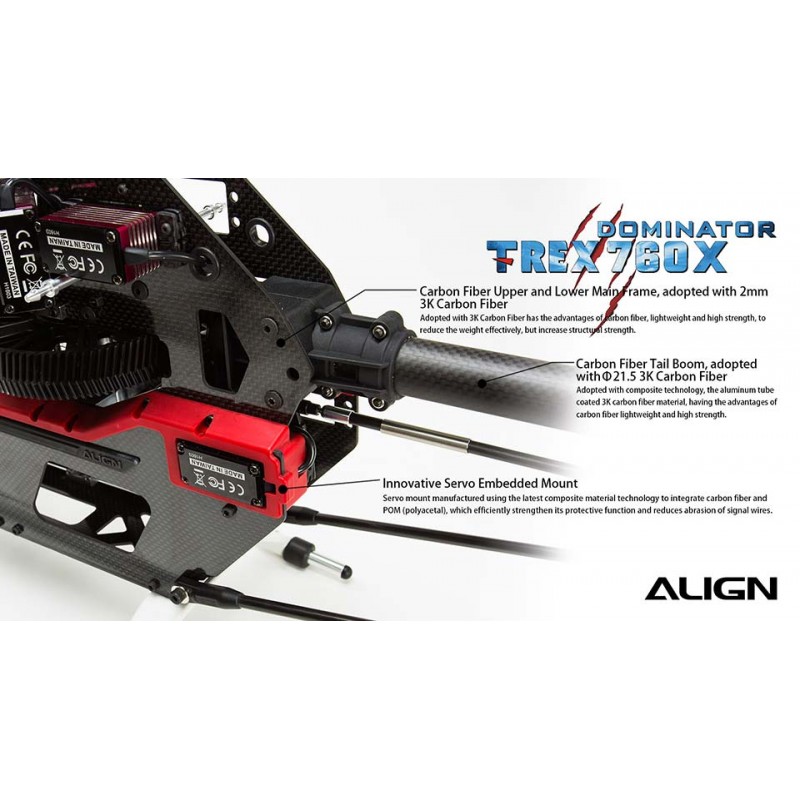

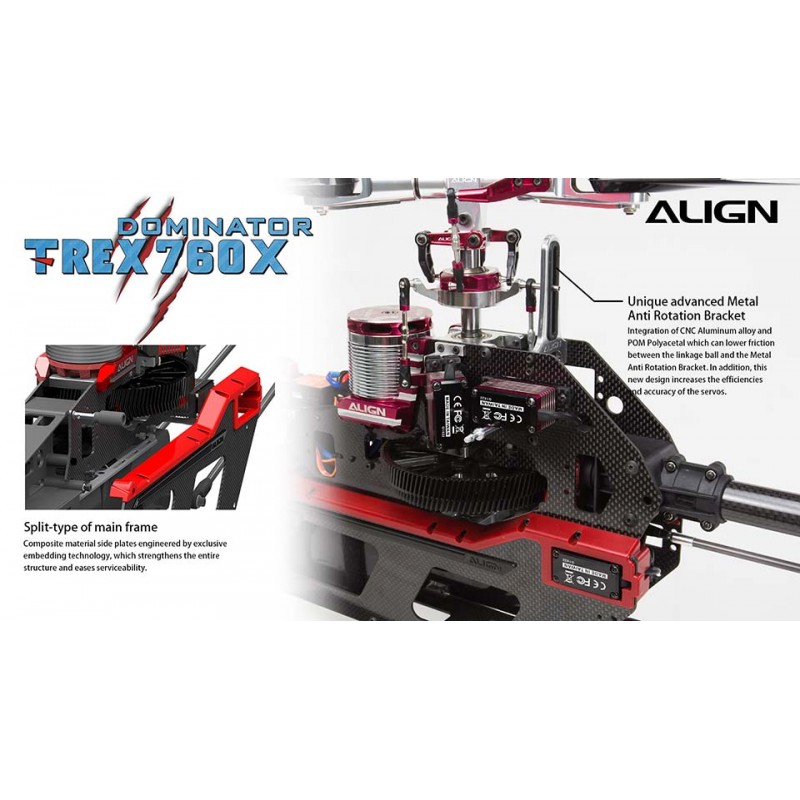

T-REX 760X introduced the advanced engineered narrow body design efficiently decreases gear abrasion, machine deformation, increases power, and extends flying durability. The unique Split-Type Main Frame design, made of composite material side plates, is engineered using our proprietary embedding technology, which strengthens the entire structure and provides better accessibility for servicing the T-REX 760X. This extraordinary design includes a progressive lightweight landing skid making the T-REX 760X the leader in this class. The lightweight structure design which significantly reduce the body weight can effectively increase your flight time.

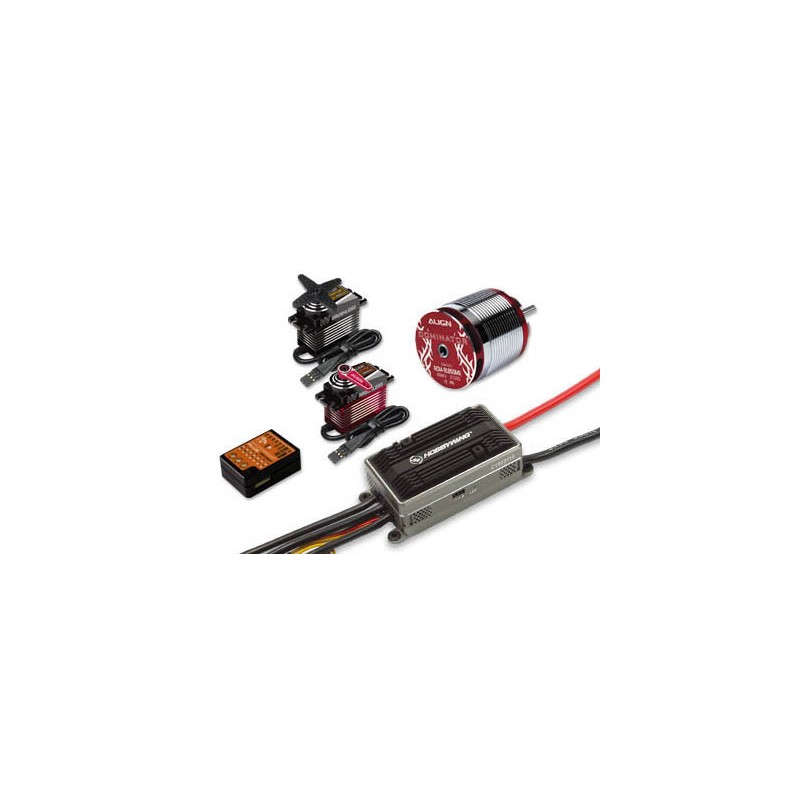

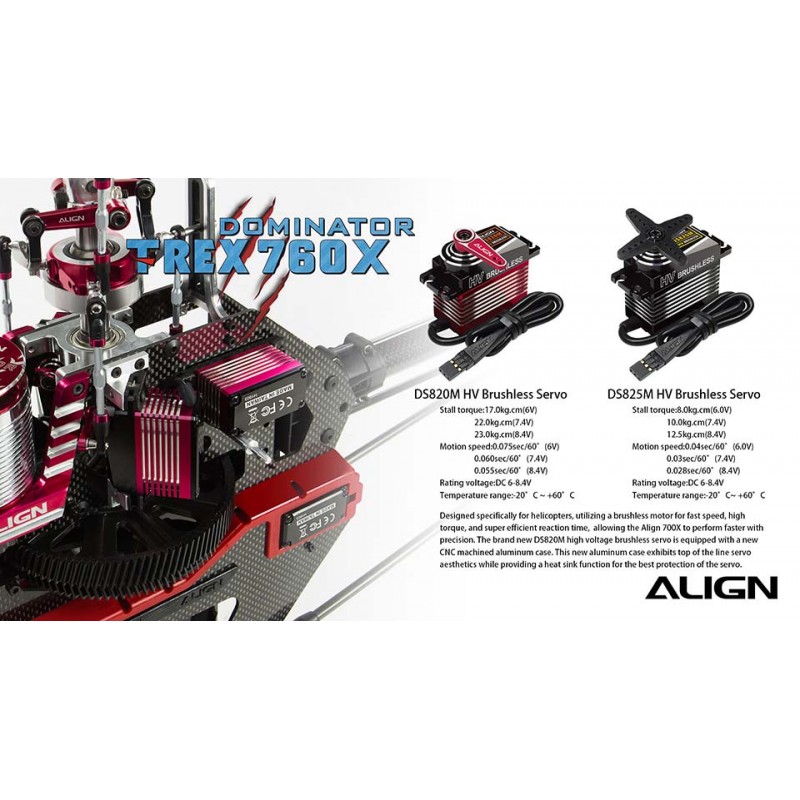

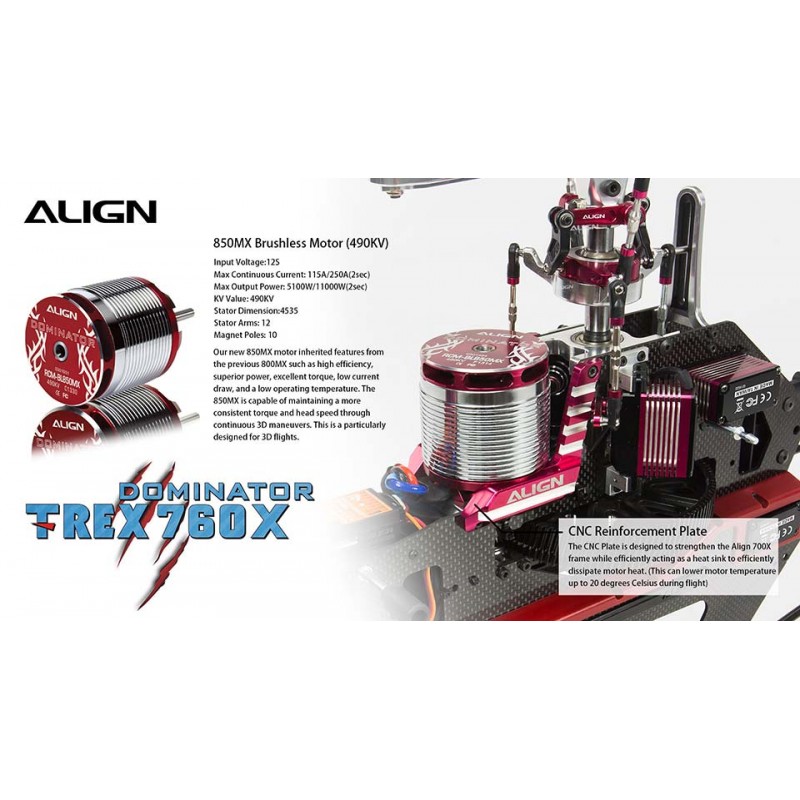

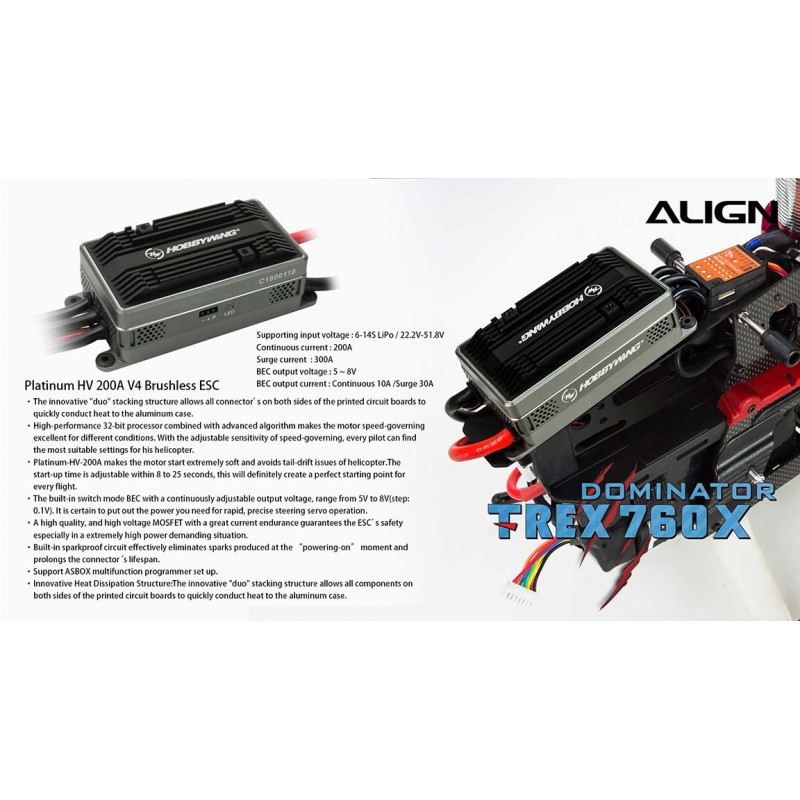

The Align T-REX 760X radio controlled helicopter is equipped with the new 850MX motor which is highly efficient with superior power, excellent torque, low current draw, and is the most advanced motor approved by World RC Champions. The new designed motor cooling mount plate can reduce the motor operating temperature up to 20°C (68°F). The helicopter’s high quality design is accented with precision machined red and silver metal parts. The brand new Platinum HV 200A V4 ESC supplies extreme power. The ESC includes a superior governor and BEC. The new DS820M/DS825M high voltage brushless servos are more efficient and outperform other servos in this class. To protect these servos the new high-end CNC aluminum case function as a heat sink allowing the servos to operate at a lower temperature.

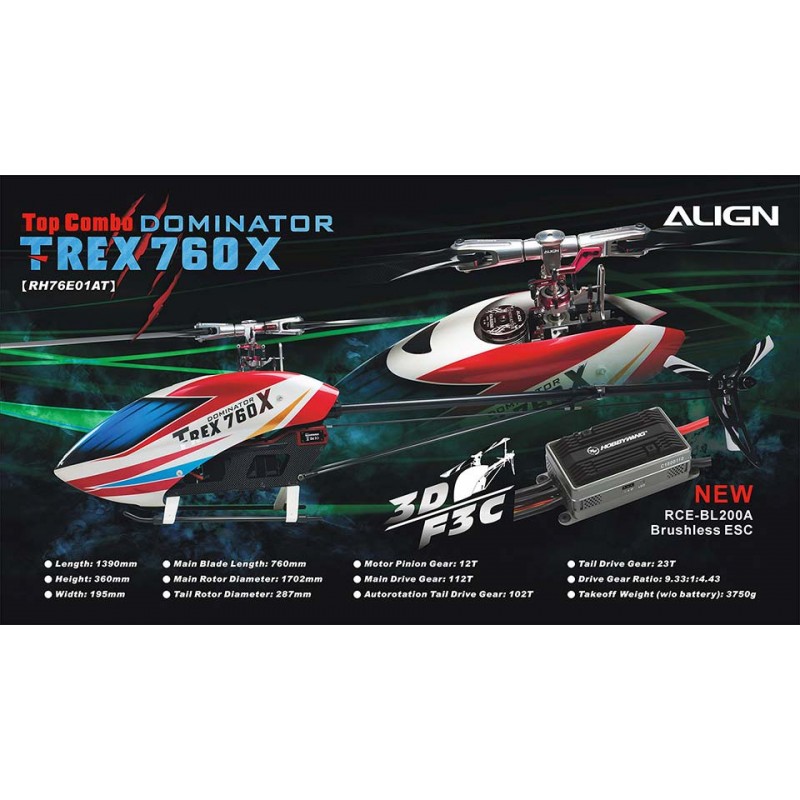

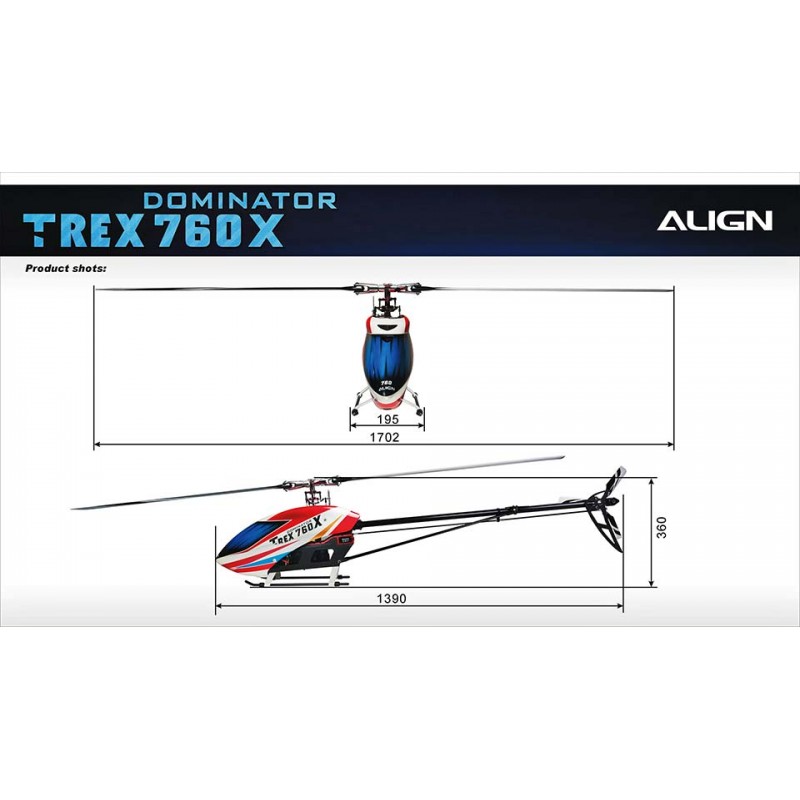

Specifications:

● Length: 1390mm
● Height: 360mm
● Width: 195mm
● Main blade length: 760mm
● Main rotor diameter: 1702mm
● Tail rotor diameter: 287mm
● Motor drive gear: 12T
● Main drive gear: 112T
● Autorotation tail drive gear: 102T
● Tail drive gear: 23T
● Drive gear ratio: 9.33:1:4.43
● Weight (w/o battery): approx. 3750g

In the box:

• 1x T-REX 760X 3D Dominator Kit
• 2x 760 Carbon Fiber Blade
• 2x 760X 3D Main Rotor Holder Arm
• 2x 760X F3C Main Rotor Holder Arm
• 3x 105mm 3K Carbon Fiber Tail Blade
• 1x 850MX Brushless Motor (490 KV)
• 3x DS820M HV Brushless Servo
• 1x DS825M HV Brushless Servo
• 1x Hobbying Platinum HV 200A V4 Brushless ESC
• 1x BeastX Microbeast Ultra Flybarless System

Radio transmitter and electronic equipment required for assembly but not included in this kit:

● Transmitter (7 channel or more, helicopter system)
● Receiver (7 channel or more)
● 6S Li-Po 4500 ~ 5200mAh x 2
● Digital Pitch Gauge
