Align TB70 V2 Top Combo RC Helicopter (RH70E54X)

RH70E54X

New product

Designed for sport flying, aerobatics or 3D, you will love the new 2024 Align RC Helicopter concept.

Align TB70 V2 Top Combo RC Helicopter

Including 800MX (570KV-4530) brushless motor, DS830M/DS835M HV servos, Hobbywing Platinum HV200A V4 ESC.

More details

1 959,00 € tax incl.

More info

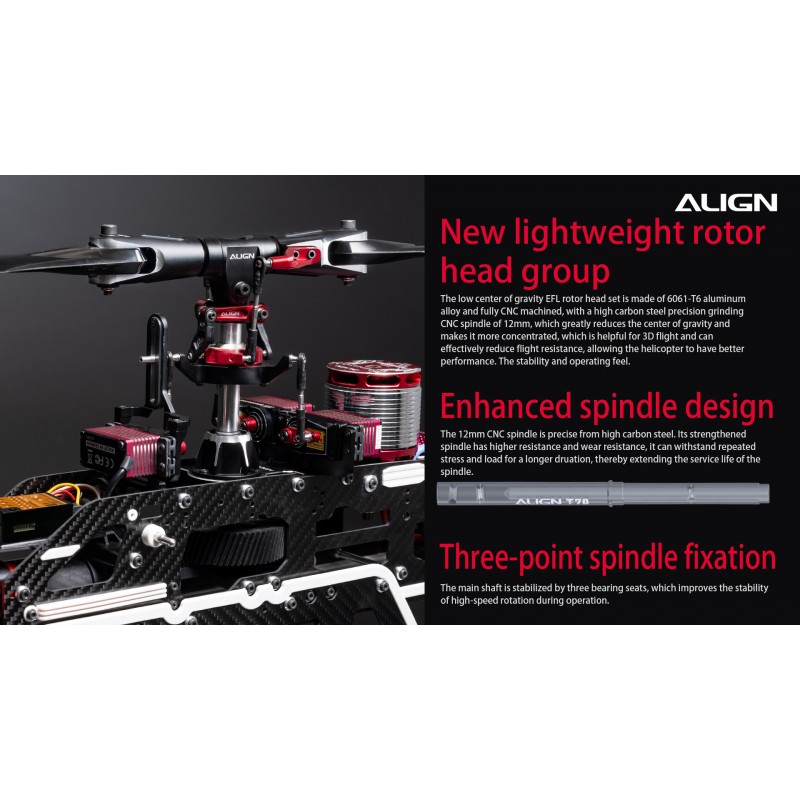

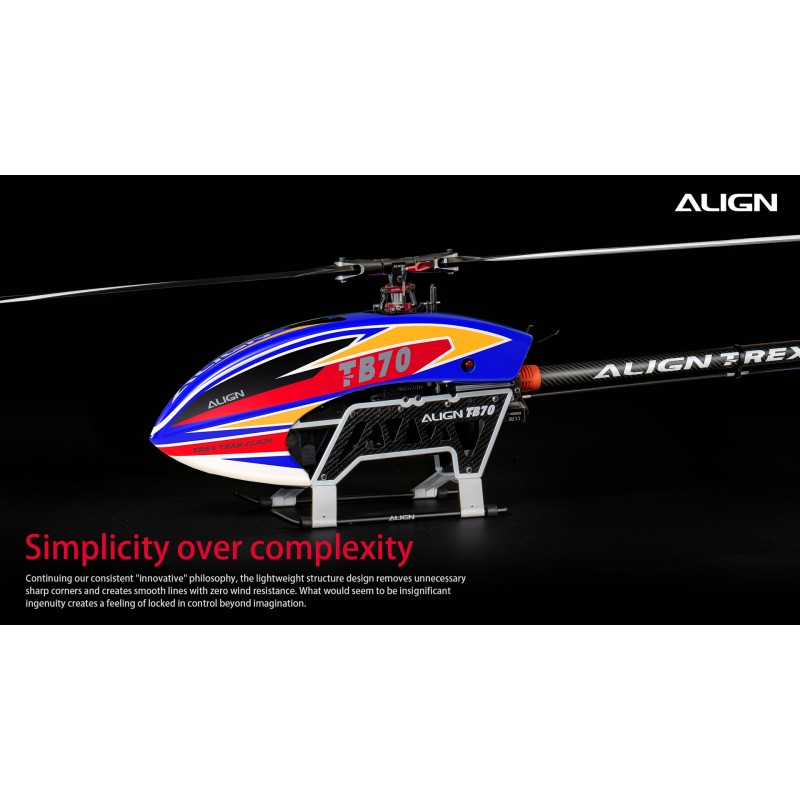

Discover the Align 2024 innovation with the T-REX TB70 V2 brand new rc helicopter model !
A radio-controlled helicopter designed for sport flying, aerobatics or 3D.

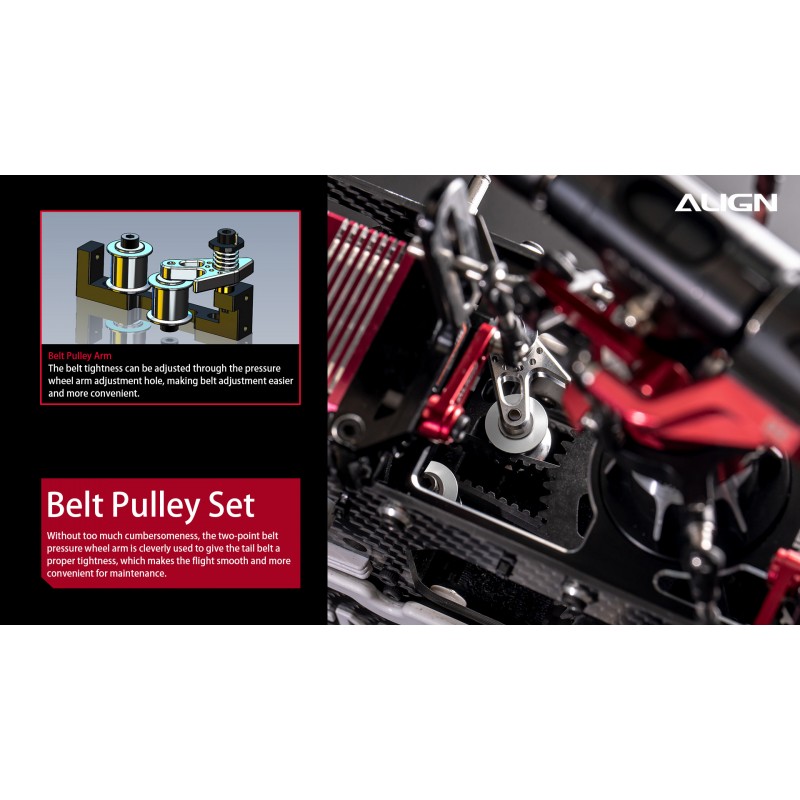

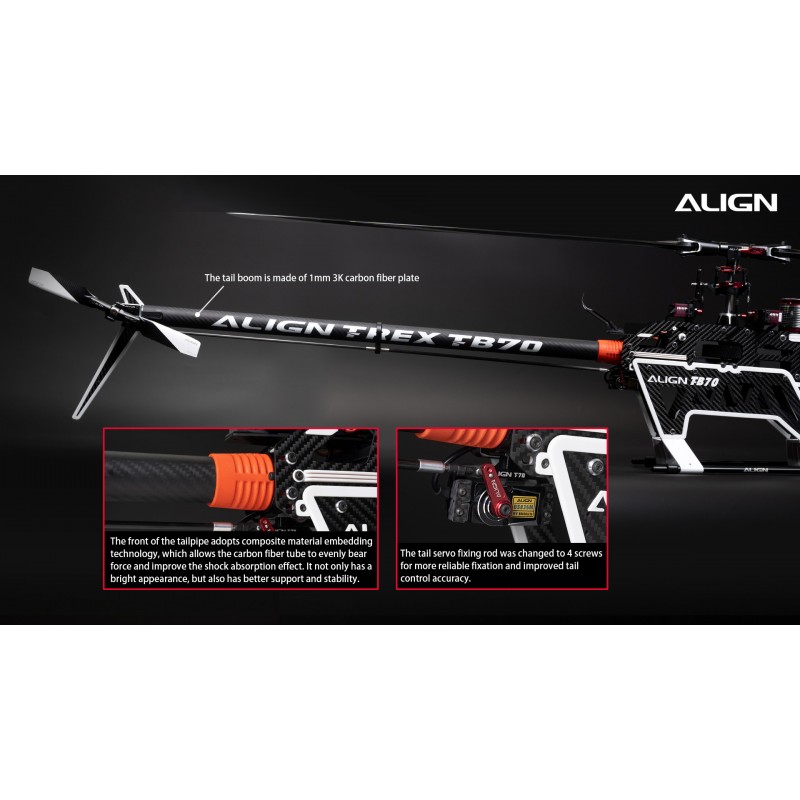

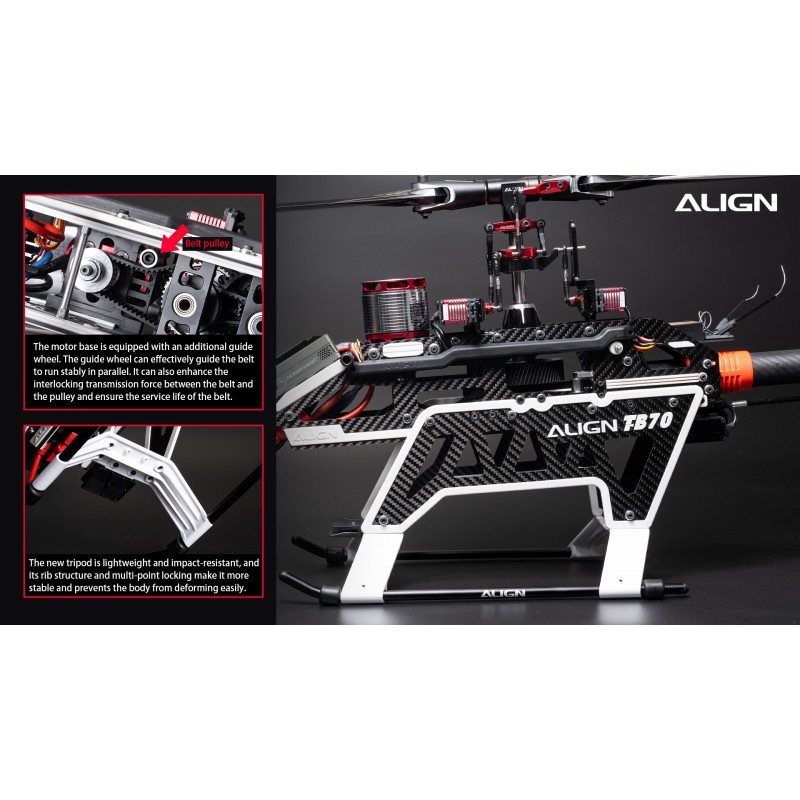

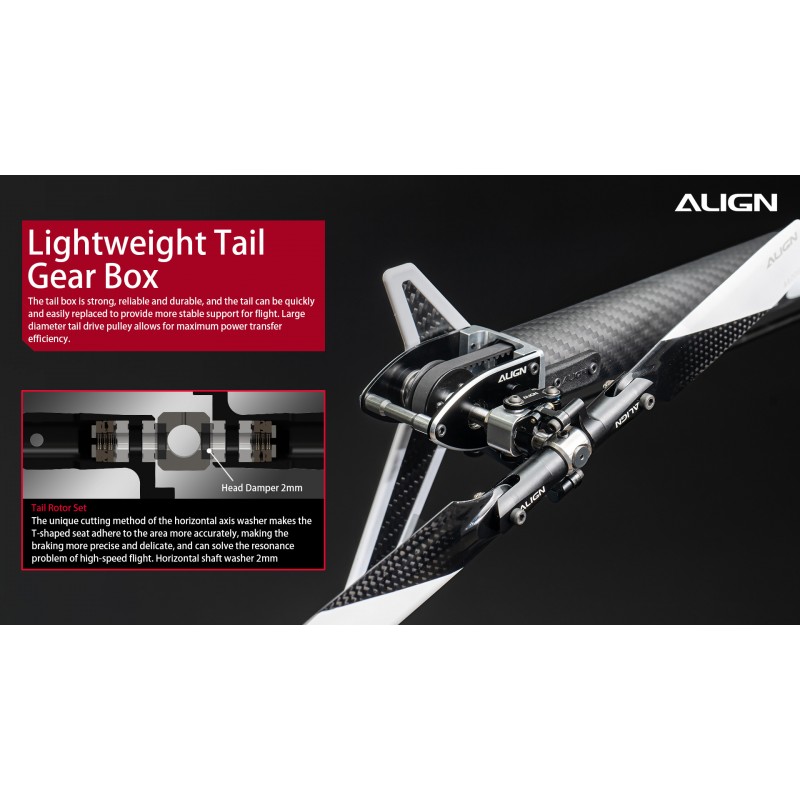

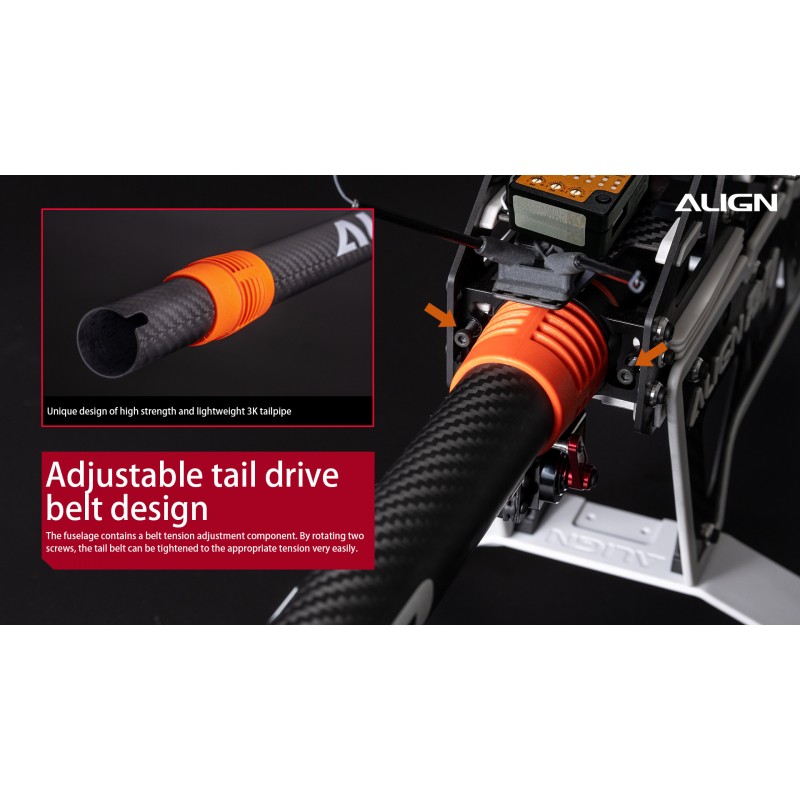

You will love this concept: new type of gearbox, belt driven tail rotor, tail boom without brace.

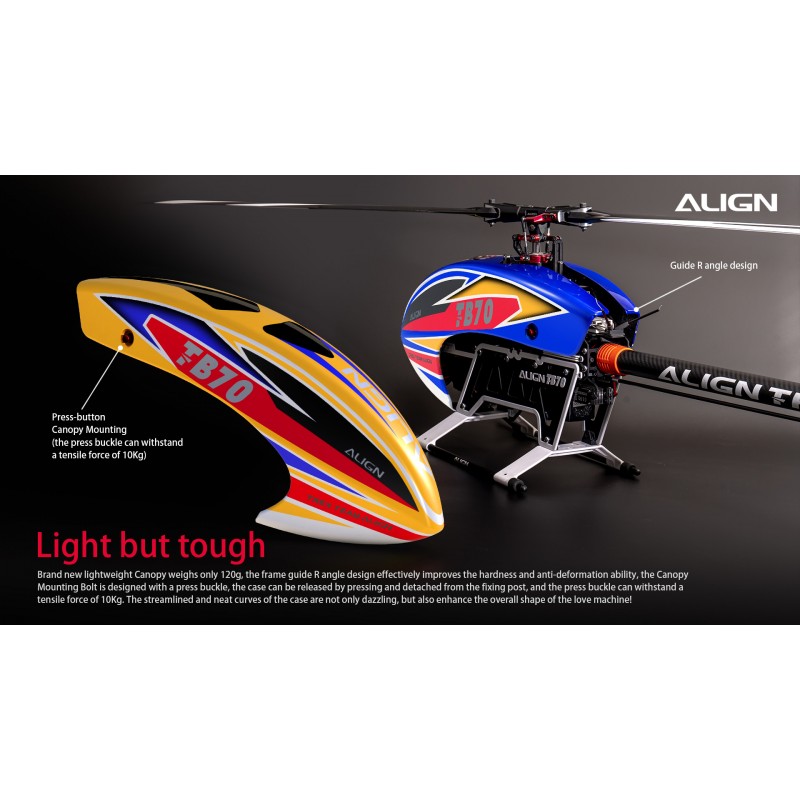

Lightweight, but sturdy. More perfect assembly and adjustment.

Lighter, more powerful and quieter than the T-Rex 700 !

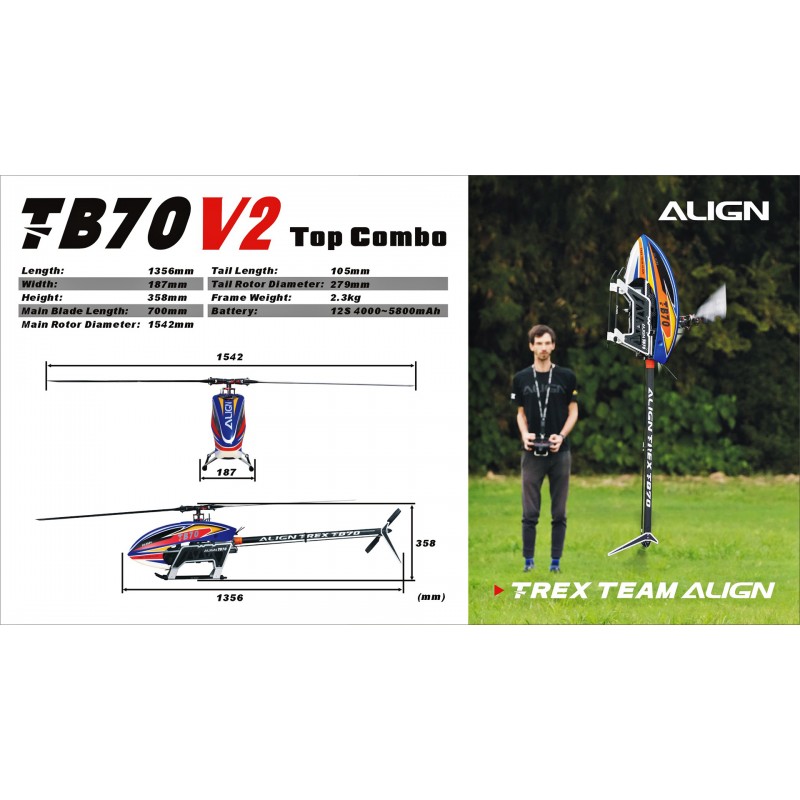

Specifications:

● Length: 1356 mm
● Height: 358 mm
● Width: 187 mm
● Main blade length: 650-730 mm
● Main rotor diameter: 1542 mm
● Tail length: 105-115 mm
● Tail rotor diameter: 279 mm
● Motor belt pulley: 22 T
● Belt pulley: 50 T

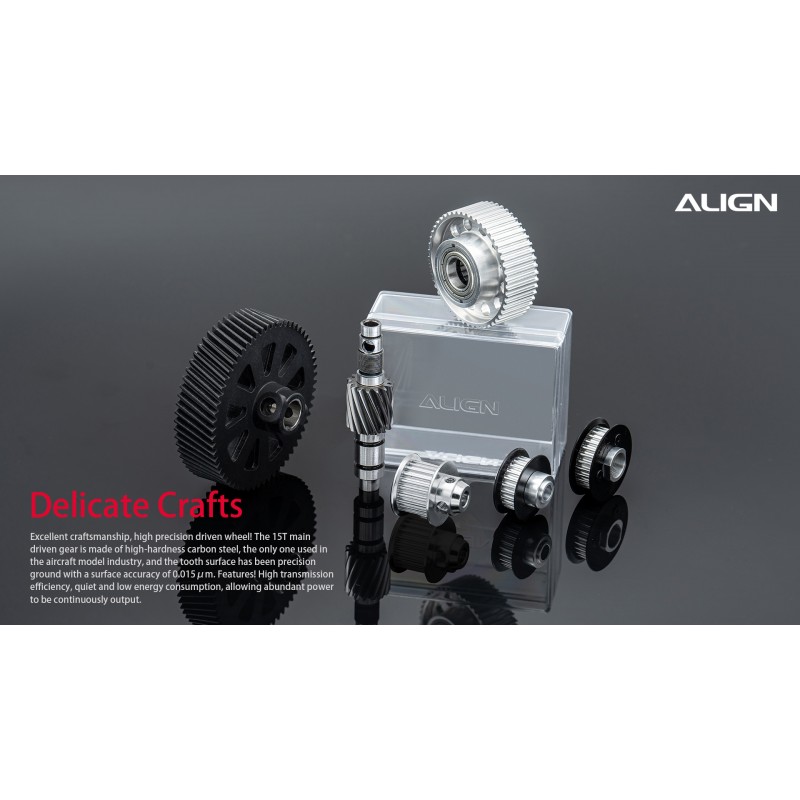

● Front drive main shaft: 15 T

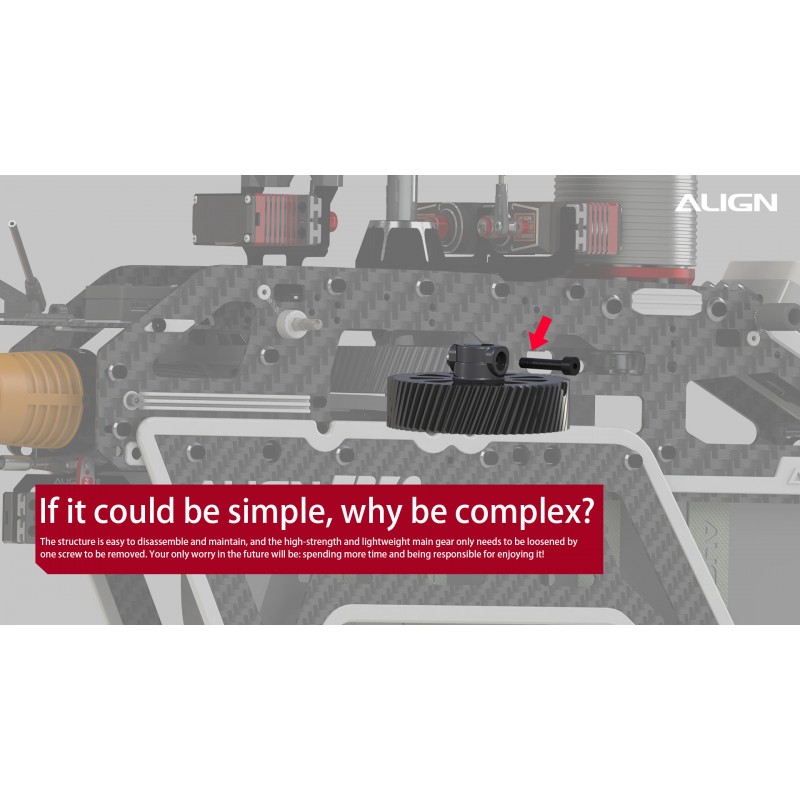

● Main drive gear: 62 T
● Autorotation tail drive gear: 27 T
● Tail drive gear: 23 T
● Drive gear ratio: 9.38:1:4.83

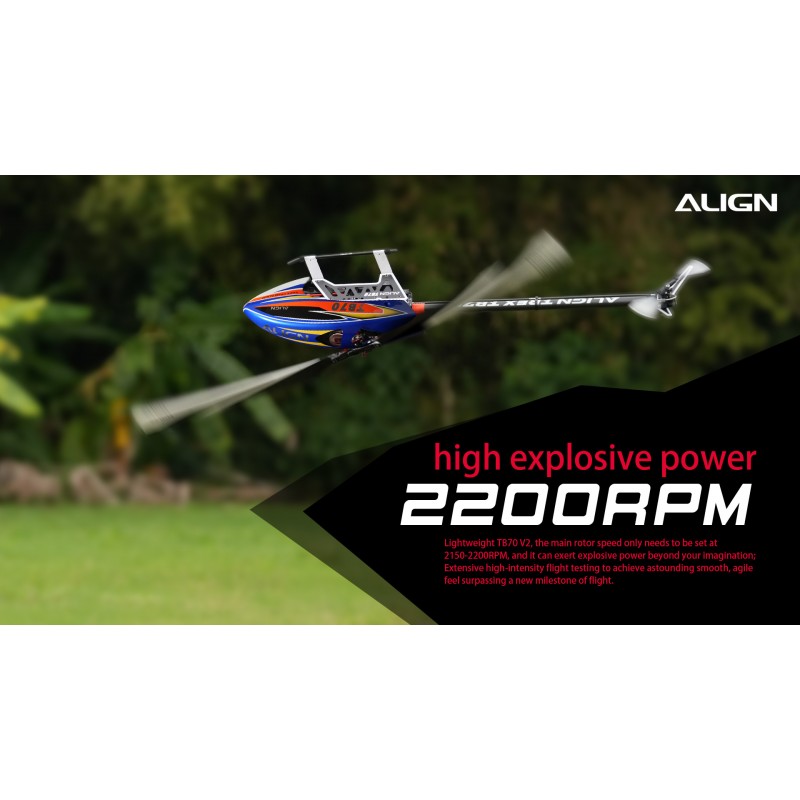

● Max RPM (approx.): 2400 RPM
● Flying weight (with battery 12S / 5200 mAh): approx. 5kg

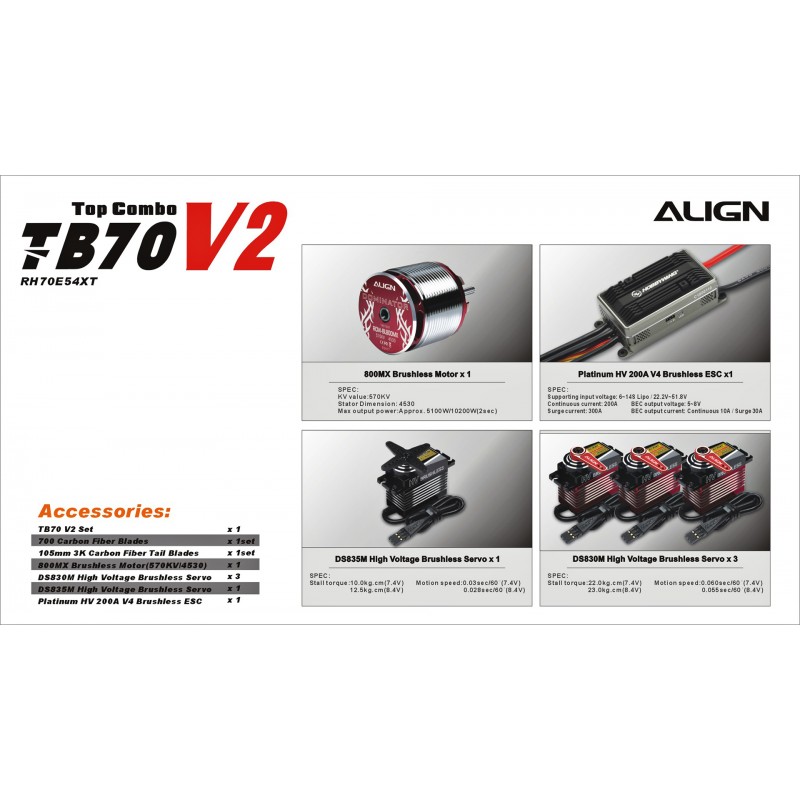

In the box:

● Align TB70 V2 kit set x1
● 700 carbon fiber blades set x1
● 22T motor belt pulley x1
● 105 mm carbon fiber tail blades set x1

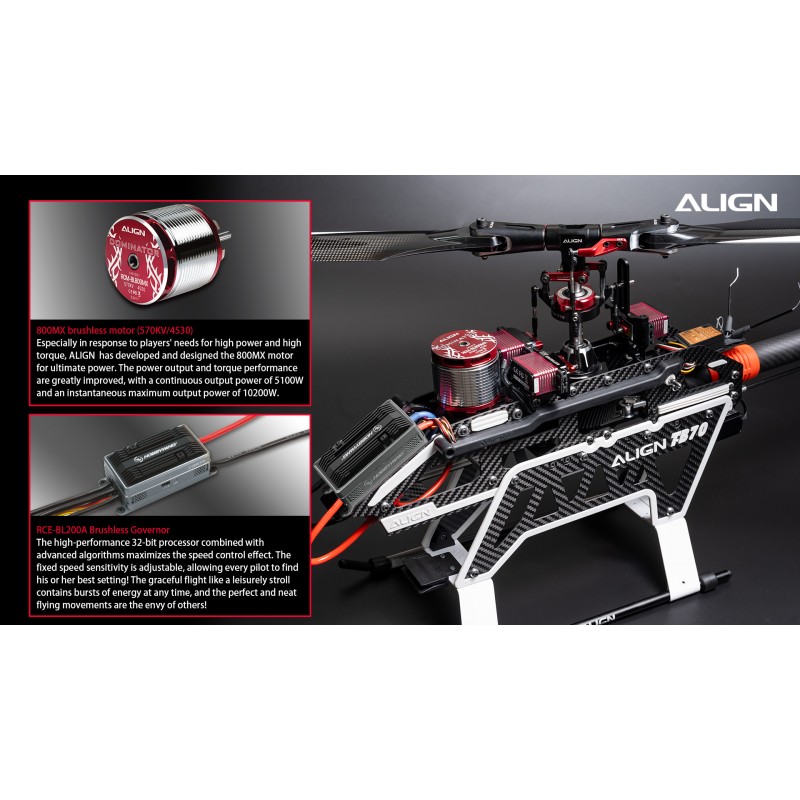

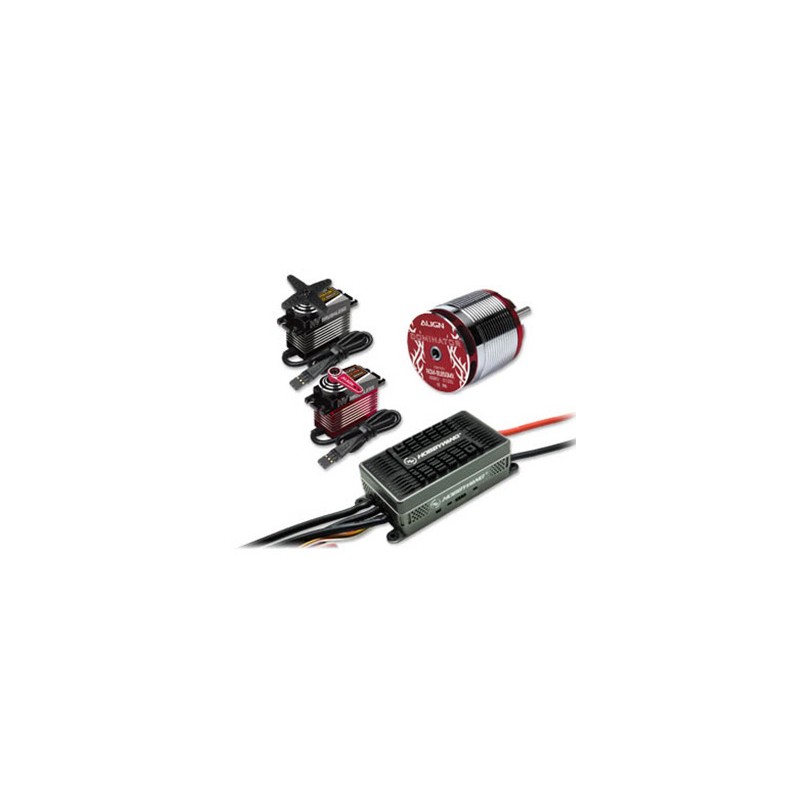

● 800MX brushless electric motor (570KV/4530) x1

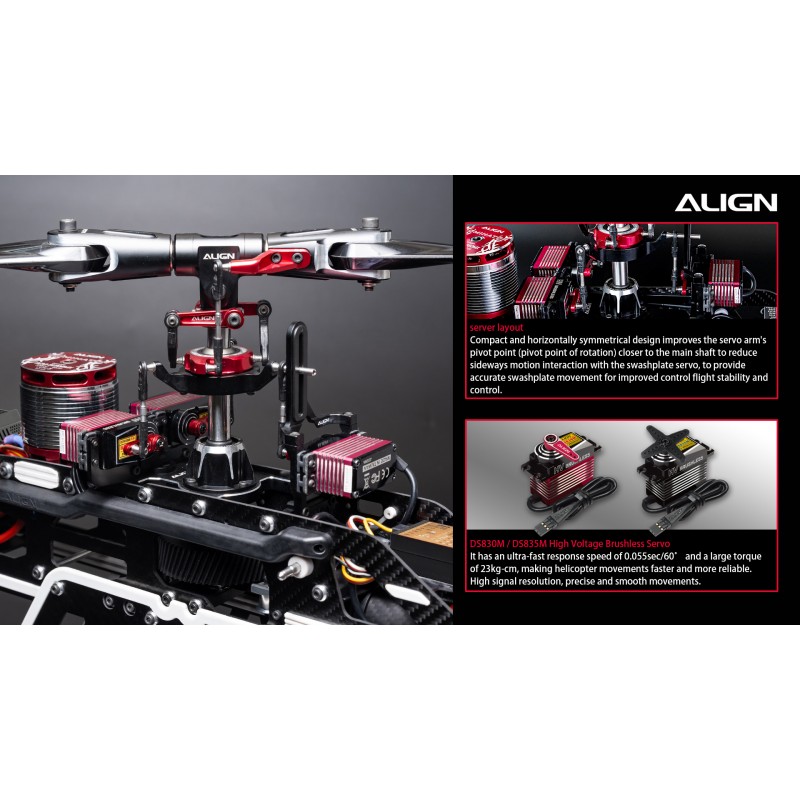

● DS830M High Voltage brushless swashplate servo x3
● DS835M High Voltage brushless rudder servo x1
● Hobbywing Platinum HV 200A V4 Brushless ESC x1

Radio transmitter and electronic equipment required for assembly (not included in the kit):

● Transmitter (6-channel or more, helicopter system)
● Receiver (6-channel or more)
● Lipo Intelligent Balance Charger
● 22.2V 6S 4000~5800mAh Li-Po Battery x2
● Digital pitch gauge
● Multi-function tester
● Flybarless system (BeastX, Axon, Futaba, etc)
