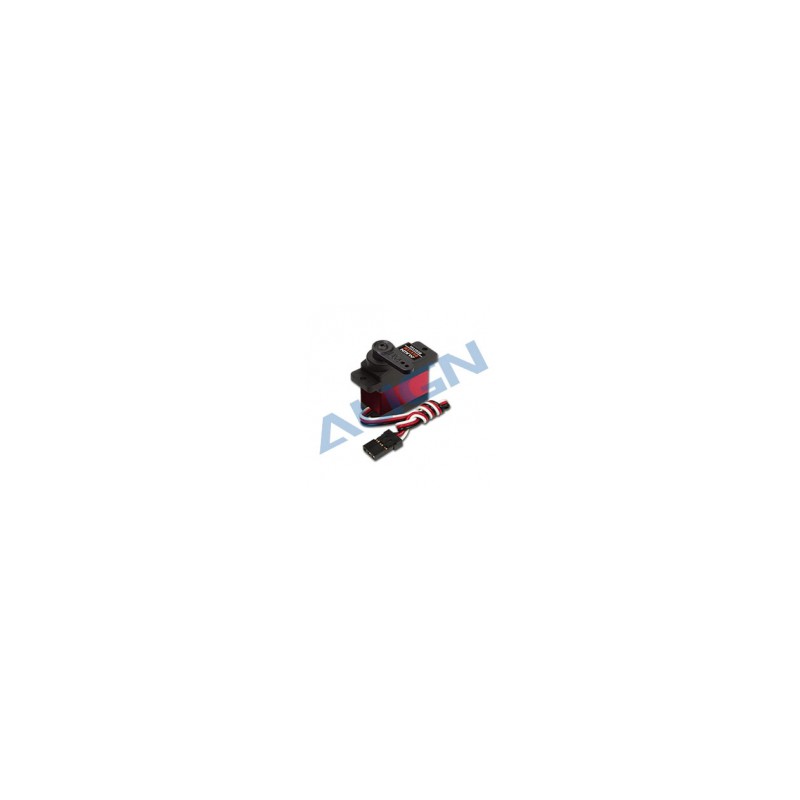

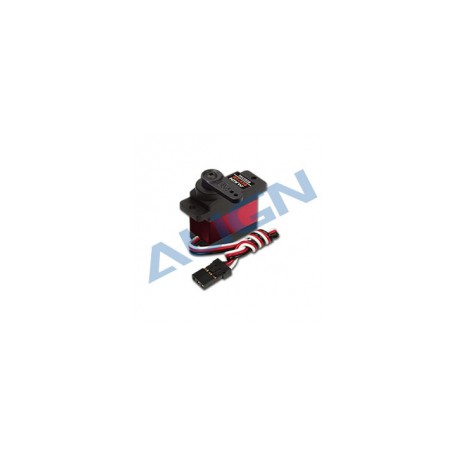

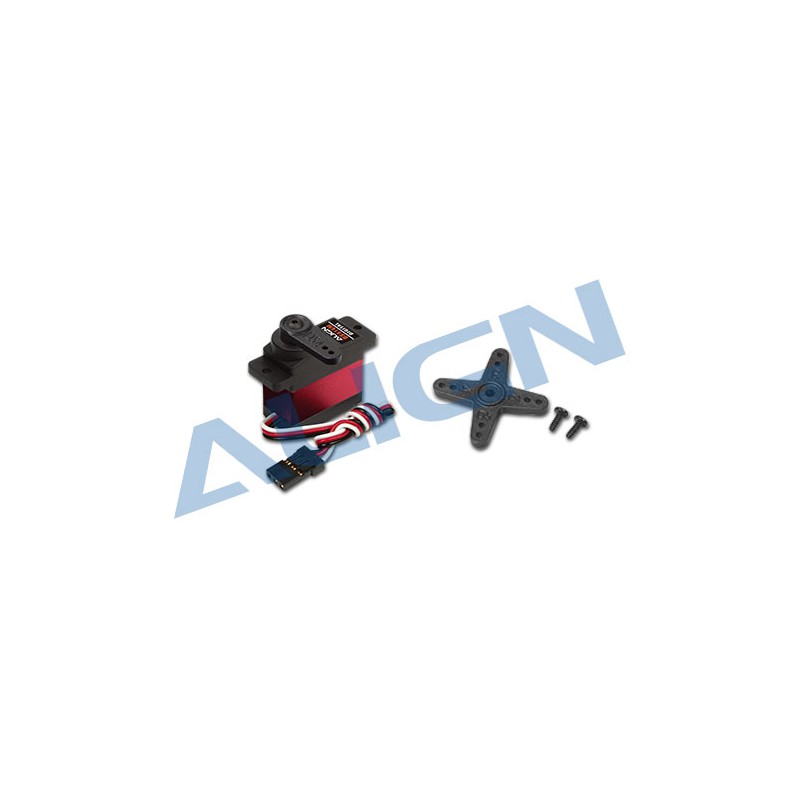

DS416M Digital Servo - Align HSD41601

Align DS416M is a digital micro servo for 250/450 radio controlled helicopter cyclic use.

● Faster speed with high torque performance, allowing helicopter to perform with faster and higher precision.
● High rigidity, shock resistant metal gears with high strength composite alloy gears with durable structure characteristics.
● Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
● Supports digital & analog control signal.
● Powerful and precise servo, suitable for T-Rex 250/450 CCPM cyclic use.

Specifications:

● Stall torque: 2.1kg.cm (4.8V) / 2.7kg.cm (6.0V)
● Motion speed: 0.1sec/60°( 4.8V) / 0.08sec/60° (6.0V)
● Rating voltage: DC 4.8-6.0V
● Temperature range: -20°C~+60°C
● Dimension: 22.9x12x25.8mm
● Weight: 15g
● 1520μs standard band
