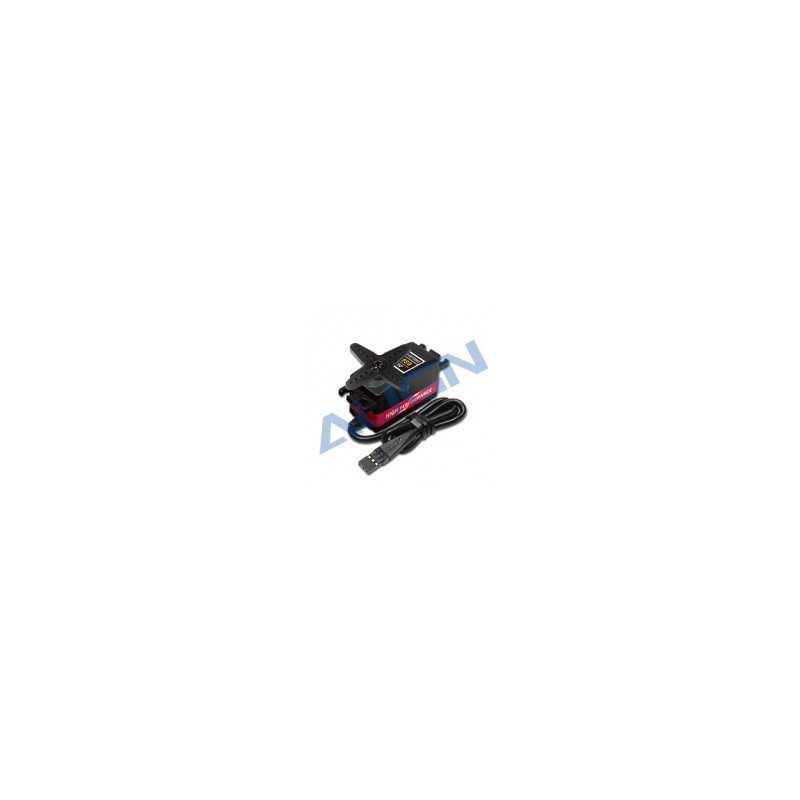

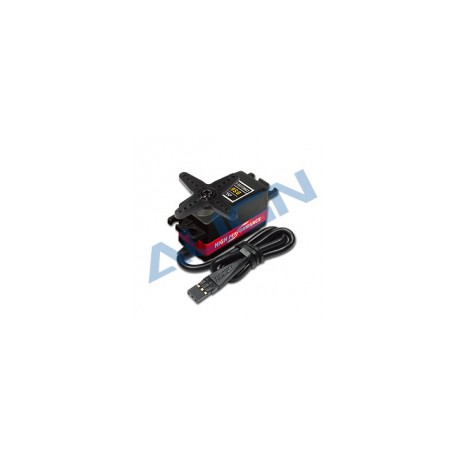

DS615S digital servo - Align HSD61502

Align DS615S is a digital high torque servo designed for Clsss 550/600 rc helicopter CCPM cyclic use.

● Special and unique low profile design, beside helicopters, also suitable for RC cars and airplanes.
● Using high efficiency coreless motor, higher performance superiority, increased output torque, faster reaction time, resulting in higher holding power on swashplate, providing precise control feel. Obviously its high performance is suitable for RC cars and airplanes.
● Silicone-insulated magnet wire, providing a high-end texture and a durable protection for the servo.
● Coreless Motor Design for fast speed, high efficiency, and low power consumption.
● Hardened high strength super alloy gears that increase the lifetime.
● Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
● Supports digital & analog control signal.
● Powerful and precise servo, suitable for Align T-REX 550/600 radio controlled helicopter swashplate use, and also suitable for remote control cars, airplanes.

Specifications :

● Stall torque: 8.5kg.cm (4.8V) / 10kg.cm (6.0V)
● Motion speed: 0.09sec/60° (4.8V) / 0.07sec/60° (6.0V)
● Rating voltage: DC 4.8-6 Volts
● Temperature range:-20°C~+60°C
● Dimension: 40.1 x 20.1 x 25.5mm
● Weight: 49g
● 1520μs standard band

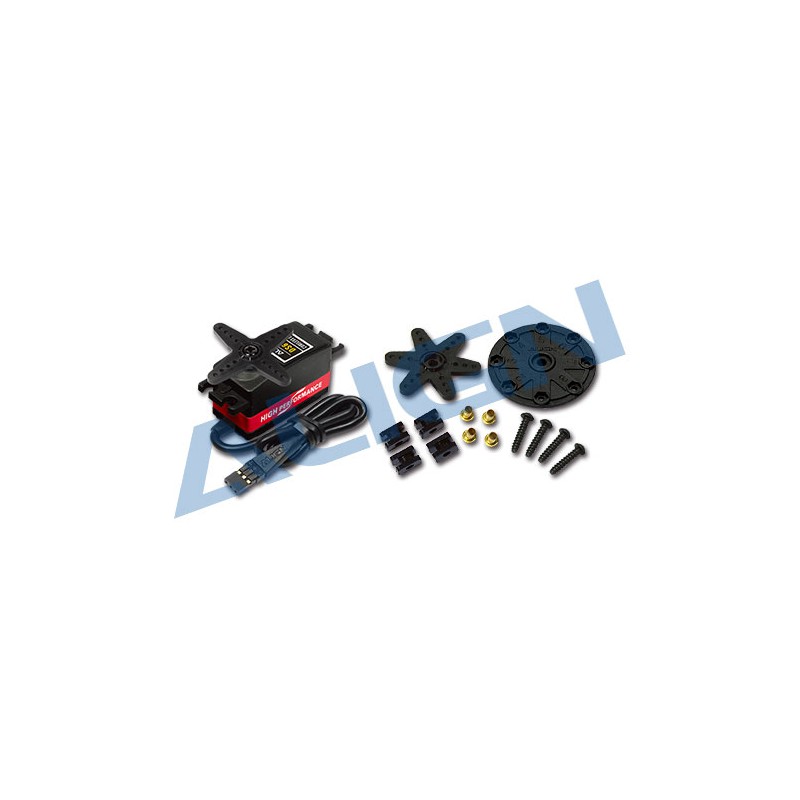

Accessories in the box:
● Servo rudder piece x2
● Set screw x1
● Rubber damper x4
● Brass grommet x4
● Socket button head tapping screw ×4 (T2.6x12mm)
● F Servo horn x1
