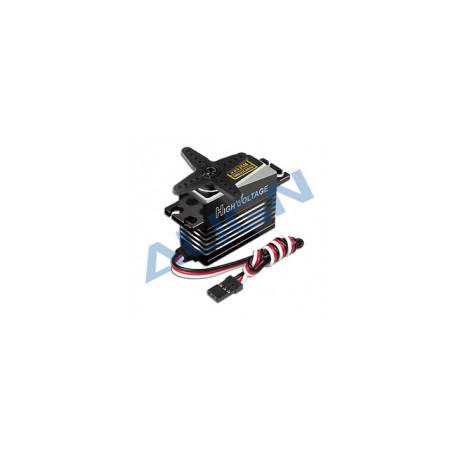

DS535M Digital Servo - Align HSD53501

Reference: HSD53501

Condition: New product

Align DS535M : Digital HV Mini servo - Full aluminium CNC case

Designed for rudder use of Class 500 rc helicopter (T-Rex 500, Goblin...)

More details

This product is no longer in stock

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

DS535M is the last digital High Voltage mini size servo developped by Align for Class 500 radio controlled helicopter use.

● Coreless Motor Design for fast speed, high efficiency, and low power consumption.
● Higher signal resolution for smooth movements.
● Response time of 0.035s/60°. High rigidity metal gears with high precision and durable structure characteristics.
● Full aluminum alloy case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
● Supports high voltage 8.4V.
● Powerful and precise servo suitable for T-Rex 500 CCPM swahplate and rudder servo use.

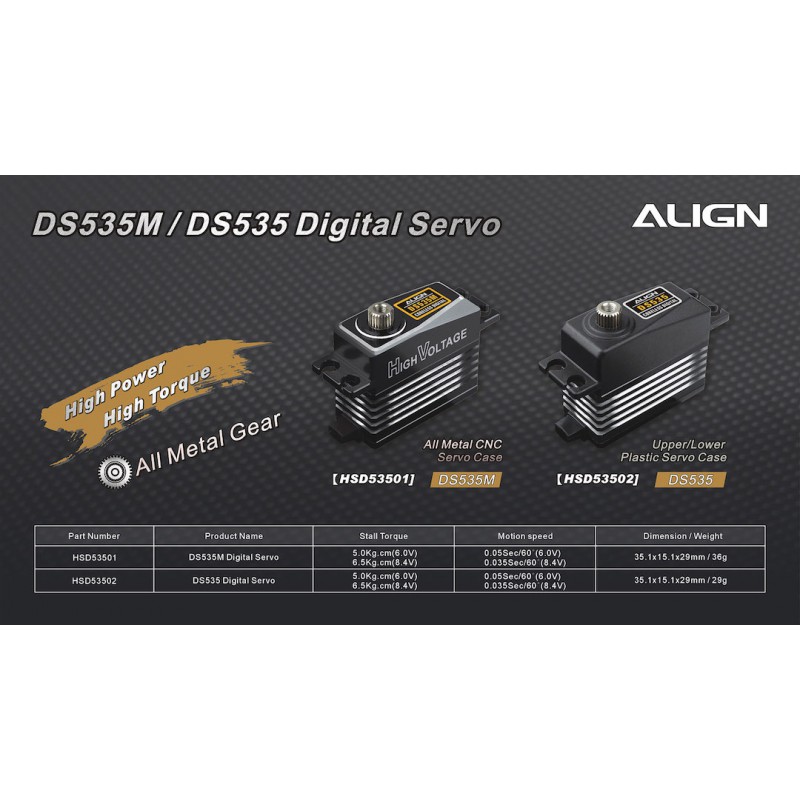

Specifications:

● Stall torque: 5.0kg.cm(6.0V) / 6.5kg.cm(8.4V)
● Motion speed: 0.05sec/60°(6.0V) / 0.035sec/60°(8.4V)
● Rating voltage: DC 6.0-8.4V
● Temperature range: -20°C ~ +60°C
● Dimension: 35.1 x 15.1 x 29mm
● Weight: 36g
