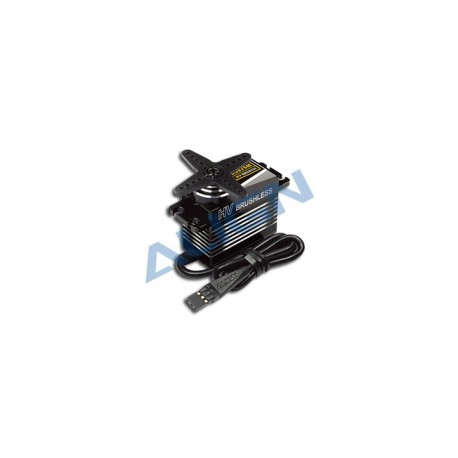

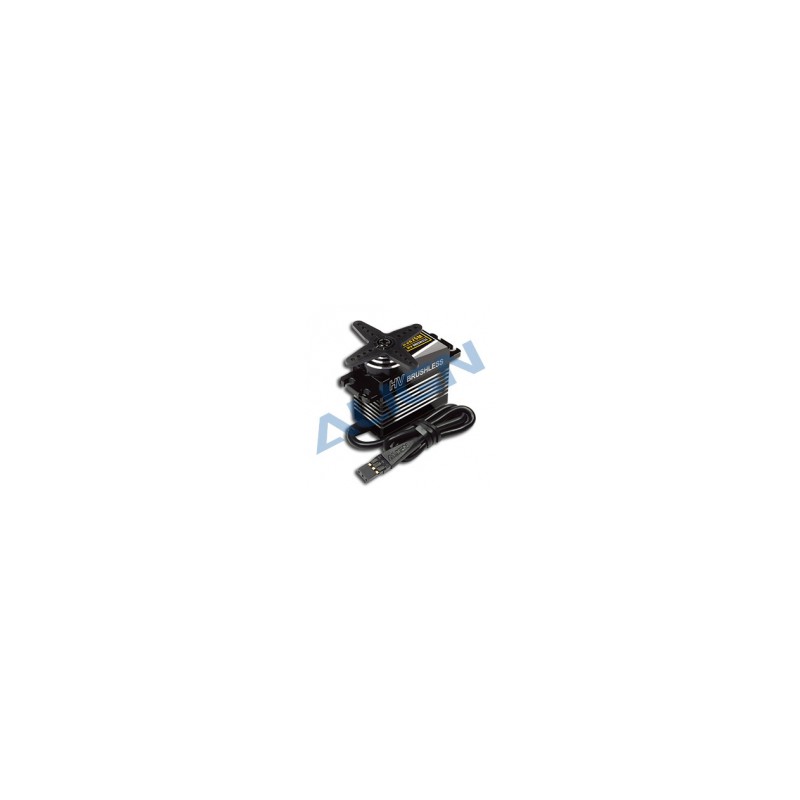

DS825M High Voltage Brushless Servo - Align HSD82501

HSD82501

New product

Align DS825M: High Voltage digital brushless standard size servo - CNC machined aluminium full case

Designed for high performance rc helicopter rudder use (T-Rex 550/600/650/700/800 series).

More details

168,99 € tax incl.

More info

● Designed specifically for radio controlled helicopters, utilizes brushless motor for fast speed, high torque and super efficiency reaction, allowing helicopter to perform with faster and higher precision.
● Rudder servo with 0.02sec/60° ultra high speed response, pushing the extreme.
● Utilizes brushless motor design for fast speed, high efficiency. And with the absence of brush wear, the longevity of servo is greatly increased.
● Supports 8.4v high voltage to provide optimal speed and torque performance of the brushless servo.
● Designed specifically for helicopters, with highest specifications on the market: 0.02sec/60°ultra fast speed and 12.5kg-cm monstrous torque, allowing helicopter to perform with faster and higher precision.
● Ultra high signal resolution for excellent precision and smoothness.
● Hardened high strength superalloy gears that increase the lifetime.
● Brand new high voltage brushless servo equipped new CNC machined aluminum full case, not only exhibited top of the line servo aesthetics, but also combine heat sink function and best protection for the servo.
● Supports both analog and digital control signals.
● Suitable for Align T-Rex 550/600/700/800 rc helicopters rudder use.

Specifications:

● Stall torque: 10.0kg.cm (7.4V) / 12.5kg.cm (8.4V)
● Motion speed: 0.03sec/60° (7.4V) / 0.02sec/60° (8.4V)
● Rating voltage: DC 7.4-8.4 V
● Temperature range: -20°C~+60°C
● Dimension: 40 x 20 x 39 mm
● Weight: 72g

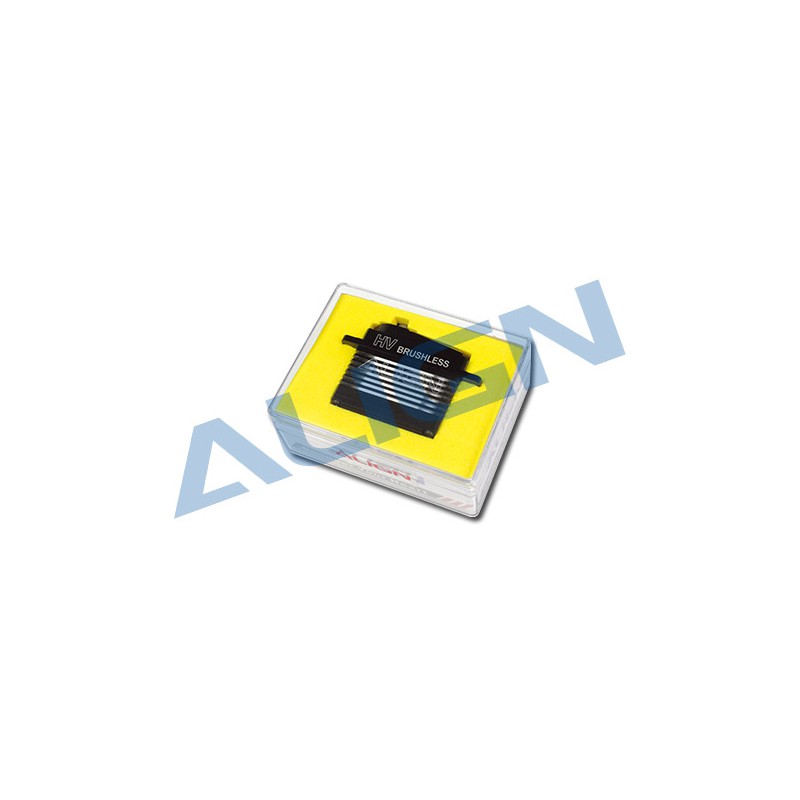

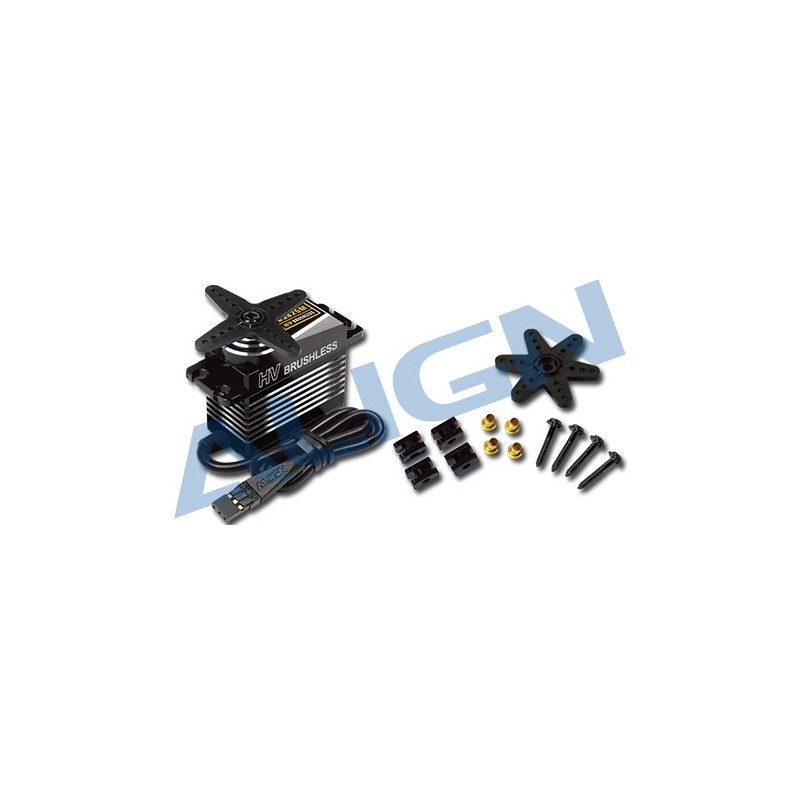

In the DS825M box:

● DS825M High Voltage Brushless servo x1
● DS615/655 servo arm set x1
● Socket botton head screw x4 (M2.5x10mm)
