DS535 Digital Servo - Align HSD53502

Reference: HSD53502

Condition: New product

Designed for Class 500 rc helicopter.

Align DS535: Mini digital HV servo designed for heli rudder use

HV compatible.

More details

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

DS535: the last Class 500 Align HV digital servo (mini size) for Align T-REX 500L/500X radio controlled helicopter rudder use.

● Coreless Motor Design for fast speed, high efficiency, and low power consumption.
● Higher signal resolution for smooth movements.
● Response time of 0.035s/60°. High rigidity metal gears with high precision and durable structure characteristics.
● Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
● Supports high voltage 8.4 Volts.
● Powerful and precise servo suitable for T-Rex 500 rudder (and cyclic) use.

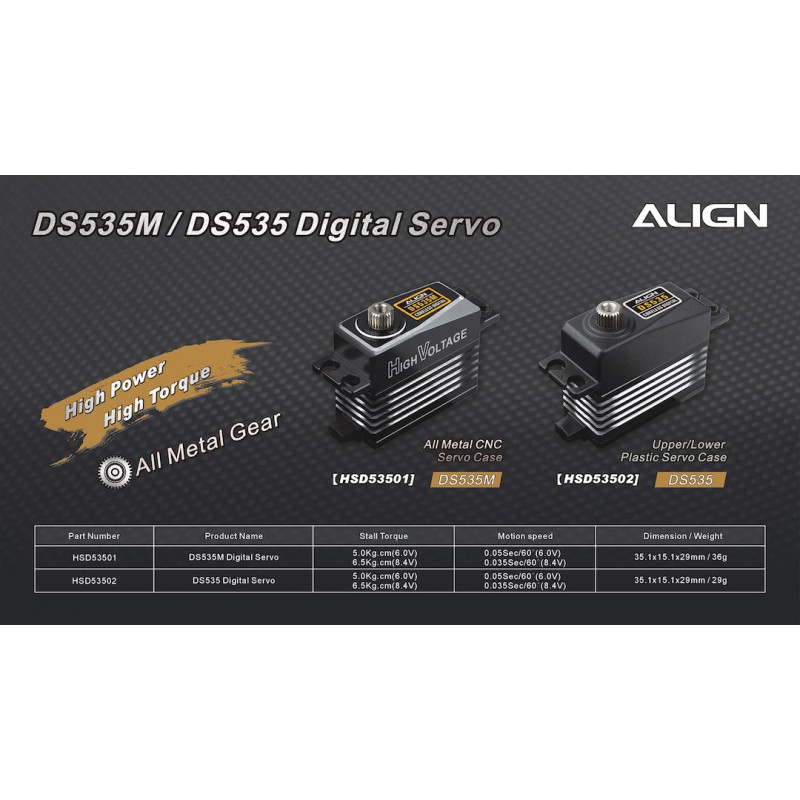

Specifications:

● Stall torque: 5.0kg.cm (6.0V) / 6.5kg.cm (8.4V)
● Motion speed: 0.05sec/60° (6.0V) / 0.035sec/60° (8.4V)
● Rating voltage: DC 6.0-8.4V
● Temperature range: -20°C ~ +60°C
● Dimension: 35.1 x 15.1 x 29mm
● Weight: 29g
