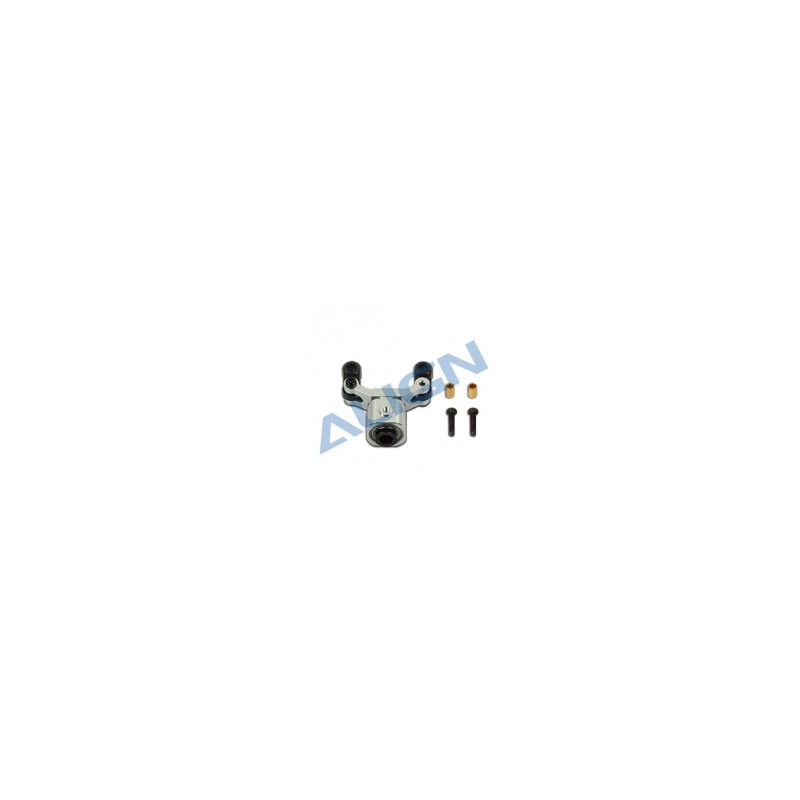

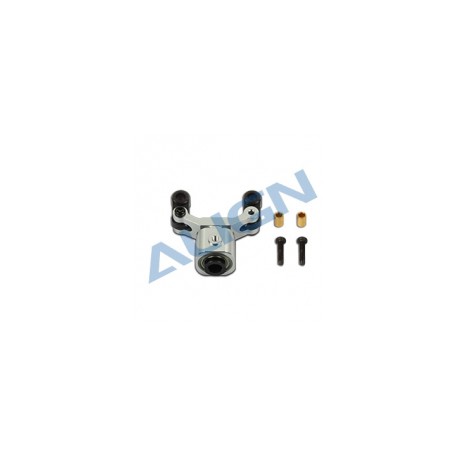

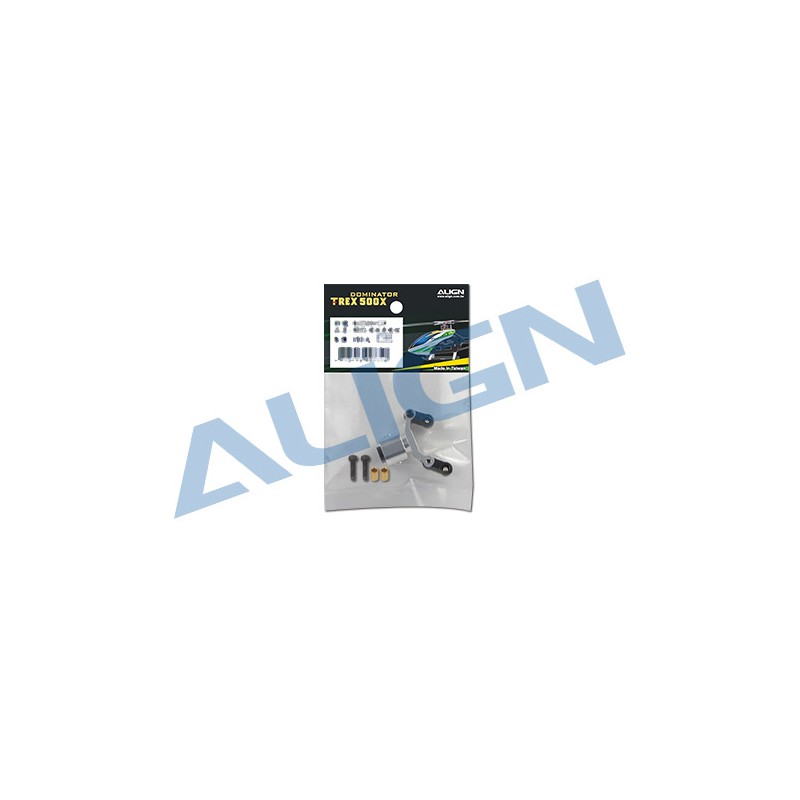

500 Metal Tail Pitch Assembly (H50082C)

Reference: H50082C

Condition: New product

Metal tail pitch assembly for T-Rex 500L/500X

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

● Metal tail pitch assembly for Align T-REX 500X/500L radio controlled helicopter.
● 6061-T6 Aluminum alloy material and CNC processed.

Specifications:

● Control link x2 (Φ5.5xΦ12.7x3.9mm)
● Metal T type arm x1 (Φ25.5xΦ8x9.25mm)
● Washer x1 (Φ6xΦ7.4x3mm)
● Collar A x2 (Φ2xΦ3x4mm)
● Collar screw (Black) x2 (M2x8mm)
● Collar screw (Gold) x2 ( M2x8mm)
● Bearing MR106ZZ x2 (Φ6xΦ10x3mm)
