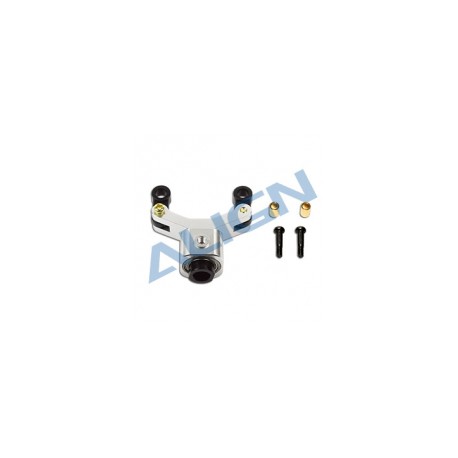

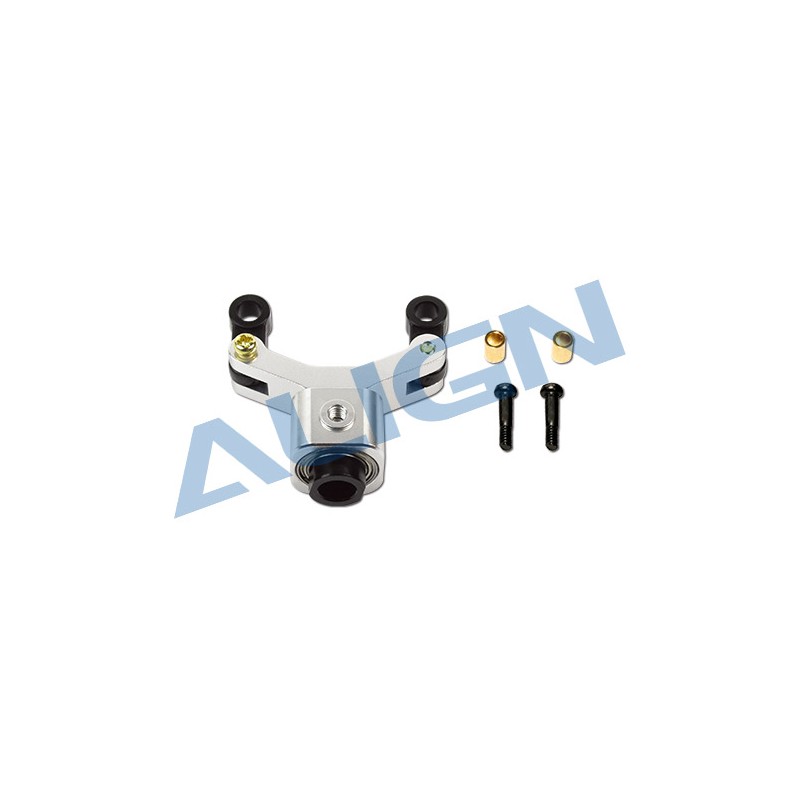

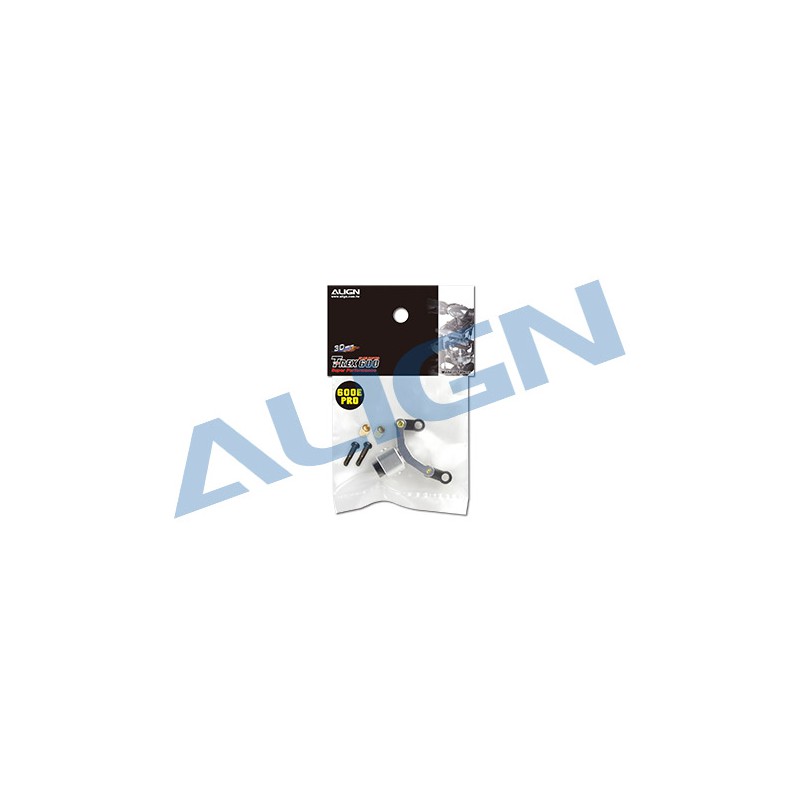

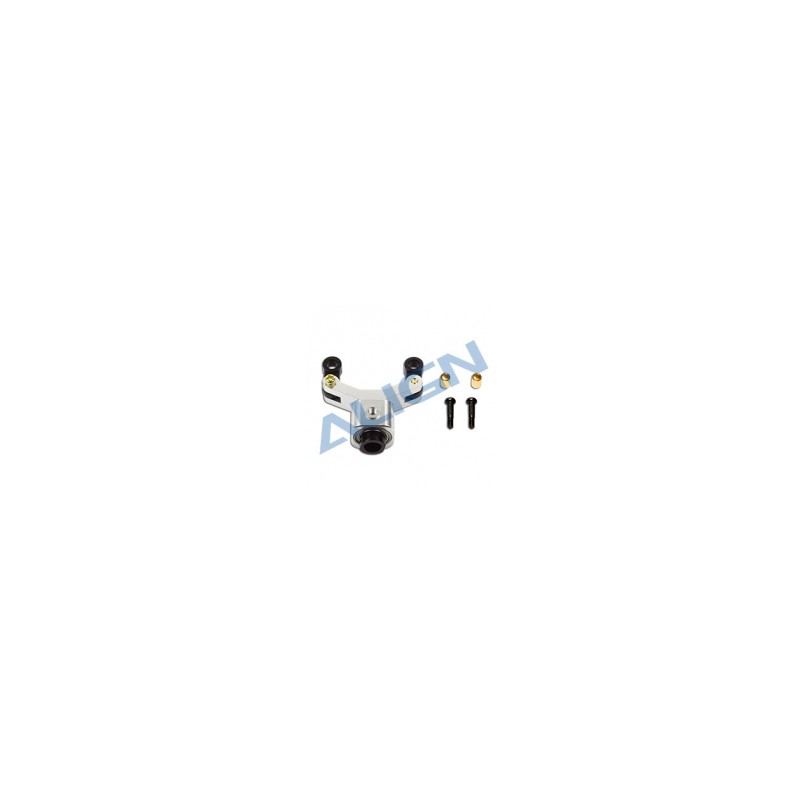

Metal Tail Pitch Assembly (H60077B)

Reference: H60077B

Condition: New product

Metal tail pitch assembly for Align T-Rex 550/600 rc helicopter rudder command

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

● Align T-Rex radio controlled helicopter metal tail pitch assembly features high precise bearing structure and high rigid CNC processes aluminum alloy material, and therefore this refitting component is absolutely helpful for the accuracy of flying movement control and the stable of the flight.
● Designed for T-REX 550X/550L/550E/600L/600E/600N.

Specifications:

● Slider shaft x1 (Φ8x7x17.6mm)
● Bearing holder x1 (13.5x12.5x9.5mm)
● Bearing holder x1 (Φ7xΦ8.3x3.5mm)
● Control link x2 (Φ14.75xΦ6x3.9mm)
● 700 collar x2 (Φ2.5xΦ3.5x4mm)
● 600 PRO metal T type arm x1 (Φ8xΦ30x8mm)
● Bearing MR117ZZ x2 (Φ7xΦ11x3mm)
● Collar screw x2 (M2x8mm)
● Socket button head collar screw x2 (M2.5x8mm)
