Align T-REX 700 rc helicopter metal tail pitch assembly (H70097A)

View larger

700 Metal Tail Pitch Assembly (H70097A)

Reference: H70097A

Condition: New product

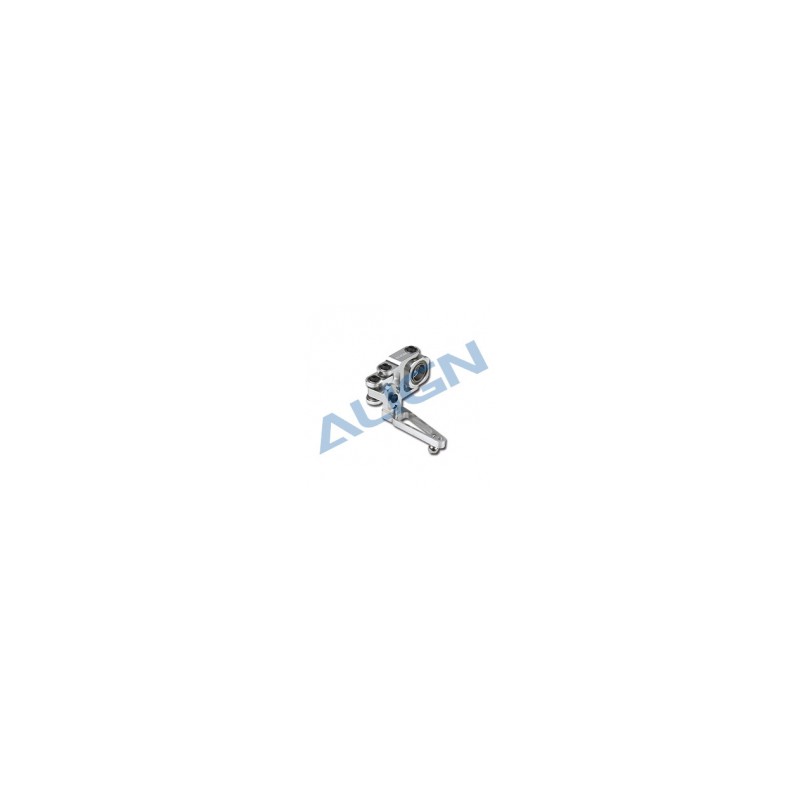

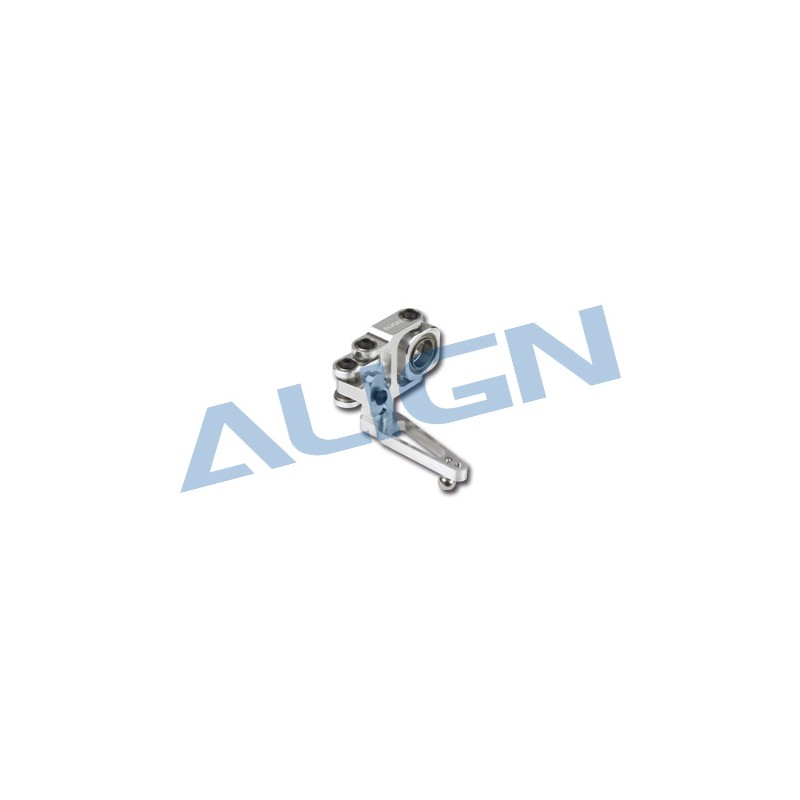

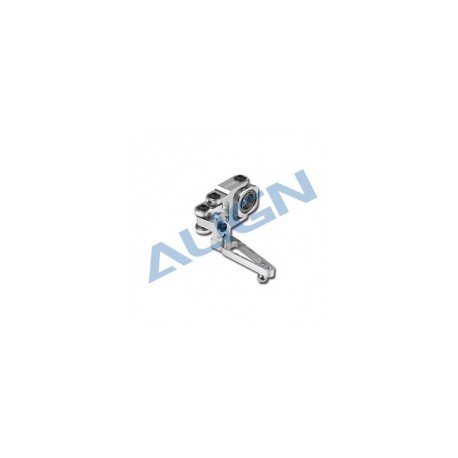

Metal tail pitch assembly for Align T-Rex 700 rc helicopter

All series.

More details

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

● Metal tail pitch assembly for Align T-Rex 700 radio controlled helicopter. Suitable for all 700 series.
● Utilizes dual point attachment design for zero play and higher precision control feel.
● Constructed with CNC aluminum alloy, with precision ball bearing at moving points, improving structure rigidity and smoothness, allowing rudder control to be more precise and smooth.
● 6061-T6 aluminum alloy material and CNC processed.

Specifications:

● I-shaped arm ×1
● Mount link ×1
● Mount ×1
● Collar ×1 (Φ8×Φ9.4×4mm)
● Bearing holder ×1
● Bearing MR128ZZ ×2 (Φ8xΦ12x3.5mm)
● Linkage ball C (M3x3.5) ×1 (Φ5x8.5mm)
● Tail control arm × 1 (38.7×10.7×4mm)
● Bearing F682XZZ ×6 (Φ2.5×Φ7.1Φ2.6mm)
● Socket button head screw ×1 (M3x5mm)
● Socket button head screw ×6 (M2.5x5mm)
● Socket button head screw ×1 (M2.5x6mm)
