High power brushless motor contoler for class 470/500 rc helicopter.

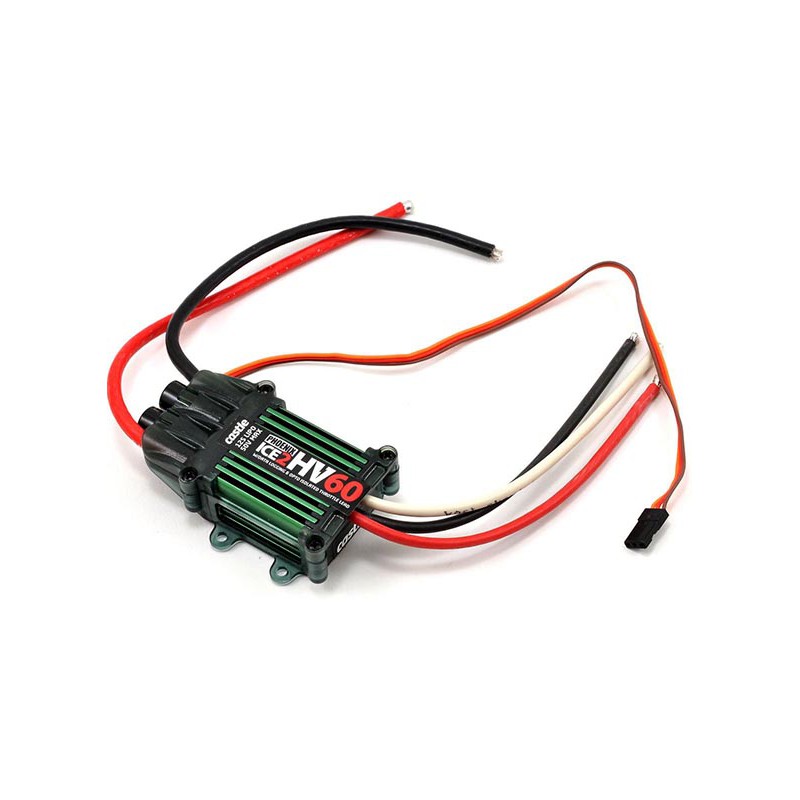

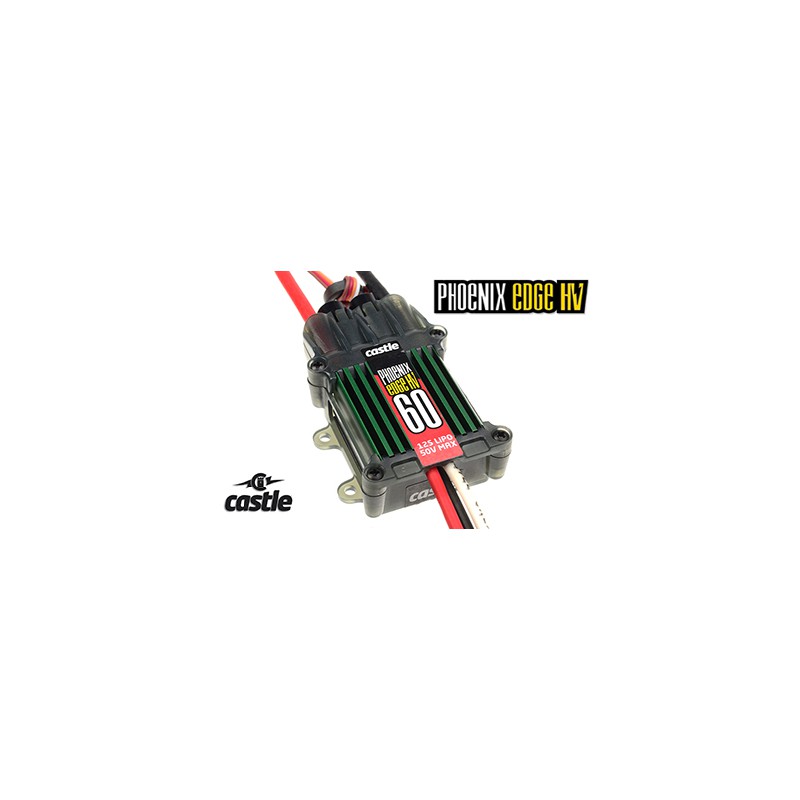

Phoenix Edge HV60: 60A ESC brushless controller

Programming capability and data logging.

More details

86,20 € tax incl.

-10%

95,78 € tax incl.

Add to wishlist

More info

From the beginning of the Phoenix Edge series of ESC's, the next evolution in speed controller technology has arrived.
The Edge series introduces a user programmable auxiliary wire offering functions that modelers have only dreamed of, until now. The white auxiliary wire can be used for helicopter governor gain input adjustments mid-flight, serve as an audible beacon after an “unexpected landing”, act as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included) or as a receiver arming lock. Combined with the data logging capability the Edge series of controllers offer, users can enjoy unparalleled versatility.

The Phoenix Edge HV80 is intended for use in radio controlled helicopters 470/500 size, and fixed wing aircraft up to 1.00 size and larger. As always, the Edge series of controllers offer industry-leading software functions, data logging, and USB programming capability via Castle Link USB adapter.

Specifications:

Helis : 500/600 class
Input voltage : 3S LiPo to 12S LiPo (11,1V to 22,2 Volts)
Max continuous at full throttle : 60 Amps
Width : 2.0"
Lenght : 3.0"
Height : 0.9"
Weight : 3.9 oz

Miscellaneous :
Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link USB adapter included in package) and freely downloadable Castle Link Windows software. Castle Field Link Programming Card (sold separately) compatible for select functions.

Note : you'll need soldering iron and solder to attach bullets to motor wires and battery connector to power wires.
