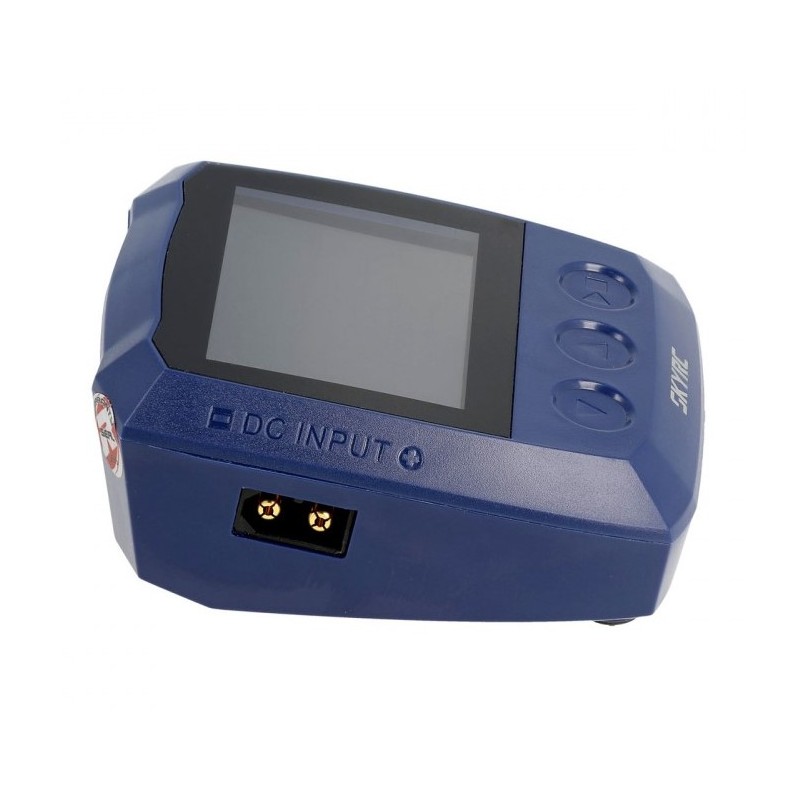

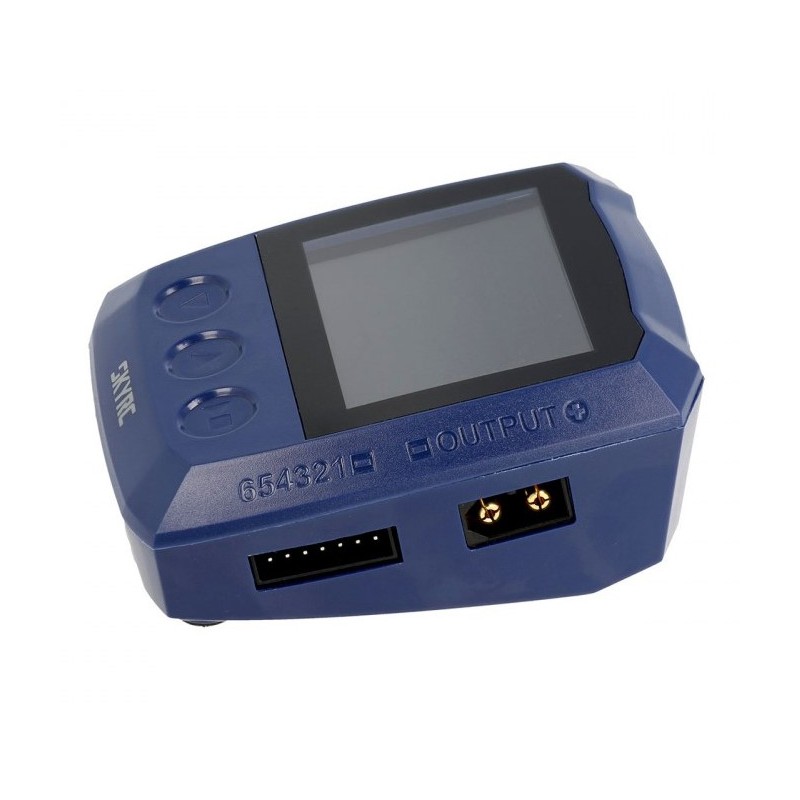

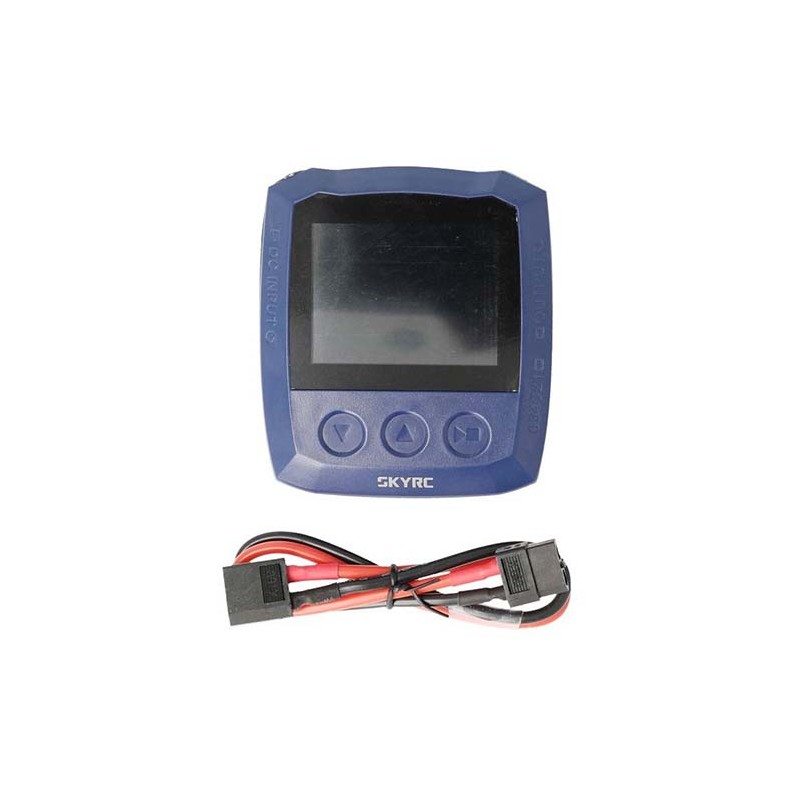

SkyRC Smart B6 Lite: a tiny but mighty charger, especially designed for hobbyist. This charger is designed for charging and discharging LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries. It has protection functions such as input high and low voltage protection, reverse input, and output reverse polarity protection. With B6 Nano Lite, charging becomes faster and remarkably simple.
Capacitive Touch Button: B6 Lite adopts sensitive touch button, advantages of which are sturdy and durable, quick-responsive and easy operative. Charging is no more rigid.

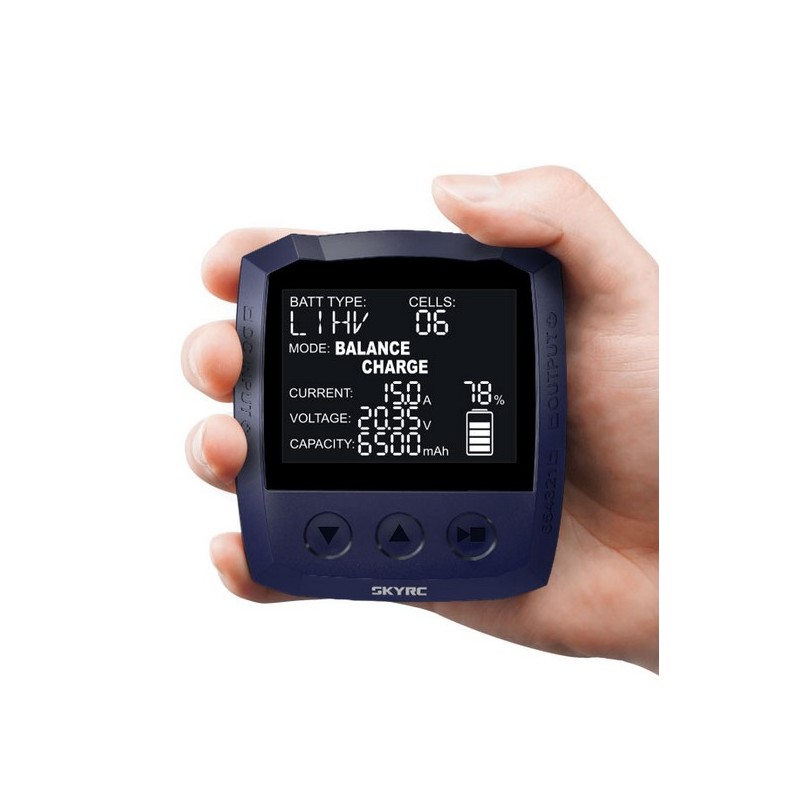

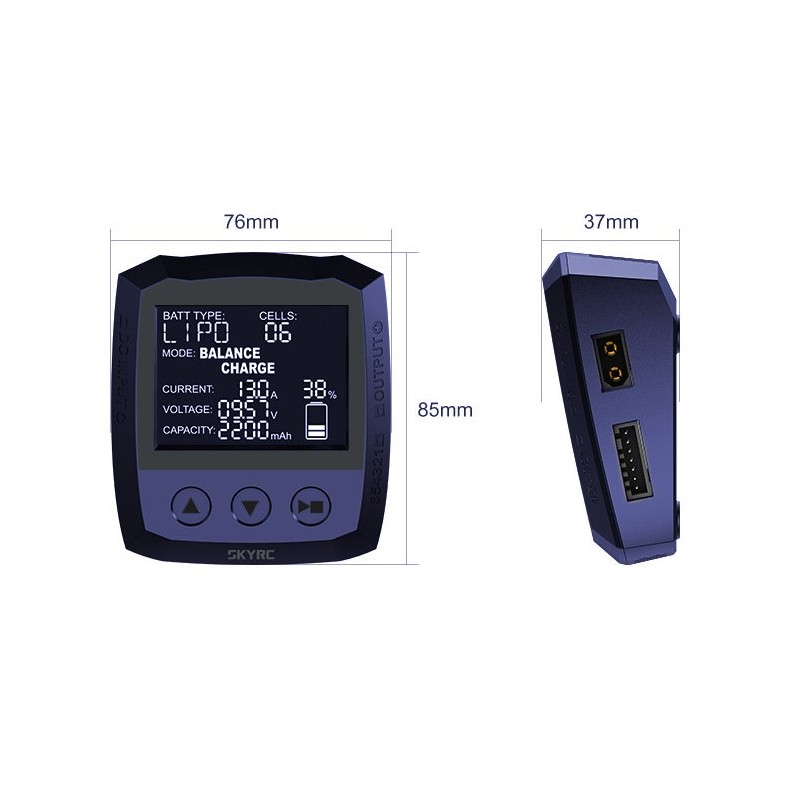

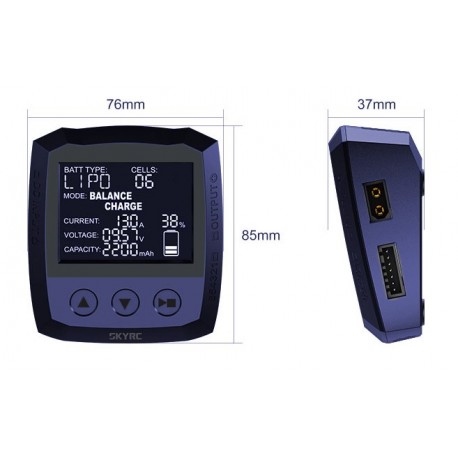

Powerful, tiny, and smart: B6 Lite is highly optimized in firmware and structure, while big power is delivered from such a tiny body. Black screen and touch button contribute to better overall experience on visualization and portability. Case size is only: 76x85x37mm, and it weighs 130g !
Powerful and high speed micro controller: using ARM Cortex-M4F 32 bits high speed processor, its data processing capability improves 20 times. Using industry leading 2.5V-5.5V wide range input voltage, it has strong anti-interference ability.

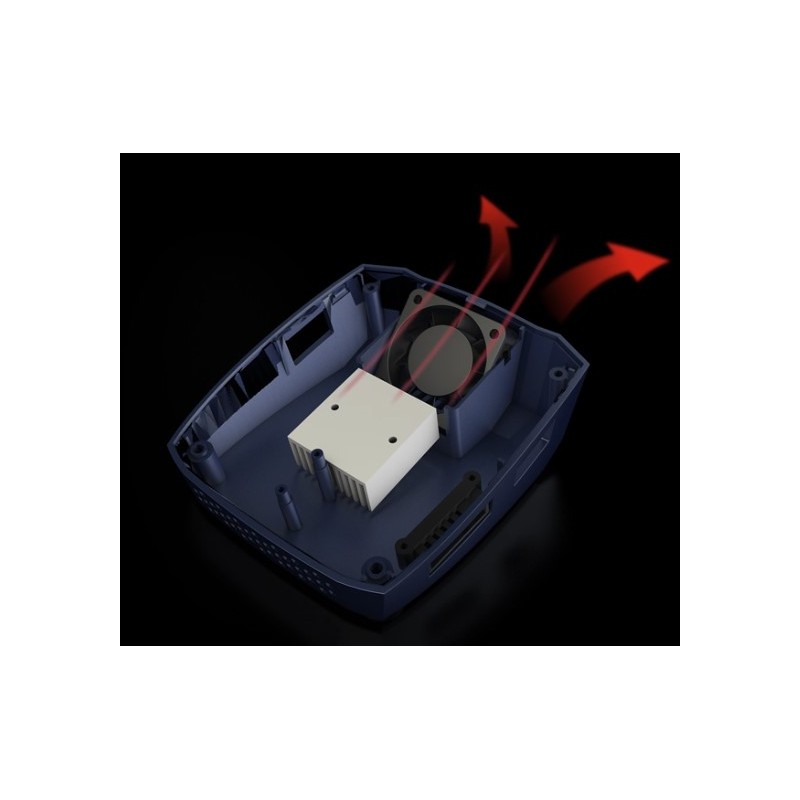

Smart and efficient cooling system: Temperature is controlled by 16000rpm high speed sleeve bearing cooling fan wich blows the air through the extruded aluminum heat sink, effectively cooling the device.

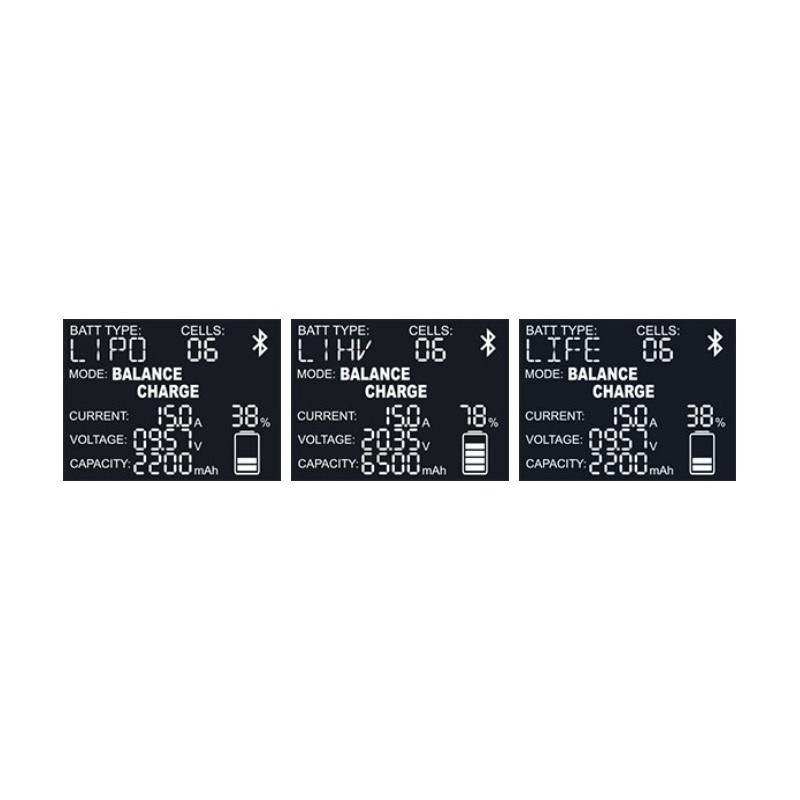

Large black screen: the active visual size is 50*37.5mm: all information at a glance. No more scrolling through complex menu, what you see is what you need.
Specifications:
Supply voltage: DC7-32V Max load power: 220W Maximum discharge power: 5W Charging current range: 0.1-13.0A Discharge current range: 0.1-3.0A Cells of LiPo / LiFe / Lilon / LiHV elements: 1-6S Cells of NiMH / NiCd elements: 1 to 15 Lead battery voltage: 3S/6S/12S Net weight: 130g Dimensions: 76x85x37mm
