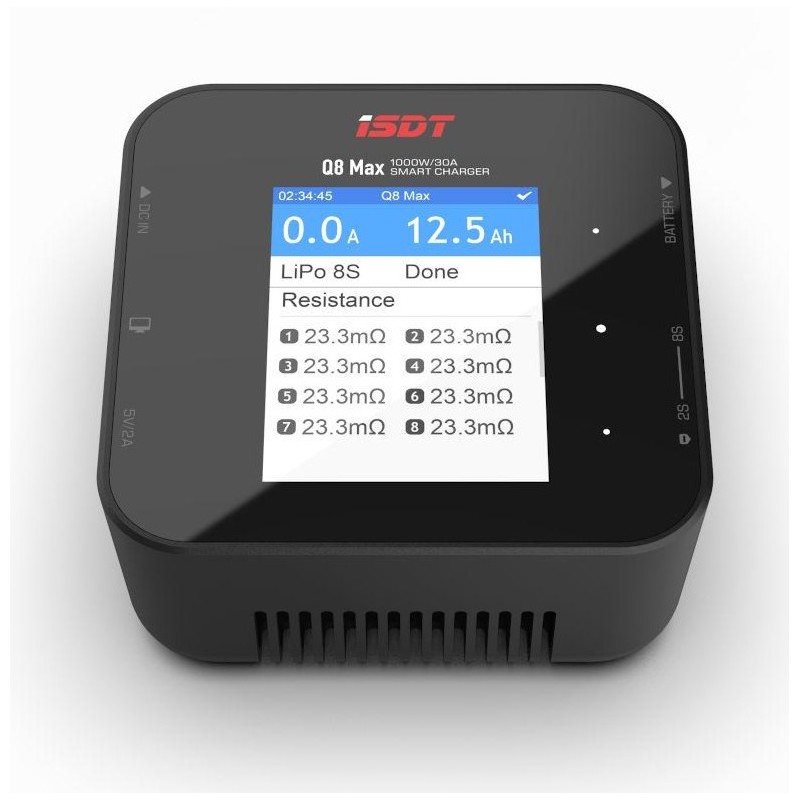

iSDT Q8 MAX Smart Charger (1000W)

ISDTQ8MAX

New product

High speed processor - Up to 1000W

iSDT Q8 MAX smart charger - 1000W 30A 8S Lipo

High power single channel with smart charging.

More details

108,80 € tax incl.

More info

The new Q8 Max is on the way to be famous ! Offering up to 1000W output with charge rates up to 30A, the Q8 Max is a small high-power pocket sized charger - but still bargain priced.

With more and more pilots moving to 8S packs, the extra charge rate of the Q8 Max will be a welcome upgrade - capable of 30A charge even on 8S, it could easily charge several big 6S 5500mAh packs in less than an hour.
The new "Destroy" mode makes it possible to safely kill an old battery.

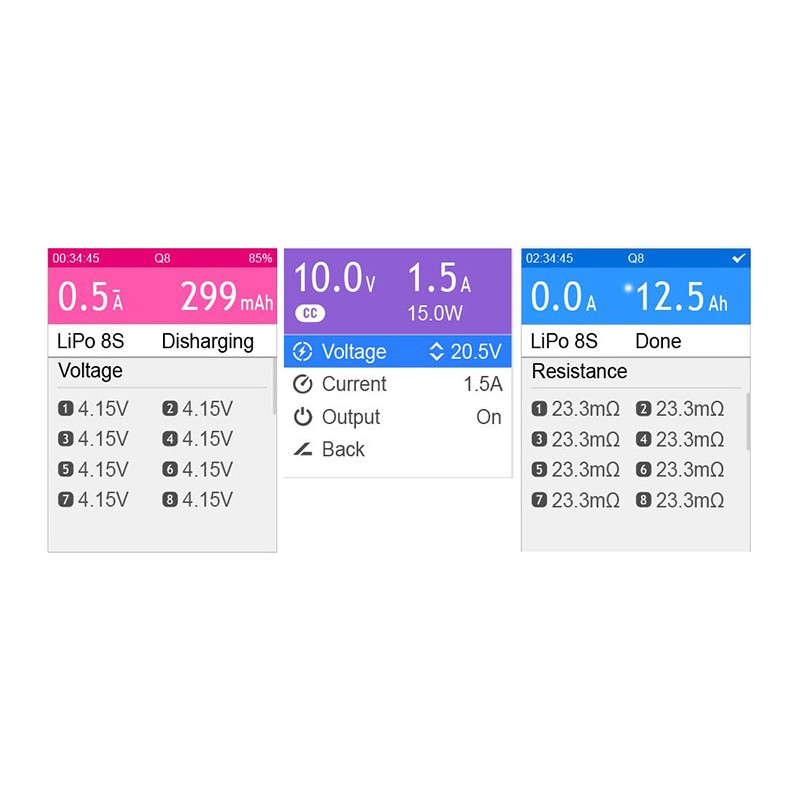

And to top it all, the all-new IPS color screen and touch interface with scOS 2.0 make the Q8 Max the easiest to use ISDT charger.

Featuring:

The concept easy to use, smart and convenient, deeply embedded in every single product, also no exception in scOS.
Upgraded scOS 2.0, not only optimizing the system with a new dimension level, also further improved the system stability.

New features including DC Power mode, dark mode, battery scrap and more. Streamline support with BattGo and SmartPower, for further interconnection to ISDT ecosystem product information exchange.
scOS 2.0 new dark mode feature: suitable for low light configuration, the system will adjust the interface in dark tone, reduce light damage to user’s eyes. While remaining the iconic and comfortable charging display style.

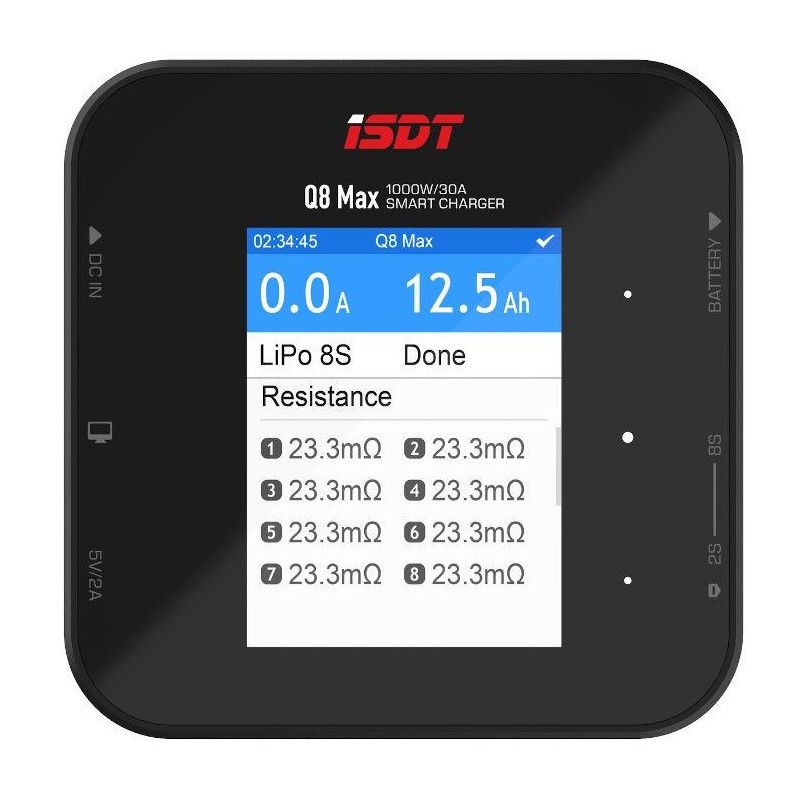

Low power consumption IPS screen: clear and distinct auto brightness adjustable 178° visible angle color screen. Even in varies hard environment or angles, even in strong sunshine.

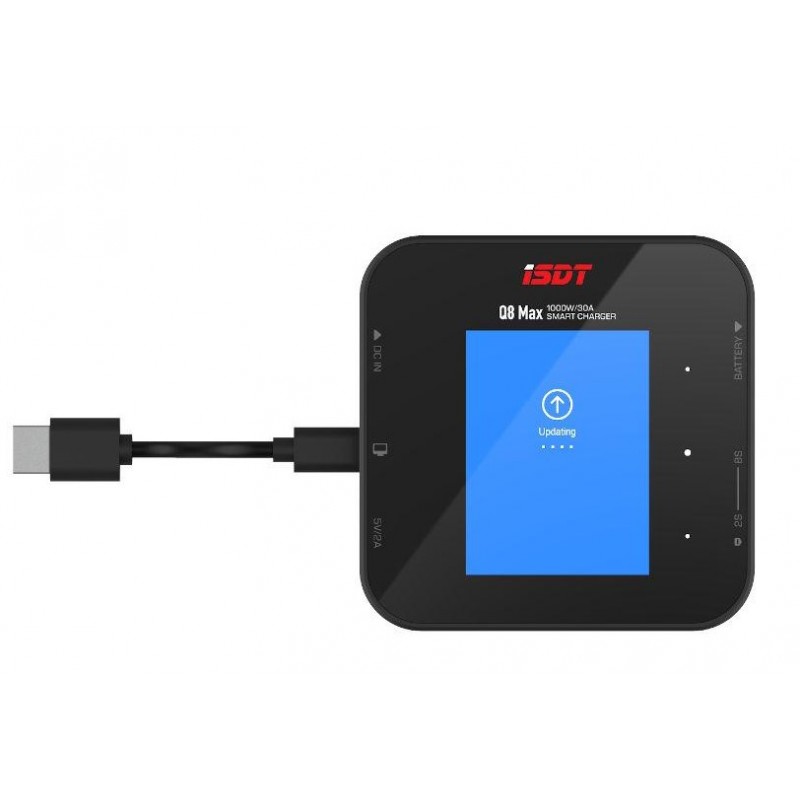

Upgradable firmware by connecting the charger microUSB port to the PC, all series can acquire latest firmware upgrading, ensure the charger have optimalized performance and latest firmware all the time.

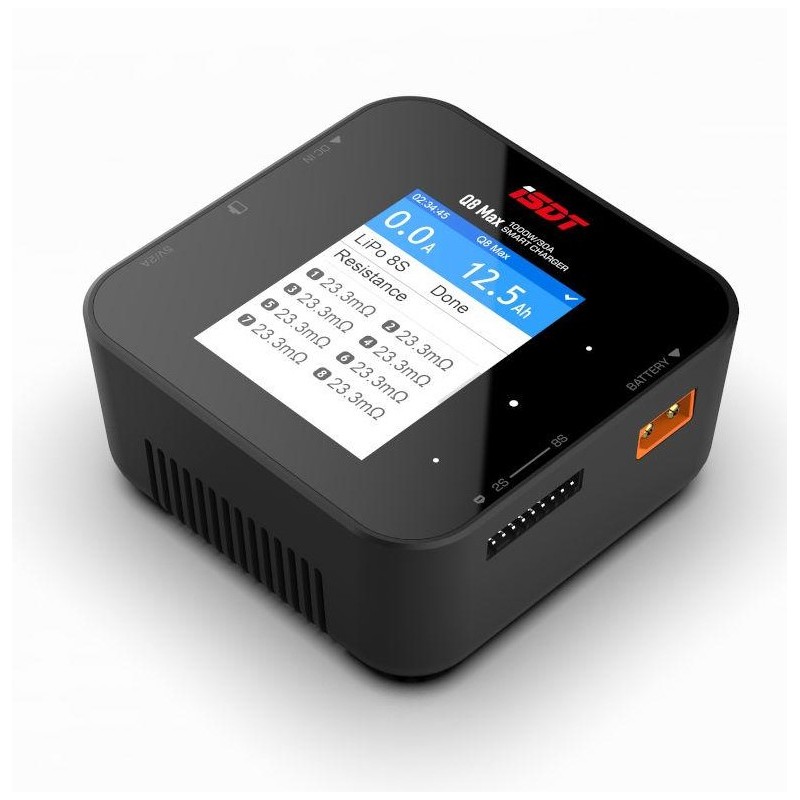

Active cross-flow cooling air duct design, initiative ball bearing cooling fan, with accurate designed aluminum alloy fins and Hi-Tech silicon heat conduct pad, built up a high efficiency heat dissipation system.

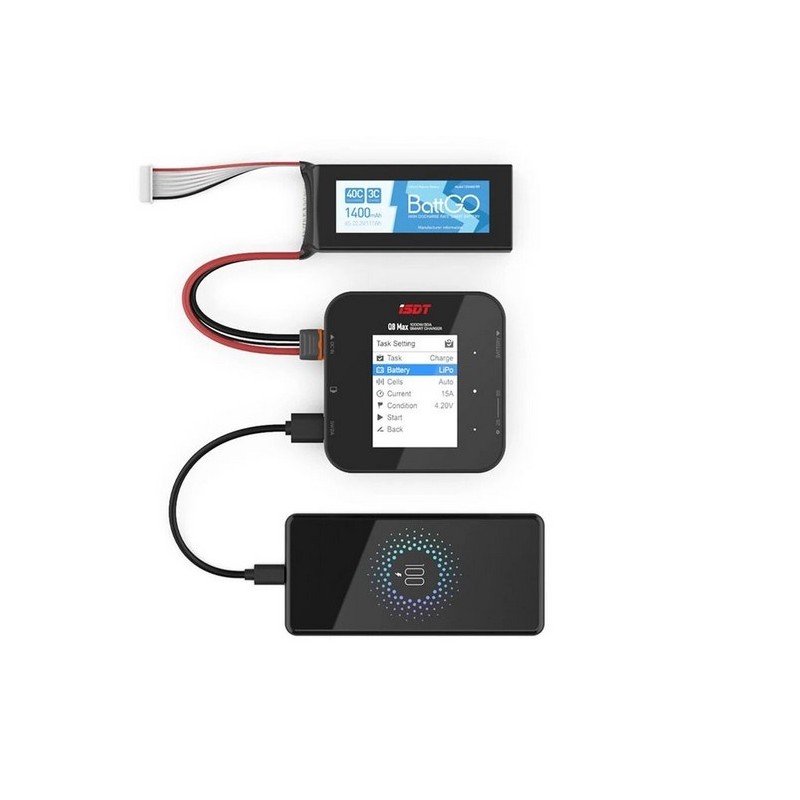

Q8 Max is equipped with 5V/2A USB output port for mobile device charging.
Rounded form family design language, give a pleasure appearance and superb touch. Like holding a piece of pebble in your palm.Continuous pursuit the ultimate size and power ratio, finding the best balance between size and performance.
Factory installed multi language interface. Supports on line upgrading for more languages.
Specifications:

Input voltage: DC 10-34 Volt
Input current max: 33A
Charge power max: 1000W (over 32V input voltage)
Output voltage: 0-34V
Discharge power: 30W
Charge current range: 0.1-8A
Discharge current range: 0.2-30A
Balance current: 1500mA/Cell
adjustable cell voltage:  max 4.35V for LiHV
cell count: 1-8 LiXX, 1-7 LiHv, 1-16 NiXX, 1-12 Pb
weight: 288 g
Dimension: 95x95x45 mm
Display: 2.8" 240×320 IPS LCD
BattGO Support smart battery on input and output
updatable by USB
multi language menu navigation
