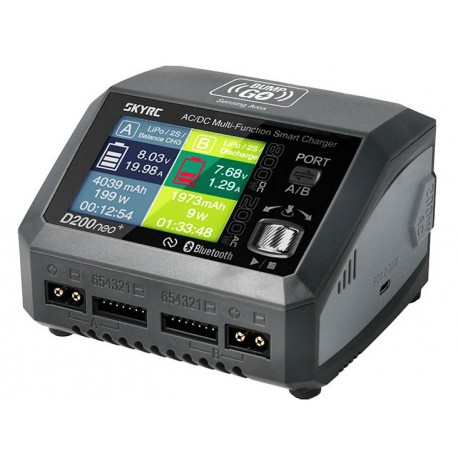

SkyRC D200 Neo+ LiPo 1-6s 20A 200W AC / 800W DC Charger

The SkyRC D200 Neo+ AC/DC multifunction charger is equipped with NFC technology and stands as the updated version of the D200, specifically designed for model aircrafts or cars. It offers two separate charging interfaces and supports most battery types used in the RC industry.

With the newly added BumpGO NFC technology, it is possible to save entire charging presets on a small NFC tag sticker. The sticker can then be attached to the battery and before the next charge, just scan it at the top of the charger and You're ready to go. Say goodbye to the endless re-entering of charging parameters when charging Your batteries.

Due to its two independent inputs (AC and DC), the charger can be used for various charging situations: in AC mode, the charging power is up to 200W, while the performance is even more powerful, up to 800W in DC mode. Whether you are a beginner or an RC guru engaging in racing or competition, it is the charger to push the limits of what is possible !

D200 Neo+ has also a particularly user-friendly interface and powerful features that were directly adopted from the T1000. For example, the BD350 discharge unit can be connected to significantly increase discharge performance.
The new appearance and improved scroll button control make charging more comfortable and easier overall.
Of course, the D200 Neo+ is also equipped with the "SkyCharger" app control and an interface for the Charger Master software for Windows/Mac OS, allowing for more freedom in programming and detailed information during charging or discharging.

D200 Neo+ features dual-port parallel charging, with a fast charge current of up to 35A. Enjoy your flying time, the screaming-fast D200neo has your back! Your battery packs have been fully charged while you are still brewing coffee ! That is how you get supercharged by co-designing hardware, software, and MCU.
When a single port works, the D200neo will be pumping full power into that port !The charging power is dynamically and intelligently distributed in the circumstance that two ports work at the same time. Whenever either port finishes working, the other port will fully charge at full power.The total power is always used intelligently and efficiently ! Charging is so flexible!
And if it's not enough, D200neo features USB-C 3.0 Power Delivery (PD) to efficiently charge your MacBook Air laptop at full speed, iPad Pro M1 and iPhone 1x series up to 3× faster than with an original 5W charger. The charger can supply DC power and pump electricity to your juice packs at the same time.

Connected to PC or Mac through USB-C, you can monitor and control D200neo with SkyRC Charger Master. You can also update the charger like OTA, and synchronize the latest software in real-time with our cloud. Dis/charging data can be analyzed and displayed in a graph.

Specifications:

Power data:

• DC Input Voltage: 10-30V
• AC Input Voltage : 100-240V
• Charger power: AC: 100W MAX * 2 / DC: 400W MAX * 2
• Discharge power: Main port: 10W / Balance port: 37W MAX / External discharge: 350W MAX
• 20W USB-C Power Delivery: QC3.0: 5V⎓3A, 9V⎓2A, 12V⎓1.5A 18W / PD: 5V⎓3A, 9V⎓2.2A, 12V⎓1.67A 20W

Charge & discharge:

• Charge current: LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-20.0A / Parallel：20.0-35.0A
• Discharge current: LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A / External discharge：0.1-40.0A
• Balance current: LiPo/LiFe/LiIon/LiHV：1.5A MAX

Operation options:

• LiPo/LiFe/LiIon/LiHV: Balance, Charge, Discharge, Storage, Parallel
• NiMH/NiCd: Charge, Cycle, Re-peak, Discharge
• Pb: Normal, AGM Charge, Cold Charge, Discharge

Battery Types/Cells:

• LiPo/LiHV/LiFe/LiIon: 1-6cells -- NiMH/NiCd: 4-15cells  -- Pb: 3S/6S/12S

Display:

• Display Type: TN (Twisted Nematic low response times and high refresh rates)
• Size: 2.8 inch Panel Active Area: 43.20*57.60 mm
• Resolution: 240x320 Pixel
• Number of Colors: 262K

Case:

• Case Material: Plastic
• Size: 116*110*79mm
• Weight: 602g
