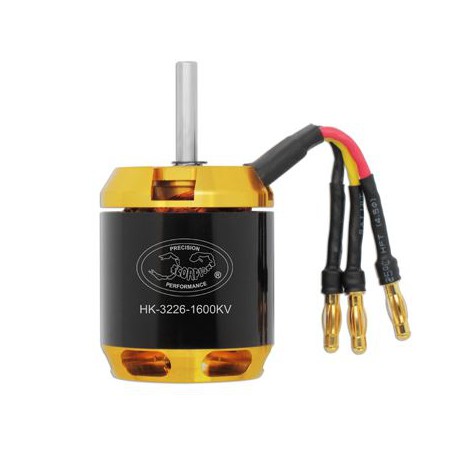

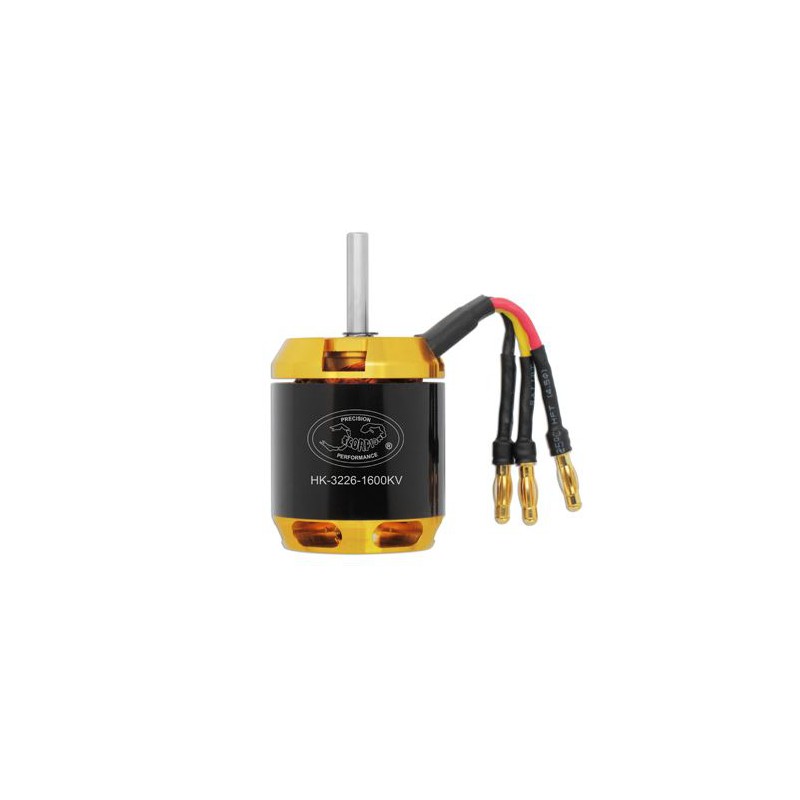

Scorpion HK-3226-1600KV (5mm shaft)

HK-3226-1600

New product

Scorpion HK-3226 motors have been developed for the 500 class electric helicopters (425-450mm blade). These motors are designed to provide all the power that you can use, while still maintaining excellent efficiency and cool running characteristics.

More details

This product is no longer in stock

129,99 € tax incl.

More info

Scorpion HK Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold anodized to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts. Unlike other motor manufactures that use off-the-shelf NdFeB magnets with a maximum Curie temperature of 80 to 100 degrees C, our motor magnets are custom manufactured to be able to withstand high temperatures. The wire we use to wind the stators is rated to 180 degrees C (356 F), so it can take the heat and keep on performing.

All Scorpion HK-3226 series motors come with 4mm male Bullet style connectors already attached, and include a hardware package that contains 3 matching female Bullet connectors for your speed controller with matching heat shrink tubing. Since the HK series motors are primarily designed for Helicopter and Ducted Fan use, they do not include a prop adapter. If you intend on running a prop on this motor, you will need to purchase a prop adapter for a 5mm shaft.

Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.

Specifications :

Stator Diameter32.0 mm (1.26 in)
Stator Thickness26.0 mm (1.02 in)
No. of Stator Arms9
Magnet Poles6
Motor Wind7 Turn Delta
Motor Wire26-Strand 0.23mm
Motor Kv1600Kv RPM/Volt
No-Load Current(Io/10V)2.19 Amps
Motor Resistance (Rm)0.011 Ohms
Max Continuous Current70 Amps
Max Continuous Power1550 Watts
Weight239 Grams (7.77 oz)

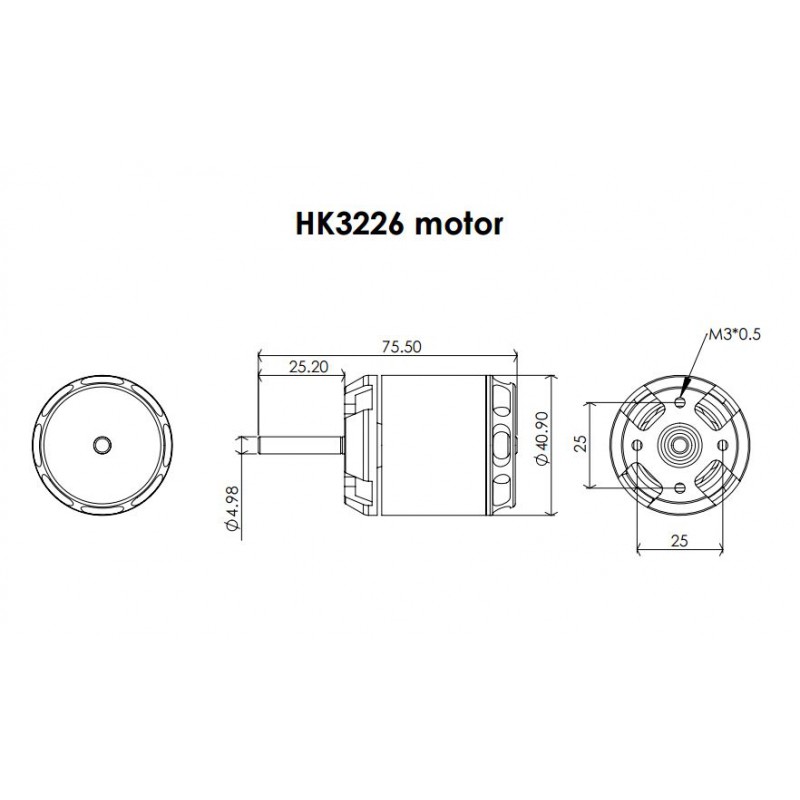

Outside Diameter40.9 mm (1.61 in)
Shaft Diameter4.98 mm (0.19 in)
Body Length50.5 mm (1.99 in)
Overall Shaft Length75.5 mm (2.97 in)
Max Lipo Cell6s
Max Peak Current90A (2 seconds)
Max Peak Power2000 Watts (2 seconds)
Motor Timing5deg
Drive Frequency8kHz

Included in the Box

1x Scorpion HK-3226-1600KV Motor
3x Female Connectors
3x Heat Shrink
4x M3 Screws
