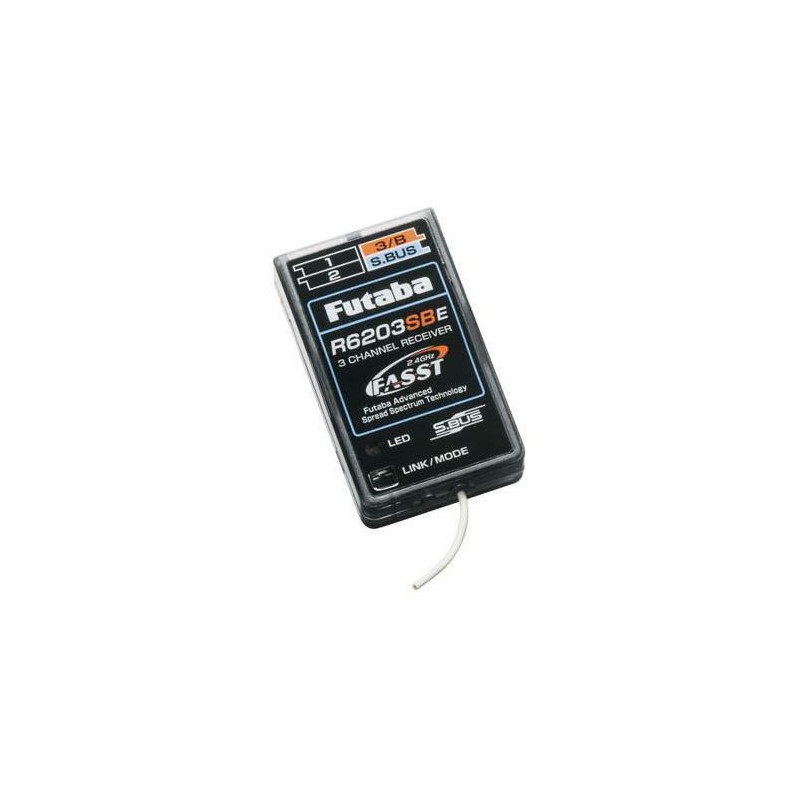

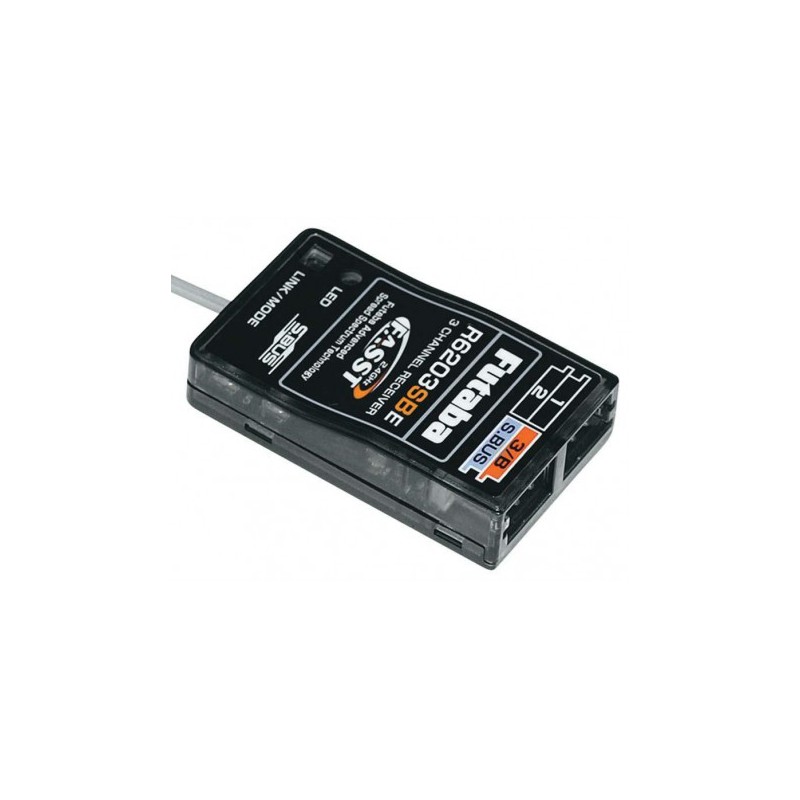

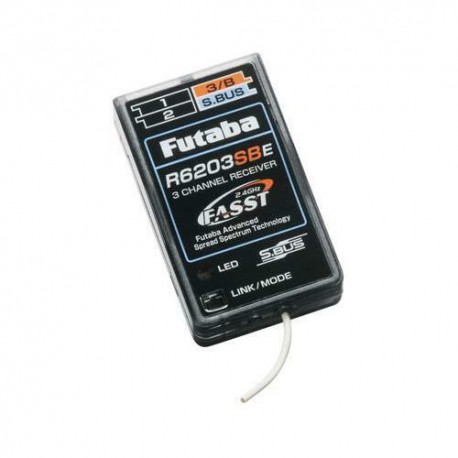

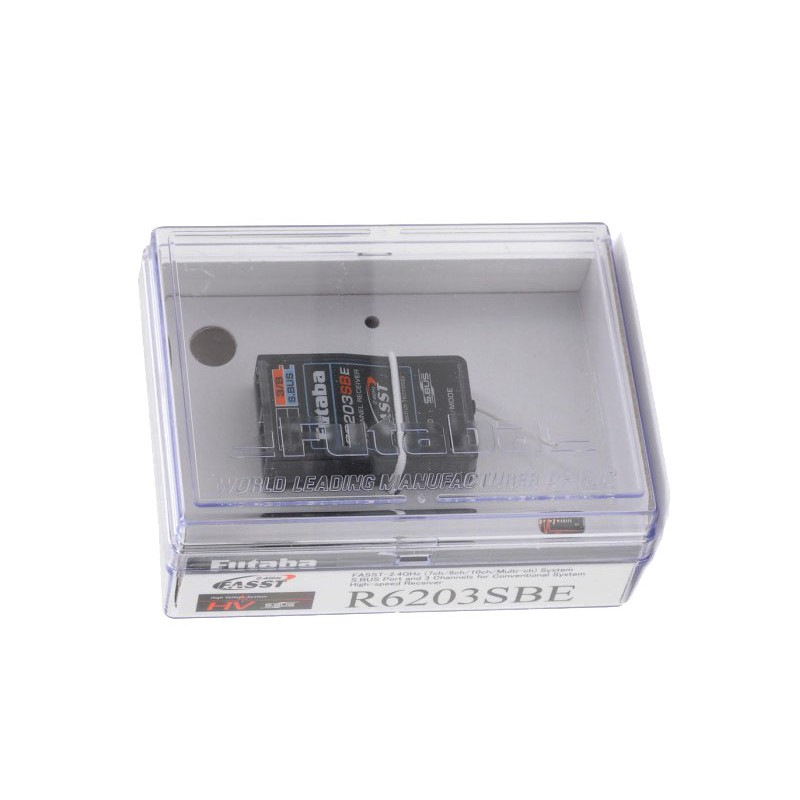

Futaba R6203SBE 3/18 Channel 2.4GHz FASST Receiver

The Futaba R6203SBE is a 3/18 Channel 2.4GHz FASST High Voltage Micro S.Bus Receiver for parkflight, indoor use airplanes or small size electric helicopters.
The R6203SBE has an S.BUS system output port and a conventional system channel outputs. It can also be used with conventional system servos, etc. in addition to S.BUS system
compatible servos and gyros, etc.

S.Bus system:
A digital serial data communication technology transmits control signals between your receiver and servos. A single S.Bus cable can carry signals to as many channels as your transmitter can handle. You no longer have to worry about plugging in the wrong servo to the wrong channel, because each servo knows what channel it is dedicated to in advance.
S.Bus receivers are limited only by the number of channels your transmitter will handle.
You don’t have S.Bus servos ? No problem. SBD-1 S.Bus Decoder Cables let you use existing analog and digital servos, too.

Features:

• Eliminates clutter.
• Easy programming with the SBC-1 Channel Setting Tool, S.Bus receivers or PCLink software.
• No receiver channel limits (except by those on your transmitter).
• Plug in battery packs anywhere you wish.
• Heavy-duty 20-gauge wire.
• SBD-1 decoder cables (sold separately) let you use existing analog and digital servos.
• Prevents mismatched servo-channel connections.
• S.Bus system accessories make any installation simple.

Specifications:

Size: 0.89x1.47x0.37 in (22,5x37,4x9,3mm)
Weight: 0.22 oz (6,3g)
Power requirement: 3.7V to 7.4V (Voltage range 3.5 to 8.4V)
