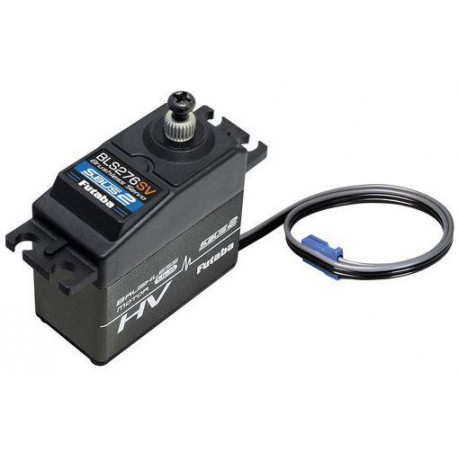

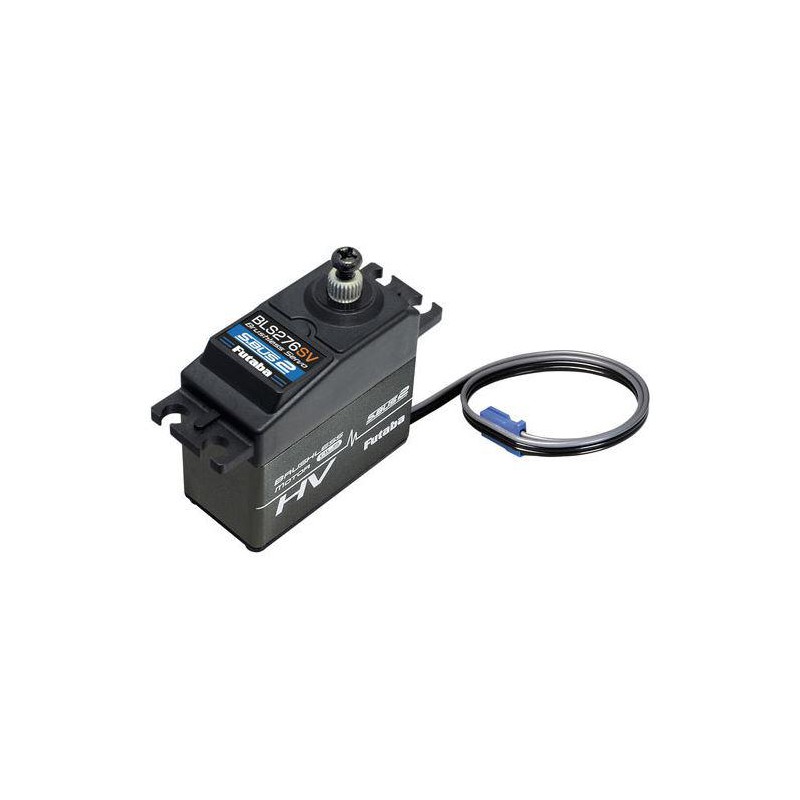

BLS276SV Futaba Brushless HV High Speed rudder servo

01000901

New product

Futaba BLS276SV High Voltage High Speed heli rudder servo

S.Bus 2 compatible.

More details

186,00 € tax incl.

More info

Futaba BLS276SV: this tail servo is compatible with the Futaba CGY750, GY701, GY520, GY430, GY611, GY601 gyros and Microbeast BeastX FBL systems.
Cannot be used applications other than those listed above or damage may occur.
Brushless motor offers incredible holding power and 5X longer life than servos equipped with brushed motors.
SBUS 2 compatible.
Dual ball bearing supported output shaft. Metal gear.

Specifications:

6.6V 7.4V
Speed: 0.055 sec/60° 0.05 sec/60°
Torque: 61.12 oz/in (4.4 kg/cm) 69.45 oz/in (5.0 kg/cm)

Neutral Pulse Width: 760us

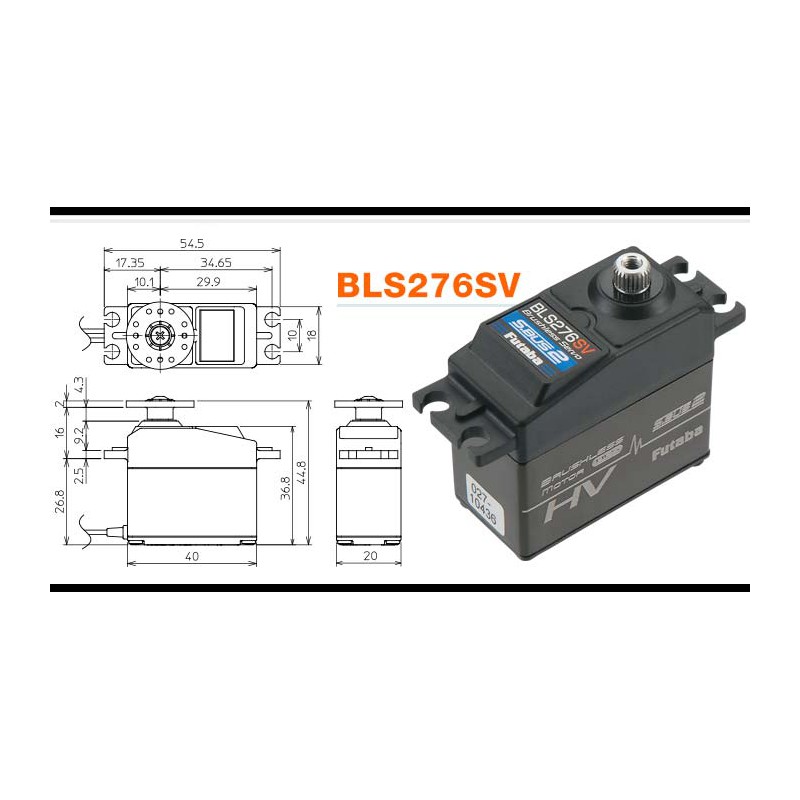

Dimensions: 1.57 x 0.79 x 1.45" (40 x 20 x 36.8mm)
Weight 2.12oz (60g)
Power Supply: 6.0-7.4V

In the box: BLS276SV servo with 1.8" (45mm) round horn, 1.5" (39mm) four point
horn, 1.2" (32mm) 6-point horn, 3x8mm servo horn screw, four each
mounting screws, grommets, eyelets, and instructions.

SBus Programmable Defaults
Dead Band Degree: 0.08
Damper Factor: 72
Stretcher Gain: 4
Boost: 10
Neutral Offset Degree: 0
Travel Adjust Percentage: 100%
Reverse (Normal/Reverse): Nor
Stop Mode (Free/Hold): Hold
Buzzer (On/Off): Off
Smoother (On/Off): On
Boost (On/Off): Off
Soft Start: 3.0

COMMENTS: do not connect this servo directly to a receiver. Always connect to a
gyro.
