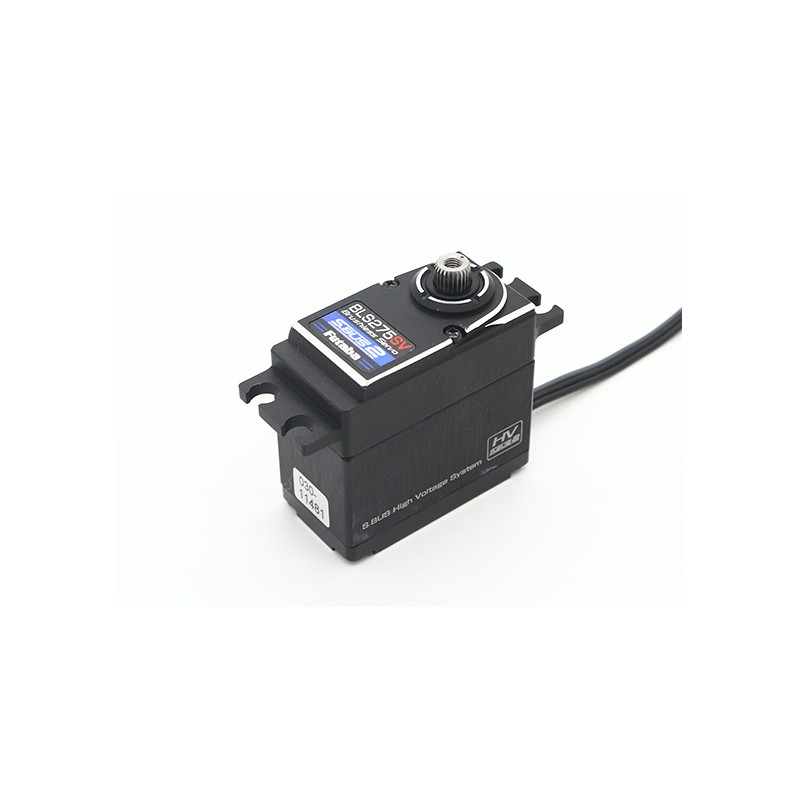

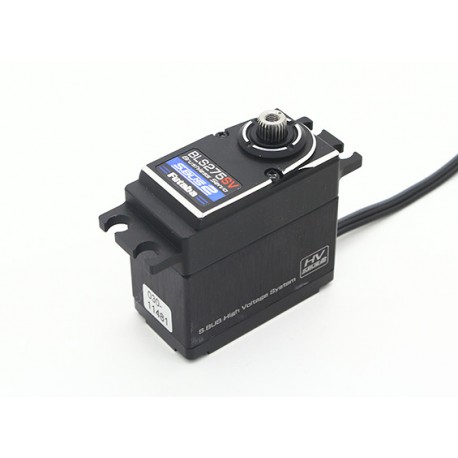

BLS275SV Futaba Brushless HV High Torque Cyclic Servo

01000856

New product

This is the Futaba BLS275SV HV S-Bus2 Programmable Servo for Heli Usage.
(FUTM0144).

More details

Pre order

344,90 € tax incl.

Add to wishlist

More info

FEATURES:
Brushless motor. Water protected.
Hybrid (titanium/metal) gears with two ball bearings.
Programmable and compatible with S.Bus and S.Bus2 systems.
High voltage handles extra speed and power provided by 2S LiPo batteries.

INCLUDES:
BLS275SV HV SB2 Servo with 1.4" (35.5mm) Round Horn, 1.5" (39mm) four point Horn, 1.2" (31.5mm) six point Horn, four each; Screws Grommets, and Eyelets. Instruction Sheet.

Specifications :

6.0V 6.6V 7.4V
Torque: 172oz-in 189oz-in 211oz-in
(12.4kg-cm) (13.6kg-cm) (15.2kg-cm)
Speed: 0.09 sec/60° 0.08 sec/60° 0.07 sec/60°
Dimensions: 1-5/8 x 13/16 x 1-1/2" (40,5 x 21 x 38mm)
Weight: 2.7oz (77g)
Rated Voltage: DC 6.0 - 7.4V
Operating Voltage: DC 4.0 - 8.4V

SBus Programmable Defaults:
Dead Band Degree: 0.36
Damper Factor: 128
Stretcher Gain: 1
Boost: 5
Neutral Offset Degree: 0
Travel Adjust Percentage: 100%
Reverse (Normal/Reverse): Nor
Stop Mode (Free/Hold): Hold
Buzzer (On/Off): Off
Smoother (On/Off): On
Boost (On/Off): Off
Soft Start: 3.0
