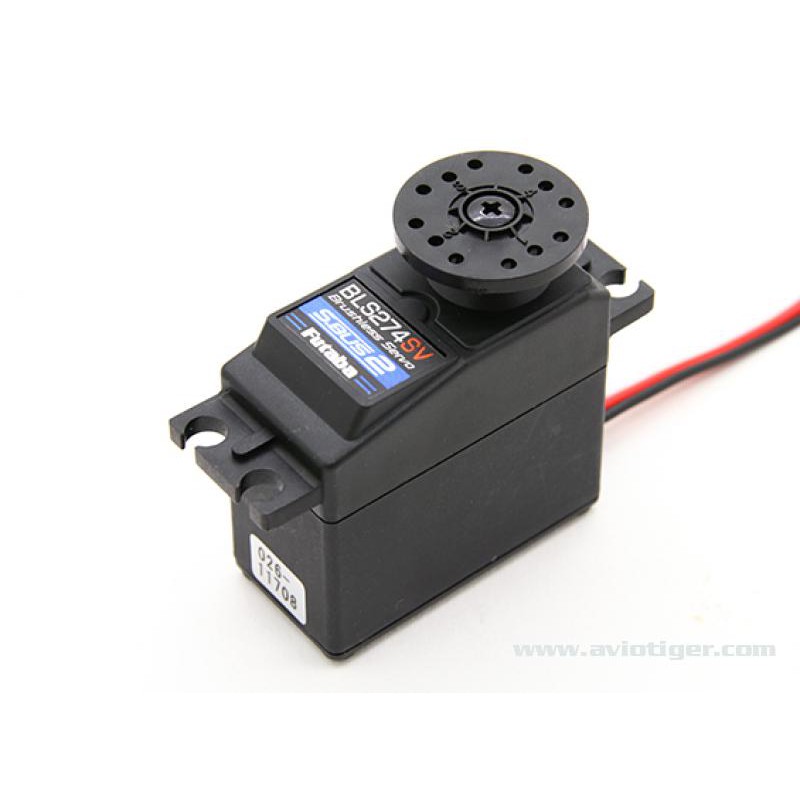

BLS274SV Futaba Brushless HV High Speed rudder servo

01000857

New product

This is the Futaba BLS274SV High Voltage High Speed Heli Rudder Servo. S.Bus 2 compatible.
(FUTM0147).

More details

139,00 € tax incl.

Add to wishlist

More info

FEATURES:
Programmable through a PC by using the CIU-2 USB PC Interface FUTM0951-not included, must purchase separately.
Designed for models requiring high torque and high speed.
Brushless motor offers incredible holding power and 5X longer life than servos equipped with brushed motors.
SBUS 2 compatible.
One year limited warranty through Avio & Tiger.

Includes: BLS274SV Servo with 1.8" (45mm) Round Horn, 1.5" (39mm) four point Horn, 1.2" (32mm) 6-point Horn, 3x8mm Servo Horn Screw, four each Mounting Screws, Grommets, Eyelets, and Instructions.

Specifications:

6.6V 7.4V
Speed: 0.055 sec/60° 0.05 sec/60°
Torque: 61.12 oz/in (4.4 kg/cm) 69.45 oz/in (5.0 kg/cm)
Dimensions: 1.57 x 0.79 x 1.45" (40 x 20 x 36.8mm)
Weight 1.87oz (53g)
Power Supply: 6.0-7.4V

SBus Programmable Defaults:
Dead Band Degree: 0.11
Damper Factor: 144
Stretcher Gain: 2
Boost: 5
Neutral Offset Degree: 0
Travel Adjust Percentage: 100%
Reverse (Normal/Reverse): Nor
Stop Mode (Free/Hold): Hold
Buzzer (On/Off): Off
Smoother (On/Off): On
Boost (On/Off): Off
Soft Start: 3.0
