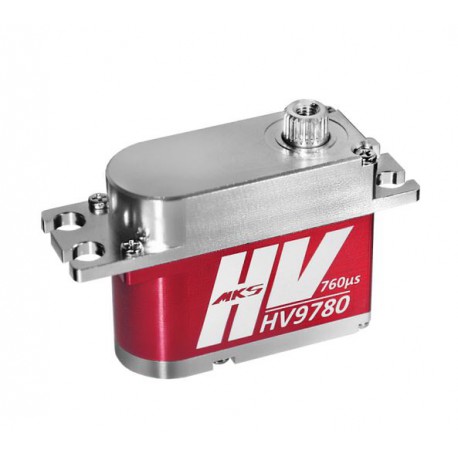

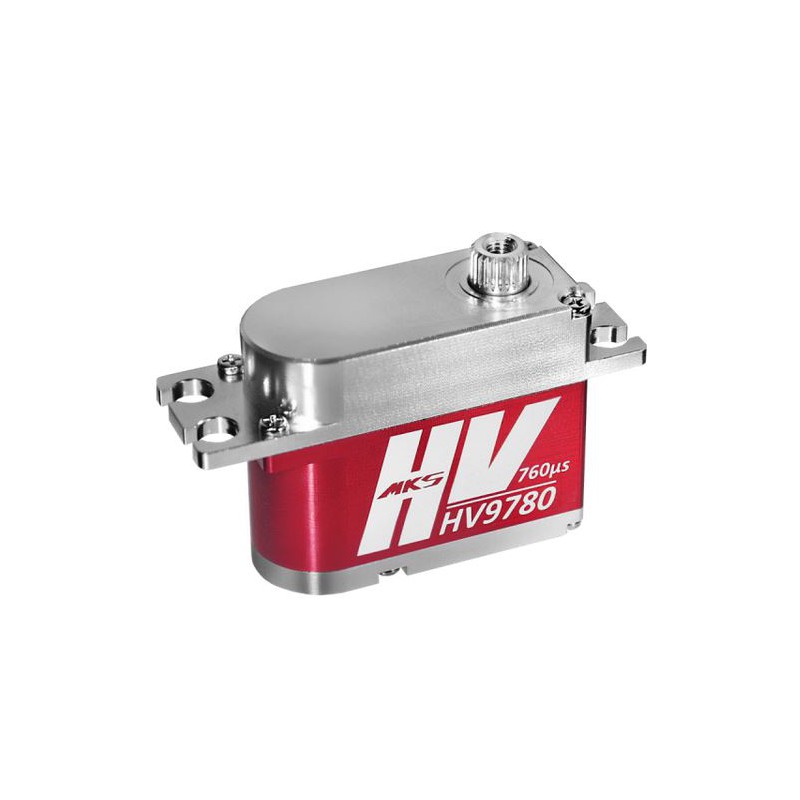

MKS HV9780 - Digital HV Mini Servo

The MKS HV9780 is a titanium geared high voltage servo with aluminum case. This servo is recommended for class 500 helicopter rudder application.

Recommended compatible gyros: BeastX Microbeast, Bavarian Demon Axon & 3X, Spartan DS760、Spartan Quark、Futaba GY611、GY601、GY520、ALIGN GP700、GP750、Mikado V-Bar Tail、CSM SL720、Curtis Youngblood Mini-G-Solid G, Thunder Tiger TG-7000.

Specifications:

Torque: Oz/In: 45.8 (6.0V) / 55.5 (7.4V) / 62.5 (8.2V)
Speed: 0.055 s (6.0V) / 0.045 s (7.4V) / 0.040 s (8.2V)
Weight: 38.01 g  (1.34 oz)

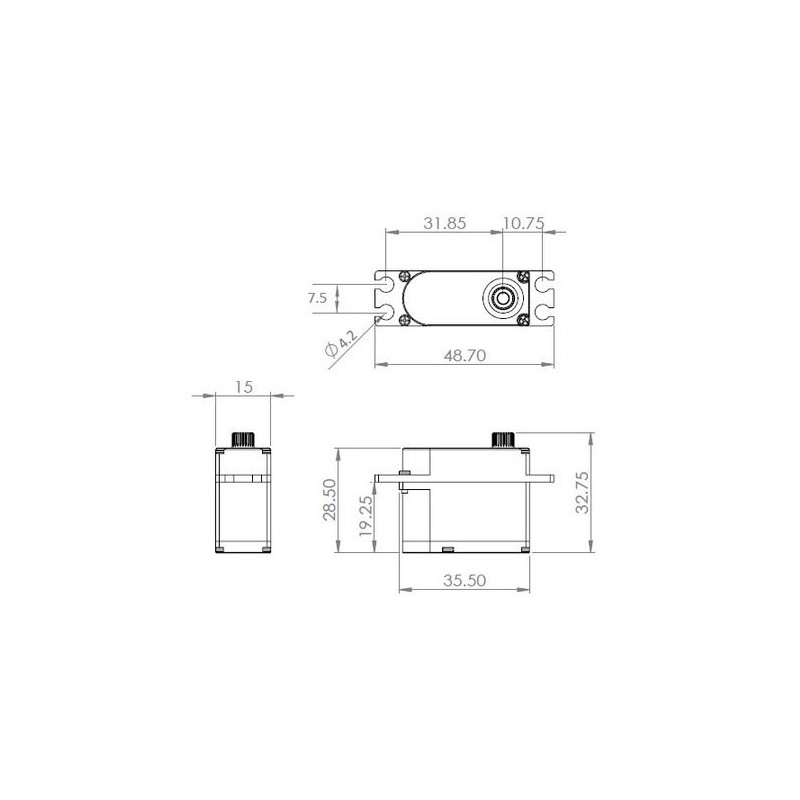

Dimension: 35.5x15x28.5mm
Working Voltage: 5.5 to 8.4 DC Volts  (2S Lipo un-regulated)
Working Frequency: 760μs / 560Hz
Dead Band: 0.001 ms (Default)
Bearing: double ball bearing
Motor: coreless motor
Gear: Chrome-Titanium alloy gear
Electric Current Draw: 2.3A (6.0V) / 2.8A (7.4V) / 3.1A (8.2V)
Wire Length: 29.5 cm

"These new mini servos are a great addition to the MKS line up. They are well made, strong, and fast, everything you need for a 500 class helicopter (or any other project requiring an HV mini servo) (...) and at a price point that won't break the bank." Chris Mulcahy - RCGROUPS.COM
