MKS HBL990 - Rudder HV digital brushless servo

HBL990

New product

MKS HBL990 - High Voltage digital servo

Standard size (40x20mm). Rc helicopter rudder use.

More details

This product is no longer in stock

177,00 € tax incl.

More info

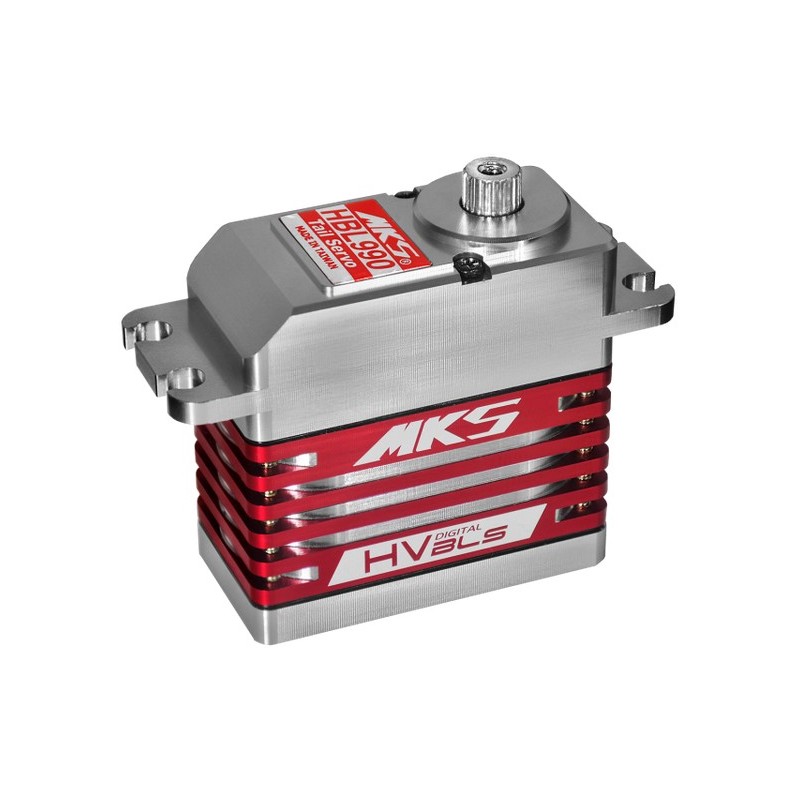

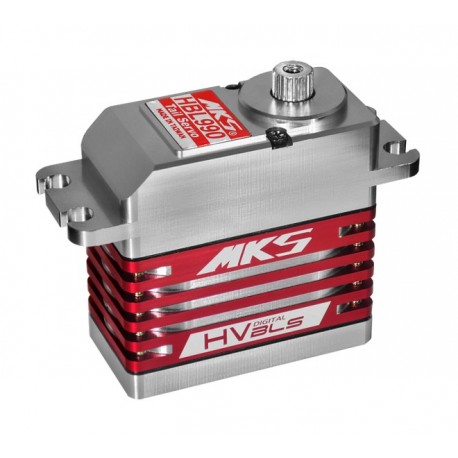

The HBL990 is an high voltage digital brushless servo (8.4V max), standard sized (40x20mm) and specifically designed by the legendary MKS manufacturer for RC heli rudder use.

Recommended compatible gyros and Flybarless systems: BeastX Microbeast series. Bavarian Demon Axon & 3X. Spartan DS760. Spartan Quark. Futaba GY611, GY601 and GY520. Align GP700 and GP750. Mikado V-Bar Tail. CSM SL720. Curtis Youngblood Mini-G. Solid G. Thunder Tiger TG-7000...

Specifications:

Torque (kg-cm)4.7 (6.0V) / 5.8 (7.4V) / 6.3 (8.2V)
Torque (oz-in)65.3 (6.0V) / 80.5 (7.4V) / 87.5 (8.2V)
Speed0.040 s (6.0V) / 0.036 s (7.4V) / 0.030 s (8.2V)
Stall Current (at locked load)2.3A (6.0V) / 2.8A (7.4V) / 3.1A (8.2V)
Working Voltage6.0V ~ 8.4V DC (2S LiPo unregulated)
Working Frequency760μs / 560Hz
Dead Band0.0008ms (Default)
Bearing2* Ball Bearing
GearMetal Alloy Gear
MotorJapanese-made Brushless Motor
CaseFull Aluminium
Weight2.47 oz

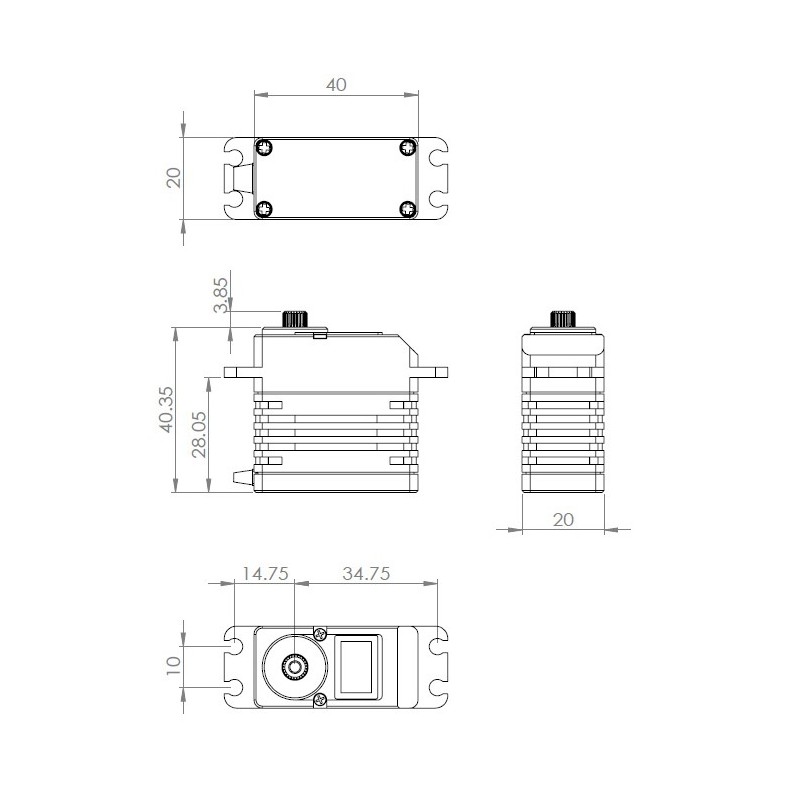

Dimensions40x20x40mm
