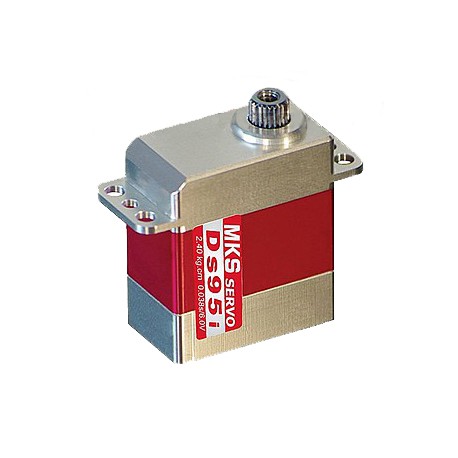

DS95i - MKS digital tail micro servo

Here is the MKS DS95i titanium gear & ultra speed digital micro servo for radio controlled helicopter tail rotor.
With a chrome/titanium gear, a full aluminum case, this servo is almost unbreakable. Super Narrow Pulse 760μs with AVCS, fast transit speed and 33 oz/in of torque @ 6V makes it the best rudder servo.

Specifications :

• Dead band: 0.001ms (Default)
• Control System: +Pulse Width Control
• Working frequency: 760μs / 560hz
• (RX) Required Pulse: 3.0~5.0 Volt Peak to Peak Square Wave
• Operating Voltage: 4.8~6.0 V DC Volts
• Operating Temperature Range: -10 to + 60 Degree C
• Operating Speed (4.8V): 0.047 sec/60° degrees at no load
• Operating Speed (6V): 0.038 sec/60° degrees at no load
• Stall Torque (4.8V): 26.66 oz/in (1.92 kg-cm)
• Stall Torque (6V): 33.33 oz/in (2.40 kg-cm)
• 360° Modifiable: YES
• Motor Type: Coreless motor
• Potentiometer Drive: Direct Drive
• Driver Type: FET
• Bearing Type: Dual Ball Bearings
• Gear Type: Chrome-Titanium alloy gear
• Programmable: NO
• Connector Wire Length: 20.0cm (7.86")

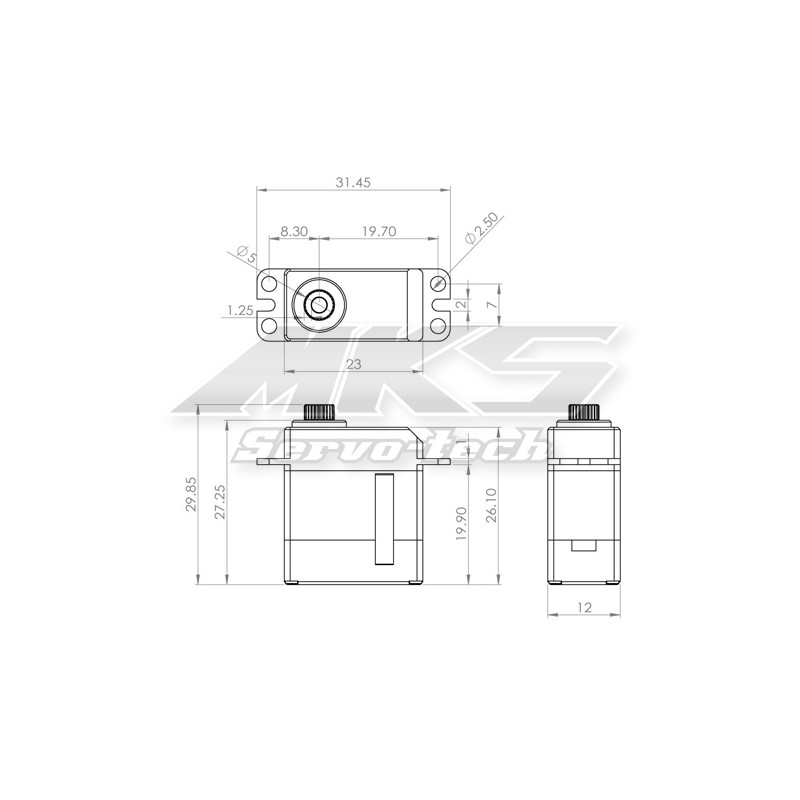

• Dimensions: 23x12x27.25mm (0.9x0.47x1.07")
• Weight: 21.21g (0.74 oz)
