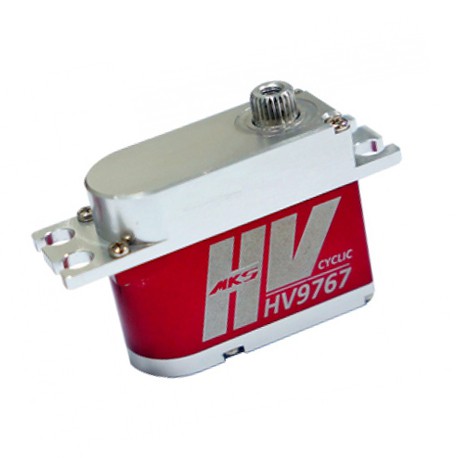

MKS HV9767 - Digital Mini Servo

The MKS HV9767 is a titanium gear high voltage cyclic servo with aluminum case. It is is recommended for class 500 rc helicopter swashplate applications.

Specifications :

Torque: @6.0V: 94.4 oz-in (6.8 kg-cm), @7.4V: 118.0 oz-in (8.5 kg-cm), @8.2V: 130.5 oz-in (9.4 kg-cm)
Speed: @6.0V: 0.090 s, @7.4V: 0.078 s, @8.4V: 0.070 s
Weight: 38.55 g
Dimension: 35.5x15x28.5mm
Working Voltage: 5.5 ~ 8.4 V DC Volts  (2S Lipo un-regulated)
Working Frequency: 1520μs / 333hz
Dead Band: 0.001 ms (Default)
Bearing: 2BB
Motor: Coreless Motor
Gear: Chrome-Titanium alloy gear
Electric Current Draw: 2.6A max.(8.2V)│2.4A max.(7.4V)│2.0A max (6.0V)
Wire Length: 29.5 cm

"These new mini servos are a great addition to the MKS line up. They are well made, strong, and fast, everything you need for a 500 class helicopter (or any other project requiring an HV mini servo) (...) and at a price point that won't break the bank." Chris Mulcahy - RCGROUPS.COM
