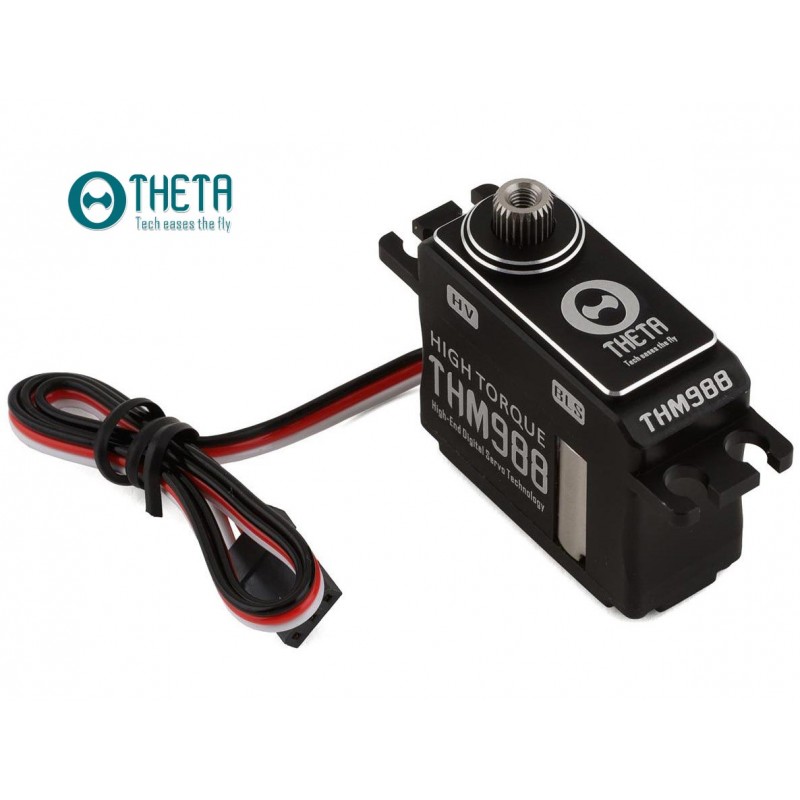

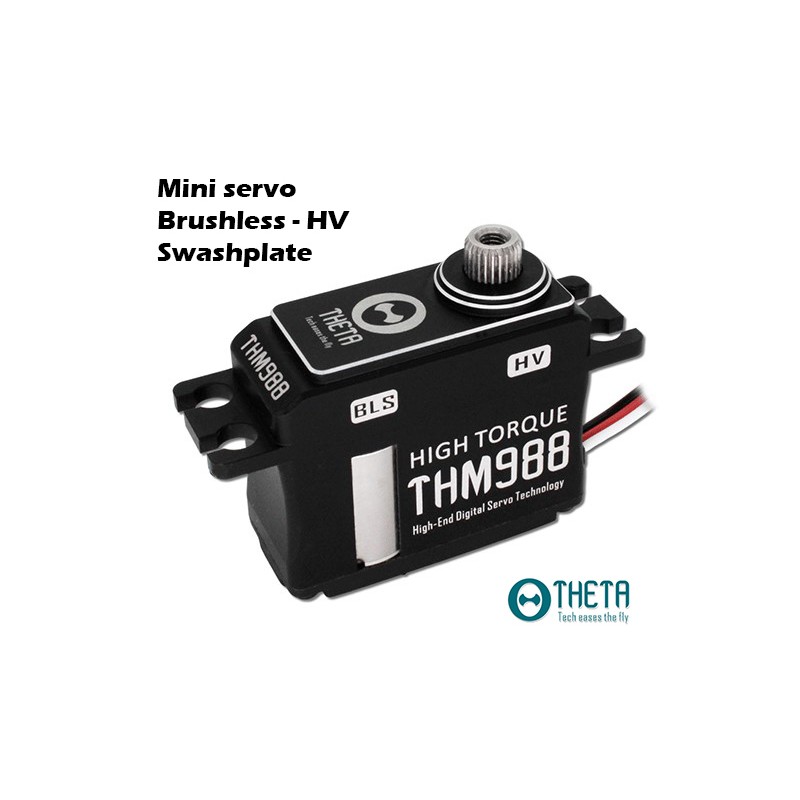

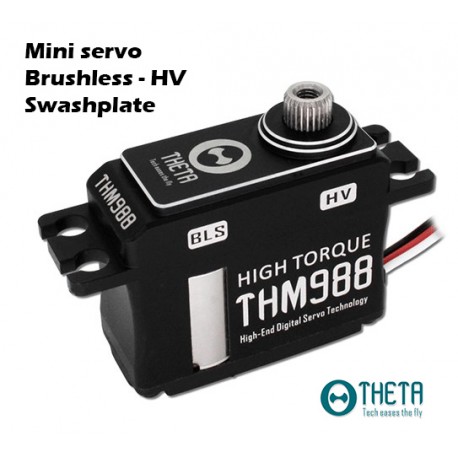

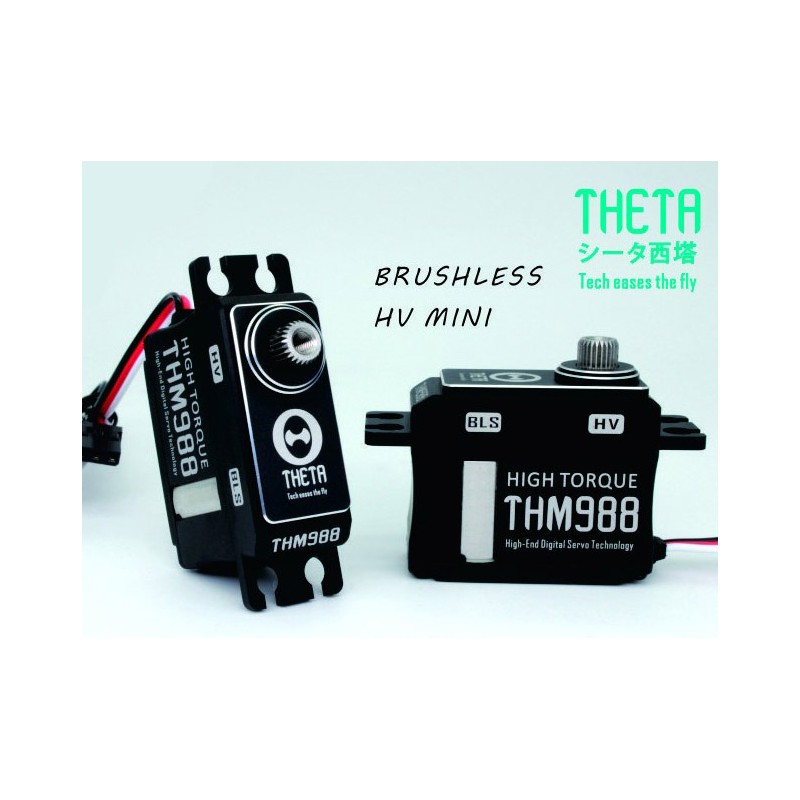

THETA THM988 Brushless HV Servo

THETA THM988: digital swashplate (cyclic) servo for radio controlled helicopter.
Mini sized, brushless motor, HV (8.4V), metal gears, metal housing.
With a versatile range of application, It can be used for other applications (airplanes, cars, etc.).

With the THM series, the Theta manufacturer offers mini-sized HV compatible servos (up to 8.4V), with considerable performance. High energy efficiency, super quiet and super duty.

Specifications:

- Operating voltage: 5 - 8,4 Volt DC
- Torque:
10 kg.cm (5,0V) - current 2,0A
12 kg.cm (6,0V) - current 2,0A
14 kg.cm (7,4V) - current 2,1A
15 kg.cm (8,4V) - current 2,3A
- Speed:
0,10 sec/60° (5,0V)
0,09 sec/60° (6,0V)
0,08 sec/60° (7,4V)
0,07 sec/60° (8,4V)
- Neutral pulse: 1520µs
- Fréquency: 50 - 400 Hz

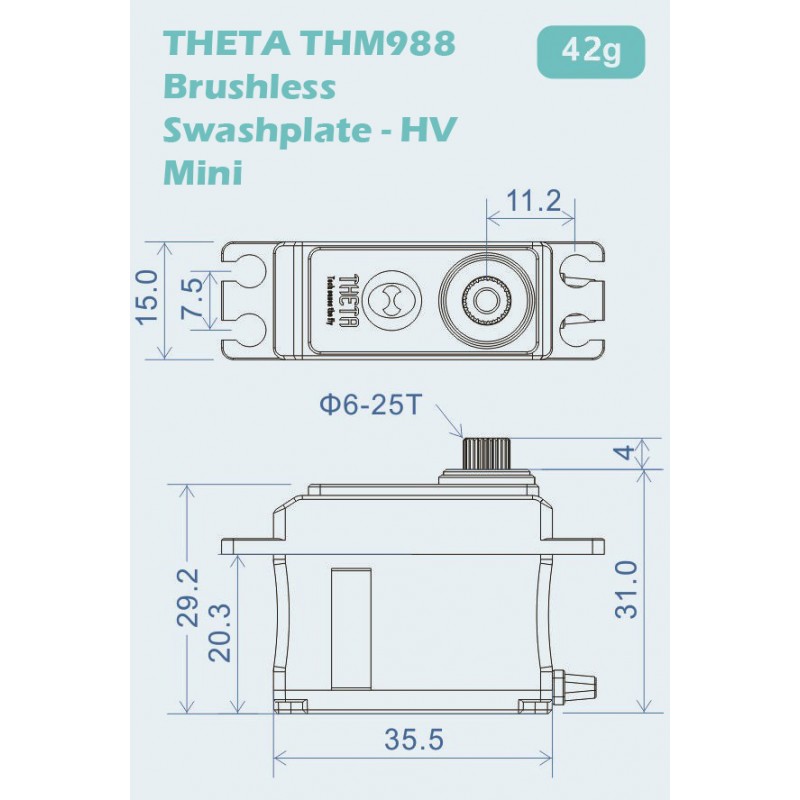

- Size: 35 x 15 x 31 mm
- Weight: 46g
- Motor type: brushless
- Output shaft: 25 T - Ø 5,9mm
- Toothing: compatible Futaba, Align, Savöx, BK...

In the THM988 box:

1x Servo THM988
4x Servo horn
1x Screw M3
4x Rubber damper
4x Brass grommet
4x Tapping screw for servo
