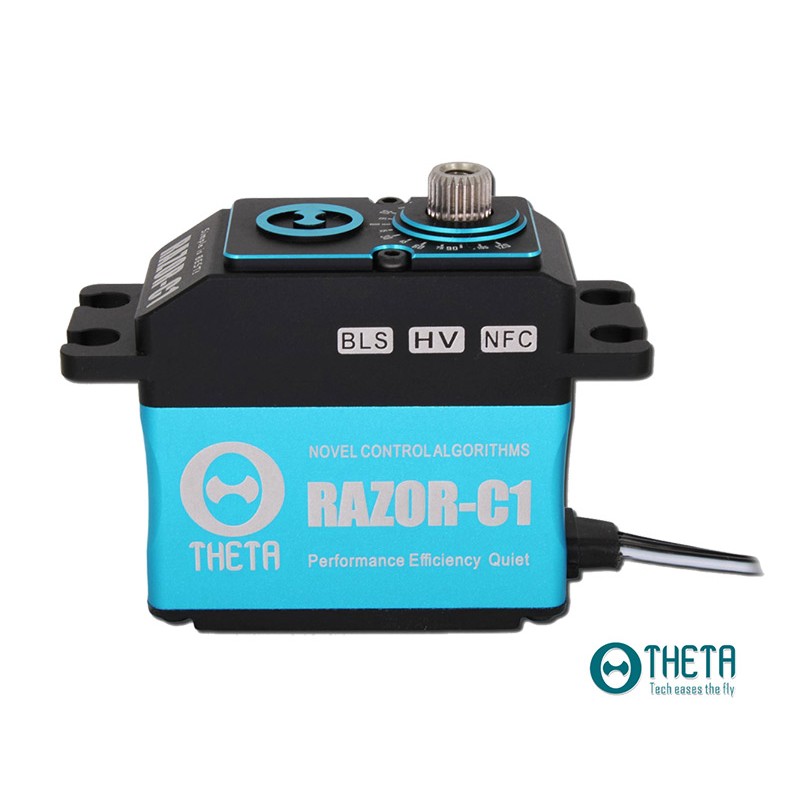

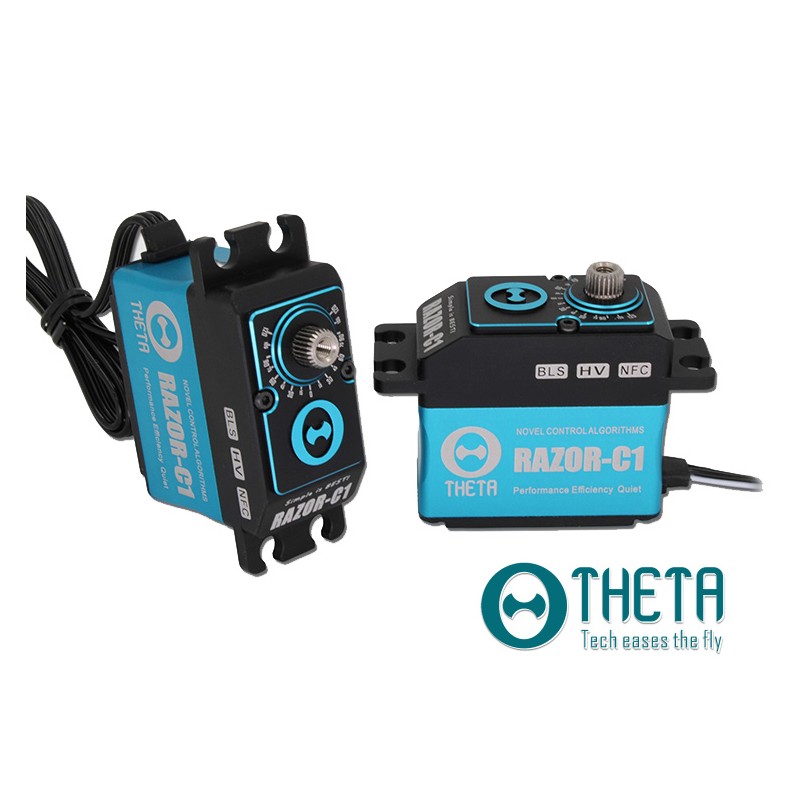

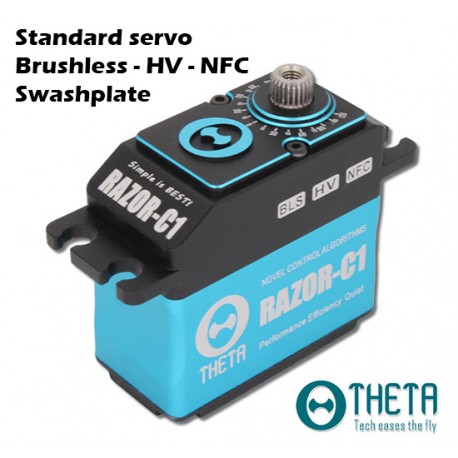

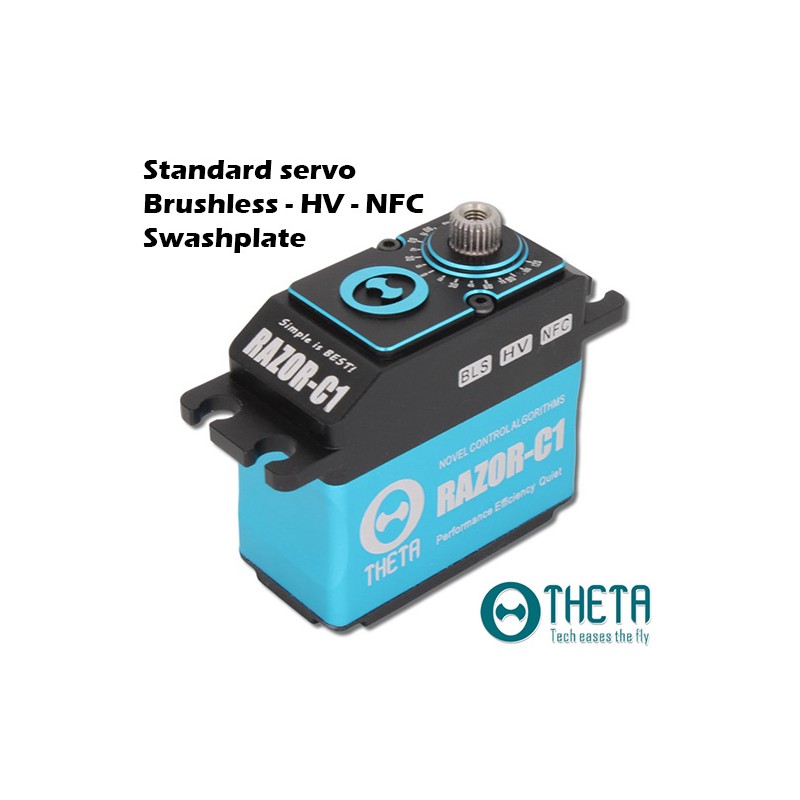

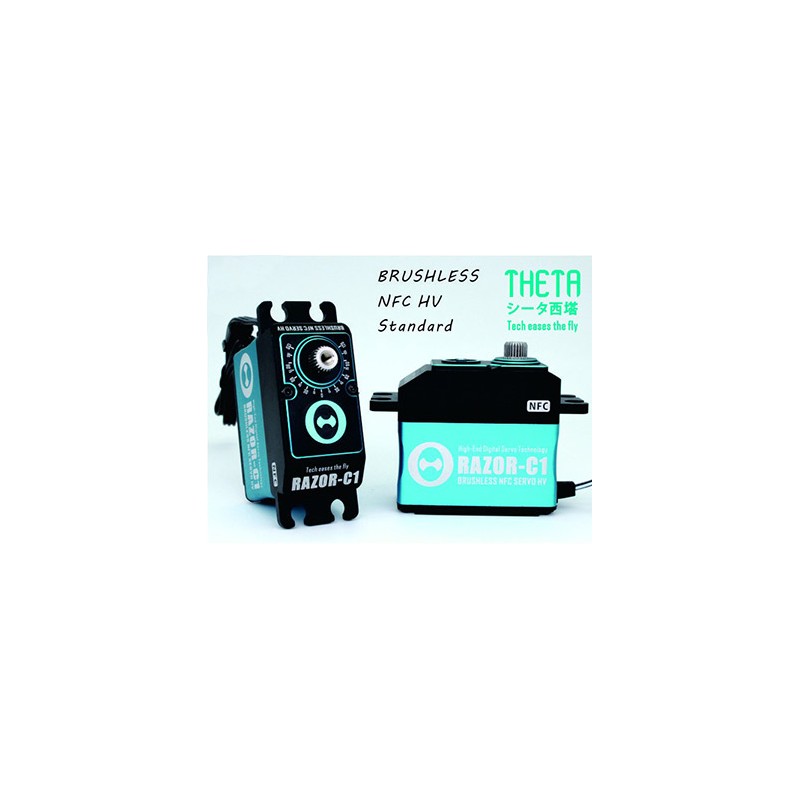

THETA RAZOR C1 Brushless HV NFC Servo

THETA RAZOR C1: a digital cyclic servo for radio-controlled helicopter.
Standard size, brushless HV motor (8.4V), metal gears, all-metal housing. NFC programming function.
The versatility of this servo is quite wide. It can thus be used for several applications (airplanes, cars, etc.).

With the Razor C1 and T1, Theta manufacturer offers Standard size HV servos (up to 8.4V) with considerable performance. High energy saving, super quiet and heavy duty. With their very high performance, the Razor C1 are excellent servos for the swashplate of large rc helicopters (550-6006-650-700-800).

As we all know, the servo will wear out during use, and wear near the midpoint is more serious. The Theta Razor NFC Servo has a midpoint adjustment function. After a period of use, changing a gear position can greatly increase the life of the servo.
It is High Voltage servos. Selecting a higher BEC voltage will increase the torque and speed.
The default current setting of the Theta Razor NFC servo (2,6A) offers quite ideal performance. But if it still cannot meet your requirements, you can increase the maximum current  appropriately (provided that the BEC power is good enough) to get the best of it !

Specifications:

- Operating voltage: 5 - 8,4 Volt DC
- Torque:
23 kg.cm (5,0V) - current 2,6A / 32 kg.cm (5.0V) - current 5A
27 kg.cm (6,0V) - current 2,6A / 37 kg.cm (6.0V) - current 5A
34 kg.cm (7,4V) - current 2,6A / 44 kg.cm (7,4V) - current 5A
36 kg.cm (8,4V) - current 2,6A / 48 kg.cm (8,4V) - current 5A
- Speed:
0,108 sec/60° (5,0V) - current 2,6A / 0,102 sec/60° (5,0V) - current 5A
0,084 sec/60° (6,0V) - current 2,6A / 0,079 sec/60° (6,0V) - current 5A
0,071 sec/60° (7,4V) - current 2,6A / 0,067 sec/60° (7,4V) - current 5A
0,060 sec/60° (8,4V) - current 2,6A / 0,056 sec/60° (8,4V) - current 5A
- Neutral pulse: 1520µs (factory setting) - 760µs (progarmming)
- Frequency: 50 à 400 Hz
- Rotating direction: adjustable

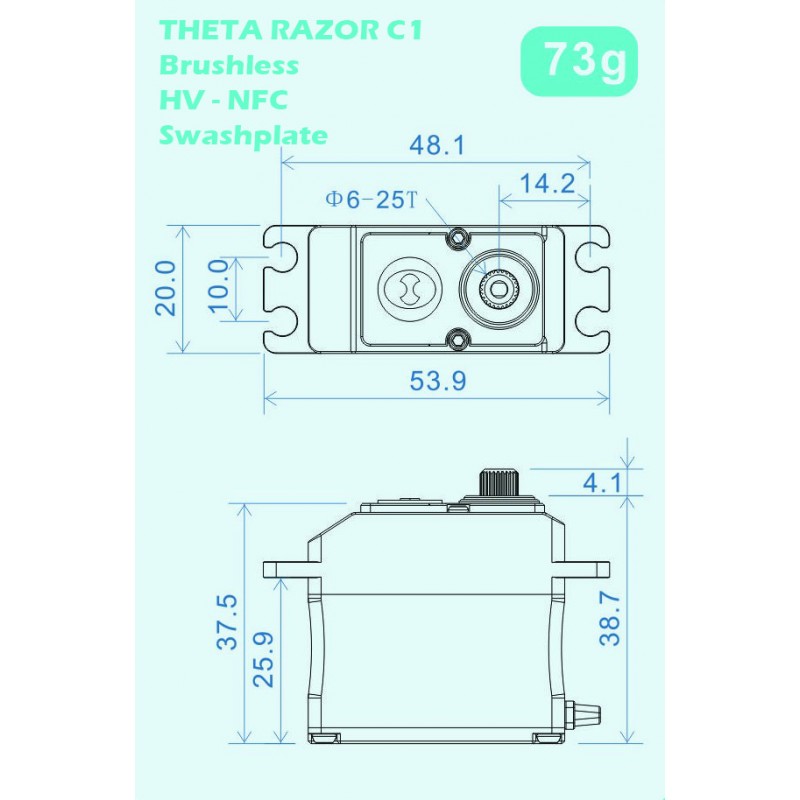

- Size: 40 x 20 x 38 mm
- Wire length: 320 +5 mm
- Weight: 73g
- Motor type: brushless
- Output shaft: 25T / Ø 5,9mm
- Toothing: compatible Futaba, Align, Savöx, BK...

In the THETA RAZOR C1 box:

1x Servo RAZOR C1
4x Servo horn
1x Screw M3
4x Rubber damper
4x Brass grommet
4x Tapping screw for servo
