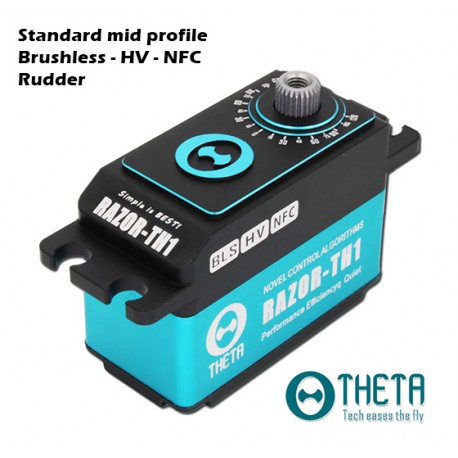

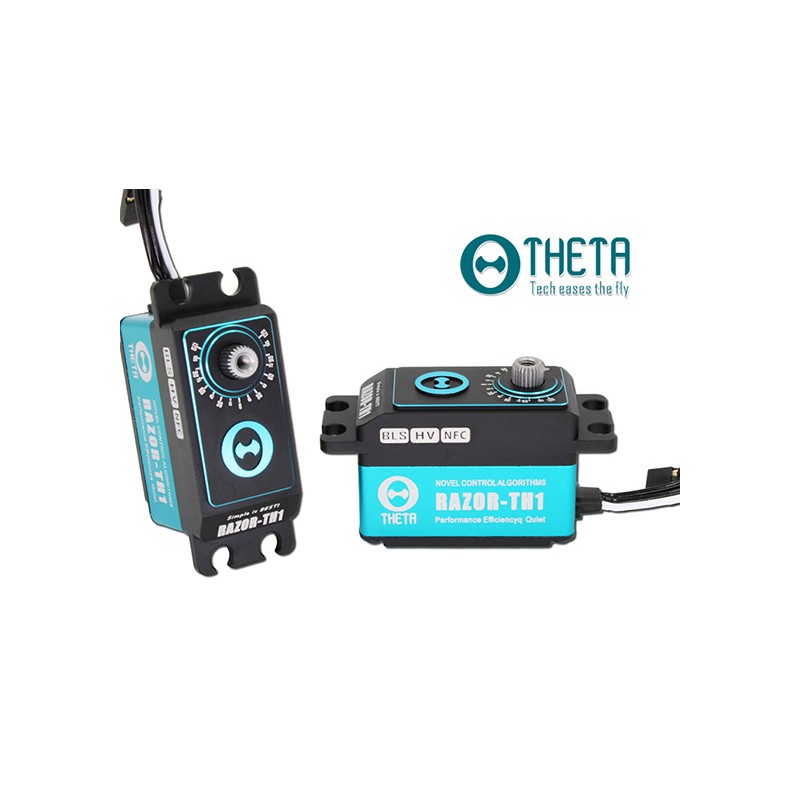

THETA RAZOR TH1 Brushless HV NFC Servo

THETA RAZOR TH1: a digital rudder servo for radio-controlled helicopter.
Standard size mid profile (height 29,5mm), brushless HV motor (8.4V), metal gears, full aluminum CNC housing. NFC programming function.
The versatility of this servo is quite wide. It can thus be used for several applications (airplanes, cars, etc.).

With the Razor DH1 and TH1, Theta manufacturer offers Standard size mid profile HV servos (up to 8.4V) with considerable performance. High energy saving, super quiet and heavy duty. With their very high performance, the Razor TH1 is an excellent servo for the rudder of rc helicopters (Class 550-6006-650-700).

As we all know, the servo will wear out during use, and wear near the midpoint is more serious. The Theta Razor NFC Servo has a midpoint adjustment function. After a period of use, changing a gear position can greatly increase the life of the servo.
It is High Voltage servos. Selecting a higher BEC voltage will increase the torque and speed.
The default current setting of the Theta Razor TH1 NFC servo (3A) offers quite ideal performance. But if it still cannot meet your requirements, you can increase the maximum current  appropriately (provided that the BEC power is good enough) to get the best of it !

Specifications:

- Operating voltage: 5 - 8,4 Volt DC
- Torque:
19 kg.cm (5,0V) - current 3A / 22 kg.cm (5.0V) - current 5A
21 kg.cm (6,0V) - current 3A / 26 kg.cm (6.0V) - current 5A
23 kg.cm (7,4V) - current 3A / 28 kg.cm (7,4V) - current 5A
24 kg.cm (8,4V) - current 3A / 30 kg.cm (8,4V) - current 5A
- Speed:
0,087 sec/60° (5,0V) - current 3A / 0,079 sec/60° (5,0V) - current 5A
0,072 sec/60° (6,0V) - current 3A / 0,065 sec/60° (6,0V) - current 5A
0,064 sec/60° (7,4V) - current 3A / 0,058 sec/60° (7,4V) - current 5A
0,056 sec/60° (8,4V) - current 3A / 0,051 sec/60° (8,4V) - current 5A
- Neutral pulse: 760µs (factory setting) - 1520µs (programming)
- Frequency: 50 à 1000 Hz
- Rotating direction: adjustable

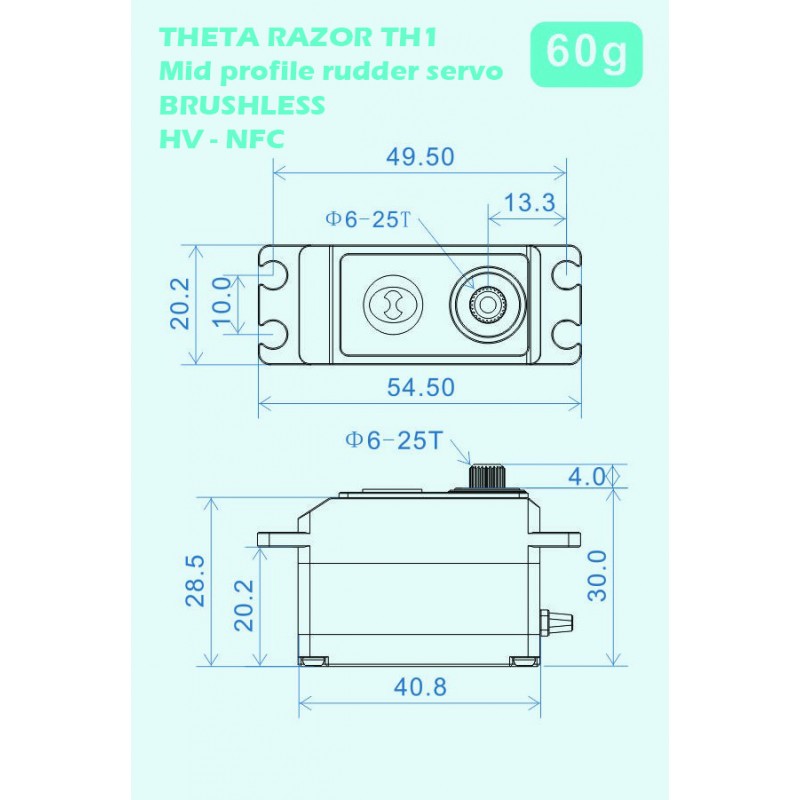

- Size: 41 x 20,5 x 29,5 mm
- Wire length: 300 +5 mm
- Weight: 60g
- Motor type: brushless
- Output shaft: 25T / Ø 5,9mm
- Toothing: compatible Futaba, Align, Savöx, BK...

In the THETA RAZOR TH1 box:

1x Servo RAZOR TH1:
4x Servo horn
1x Screw M3
4x Rubber damper
4x Brass grommet
4x Tapping screw for servo
1x Capacitor
