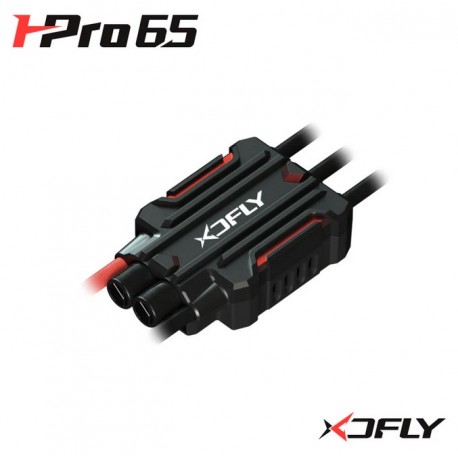

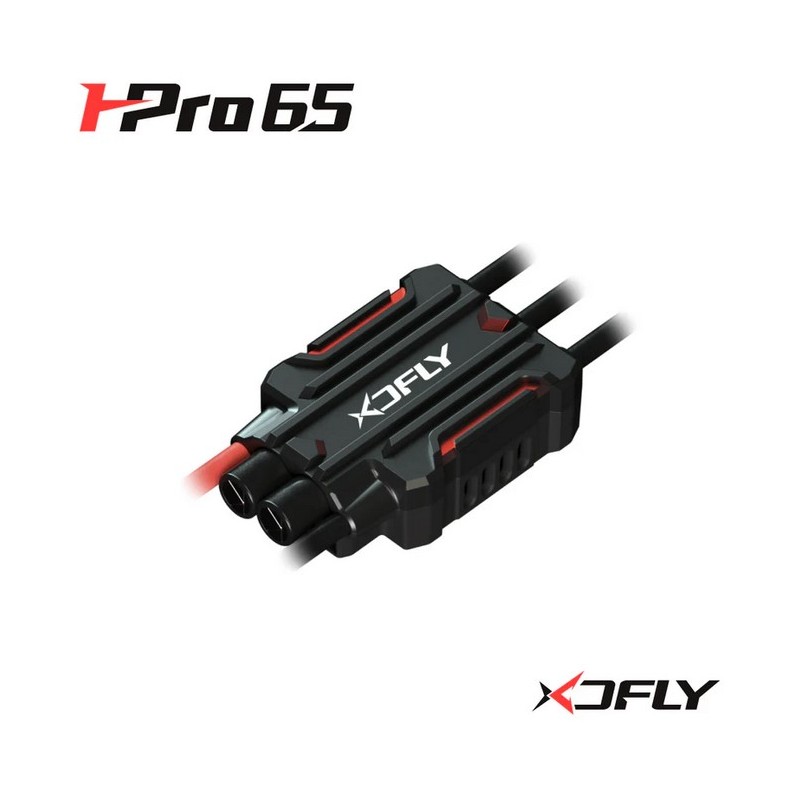

XDFly HPRO 65A ESC 3-6S SBEC

XDFly have released the HPRO 65A ESC 3-6S Built-in SBEC 6-12V adjustable speed controller for F3A rc airplane and Class 325-380 rc helicopter.

Featuring:

1. The HPRO 65A ESC is fitted with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
2. Low heat production due to use of new generation of power MOSFET, it features high instantaneous current endurance and high reliability with low operating temperature.
3. Self-check function: after power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.
4. The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.
5. With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
6. Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
7. The ESC has its independent programming interface. Parameter can be adjusted via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.
8. With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
9. Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.

Specifications:

Designation: XDFLY HPRO 65A 3-6S SBEC
Continuous Current (A): 65A
Burst Current (A): 130A
Input Voltage: 3-6S Lipo
BEC Output voltage: 6-12V adjustable
BEC Current: Continuous 10A - Peak 35A
Size: 60x36x19mm
Weight: 63g
Power Wire 14 Gauge 85mm Red/Black
Motor Wire 14 Gauge 62mm Black
Programming options: XDFly Android & iOS APP / VBCT / E / RF2 / Jeti
Telemetry compatibility: VBCT/E/RF2/Futaba SBus/Jeti/MSH Brain/iKon
HPRO 65A applications: 325-380 Class electric radio controlled helicopters or fixed-wing aircrafts
