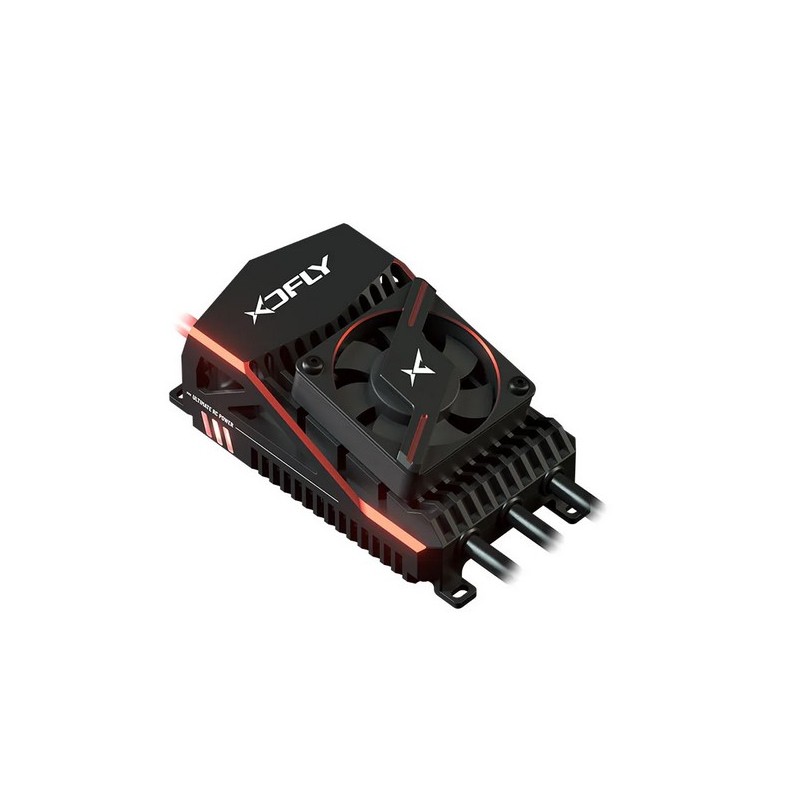

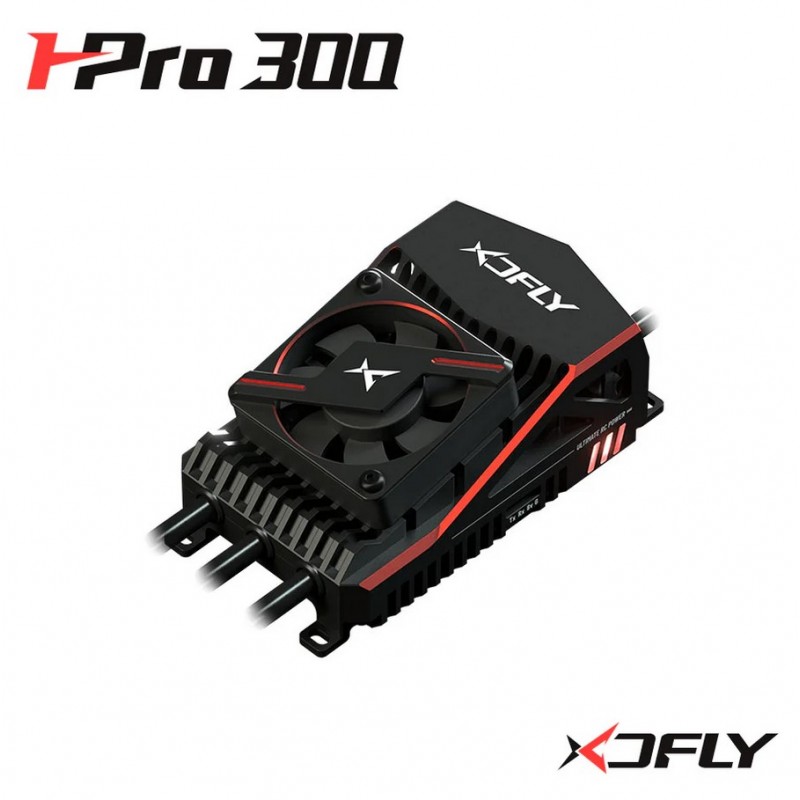

ESC XDFly HPRO 300A HV 6-14S SBEC

XDFly have specially released the HPRO 300A High Voltage ESC 6-14S Built-in SBEC 6-12V adjustable speed controller for Class 700-800 radio controlled large helicopter.

Featuring:

1. The HPRO 300A ESC is fitted with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
2. Low heat production due to use of new generation of power MOSFET, it features high instantaneous current endurance and high reliability with low operating temperature.
3. Self-check function: after power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.
4. The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.
5. With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
6. Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
7. The ESC has its independent programming interface. Parameter can be adjusted via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.
8. With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
9. Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.
10. Equipped with colorful LED lights including five optional colors for users: red, green, blue, yellow, and white, which indicate the ESC status through flashing modes.

Specifications:

Designation: XDFly HPRO 300A HV SBEC
Continuous current: 300A
Burst current: 400A
Input voltage: 6-14S Lipo
BEC output: 6-12V Adjustable
BEC current: continuous.10A - Peak 35A
Size: 95x57x38 mm (no fan) - 95x57x42 mm (with fan)
Weight: 290g
Power Wire: 8 Gauge - L=205mm red/black
Motor Wire: 10 Gauge -  L=150mm black
Anti-spark cicuit: built in
Programming options: XDFly Android & iOS App / VBCT / E / RF2 / Jeti
Telemetry capability: VBCT / E / RF2 / Futaba SBUS2 / Jeti / MSH Brain / iKon
XDFly HPRO 300A HV applications: Class 700-800 electric rc helicopters or fixed-wing aircrafts
