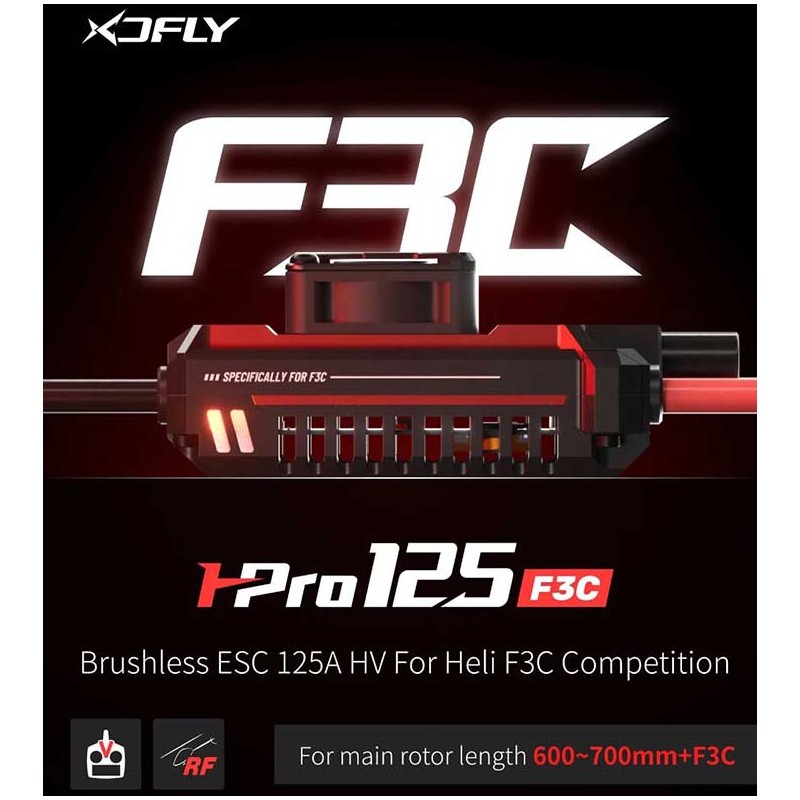

ESC XDFly HPRO 125A F3C HV 6-14S SBEC

XDFly have specially released the HPRO 125A F3C High Voltage ESC 6-14S (with built-in SBEC 6-12V adjustable speed controller) for Class 600-700 radio controlled helicopter.

Featuring:

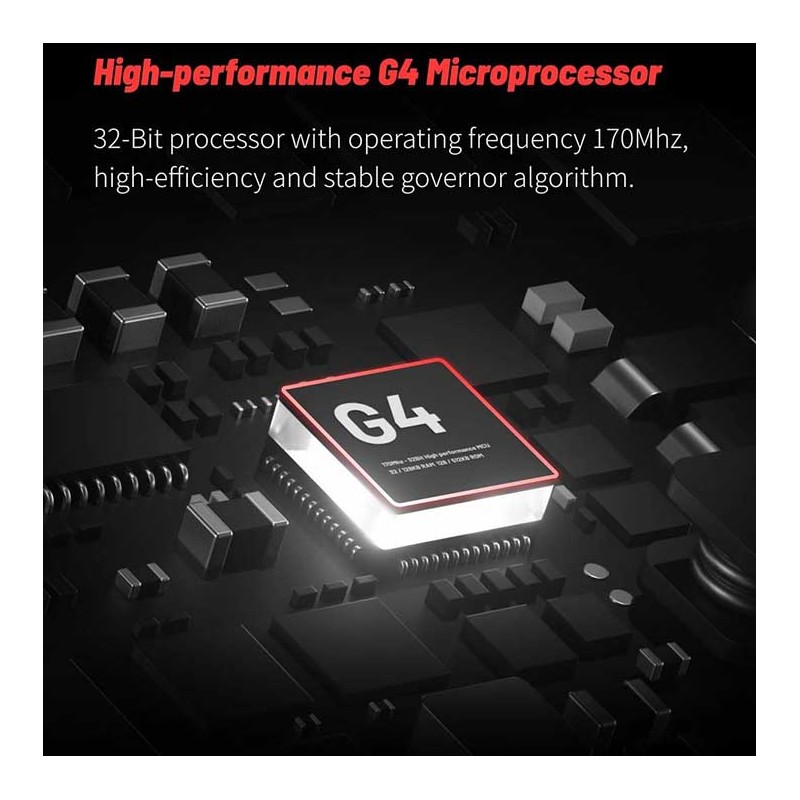

1. The HPRO 125A F3C ESC is fitted with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
2. Low heat production due to use of new generation of power MOSFET, it features high instantaneous current endurance and high reliability with low operating temperature.
3. Self-check function: after power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.

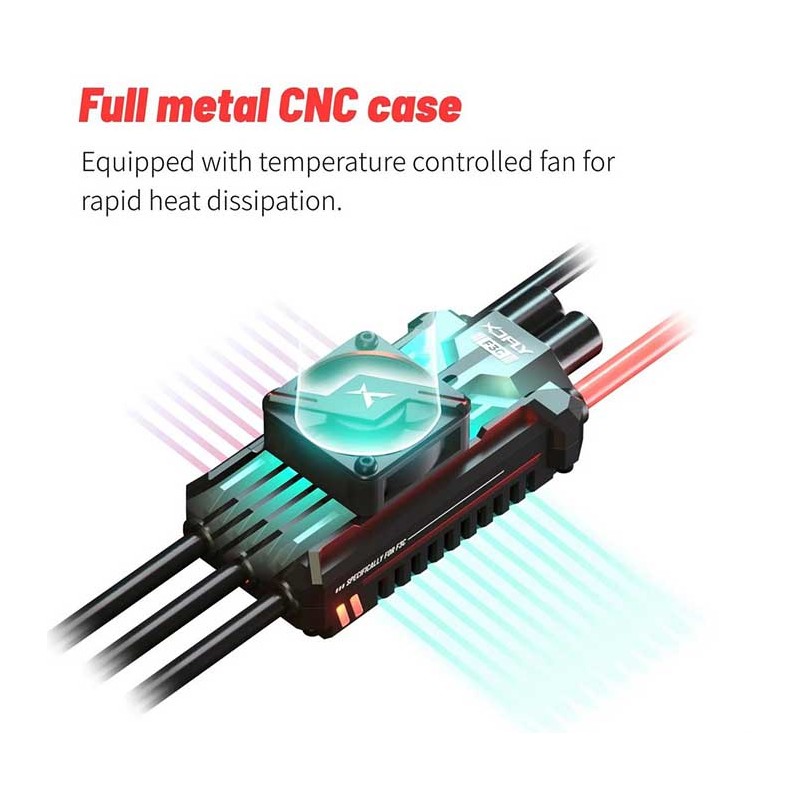

4. The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.
5. With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
6. Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
7. The ESC has its independent programming interface. Parameter can be adjusted via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.

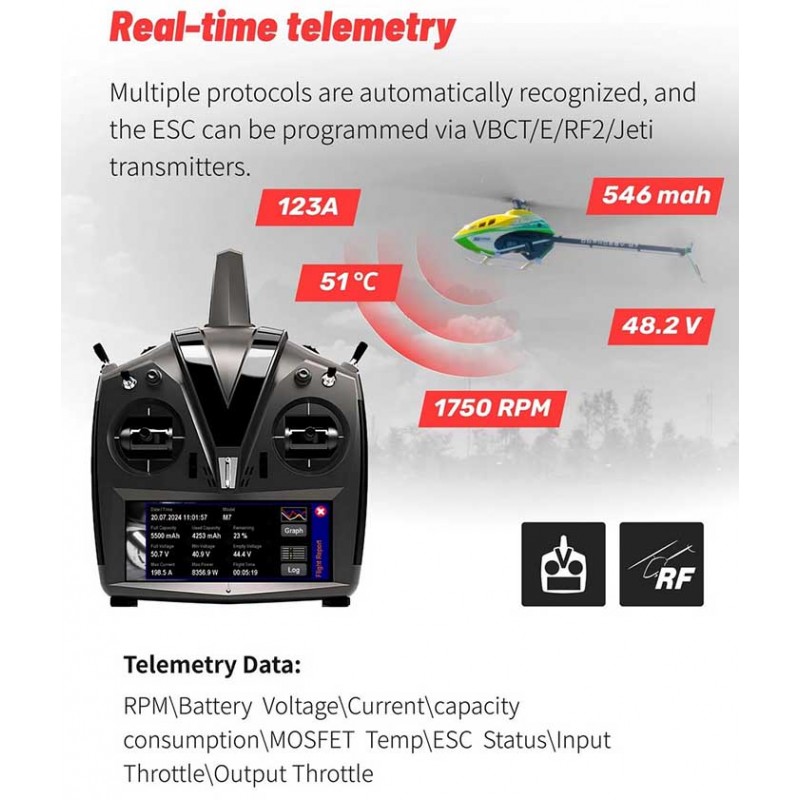

8. With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
9. Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.
10. Equipped with colorful LED lights including five optional colors for users: red, green, blue, yellow, and white, which indicate the ESC status through flashing modes.

Specifications:

Designation: HPRO F3C 125A 6-14S SBEC
Continuous current: 125A
Burst current: 170A
Input voltage: 6-14S Lipo
BEC Output: 6-12V adjustable
BEC Current: continuous 10A - Peak 35A
Size: 90x43x25 mm
Weight: 166g
Power Wire: 10 Gauge - L=125 mm red/black
Motor Wire: 10 Gauge - L=160 mm black
Anti-spark circuit: built-in
Programming options: XDFly Android & iOS App / VBCT/E / RF2 / Jeti
Telemetry capability: VBCT/E / RF2 / Futaba SBus2 / Jeti / MSH Brain / iKon
HPRO 125A F3C HV applications: F3C and Class 600-700 electric rc helicopters or fixed-wing aircrafts
