BEASTX Bevel Box and Mounting Frame (BXA76005S)

Reference: BXA76005S

Condition: New product

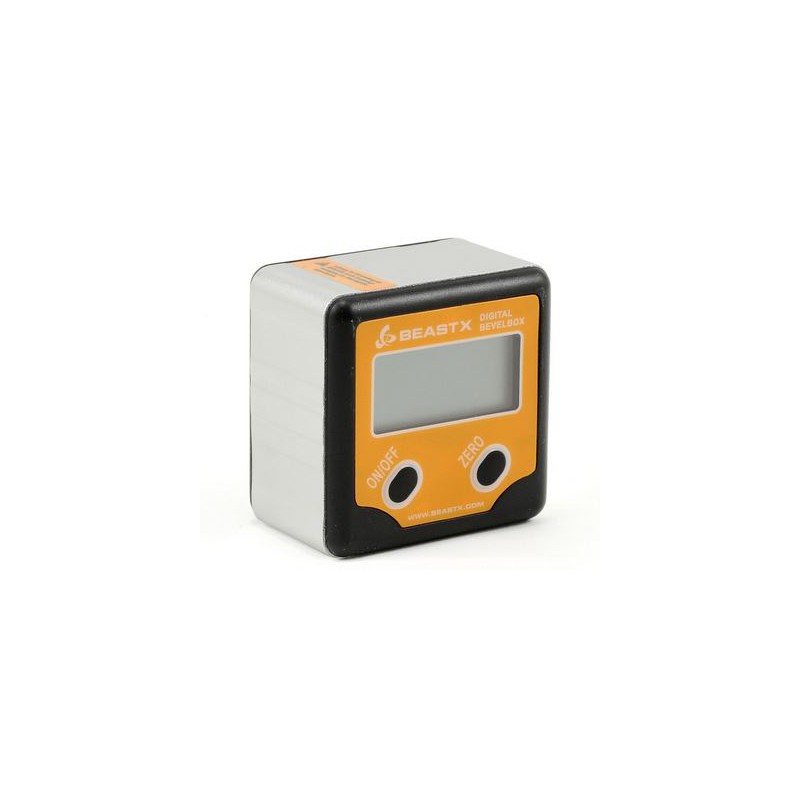

360° Inclinometer BeastX Bevel Box

With mounting frame. Check and set your blade pitch accurately !

More details

This product is no longer in stock

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Digital Bevel Box solves the pitch measuring problem: just put on the magnetically adhering device and is immediately displayed the exact horizontal angle. So you can precisely align your tools, rows are marked out accurately.

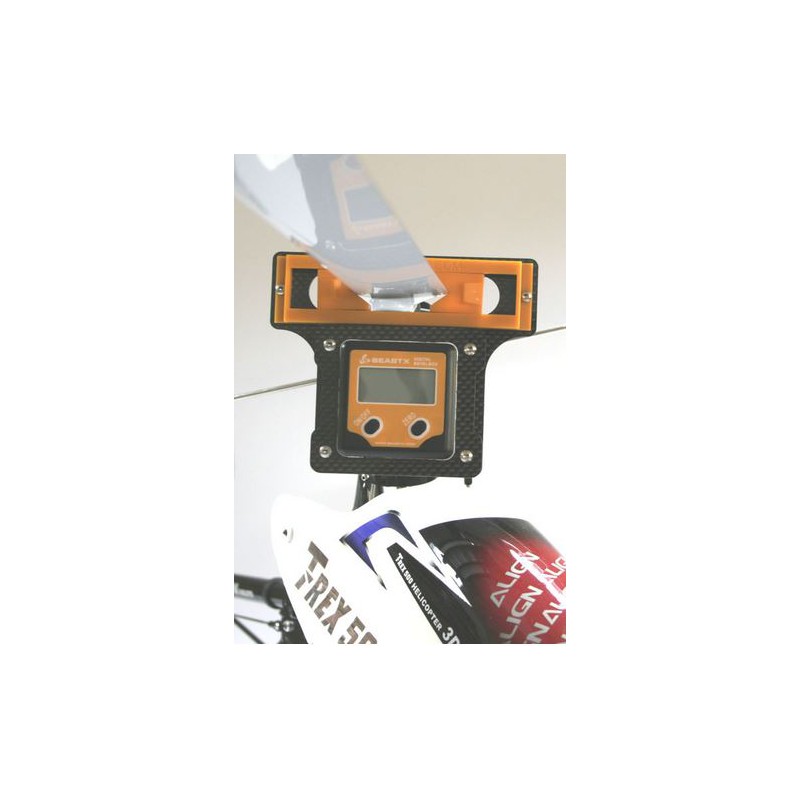

To adjust the pitch values, simply pull the mounting frame on to the rotorblade and put the Digital Bevel Box into the pre-assembled Carbon Frame then go on !
To be used for T-Rex 450 up to T-Rex 700.

Specifications:

Measuring range: +/- 180 degrees
Accuracy: 0,1 degree
Resolution: 0,1 degree
Waterproof housing (IP 54)
Magnetic Case
Dimensions (W x H x D): 50 x 50 x 32 mm
Operating with 1x Button Cell CR 2032 (in content)

Carbon Frame:
Material: black carbon
Thickness: 2,5mm

In the box:
- scews and acessories
- Inclinometer Bevel Box
- Carbon frame
- Bag
- Li-Button cell /CR2032
