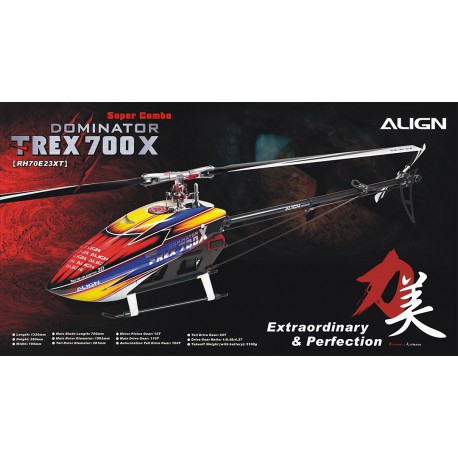

Align T-REX 700X Dominator Top Super Combo RC Helicopter (RH70E35A)

RH70E35A

New product

The T-Rex 700X, king of the sky, will give you an adrenaline rush with innovative design and high-end electronics.

Align T-REX 700X Dominator Top Super Combo rc helicopter kit

850MX motor - Hobbywing Platinum HV200A V4.1 ESC - DS820M/DS825M high voltage brushless servos - BeastX Microbeast Ultra Flybarless system.

More details

This product is no longer in stock

1 399,99 € tax incl.

-579,01 €

1 979,00 € tax incl.

More info

Align T-REX 700X Dominator Top Super Combo radio controlled helicopter kit. Specially designed for extreme 3D flight addicts.

The advanced engineered narrow body design efficiently decreases gear abrasion, machine deformation, increases power, and extends flying durability. The unique Split-Type Main Frame design, made of composite material side plates, is engineered using our proprietary embedding technology, which strengthens the entire structure and provides better accessibility for servicing the T-REX 700X. This extraordinary design includes a progressive lightweight landing skid making the T-REX 700X the leader in the 700 class. The Align T-Rex 700X is 400g (0.882lbs) lighter than our pervious model, this can effectively increase your flight time. The brand new 700EFL Flybarless Rotor Head System utilizes an extremely low CG design which reduces resistance during 3D maneuvers while increasing flight responsiveness and precision.

The T-REX 700X is equipped with the new 850MX motor which is highly efficient with superior power, excellent torque, low current draw, and is the most advanced motor approved by World RC Champions. The new designed motor cooling mount plate can reduce the motor operating temperature up to 20°C (68°F). The helicopter’s high quality design is accented with precision machined red and silver metal parts.
The new Hobbywing Platinum HV200A V4 brushless ESC supplies extreme power. The ESC includes a superior governor and BEC which allows you to set 5V-8V (Step: 0.1V).
The last DS820M/DS825M high voltage brushless servos are more efficient and out perform other servos in this class. To protect these servos the new high-end CNC aluminum case function as a heat sink allowing the servos to operate at a lower temperature.

Align developed the ultimate perfect 700 class helicopter which is stronger, yet lightweight, and built with precision manufactured high-quality parts.

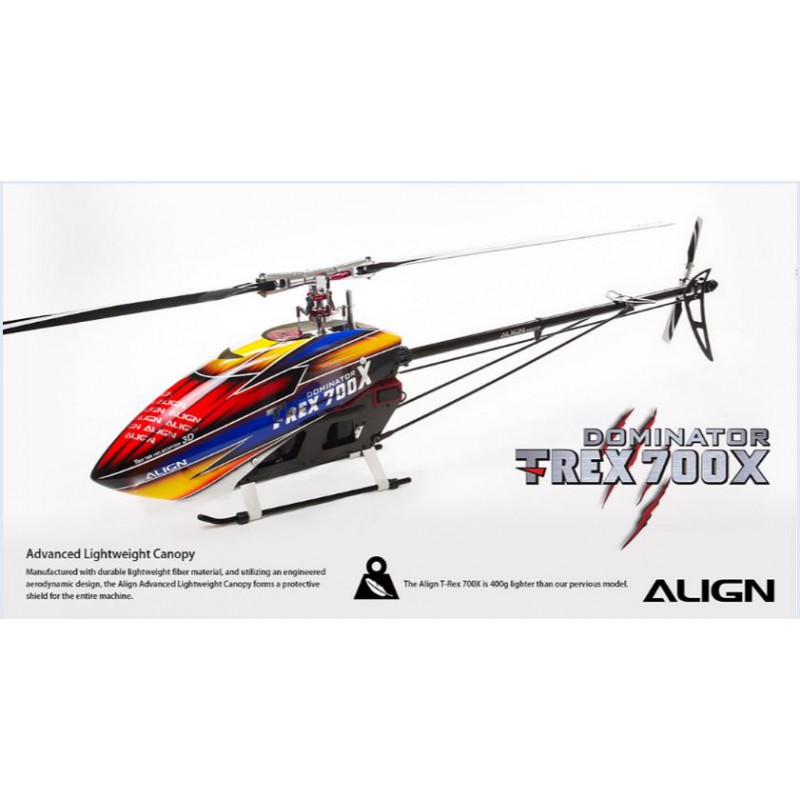

  • Manufactured with durable lightweight fiber material, and utilizing an engineered aerodynamic design, the Align Advanced Lightweight Canopy forms a protective shield for the entire machine.
  • Landing skid is tilted 5 degree forward which improves crashworthiness.
  • Engineered Narrow Body Design efficiently decreases gear abrasion and machine deformation. The Align T-Rex 700X newly designed narrow body is more powerful and has longer flying durability.

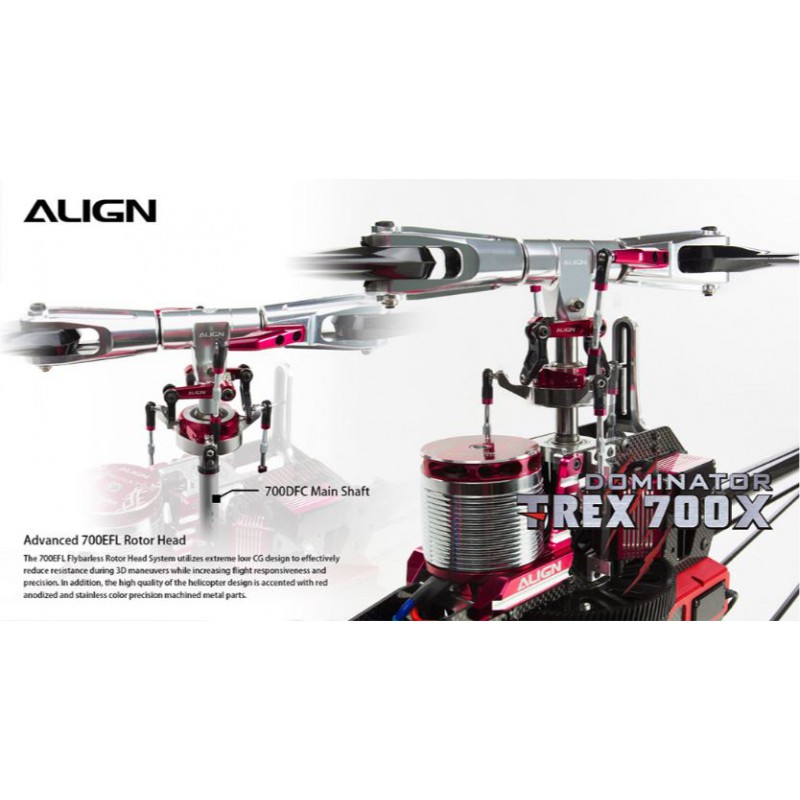

  • The 700EFL Flybarless Rotor Head System utilizes extreme low CG design to effectively reduce resistance during 3D maneuvers while increasing flight responsiveness and precision. In addition, the high quality of the helicopter design is accented with red anodized and stainless color precision machined metal parts.
  • The high-end Microbeast PLUS 6-axis gyro with 32-bit high-speed processor is much precise and superior in programming and computing allow for significant handling performance and delicate response. In addition, the Microbeast PLUS gyro is vibration-reducing improvement and strongly reduce the effects of the vibration to flying performance.

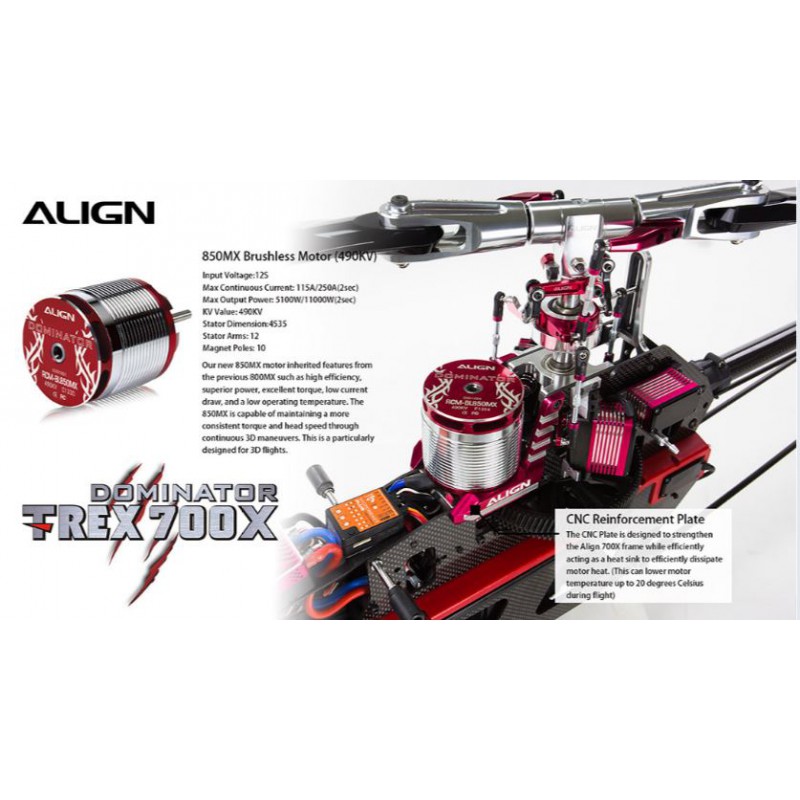

  • The new 850MX motor inherited features from the previous 800MX such as high efficiency, superior power, excellent torque, low current draw, and a low operating temperature. The 850MX is capable of maintaining a more consistent torque and head speed through continuous 3D maneuvers. This is a particularly designed for 3D flights.
  • The CNC Plate is designed to strengthen the Align 700X frame while efficiently acting as a heat sink to efficiently dissipate motor heat. (This can lower motor temperature up to 20 degrees Celsius during flight)

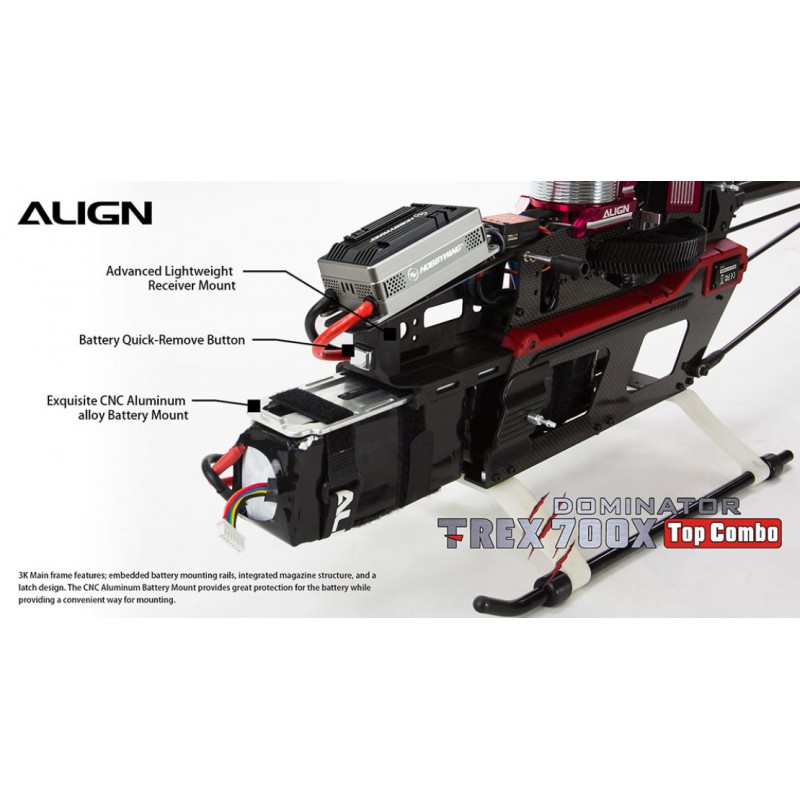

  • 3K Main frame features; embedded battery mounting rails, integrated magazine structure, and a latch design. The CNC Aluminum Battery Mount provides great protection for the battery while providing a convenient way for mounting.

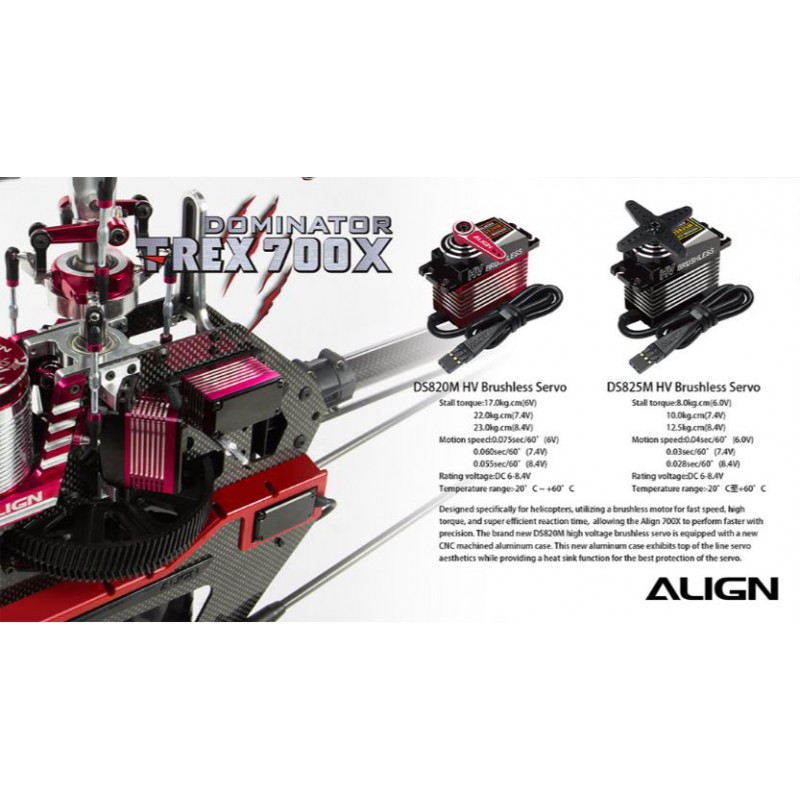

  • Designed specifically for helicopters, utilizing a brushless motor for fast speed, high torque, and super efficient reaction time, allowing the Align 700X to perform faster with precision. The brand new DS820M high voltage brushless servo is equipped with a new CNC machined aluminum case. This new aluminum case exhibits top of the line servo aesthetics while providing a heat sink function for the best protection of the servo.

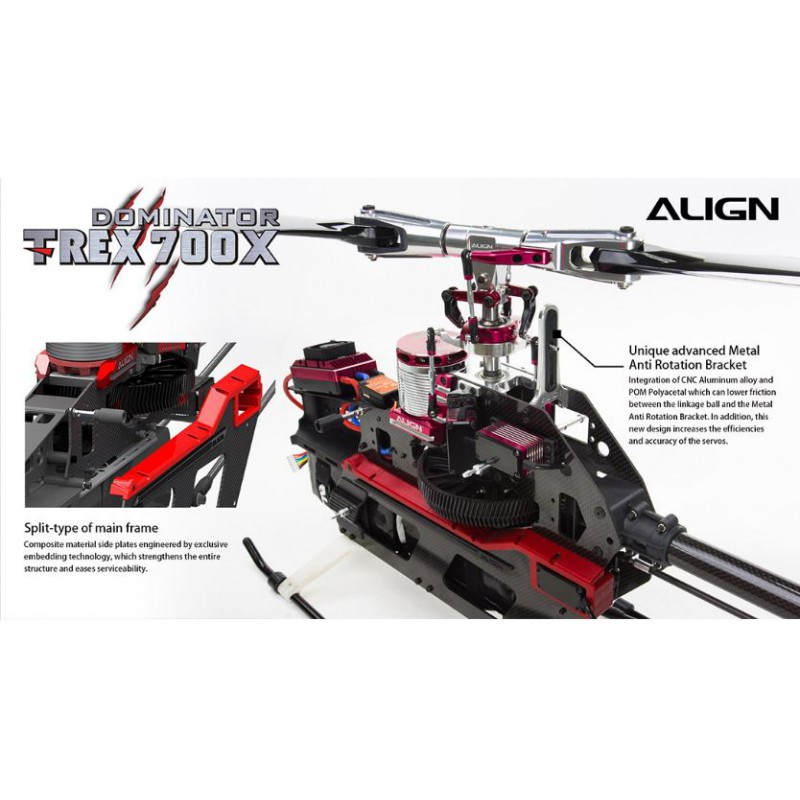

  • Composite material side plates engineered by exclusive embedding technology, which strengthens the entire structure and eases serviceability.

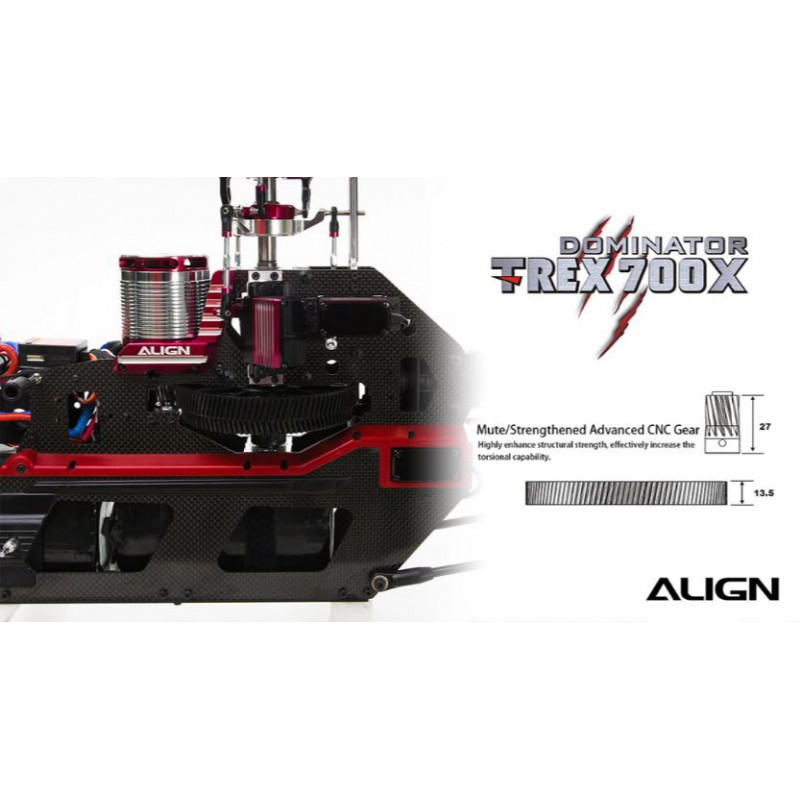

  • Integration of CNC Aluminum alloy and POM Polyacetal which can lower friction between the linkage ball and the Metal Anti Rotation Bracket. In addition, this new design increases the efficiencies and accuracy of the servos. Highly enhance structural strength, effectively increase the torsional capability.
  • Brand new matting carbon tailboom using carbon fiber and aluminum imbedded technology, features light weight and high strength.

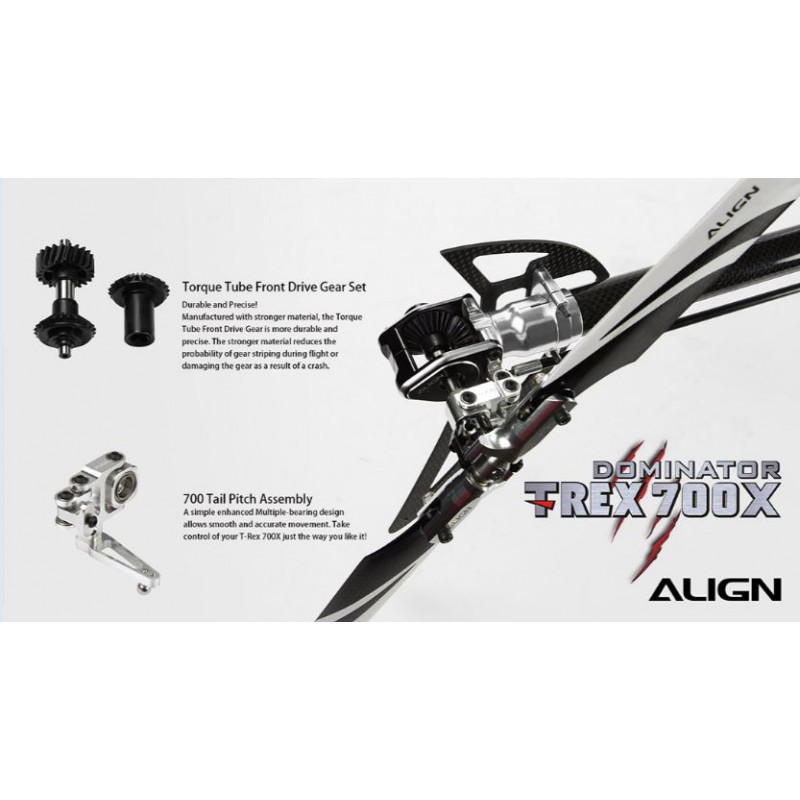

  • Durable and Precise! Manufactured with stronger material, the Torque Tube Front Drive Gear is more durable and precise. The stronger material reduces the probability of gear striping during flight or damaging the gear as a result of a crash. A simple enhanced Multiple-bearing design allows smooth and accurate movement. Take control of your T-Rex 700X just the way you like it!

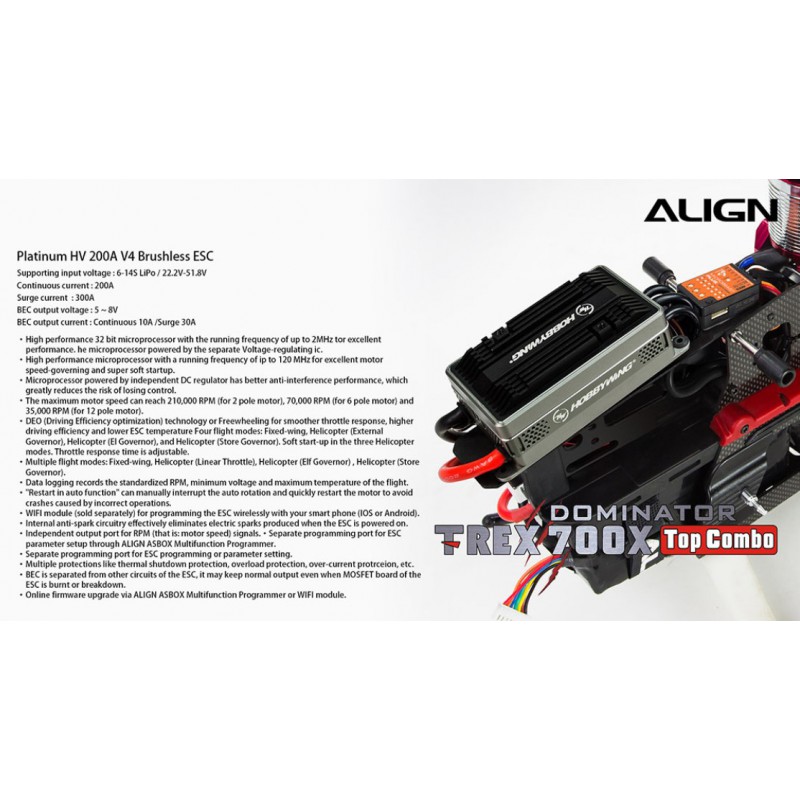

Hobbywing Platinum HV200A V4.1 ESC:

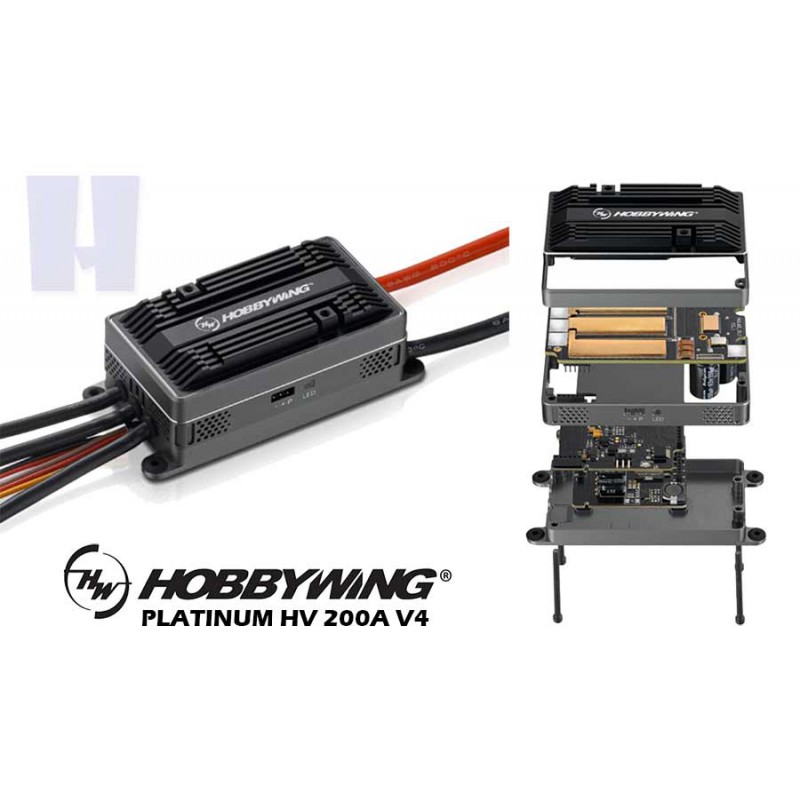

1- An innovating "duo" stacking structure allows all components on both sides of the printed circuit boards to quickly conduct heat to the aluminum case.
2- High-performance 32-bit processor combined with advanced algorithm makes the motor speed-governing excellent for different conditions. With an adjustable sensitivity of speed-governing, every pilot can find the most suitable settings for his T-Rex 700X.
3- The Platinum HV-200A makes the motor start extremely soft and avoids tail-drift issues of helicopter. The start-up time is adjustable within 8 to 25 seconds, this will definitely create a perfect flight starting point
4- The built-in switch mode BEC with a continuously adjustable output voltage, range from 5V to 8V (step: 0.1V). It is certain to put out the power you need for rapid, precise steering servo operation.
5- A high quality, and high voltage MOSFET with a great current endurance guarantees the ESC’s safety especially in a extremely high power demanding situation.
6- Built-in sparkproof circuit effectively eliminates sparks produced at the “powering-on” moment and prolongs the connectors‘ life.
7- Support ASBOX multifunction programmer set up.

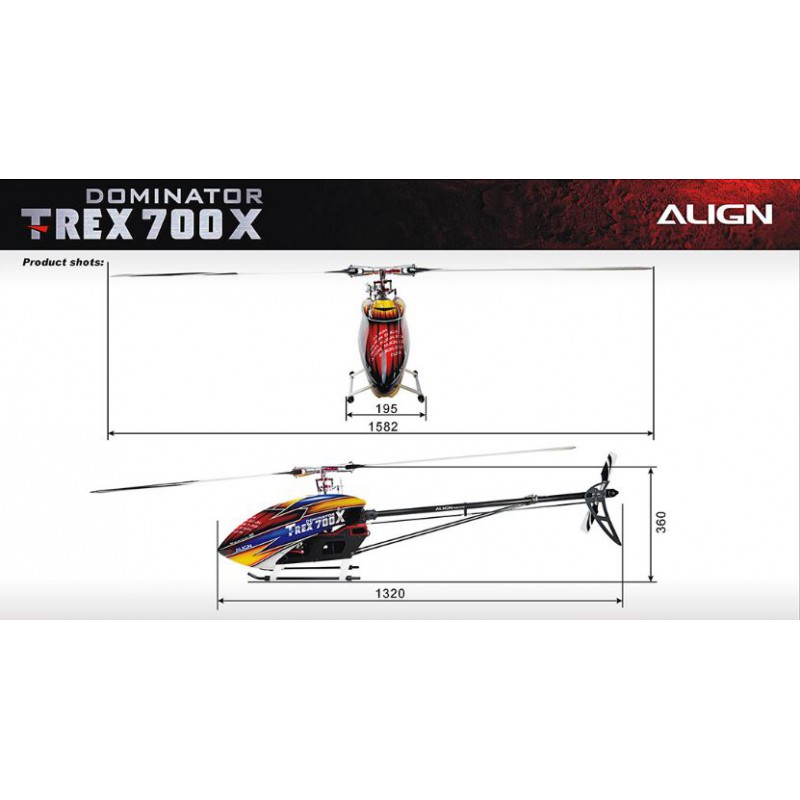

Specifications:

● Length: 1320mm
● Height: 360mm
● Width: 195mm
● Main Blade Length: 700mm
● Main Rotor Diameter: 1582mm
● Tail Rotor Diameter: 281mm
● Motor Drive Gear:13T
● Main Drive Gear:110T
● Autorotation Tail Drive Gear: 104T
● Tail Drive Gear: 22T
● Drive Gear Ratio: 1:8.46:4.73
● Weight (With Battery): approx. 5100g

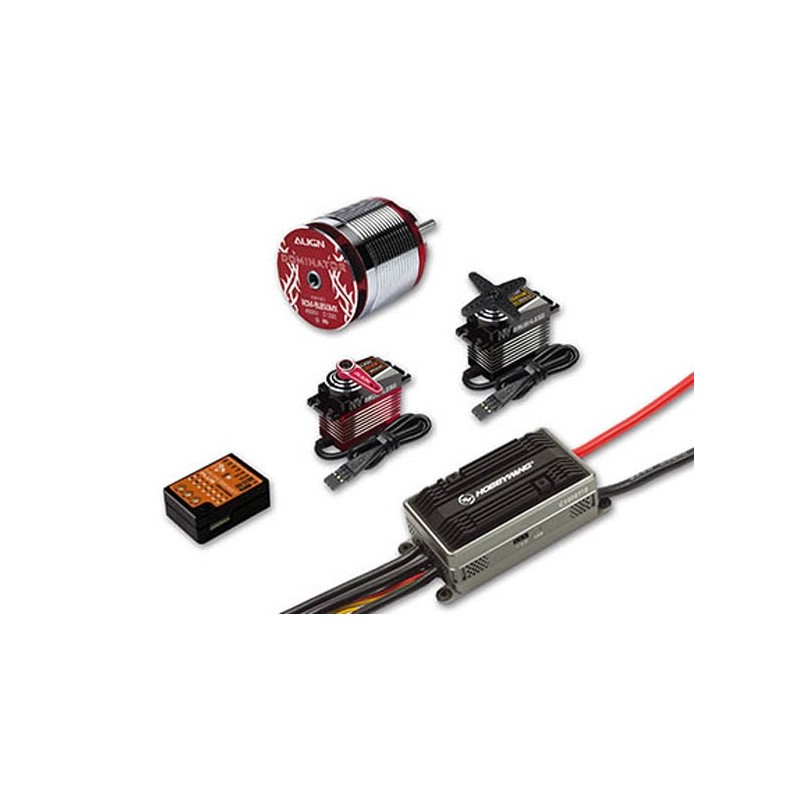

What's in this T-Rex 700X Dominator Top Super Combo box:

● T-REX 700X Kit Set x1 set
● 700 Carbon Fiber Blades x1 set
● 106mm 3K Carbon Fiber Tail Blades x1 set
● 850MX Brushless Motor(490KV) x1
● DS820M High Voltage Brushless Servo x3
● DS825M High Voltage Brushless Servo x1
● Hobbywing Platinum HV200A V4.1 Brushless ESC x1 (HV30209101)
● BeastX Microbeast ULTRA flybarless system

Radio transmitter and electronic equipment required for assembly (not included):
● Transmitter (7 channels or more, helicopter system)
● Receiver (7 channels or more)
● 6S Li-Po 4500 ~ 5200 mAh x2
● Digital Pitch Gauge
● Lipo battery charger
