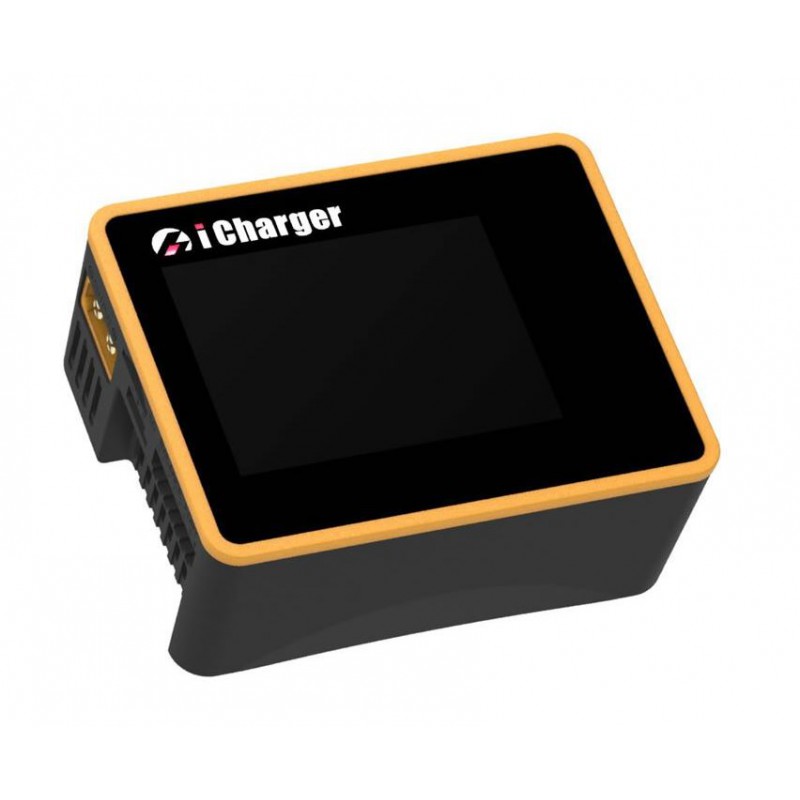

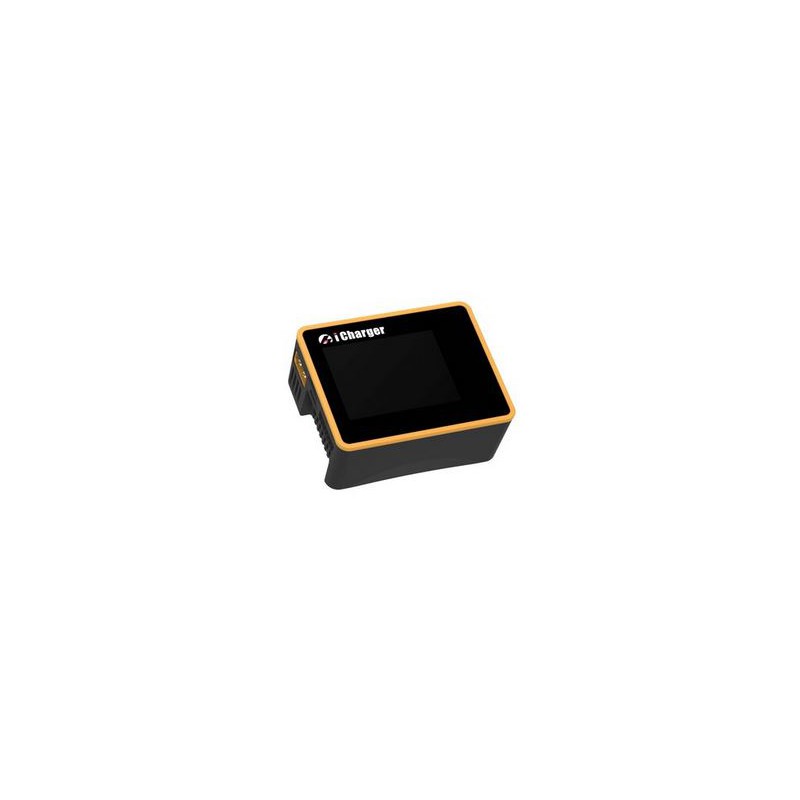

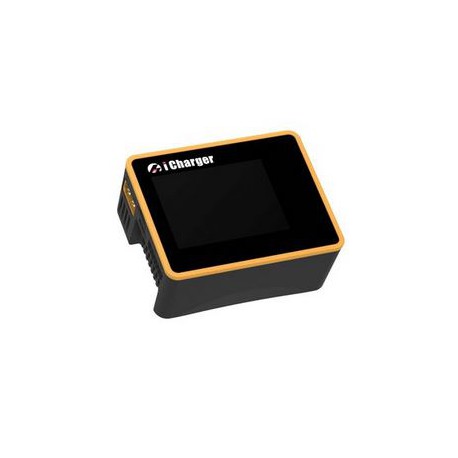

Junsi iCharger X6 800W

JU-X6

New product

The ultra compact DC high power 6S charger from Junsi (800W), high current (30A).

Junsi iCharger X6 : ultra compact 6S 800W 30 amps balance Charger/Discharger

High-performance power conversion circuit for LiPo/Lilo/LiFe/LiHv/LTO/NiHM/NiCd/NiZn and Pb battery charging.

More details

162,15 € tax incl.

More info

Here is the new iCharger X6 ! This is a compact balance Charger/Discharger/DC Power with high power, high current and high-performance power conversion circuit for LiPo, Lilo, LiFe, LiHV, LTO, NiZn, NiHM, NiCd, NiZn and Pb batteries. It has features as below.

The X6 charger offer the same functions and operations as the famous DUO-series products, but it has only one channel.
With digital-power mode for great protection (over-current protection, over-voltage protection, input under-voltage protection, input undercurrent protection, etc.). 2A balance current. Incredible small size and light weight.

Featuring:

X6 uses advanced Synchronous buck boost DC/DC converter technology with high power, high current and high performance power conversion circuit. The maximum charge power capacity is up to 800W, the maximum charge/discharge current of a channel is up to 30 A.

X6 Supports 6s LiPo, Lilo, LiFe, LiHV, LTO and NiZn batteries, with maximum 2A balance current, and adopts a unique balance calculation of internal resistance correction. Supports 1-20s NiMH/NiCd batteries and 1-12s Pb batteries.
With digital power mode for great protection (over-current protection, over-voltage protection, input under-voltage
protection, input undercurrent protection, etc.).
Intelligent fan control. Sensing internal temperature via the internal temperature sensor, to thereby control the fan
speed.

Internal temperature protection. When the internal temperature exceeds the Power Reduce temperature, the output
power is automatically reduced, and the charger will shut down when temperature exceeds the Shut down temperature.

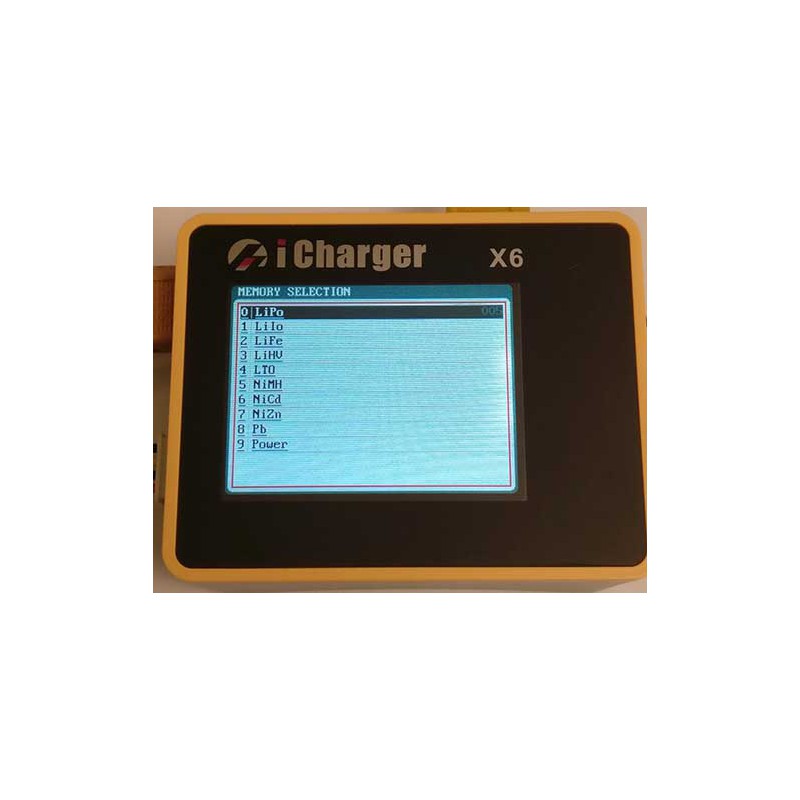

This charger can save 32 parameters sets and support the data import/export to SD card.

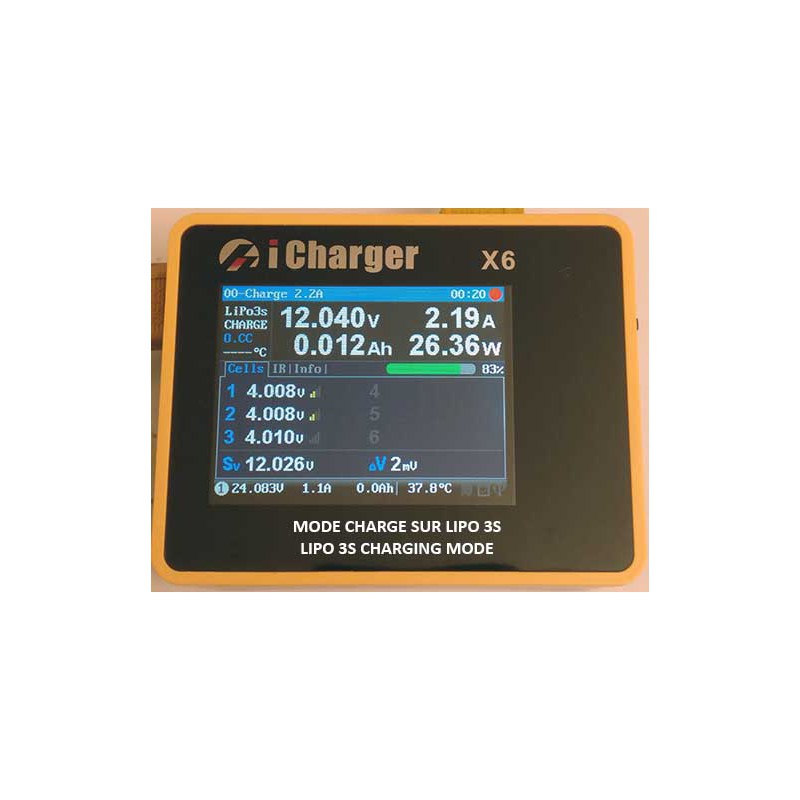

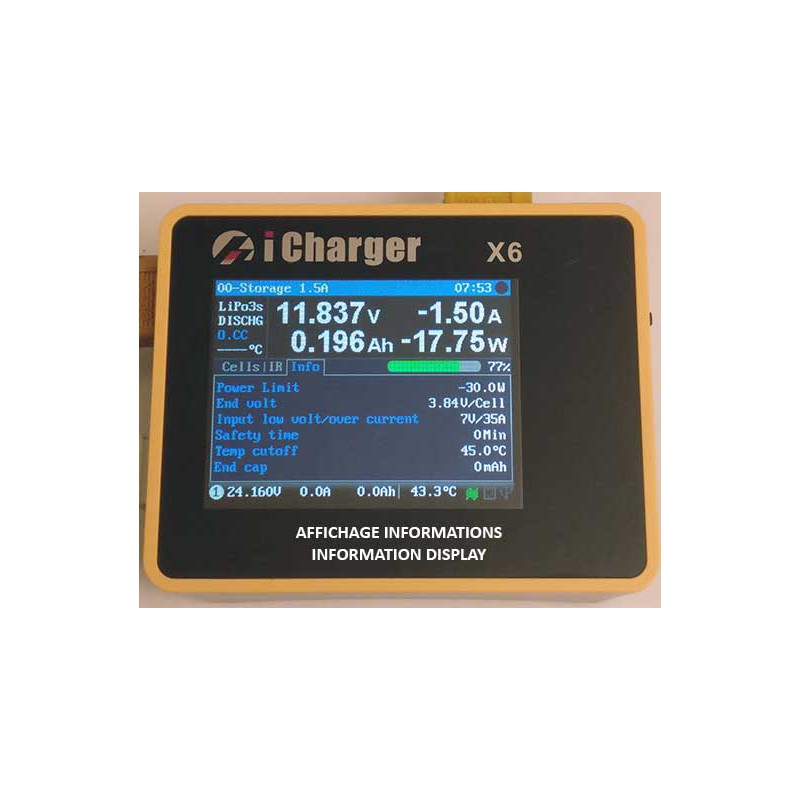

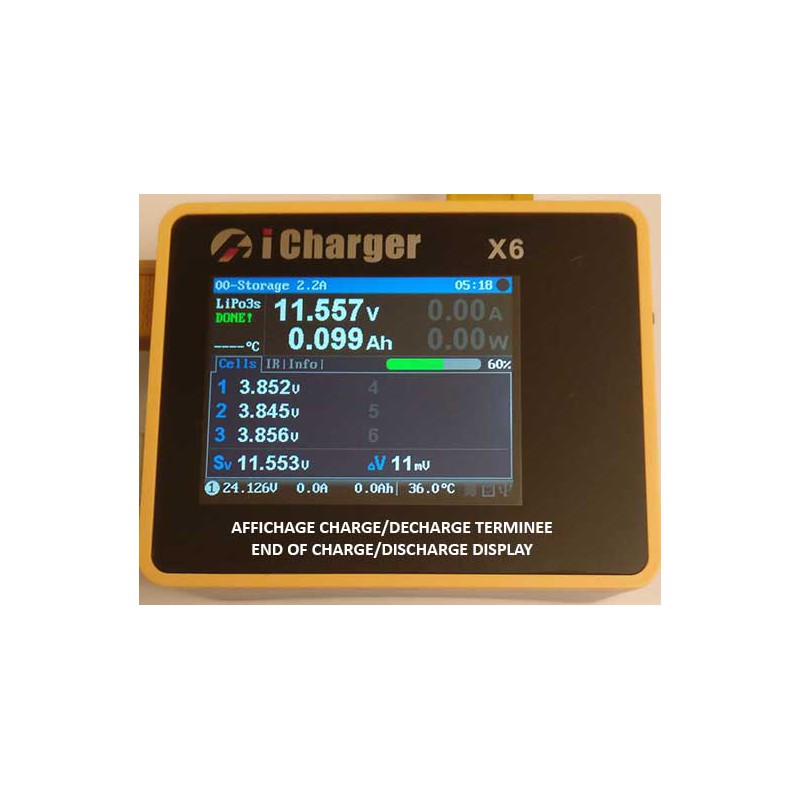

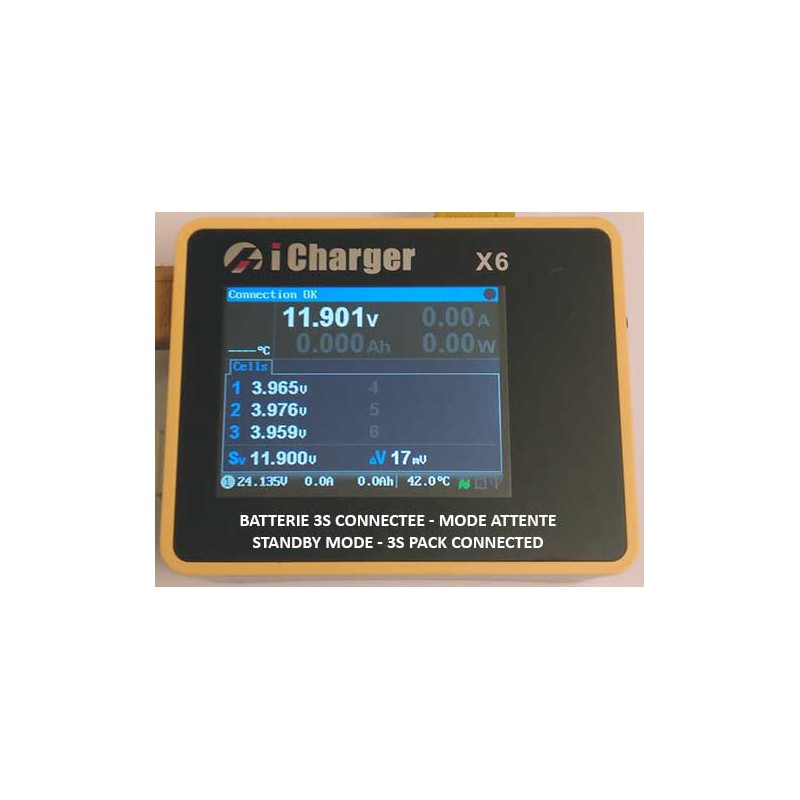

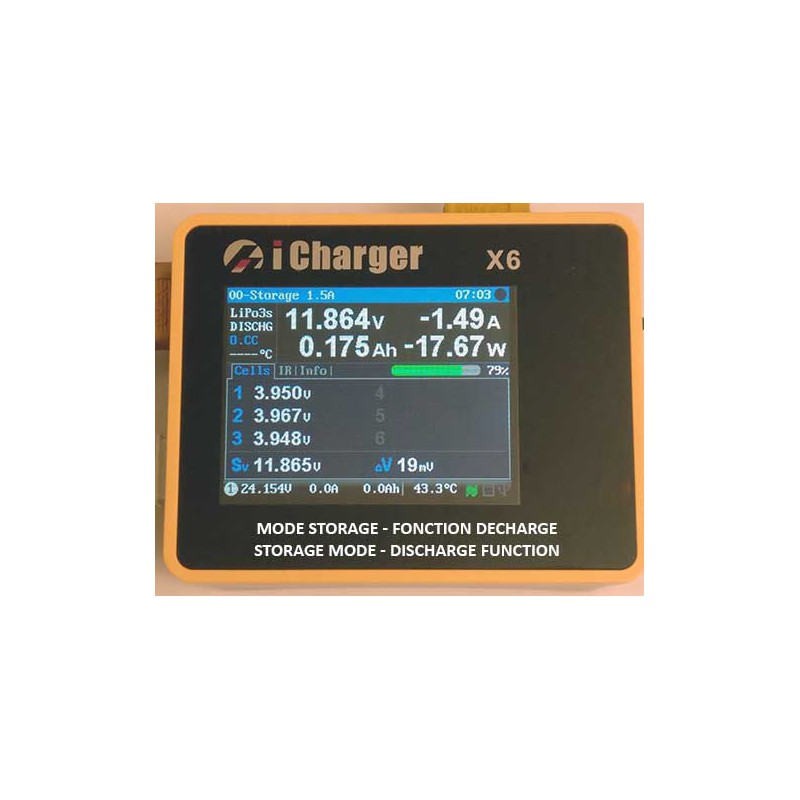

A 2.4" IPS LCD screen provides rich information including current, voltage, power, capacity, internal resistance,
control status, time consuming and temperature, etc.
Multi-discharge features: self-discharge, regenerative to input discharge, and lithium battery extra expanding discharge.

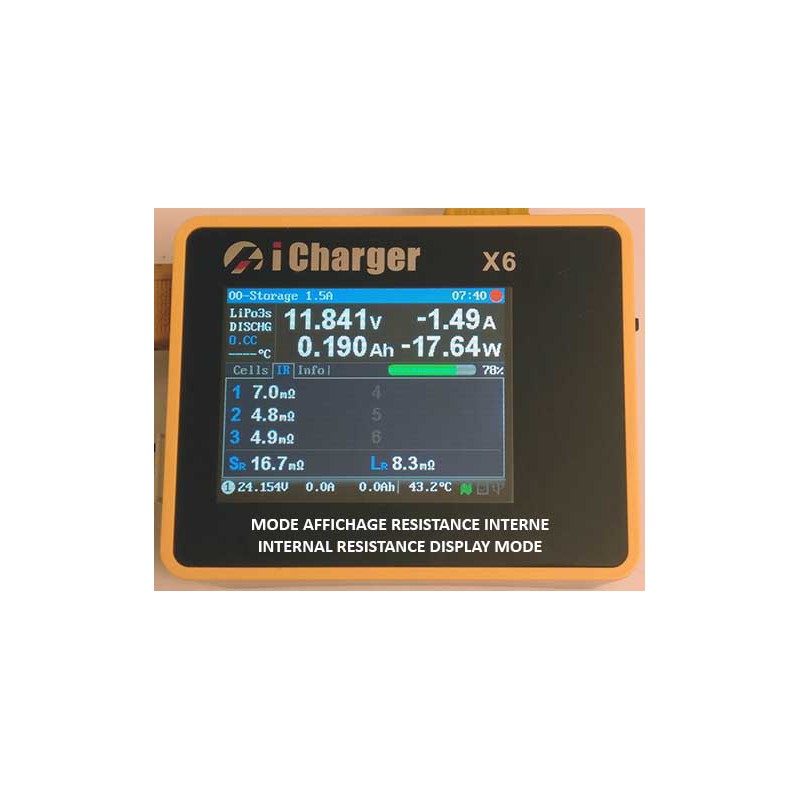

Supports measurement for internal resistance of battery offline and online. Can measure not only the internal resistance of the entire battery pack, but also measure the internal resistance of each cell within the lithium battery.
X6 has protection for reversed polarity (input or output), input voltage/current, battery temperature, charging capacity, overrun time and maximum power etc.
Supports upgrading the hardware program by USB port or SD card. X6 also supports the “Junsi Console” software and can display, plot and analyze the charge and discharge data by it.

Specifications:
  • Input voltage range: 7—32VDC
  • Maximum input current limit: <35A
  • Maximum charge/discharge current: 30A
  • Maximum charge power capacity: 800W
  • Maximum discharge power capacity: 30W
  • Maximum regenerative discharge power capacity: 800W
  • Maximum extra discharge power capacity: 900W @30V/30A
  • Maximum current drain for balancing: >2.0A
  • Display: 2.4 " IPS LCD (320×240)
  • Net weight: 168g
  • Dimension: 83×64.5×37 ±0.5mm

Reviews

Grade
07/07/2019

X6

Trés satisfait. chargeur excellent. Envoi rapide. Merci !

    Grade
    05/11/2019

    x6

    en remplacement d'un Traxxas. Aucun regret, je suis trés satisfait par ce chargeur bien concu.

      Grade
      01/06/2019

      le meilleur

      Junsi au top, comme d'habitude. Très bon chargeur avec beaucoup d'option de charge. Si les alims pouvaient être aussi petites, ce serais le paradis !

      • 1 out of 1 people found this review useful.
      Grade
      12/11/2018

      X6

      Un peu compliqué car beaucoup d'options, mais après quelques cycles d'utilisation, très satisfait par ce chargeur compact.

      • 1 out of 1 people found this review useful.

      Write a review

      Junsi iCharger X6 800W

      Junsi iCharger X6 800W

      The ultra compact DC high power 6S charger from Junsi (800W), high current (30A).

      Junsi iCharger X6 : ultra compact 6S 800W 30 amps balance Charger/Discharger

      High-performance power conversion circuit for LiPo/Lilo/LiFe/LiHv/LTO/NiHM/NiCd/NiZn and Pb battery charging.

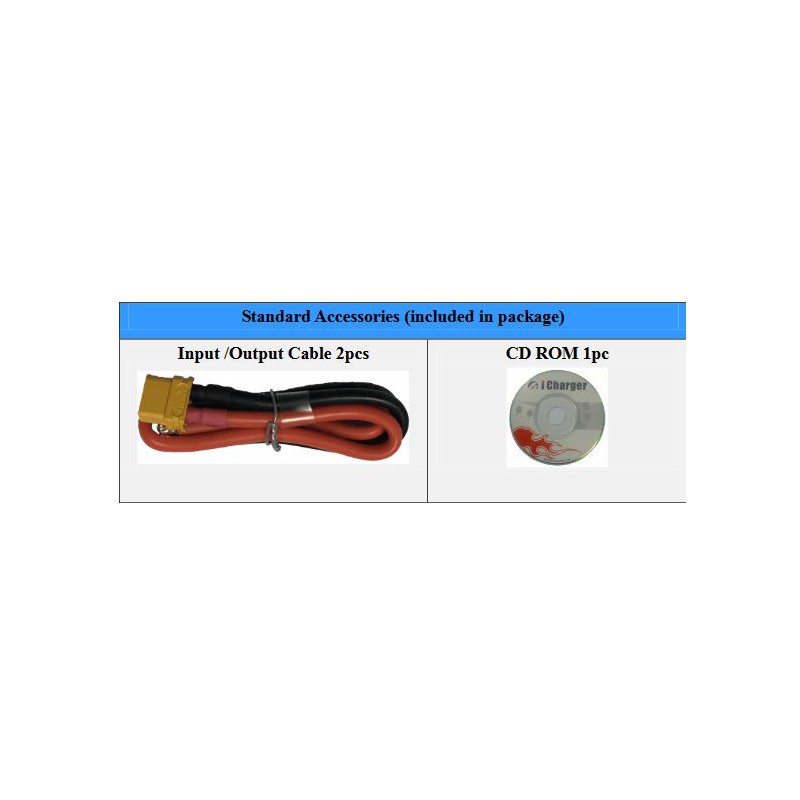

      Accessories
