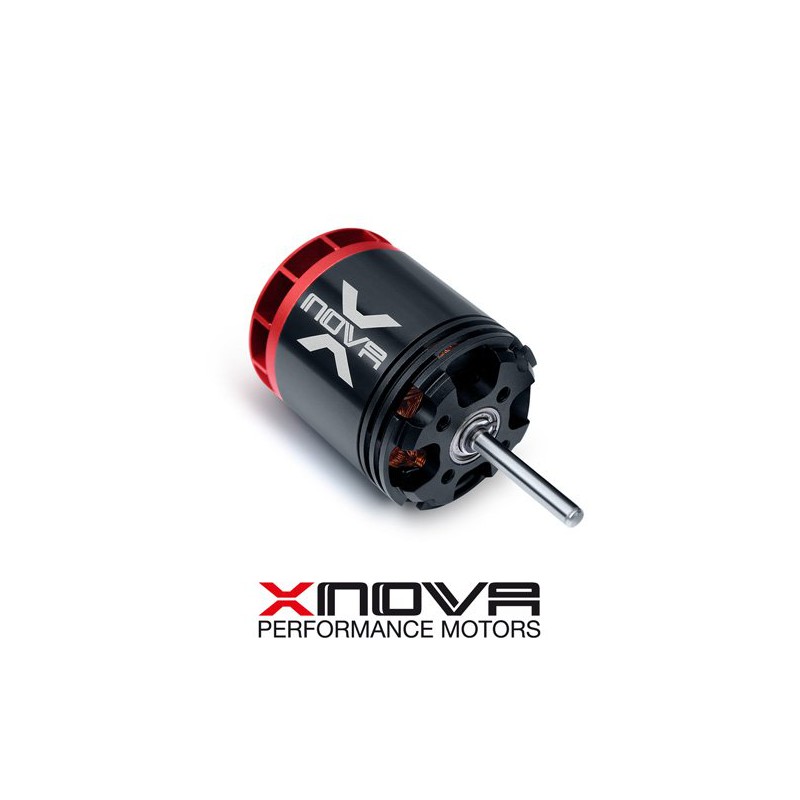

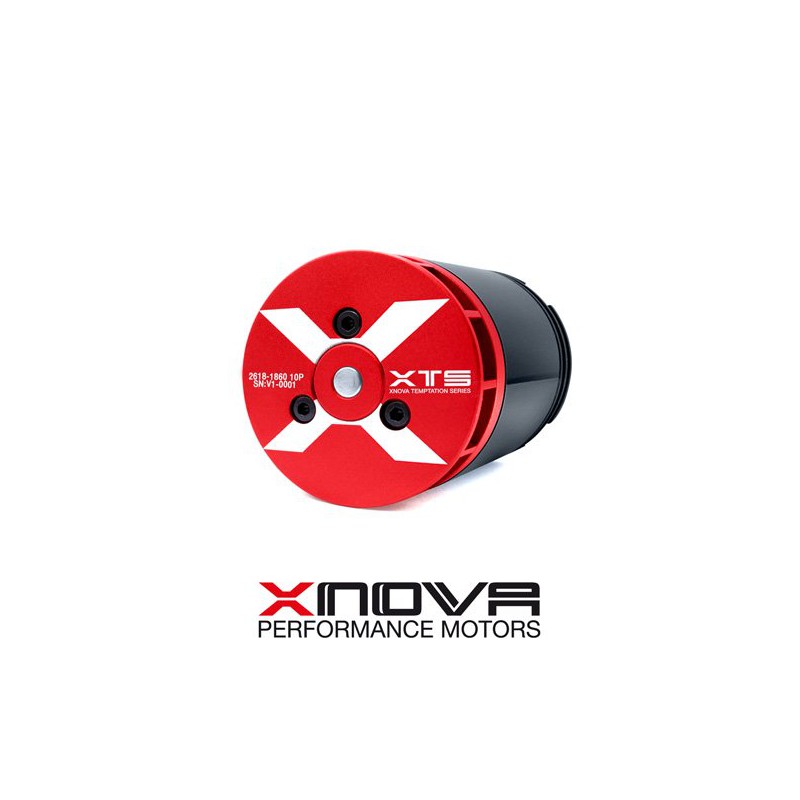

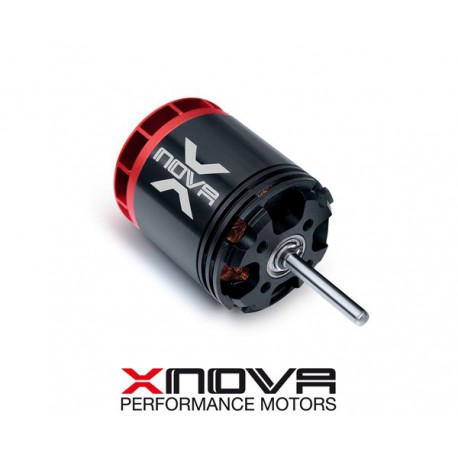

X-NOVA 2618 1860Kv Type A Brushless Motor

Reference: XN2618-1860KV-A

Condition: New product

X-NOVA 2618 1860Kv is a high performance outrunner motor designed for extrem 3D, 320-360mm bladesize helicopter where highest power to weight ratio is important. For T-Rex 450 (or Gaui X3, KDS-CHASE-360).
Type A (3.5mm shaft diameter).

More details

This product is no longer in stock

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Xnova brushless high performance outrunner motor designed for extrem 3D, 320-360mm bladesize helicopter where highest power to weight ratio is important. Gaui X3, KDS-CHASE-360, T-rex 450 , (at some type of helicopter small frame modifications may be necessary).

High quality Neodym Magnets. Heat resistant up to 150 degrees C.
Specialized wires,heat resistant up to 250 degrees C.
Precisely balanced.
High performance sheet metal stator.
High quality NMB bearings.
Market leading effiency up to 88%.
Cooler running.
Superb quality and machining of CNC parts.
Improved torque and power output.

Specifications:

Slots & Poles	12n10p
Winding T	10D
rpm/V	1860
Volt (V)	10 / 22.2
Io(A)	2.5 / 4.2
Rm (mohm)	15
Weight (without connector) (g)	110
Body Length (no shaft) mm	38.1
Diameter (mm)	33

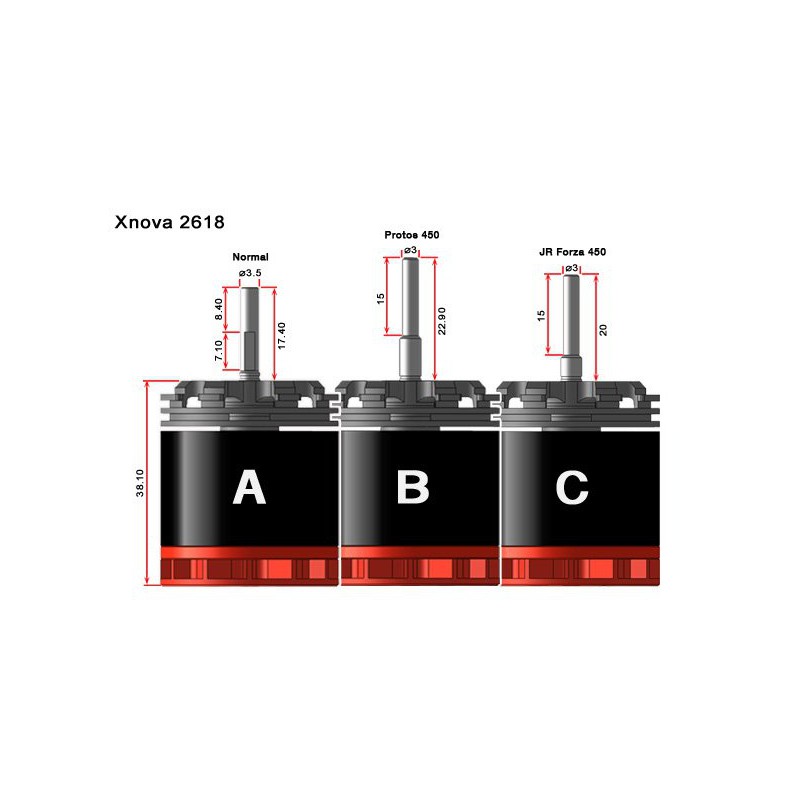

Shaft Length (mm) (Details pictures)	A=17,4 / B=22.9
Shaft Dia. (mm)	A=3.5 / B=3
Mounting Holes CTC Distance (mm)	192 & 162
Mounting Screw	M3x0.5
Max Eff. Curr.	40.82 / 78.84
Max Eff.	87.75 / 89.35
Kt (Nm/A	0.0051
Km (Nm/sqrt(w))	0.0419
Max Continuous Power(Watts)	900
Peak Continuous Power(Watts) (2 sec)	1200
Max Continuous Current(Amps)	45
