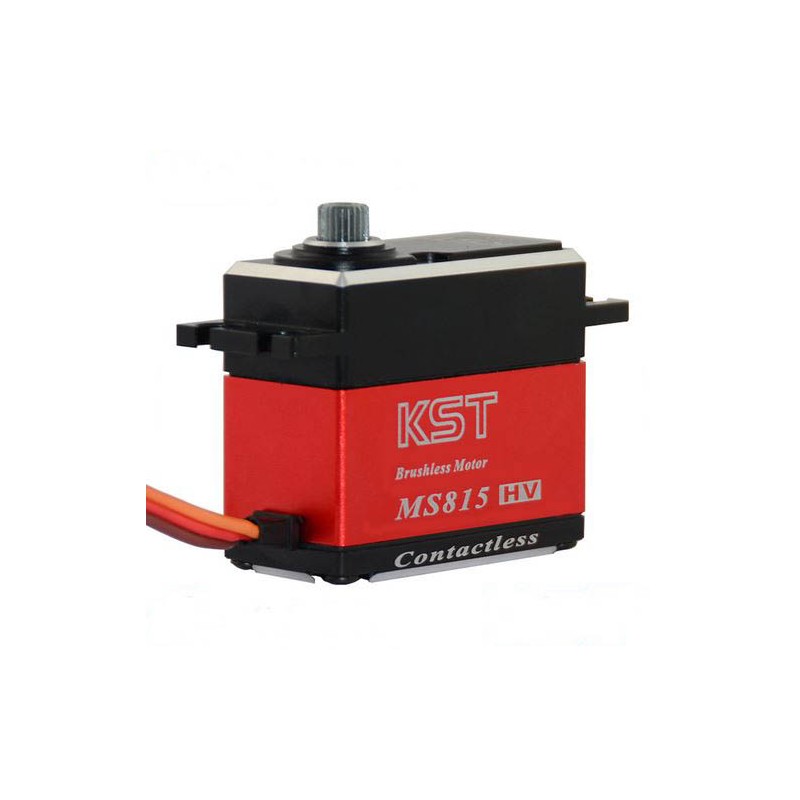

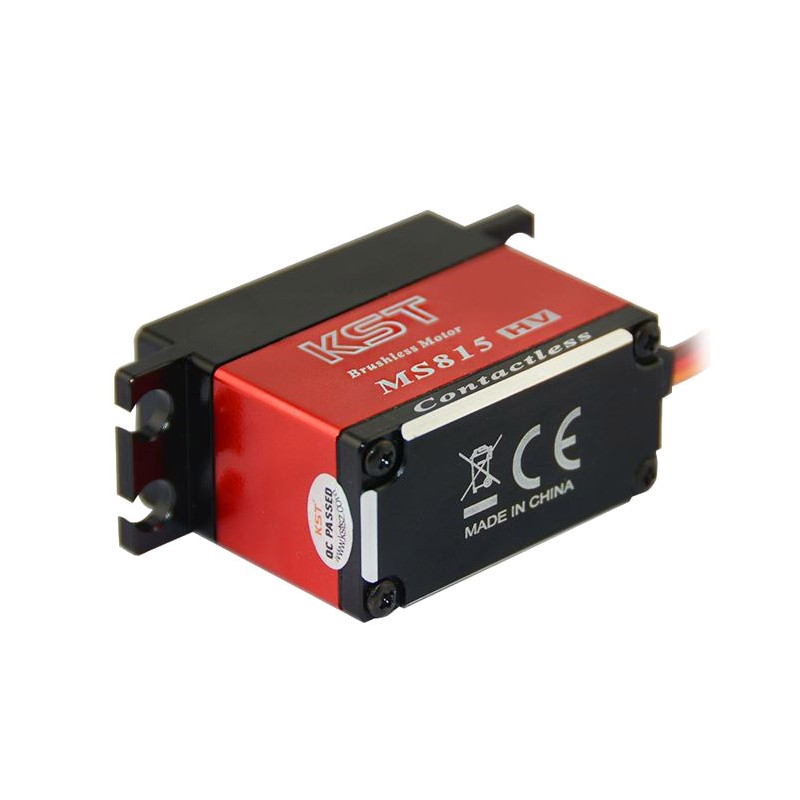

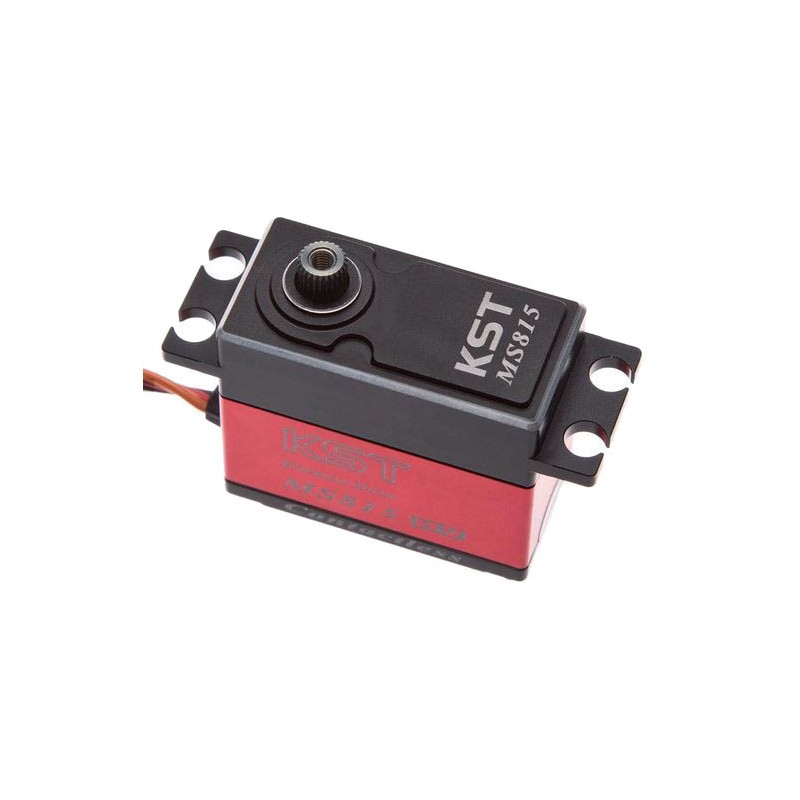

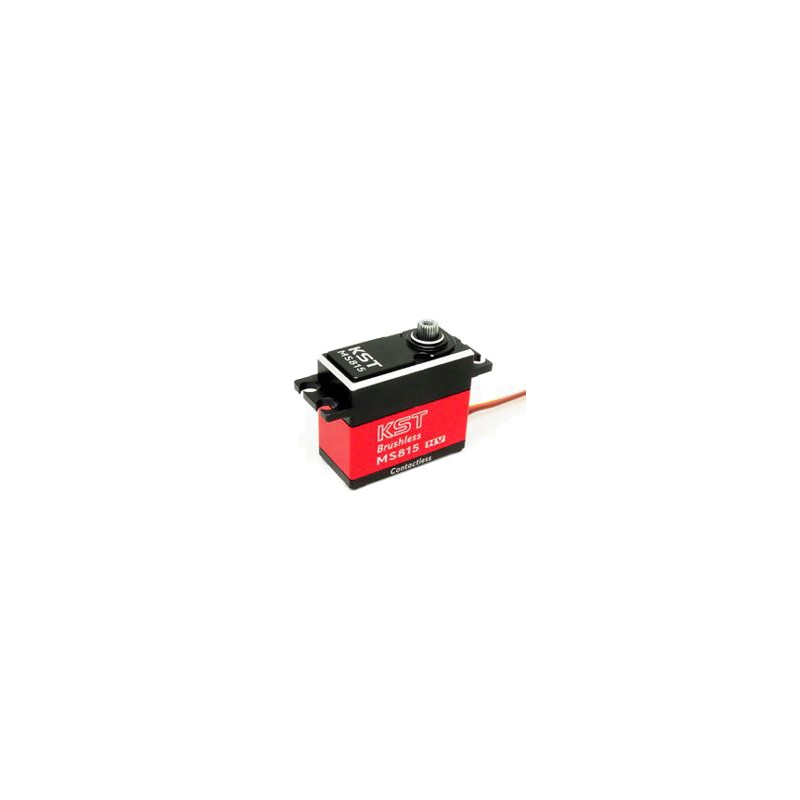

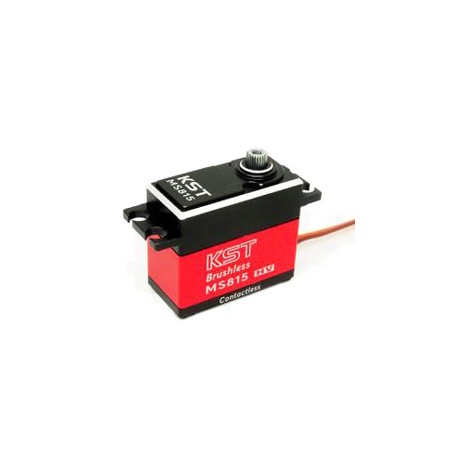

KST MS815 V8 Digital HV Standard Servo

KSTMS815V8

New product

KST MS815 V8: high performance digital HV Standard servo - Magnetic contactless position sensor - Brushless motor - Dual ball bearing

Designed for Class 550/700 swashplate use.

More details

86,89 € tax incl.

More info

KST is a high-end servo manufacturer. It is among the first companies to have developed electronic chips for brushless servos in the world.
Today, KST is one of the industry's two leading suppliers of brusless servo chips and remains a leader in this technology field by providing new designs and OEM equipment for the entire servo industry.
Most KST coreless servos use electric motors from Adamant Namiki japanese manufacturer, developed with KST.
The reliability and extreme performance of KST servos make them very suitable for use in areas as different as the special effects of the film industry, robotics, professional drones, university research, military equipment and other demanding applications.

KST MS series: forget potentiometers and neutral erratic returns. Hall effect sensors take place ! The new KST MS815 Digital Servo is equipped with a wear-free magnetic positioning system.

The KST MS815 V8 is ideal for Class 550/700 radio controlled helicopters as swashplate (cyclic) servo where fast and precise control is required.

Specifications:

Operation voltage: 6 to 8,4 Volts DC
Speed: 0,09 s/60° (6,0 V) - 0,08 s/60° (7,4 V) - 0,07 s/60° (8,4 V)
Torque: 15 kg/cm (6,0 V) - 18 kg/cm (7,4 V) - 20 kg/cm (8,4 V)
Frequency: 1520µs / 333 Hz
Motor: Brushless
Ball Bearing: 2BB
Position sensor type: magnetic

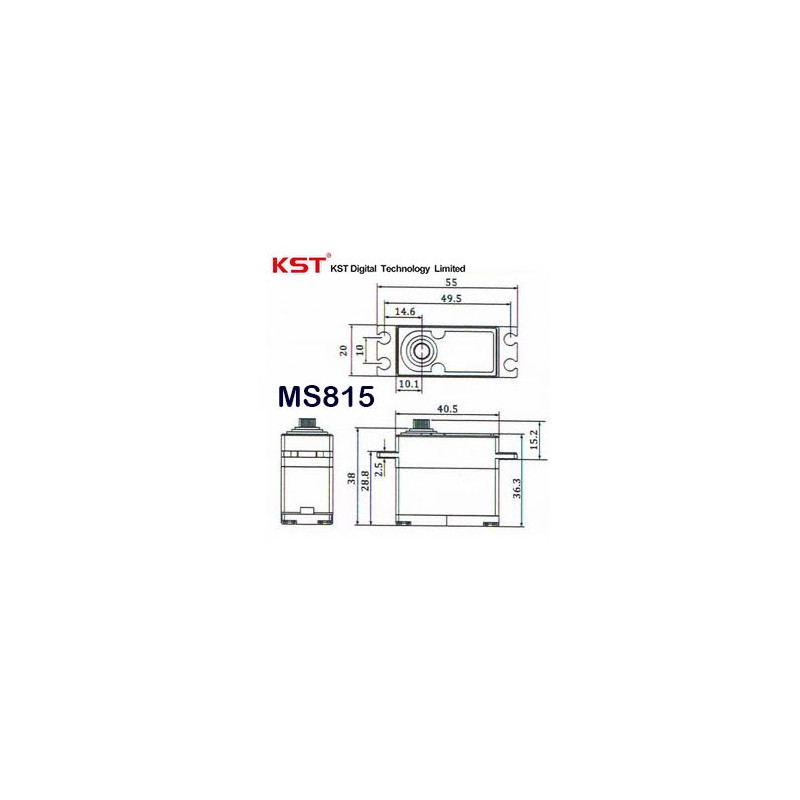

Size: 40.5x20x38mm
Weight: 69g

Reviews

No customer reviews for the moment.

Write a review

KST MS815 V8 Digital HV Standard Servo

KST MS815 V8 Digital HV Standard Servo

KST MS815 V8: high performance digital HV Standard servo - Magnetic contactless position sensor - Brushless motor - Dual ball bearing

Designed for Class 550/700 swashplate use.
