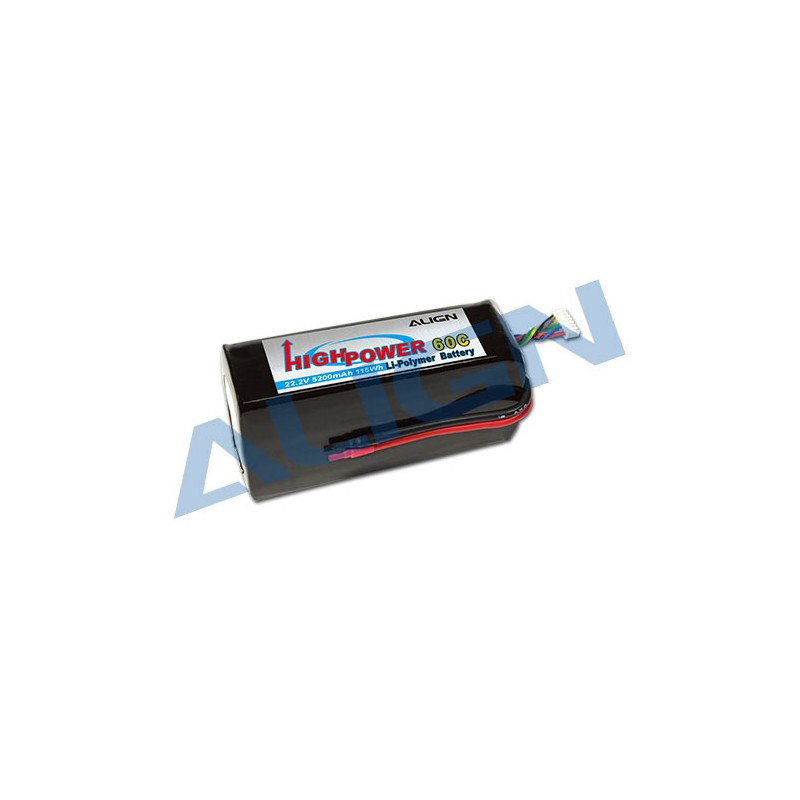

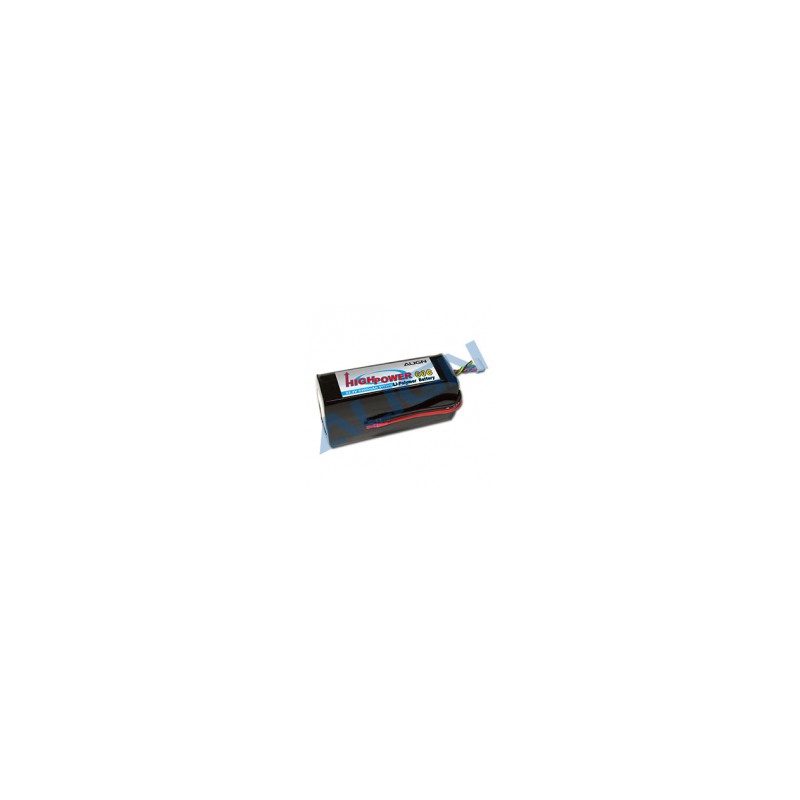

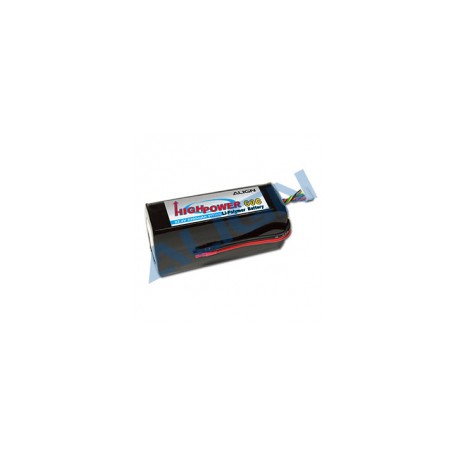

Align 5200 mAh 6S1P 60C Lipo Battery (HBP52004)

HBP52004

New product

Align 5200 mAh 22,2V 6S1P 60C Lipo battery

For Align T-Rex 550 to T-Rex 800 rc helicopter.

More details

3 days delay

159,50 € tax incl.

More info

5200 mAh 22,2 Volts 6S1P 60C Align Lipo battery. A soft LiPo battery flight pack for Align T-Rex 550 to T-Rex 800 RC helicopters.

● These high discharge lithium polymer batteries are designed to maintain performance in series configuration, and can be charged individually through balancing plug. The extreme high capacity are catered specifically for applications requiring longest flight duration, Suitable for T-REX 550 to T-REX 800 extreme maneuver flight needed.
● Max Continuous Discharge: 60C. Normal operating temperature is approx. 40-65°C(within 80% of rated discharge). Max. temperature: 80°C.
● Recommend to discharge the battery within 80% of rated discharge, keep 95% capacity when over 100 cycles, keep 90% capacity when over 150 cycles.(The cycle life and efficiency will reduce due to high current, high temperature and over-discharge)

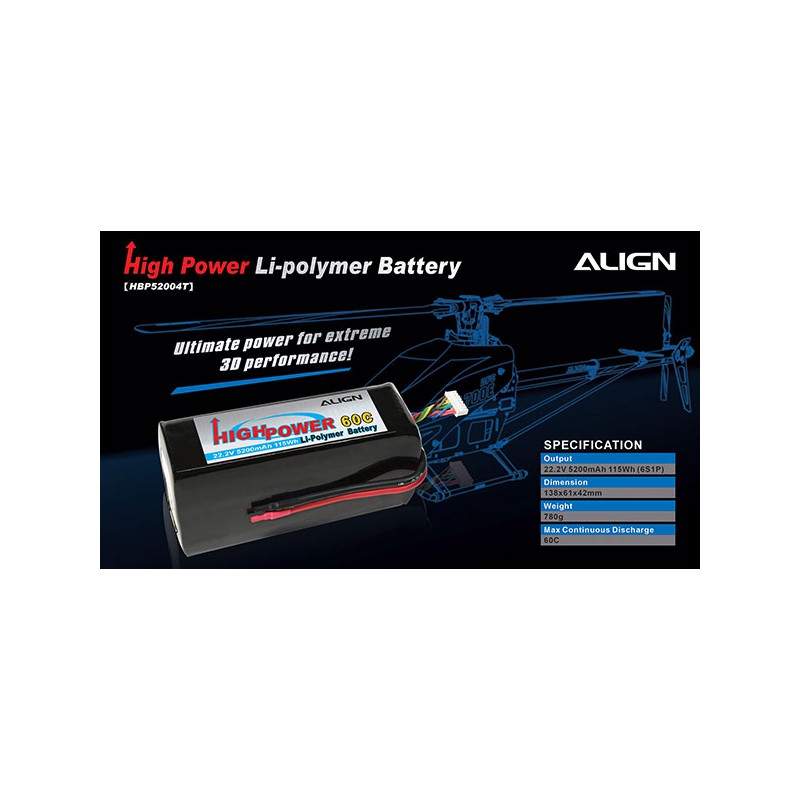

Specifications:

● Output: 22.2V 5200mAh 115Wh (6S1P)
● Dimension:138x61x42mm
● Weight:780g (Not including connectors)
● Max Continuous Discharge: 60C
● Using 10AWG wire,thermal resistance:200°C, max continuous current 140A.
● Support 5C charging (Charging error could result in battery explosion, fire, and other unexpected danger or property loss. Please always charge batteries with equipment in sight, do not leave charger unattended. Should you need to leave the charging area, please remove the battery and abort charging process.)

Please read this "Lipo Batt Warning" before use.
