KST MS565 V8 Digital HV Mini Servo

KST is a high-end servo manufacturer. It is among the first companies to have developed electronic chips for brushless servos in the world. Today, KST is one of the industry's two leading suppliers of brusless servo chips and remains a leader in this technology field by providing new designs and OEM equipment for the entire servo industry.
Most KST coreless servos use electric motors from Adamant Namiki japanese manufacturer, developed with KST.

The reliability and extreme performance of KST servos make them very suitable for use in areas as different as the special effects of the film industry, robotics, professional drones, university research, military equipment and other demanding applications.

KST MS series: forget potentiometers and neutral erratic returns. Hall effect sensors take place !

The new KST MS565 V8 Digital Servo is equipped with a wear-free magnetic positioning system.

The KST MS565 V8 is ideal for Class 500 radio controlled helicopters as tail servo where fast and precise control is required.

Specifications:

Operation voltage: 6 to 8,4 Volts DC
Speed: 0,05 s/60° (6,0 V) - 0,04 s/60° (7,4 V) - 0,035 s/60° (8,4 V)
Torque: 4,2 kg/cm (6,0 V) - 5,5 kg/cm (7,4 V) - 6.5 kg/cm (8,4 V)
Frequency: 760µs / 560 Hz
Motor: Coreless
Ball Bearing: 2BB
Position sensor type: magnetic

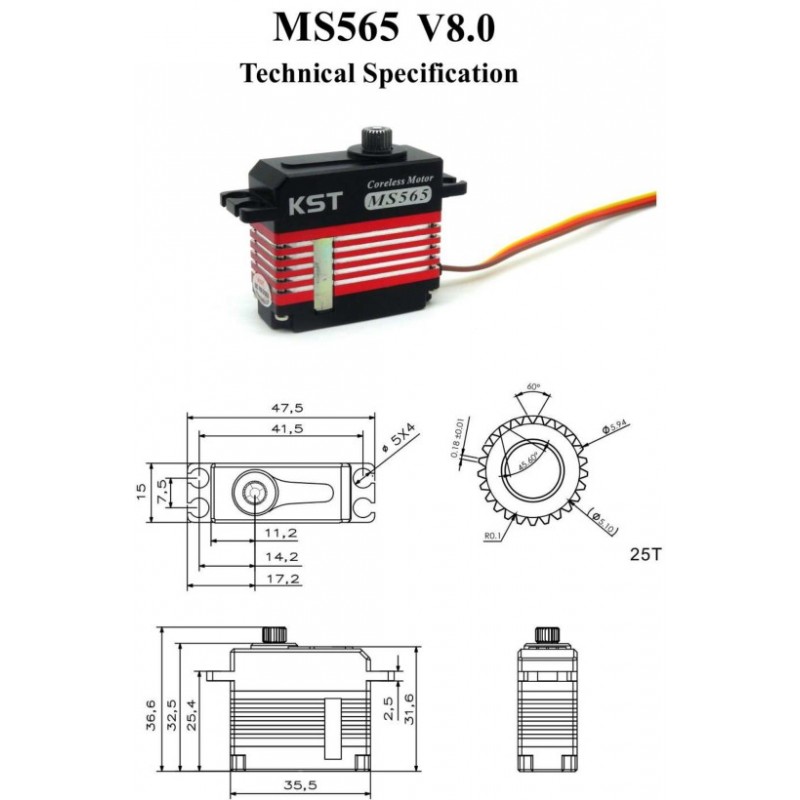

Size: 35.5x15x32.5mm
Weight: 38g
